Toyota C-hr (TUP)

2017-02 → present · chassis ZGX10 · catalogue 528410 · United States

Supported model Data version 2019-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

5 part groups · 1 illustrations

Illustrations

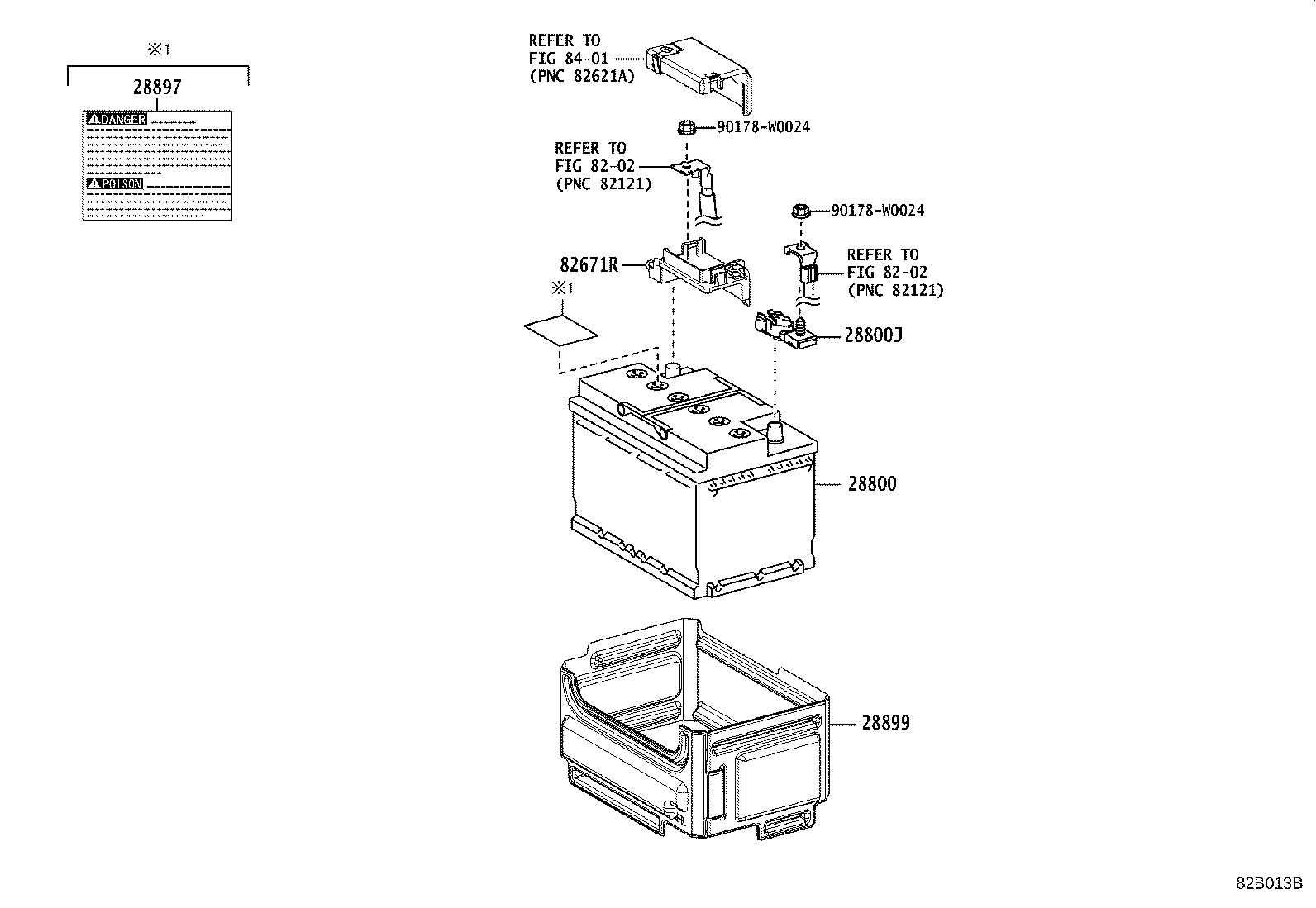

Figure 82B013B

82B013B 2017-02 → —

Part groups

PNC	Description
28800	Battery
28800J	Terminal, Battery Negative
28897	Plate, Battery Caution
28899	Insulator, Battery
82671R	Stopper, Battery Terminal

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
