Toyota C-hr (TUP)
2017-02 → present · chassis ZGX10 · catalogue 528410 · United States
Supported model
Data version 2019-09

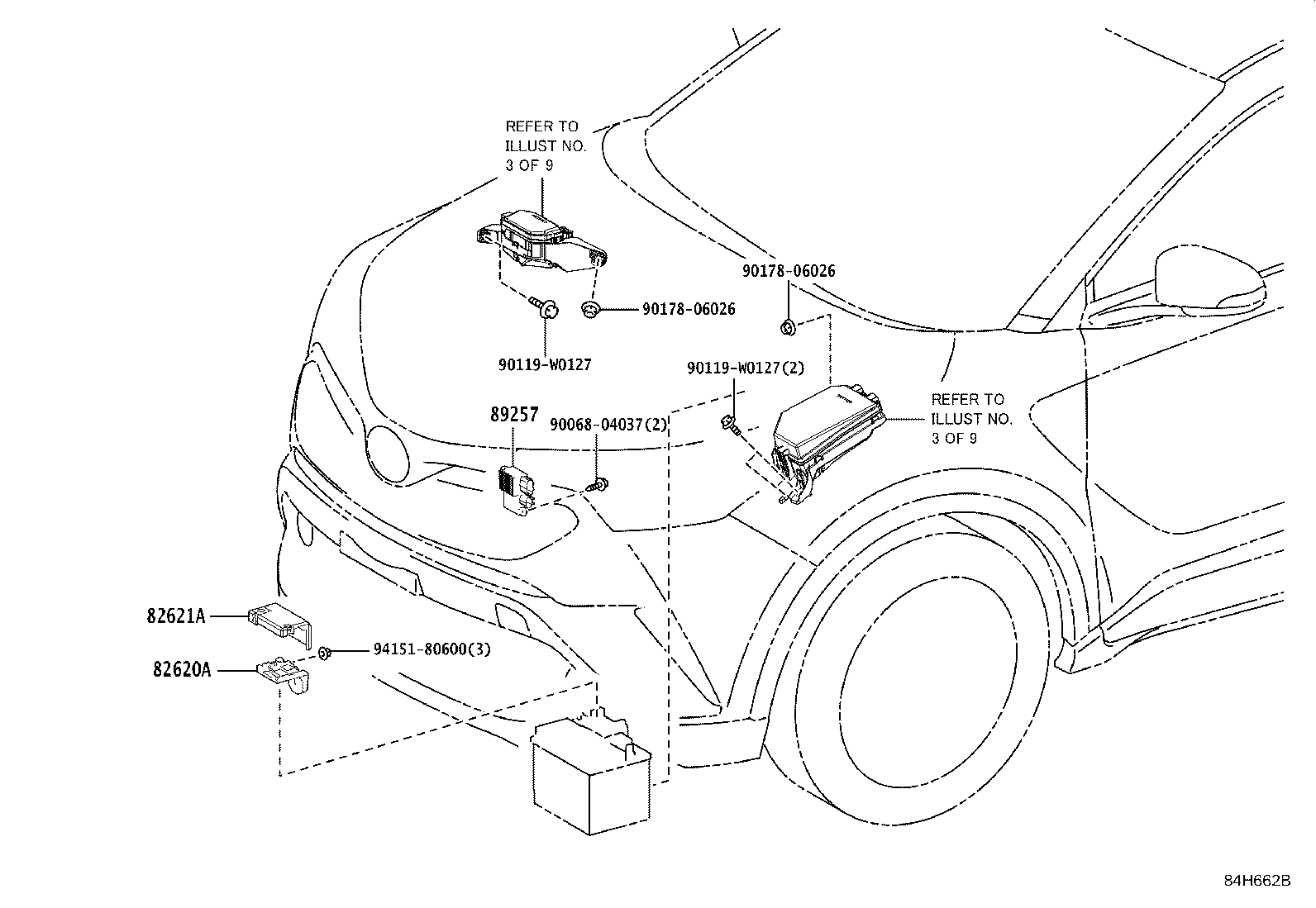

Switch & Relay & Computer
88 part groups · 9 illustrations
Part groups

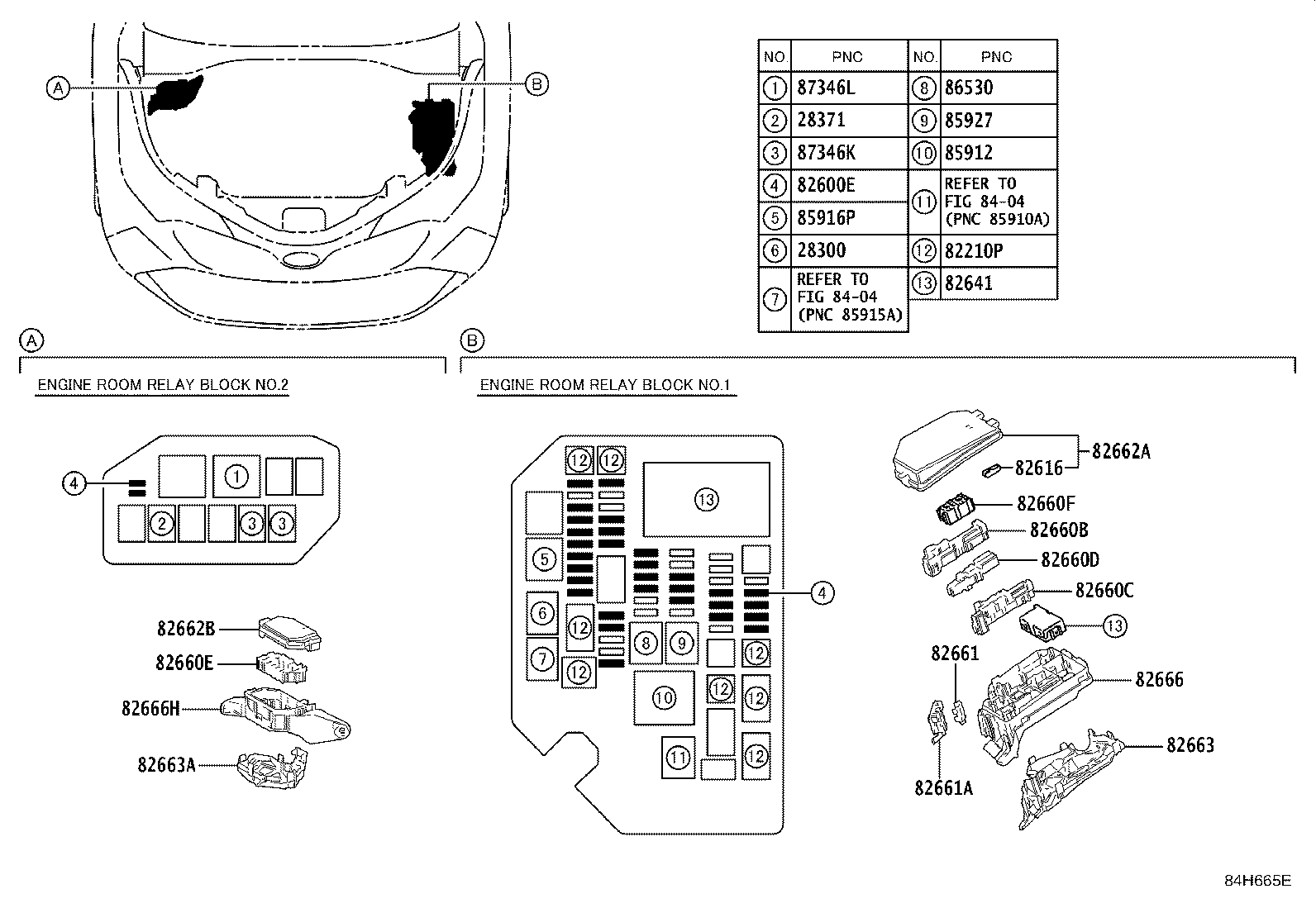

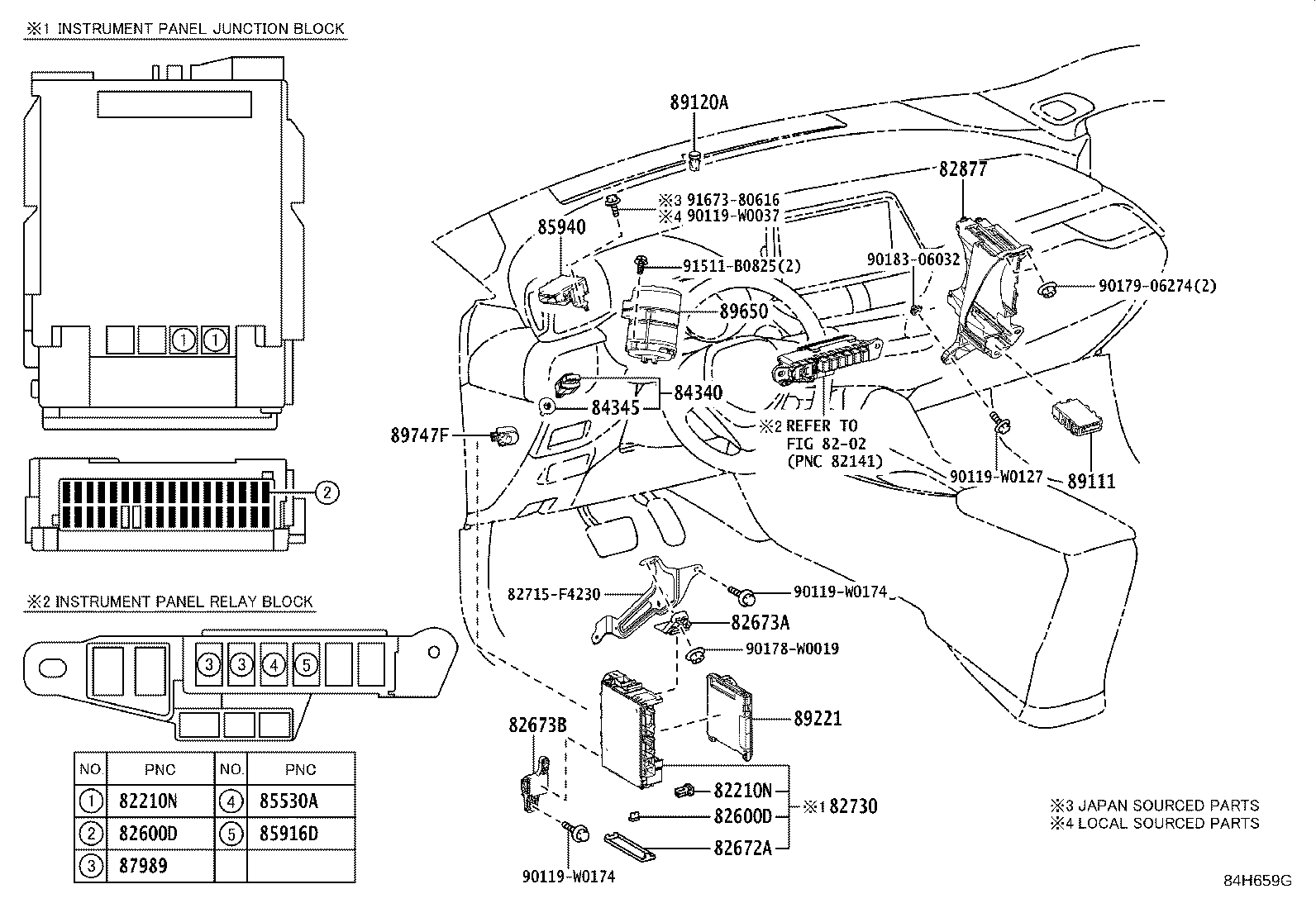

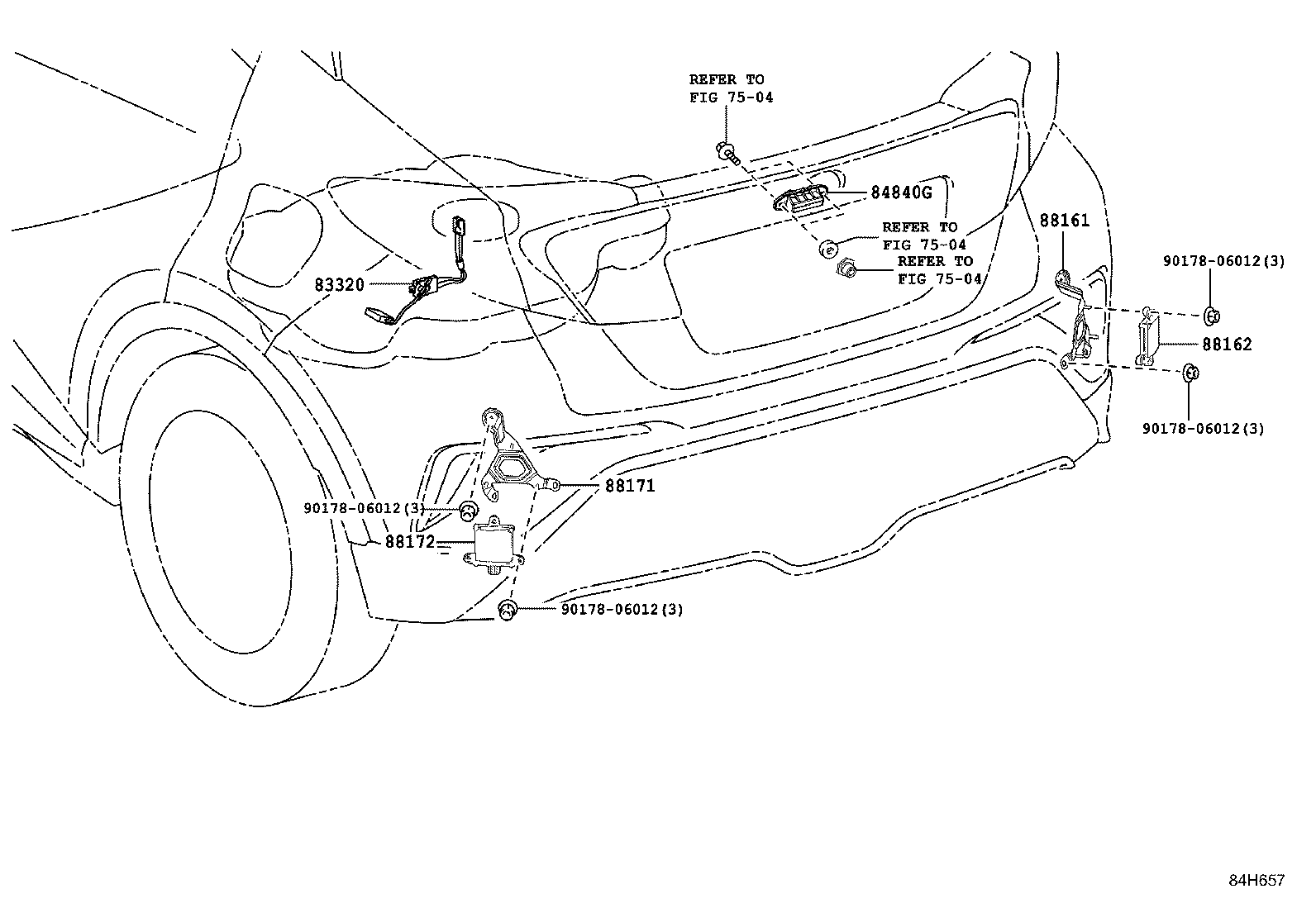

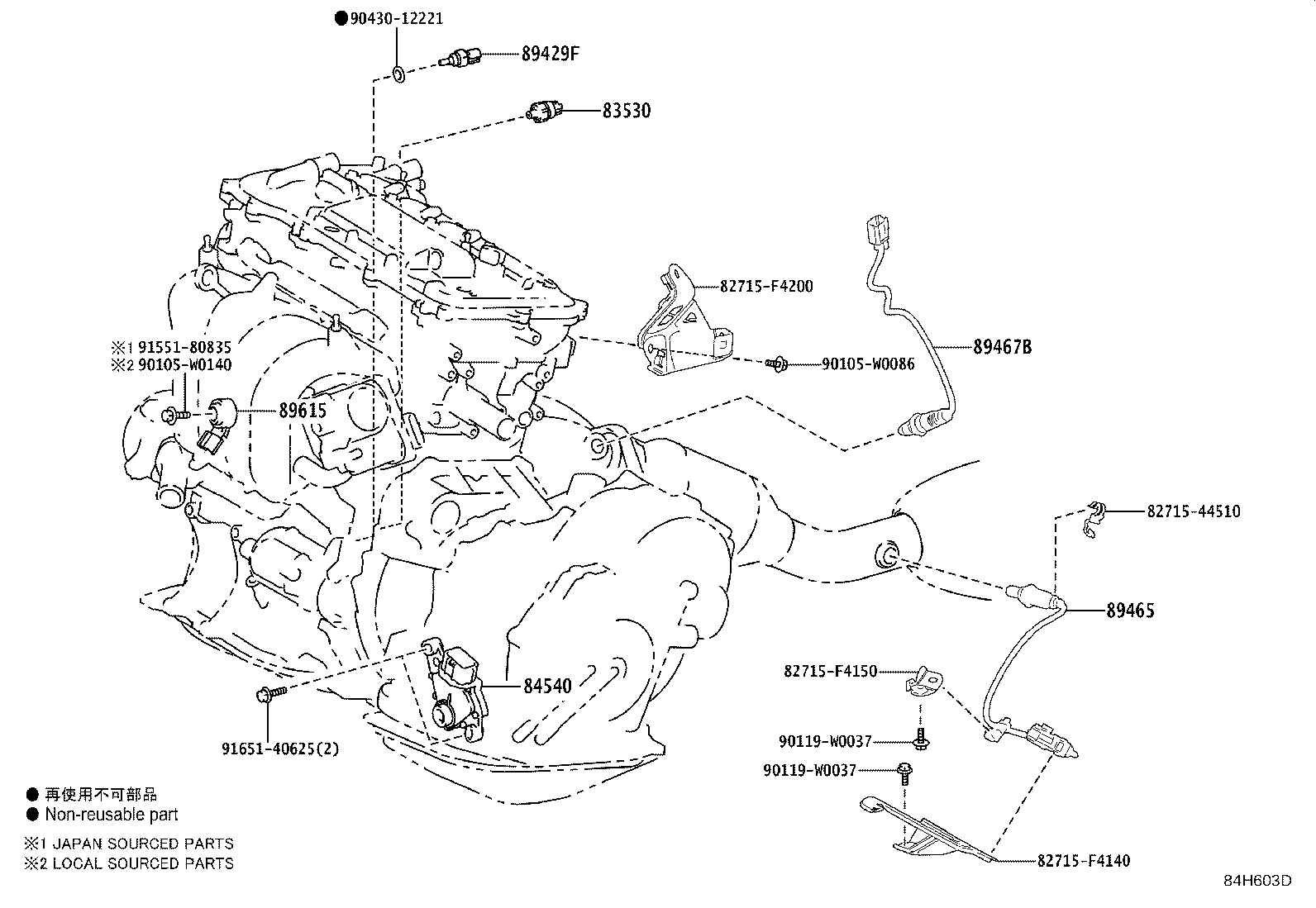

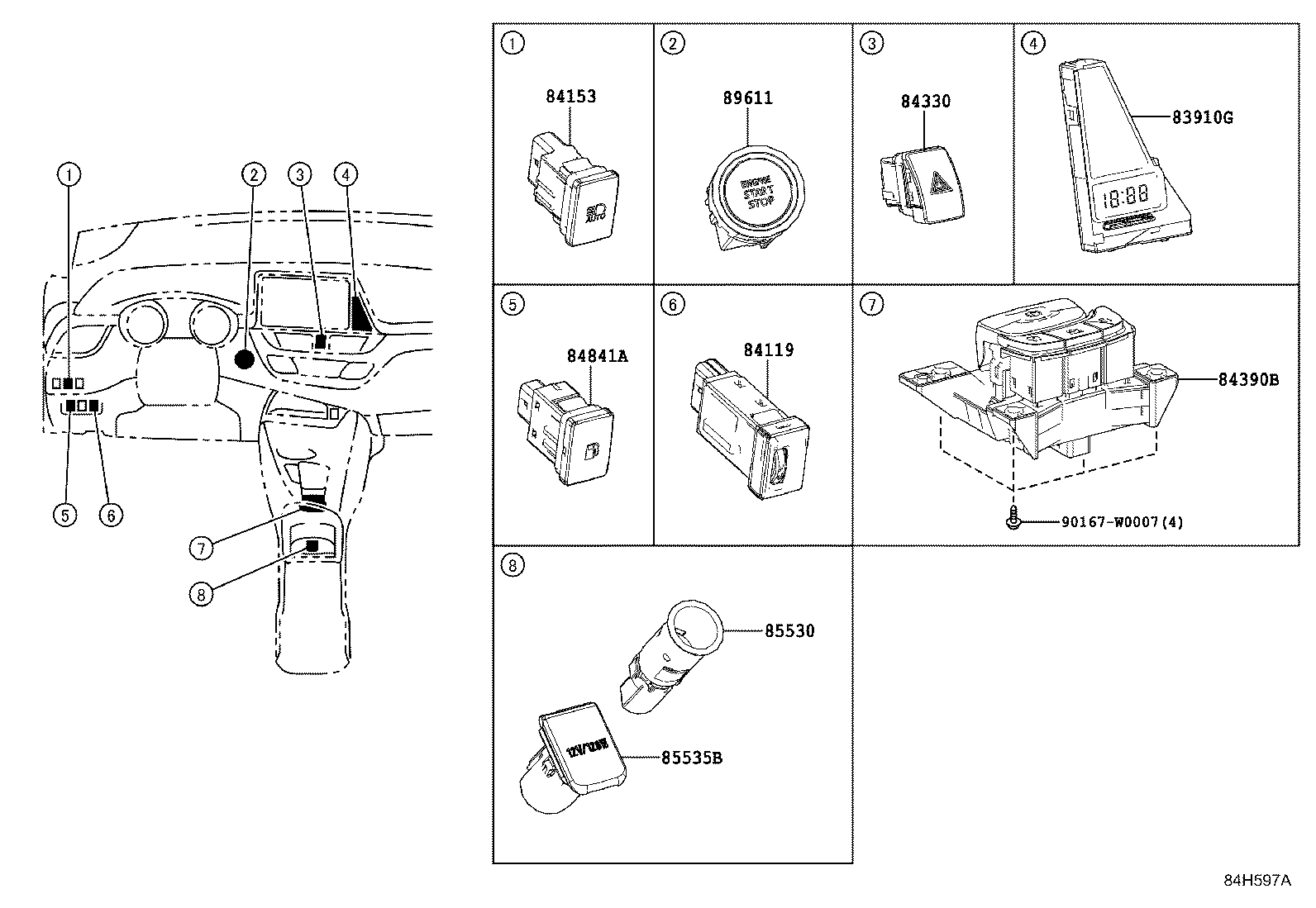

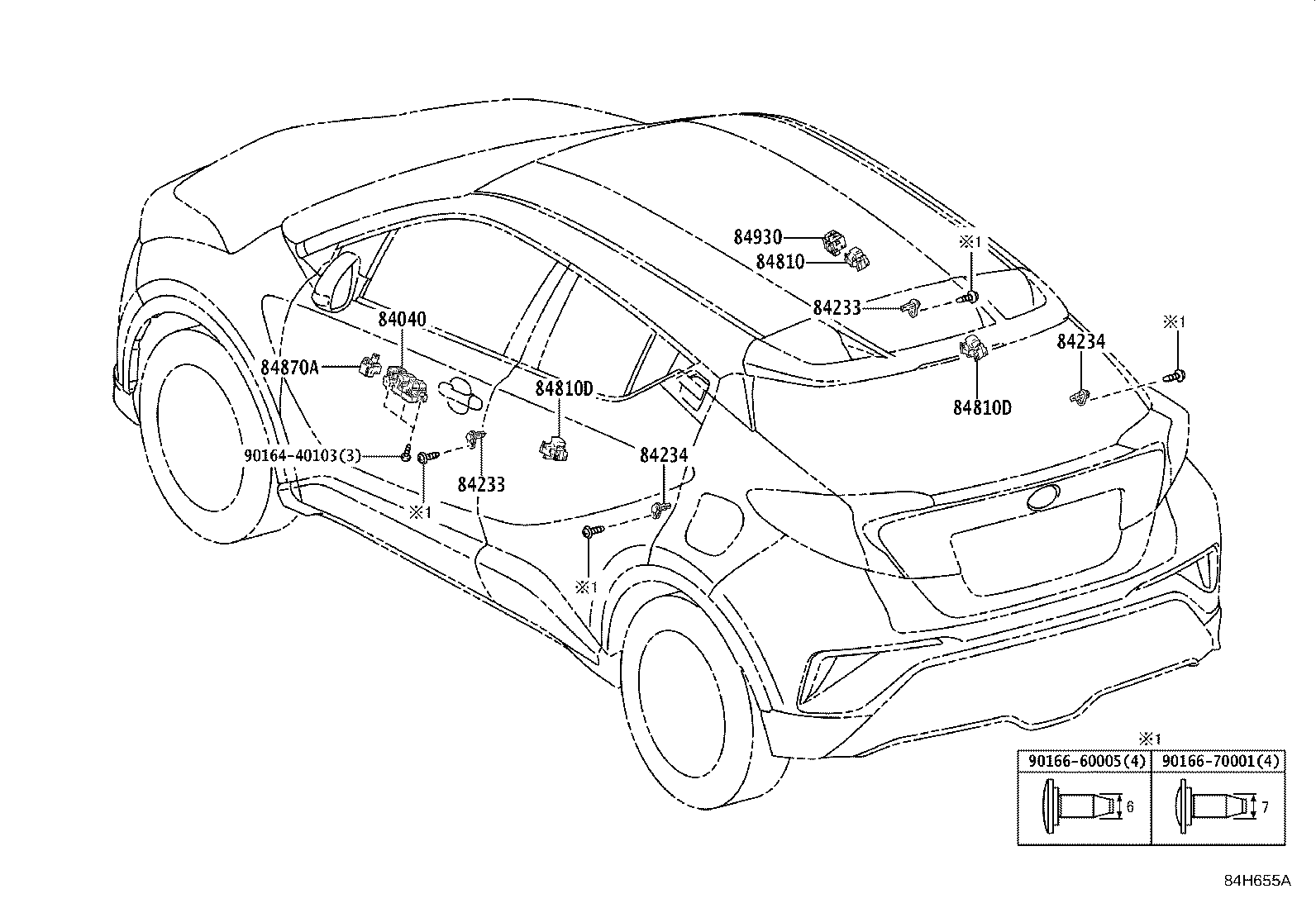

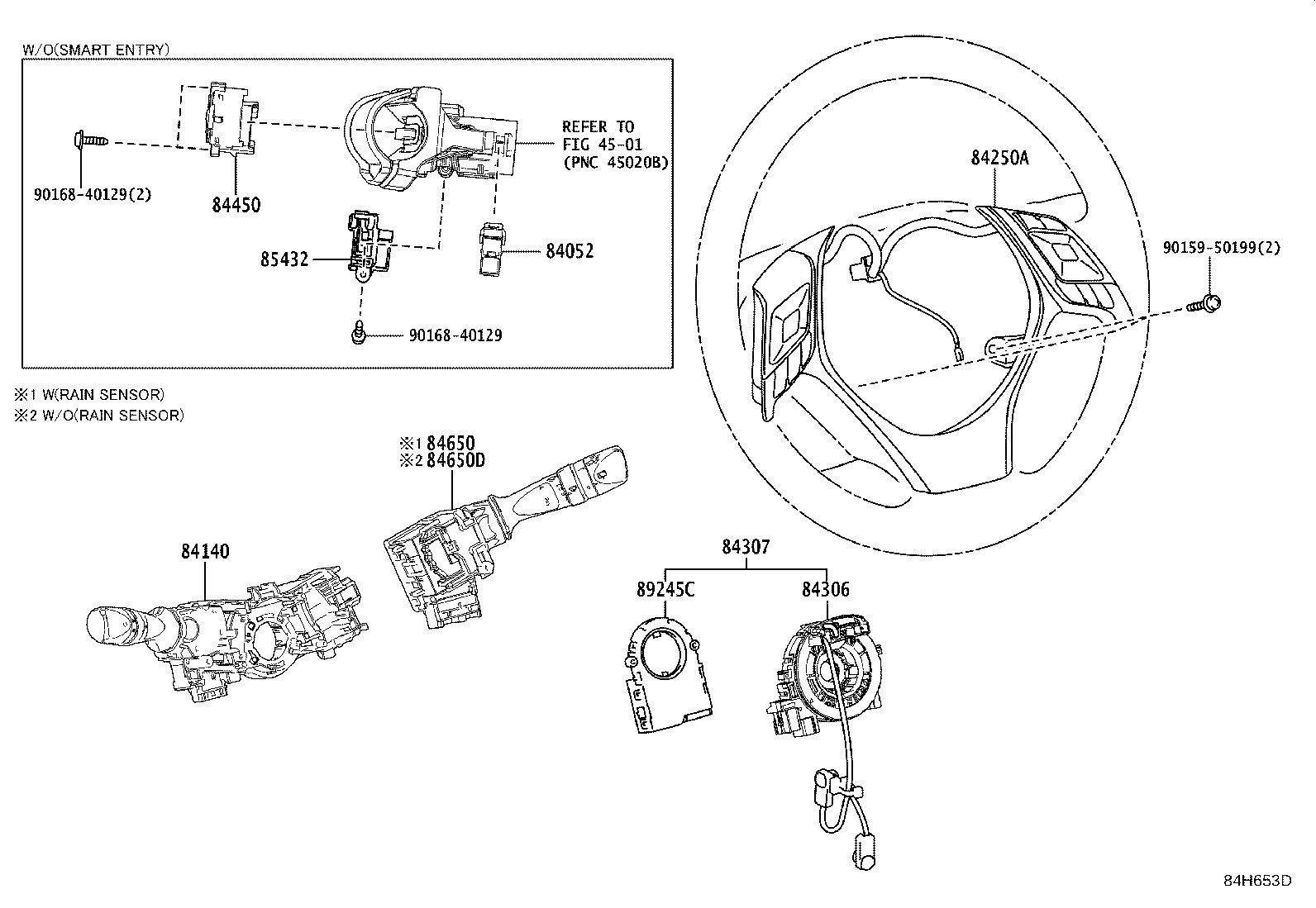

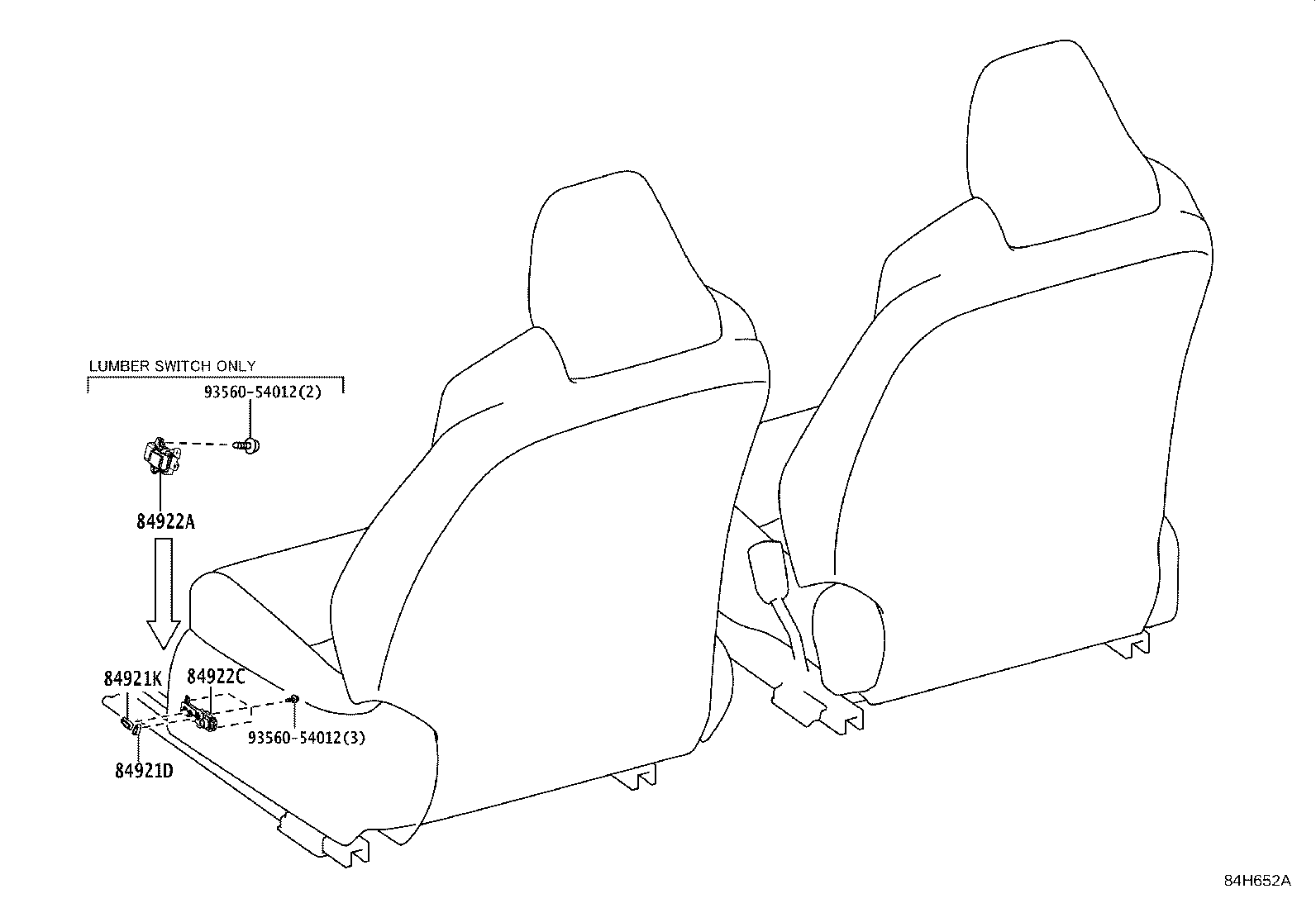

| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371 | Relay, Ignition, NO.1 |
| 82210N | Instrument Panel Fusible Link |
| 82210P | Engine Room Fusible Link |
| 82600D | Instrument Panel Fuse |
| 82600E | Engine Room Fuse |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82621A | Cover, Fusible Link |
| 82641 | Relay, Integration NO.1 |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82660E | Block Assy, Relay |
| 82660F | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82661A | Cover, Relay Block, NO.2 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82666 | Holder, Connector |
| 82666H | Holder, Connector, NO.2 |
| 82672A | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82730 | Block Assy, Instrument Panel Junction |
| 82877 | Box, Computer Integration, RH |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83910G | Clock Assy |
| 84040 | Master Switch Assy,Multiplex Network |
| 84052 | Switch Assy, Un-lock Warning |
| 84119 | Rheostat, Light Control |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84153 | Switch, Auto High Beam |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84250A | Switch Assy, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |
| 84307 | Cable Sub-assy, Spiral W/Sensor |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84390B | Switch Assy, Electric Parking Brake |
| 84450 | Switch Assy, Ignition OR Starter |
| 84540 | Switch Assy, Neutral Start |
| 84650 | Switch Assy, Windshield Wiper |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84840G | Switch Assy, Back Door Opener |
| 84841A | Switch, Fuel Lid Opener |
| 84870A | Switch Assy, Outer Mirror |
| 84921D | Knob, Power Seat Switch, LH |
| 84921K | Knob, Power Seat Switch, LH |
| 84922A | Switch, Front Power Seat(FOR LUMBAR) |
| 84922C | Switch, Front Power Seat, LH |
| 84930 | Switch Assy, Door Control |
| 85432 | Solenoid, Key Interlock |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530A | Relay, Power Outlet Socket |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85912 | Relay, Defogger |
| 85916D | Relay, Fog Lamp |
| 85916P | Relay, Headlamp |
| 85927 | Relay, Cooling Fan |
| 85940 | Relay Assy, Windshield Wiper |
| 86530 | Relay Assy, Horn |
| 87346K | Relay, Ptc Heater |
| 87346L | Relay, Ptc Heater |
| 87989 | Relay, Mirror Control |
| 88161 | Bracket, Blind Spot Monitor, RH |
| 88162 | Sensor, Blind Spot Monitor, RH |
| 88171 | Bracket, Blind Spot Monitor, LH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 89221 | Computer, Multiplex Network Body |
| 89245C | Sensor, Steering |
| 89257 | Computer, Cooling Fan |
| 89429F | Sensor, Temperature |
| 89465 | Sensor, Oxygen |
| 89467B | Sensor, Air Fuel Ratio |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89747F | Buzzer, Blind Spot Monitor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
