Toyota C-hr (TUP)

2017-02 → present · chassis ZGX10 · catalogue 528410 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

6 part groups · 2 illustrations

Illustrations

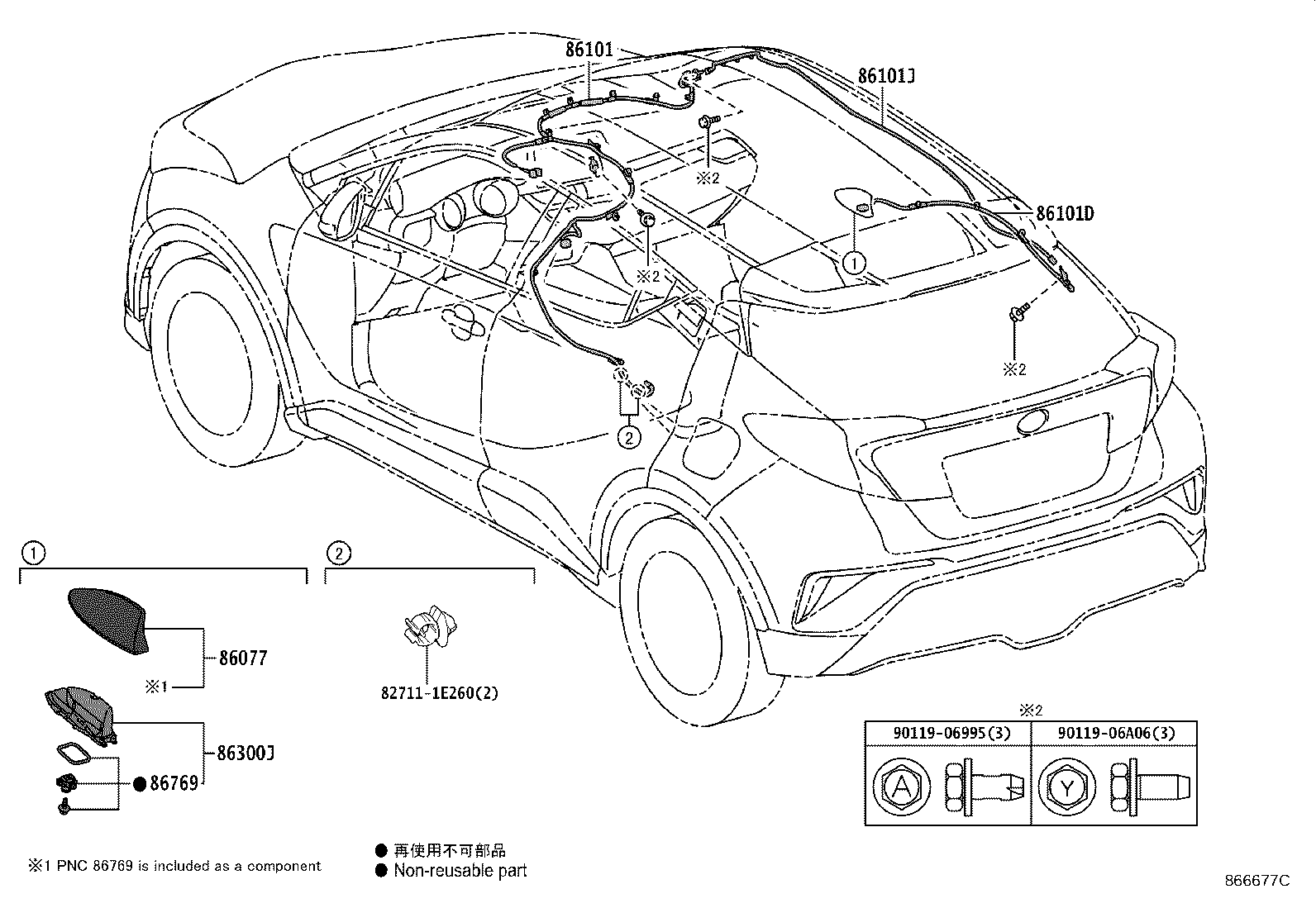

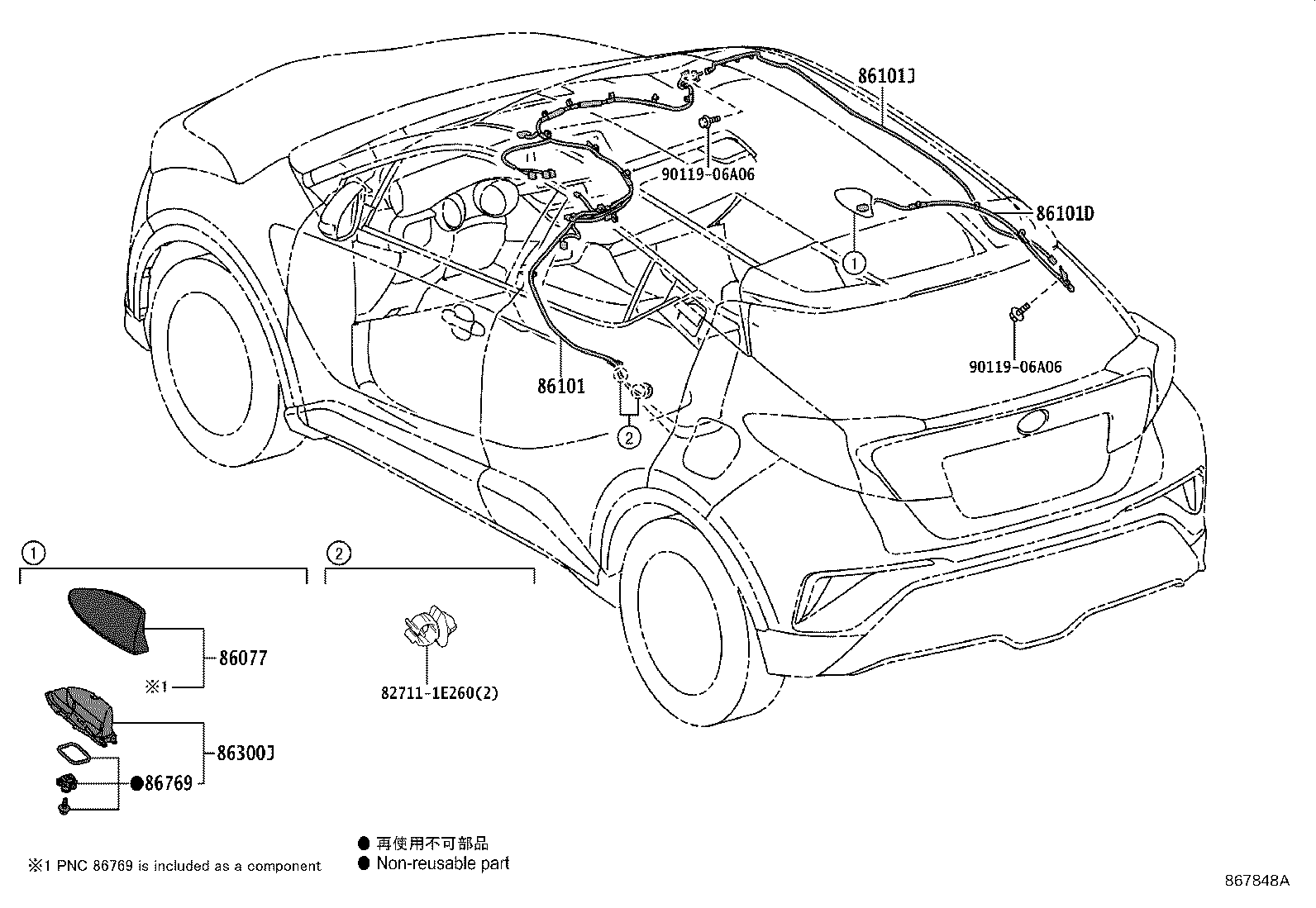

Figure 866677C 866677C 2017-02 → 2019-09 Figure 867848A 867848A 2019-09 → —

Part groups

PNCDescription
86077 Cover Kit, Antenna
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86300J Antenna Assy, Roof
86769 Housing, Roof Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
