Toyota C-hr (TUP)

2017-02 → present · chassis ZGX10 · catalogue 528410 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

6 part groups · 2 illustrations

Illustrations

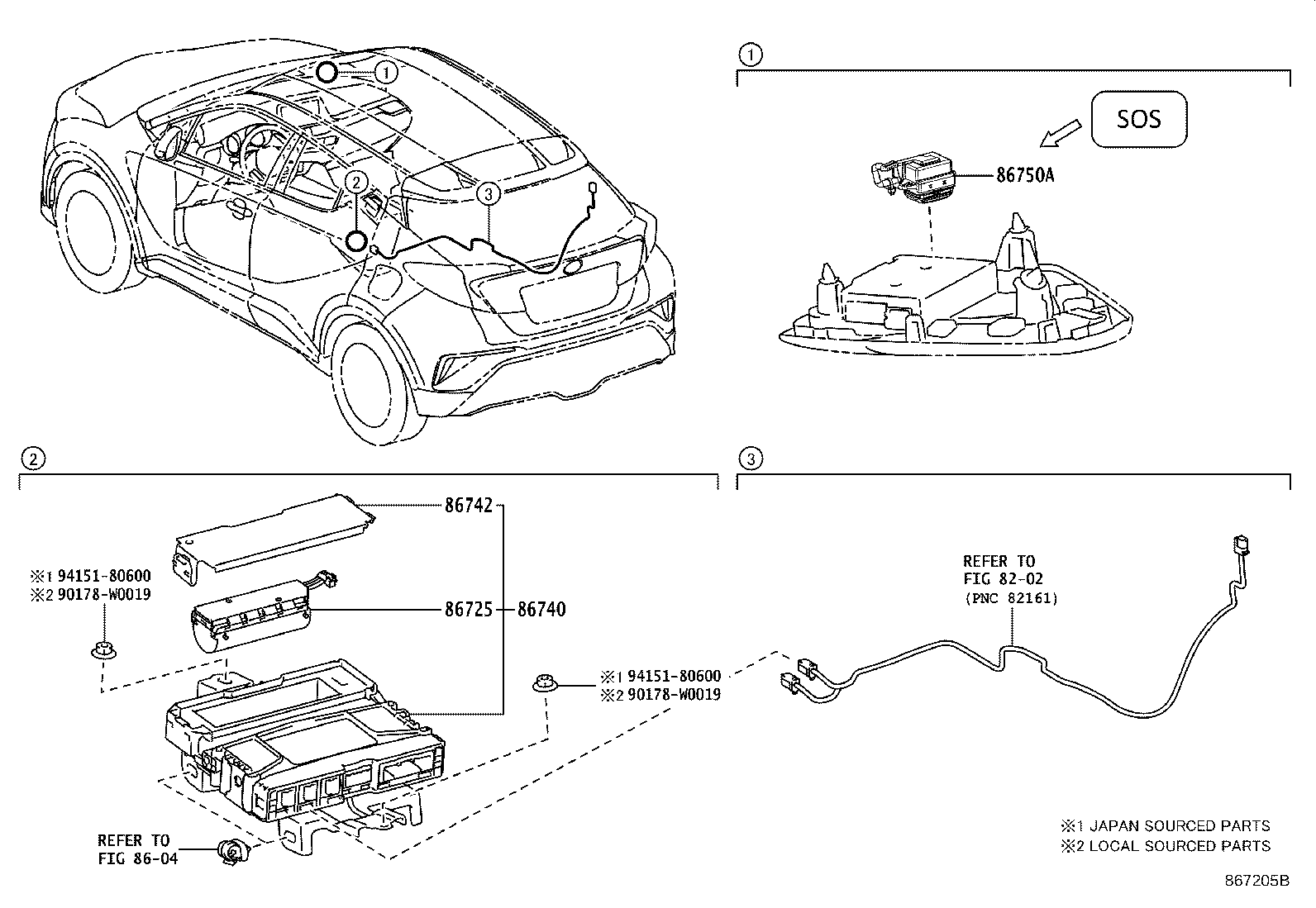

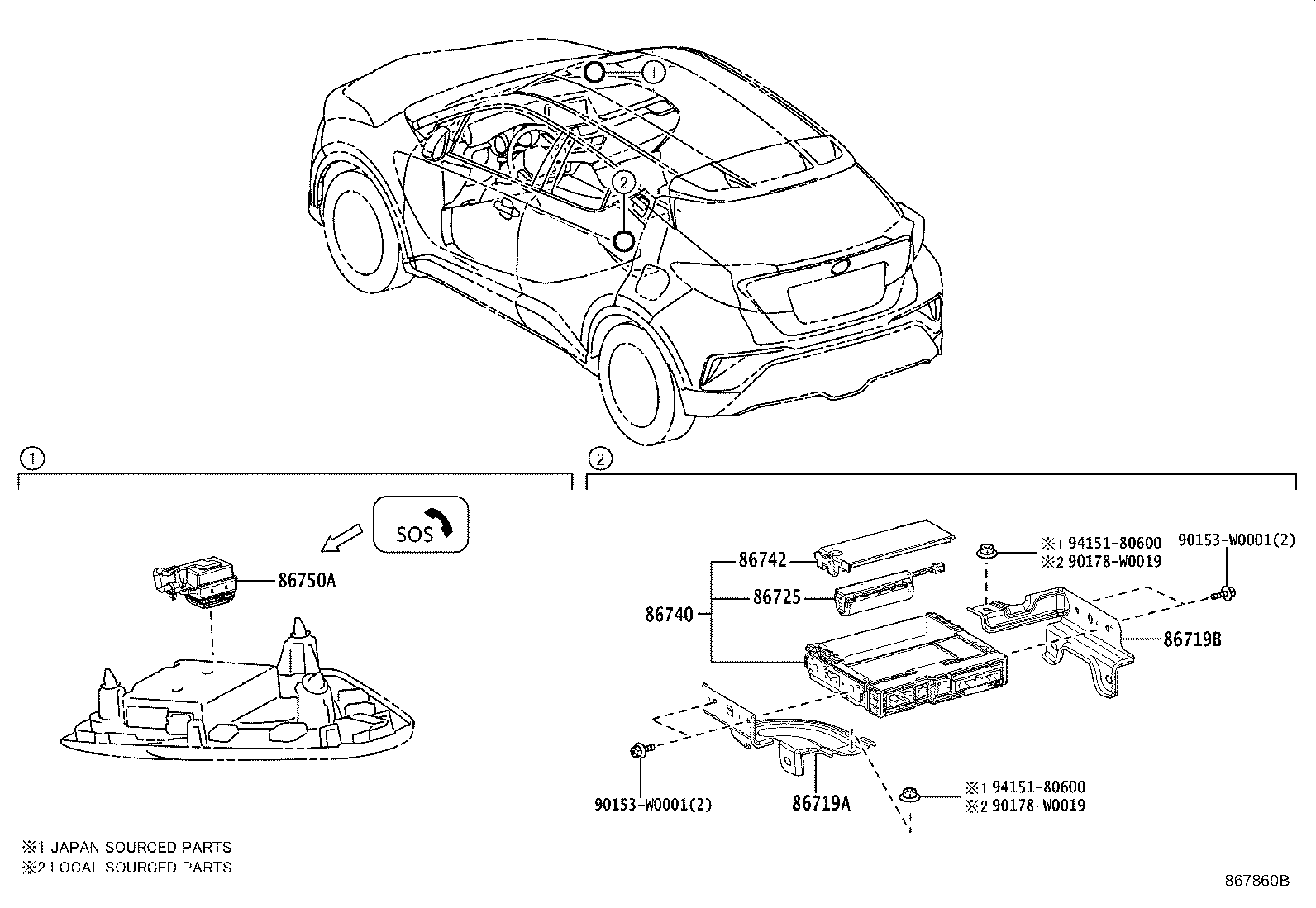

Figure 867205B 867205B 2018-05 → 2019-09 Figure 867860B 867860B 2019-09 → —

Part groups

PNCDescription
86719A Bracket, Telephone NO.1
86719B Bracket, Telephone NO.2
86725 Battery, Mobilephone
86740 Transceiver Assy, Telephone
86742 Cover, Transceiver
86750A Switch Assy, Mayday
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
