Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

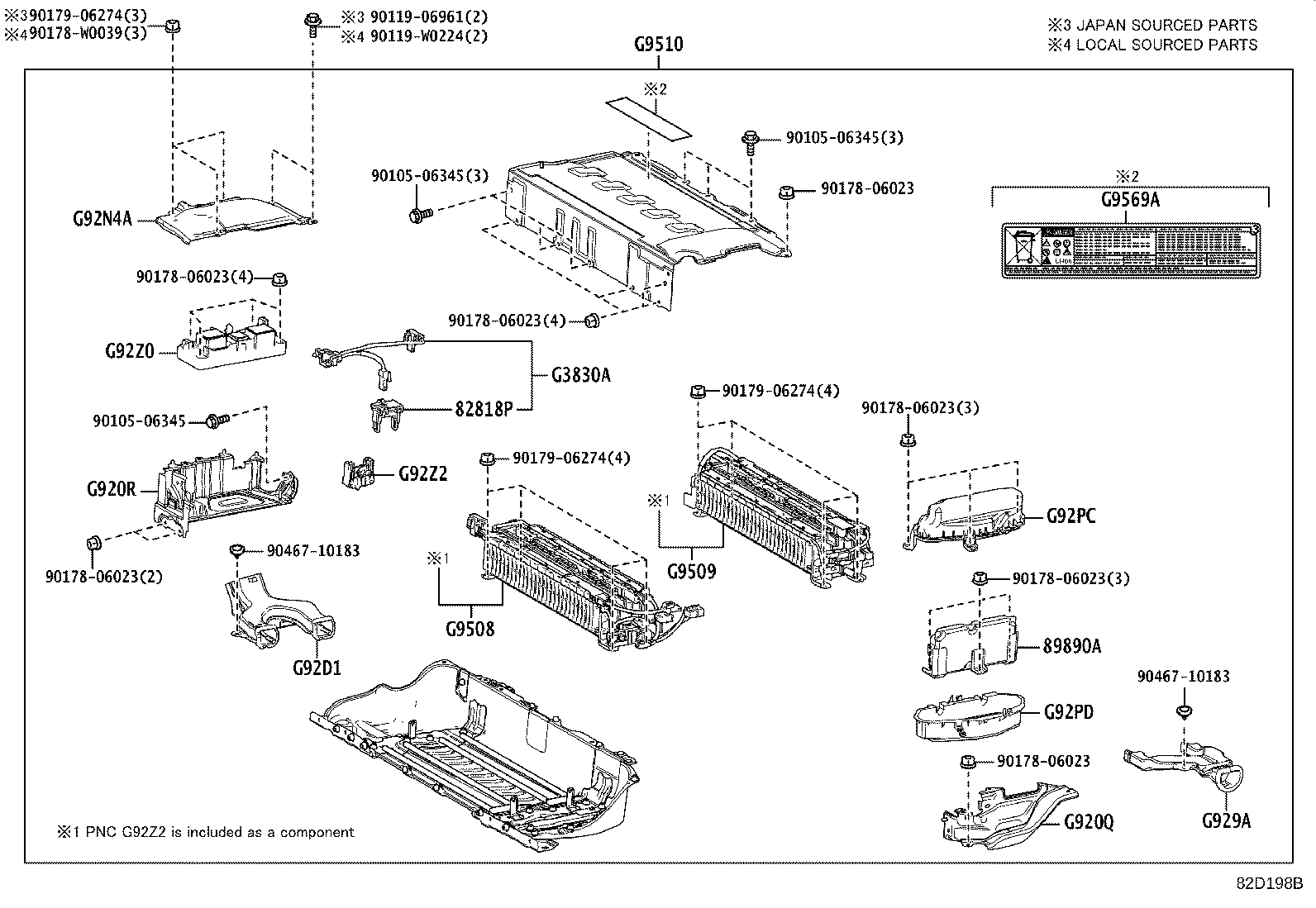

Exploded illustration 82D198B G9510 — BATTERY ASSY, HV SUPPLY (4 parts) G920Q — SHIELD SUB-ASSY, HYBRID BATTERY, NO.1 (4 parts) G929A — HOSE, HV BATTERY, NO.1 (1 parts) G92PC — PROTECTOR, HV BATTERY, NO.1 (2 parts) 82818P — PROTECTOR, WIRING HARNESS (3 parts) 89890A — COMPUTER ASSY, BATTERY (3 parts) G92Z2 — BLOCK, HYBRID BATTERY TERMINAL (2 parts) G9508 — STACK SUB-ASSY, HV SUPPLY, NO.1 (2 parts) G9509 — STACK SUB-ASSY, HV SUPPLY, NO.2 (2 parts) G92PD — PROTECTOR, HV BATTERY, NO.2 (1 parts) G920R — SHIELD SUB-ASSY, HYBRID BATTERY, NO.2 (1 parts) G92Z0 — BLOCK ASSY, HV BATTERY JUNCTION (5 parts) G92N4A — PANEL, HV BATTERY RH COVER, NO.1 (3 parts) G3830A — PLUG ASSY, ELECTRIC VEHICLE BATTERY (1 parts) G92D1 — DUCT, HYBRID BATTERY INTAKE, NO.1 (3 parts) 90119W0224 — not listed in this catalogue 9011906961 — not listed in this catalogue 9010506345 — not listed in this catalogue 9010506345 — not listed in this catalogue 9010506345 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue 90178W0039 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9046710183 — not listed in this catalogue 9046710183 — not listed in this catalogue 9017906274 — not listed in this catalogue G9569A — LABEL, LITHIUM ION BATTERY CAUTION (1 parts)
82D198B · 16 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
38 parts on this figure
Part number Description Fitment Price
82818P — Protector, Wiring Harness
82817-47Q60 Protector, Wiring Harness
2019-09 → —
MAXH10 —
82817-47Q60 Protector, Wiring Harness
2019-09 → 2021-10 ended
ZYX11 —
G92SK-K0020 Protector, Wiring Harness
2021-11 → —
ZYX11 —
89890A — Computer Assy, Battery
89890-47103 note Computer Assy, Battery
2019-09 → 2019-11 ended
ZYX11 —
89890-47104 note Computer Assy, Battery
2019-12 → 2023-08 ended
ZYX11 —
89890-47105 note Computer Assy, Battery
2023-09 → —
ZYX11 —
G3830A — Plug Assy, Electric Vehicle Battery
G3830-47120 Plug Assy, Electric Vehicle Battery
2019-09 → —
ZYX11 —
G920Q — Shield Sub-assy, Hybrid Battery, NO.1
G920Q-47040 Shield Sub-assy, Hybrid Battery, NO.1
2016-10 → 2017-12 ended
ZYX10 —
G920Q-47041 Shield Sub-assy, Hybrid Battery, NO.1
2018-01 → 2019-09 ended
ZYX10 —
G920Q-47041 Shield Sub-assy, Hybrid Battery, NO.1
2019-09 → —
MAXH10,ZYX10 —
G920Q-47050 Shield Sub-assy, Hybrid Battery, NO.1
2019-09 → —
ZYX11 —
G920R — Shield Sub-assy, Hybrid Battery, NO.2
G920R-47020 Shield Sub-assy, Hybrid Battery, NO.2
2019-09 → —
ZYX11 —
G929A — Hose, HV Battery, NO.1
G929A-47030 Hose, HV Battery, NO.1
2019-09 → —
ZYX11 —
G92D1 — Duct, Hybrid Battery Intake, NO.1
G92E1-47040 Duct, Hybrid Battery Intake, NO.1
2016-10 → 2019-09 ended
ZYX10 —
G92E1-47040 Duct, Hybrid Battery Intake, NO.1
2019-09 → —
MAXH10,ZYX10 —
G92E1-47051 Duct, Hybrid Battery Intake, NO.1
2019-09 → —
ZYX11 —
G92N4A — Panel, HV Battery RH Cover, NO.1
G92N4-47060 Panel, HV Battery RH Cover, NO.1
2016-10 → 2019-09 ended
ZYX10 —
G92N4-47050 Panel, HV Battery RH Cover, NO.1
2019-09 → —
ZYX11 —
G92N4-47060 Panel, HV Battery RH Cover, NO.1
2019-09 → —
MAXH10,ZYX10 —
G92PC — Protector, HV Battery, NO.1
G92PC-47010 Protector, HV Battery, NO.1
2019-09 → —
ZYX11 —
G92PC-76010 Protector, HV Battery, NO.1
2019-09 → —
MAXH10 —
G92PD — Protector, HV Battery, NO.2
G92PD-47010 Protector, HV Battery, NO.2
2019-09 → —
ZYX11 —
G92Z0 — Block Assy, HV Battery Junction
G92Z0-47100 Block Assy, HV Battery Junction
2016-10 → 2019-09 ended
ZYX10 —
G92Z0-33041 Block Assy, HV Battery Junction
2019-09 → 2021-10 ended
MAXH10 —
G92Z0-47100 Block Assy, HV Battery Junction
2019-09 → —
ZYX10 —
G92Z0-47100 Block Assy, HV Battery Junction
2021-11 → —
MAXH10 —
G92Z0-47110 Block Assy, HV Battery Junction
2019-09 → —
ZYX11 —
G92Z2 — Block, Hybrid Battery Terminal
G92Z2-47070 Block, Hybrid Battery Terminal
2016-10 → 2019-09 ended
ZYX10 —
G92Z2-47070 Block, Hybrid Battery Terminal
2019-09 → —
MAXH10,ZYX1# —
G9508 — Stack Sub-assy, HV Supply, NO.1
G9509-47020 Stack Sub-assy, HV Supply, NO.1
2019-09 → 2023-09 ended
ZYX11 —
G9509-47070 Stack Sub-assy, HV Supply, NO.1
2023-09 → —
ZYX11 —
G9509 — Stack Sub-assy, HV Supply, NO.2
G9508-47200 Stack Sub-assy, HV Supply, NO.2
2023-09 → —
ZYX11 —
G9508-47330 Stack Sub-assy, HV Supply, NO.2
2019-09 → 2023-09 ended
ZYX11 —
G9510 — Battery Assy, HV Supply
G9510-47130 Battery Assy, HV Supply
2016-10 → 2019-09 ended
ZYX10 —
G9510-47121 Battery Assy, HV Supply
2019-09 → 2023-09 ended
ZYX11 —
G9510-47130 Battery Assy, HV Supply
2019-09 → —
ZYX10 —
G9510-76030 Battery Assy, HV Supply
2019-09 → —
MAXH10 —
G9569A — Label, Lithium Ion Battery Caution
G9569-47120 Label, Lithium Ion Battery Caution
2019-09 → —
ZYX11 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
