Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

6 part groups · 3 illustrations

Illustrations

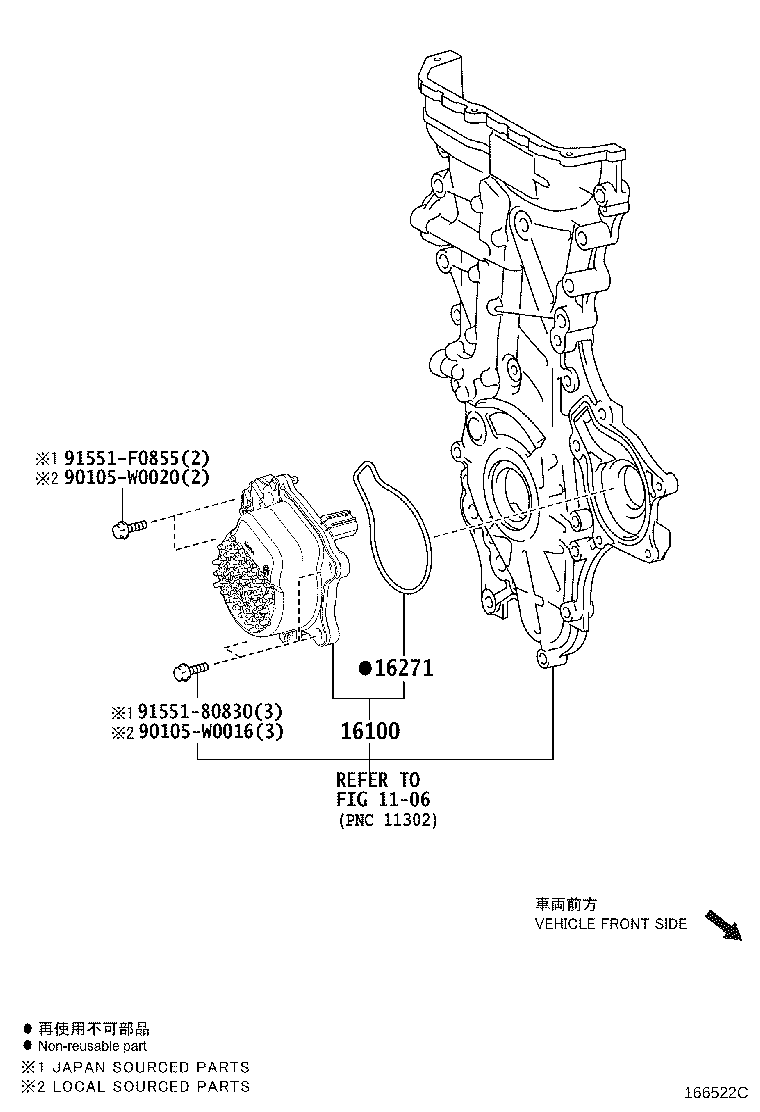

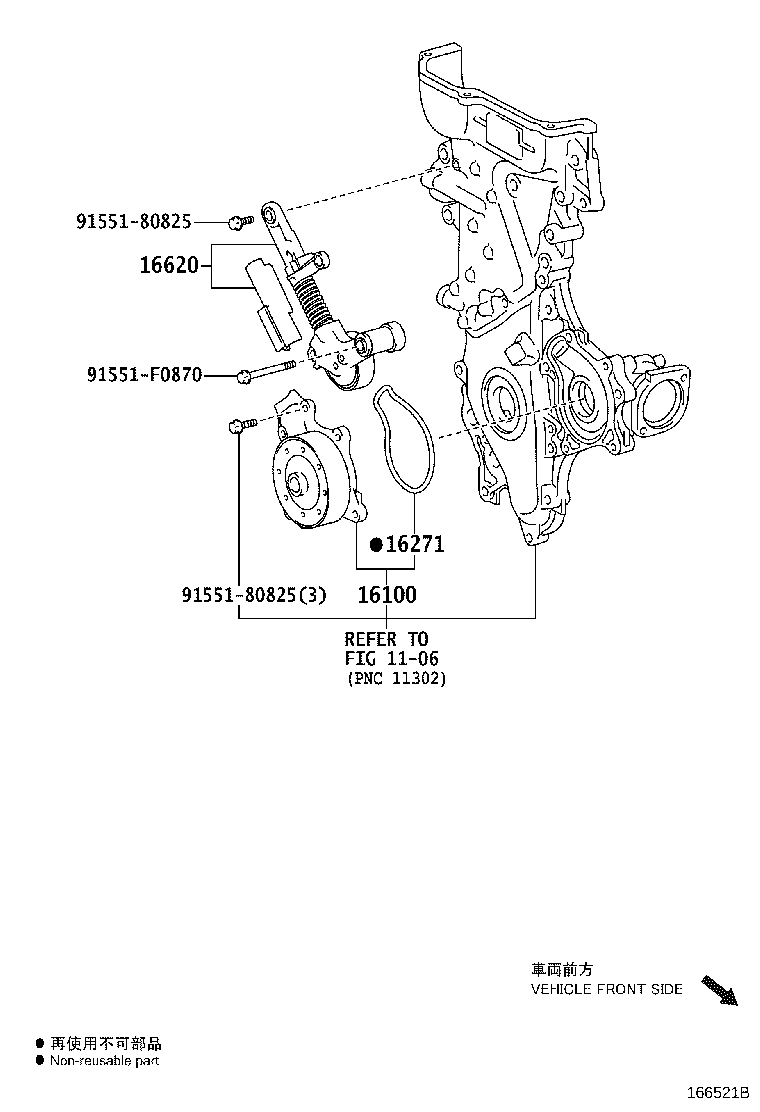

Figure 166527A 166527A 2016-10 → — Figure 166521B 166521B 2016-10 → — Figure 166522C 166522C 2016-10 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16271 Gasket, Water Pump
16603 Pulley Sub-assy, Idler, NO.1
16620 Tensioner Assy, V-ribbed Belt
16631 Bracket, Idler Pulley
16649B Plate, Idler Pulley Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
