Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

12 part groups · 8 illustrations

Illustrations

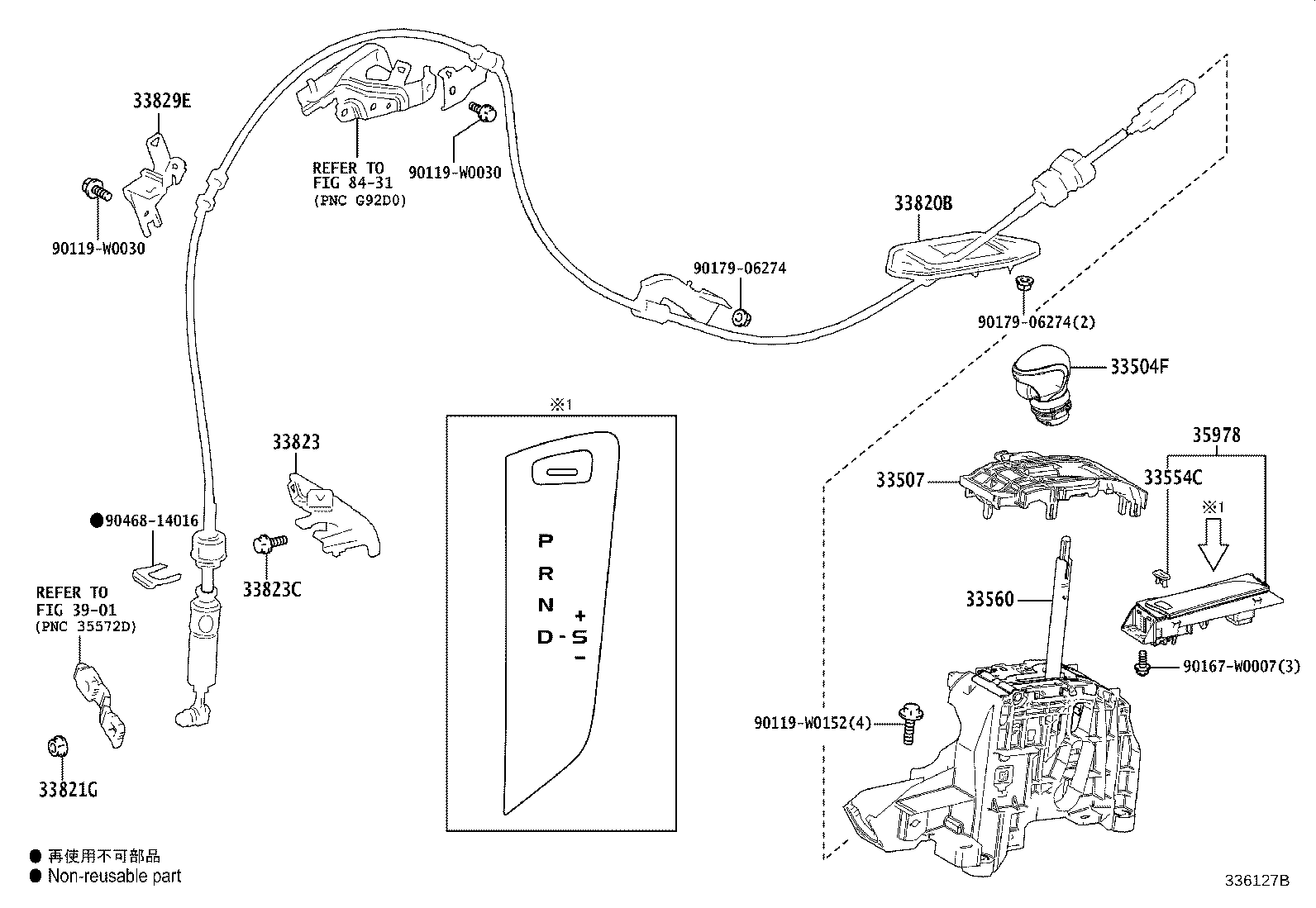

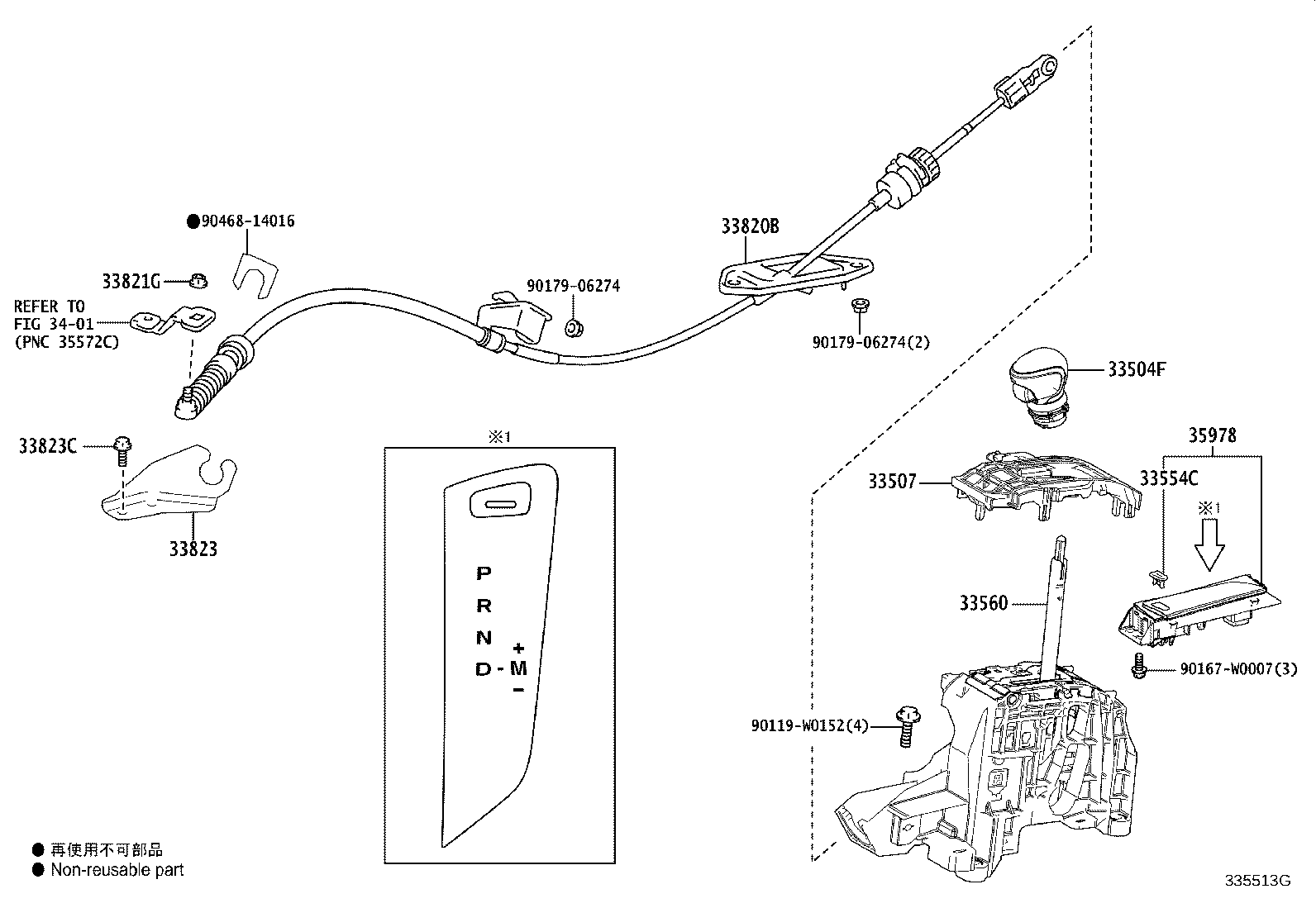

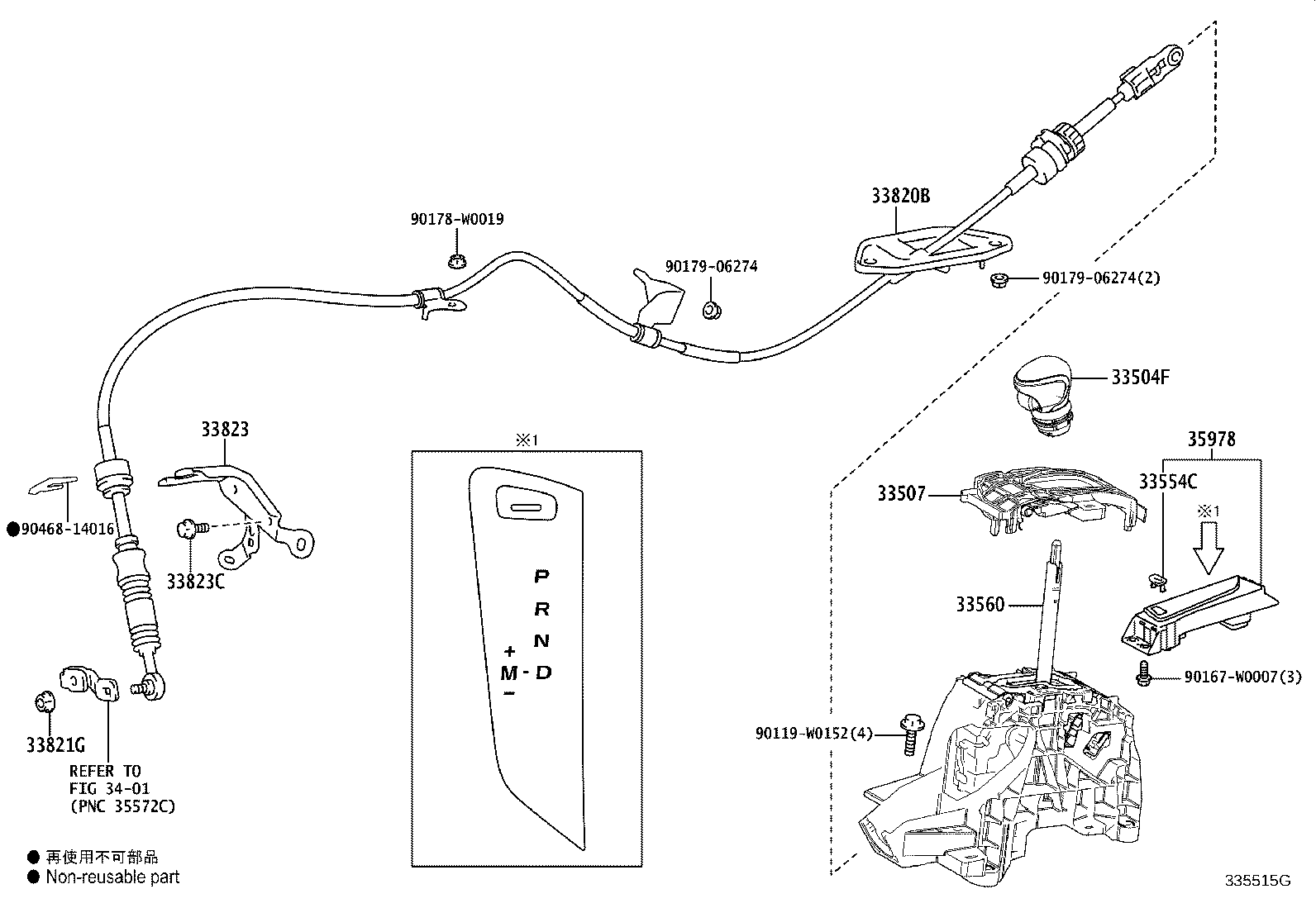

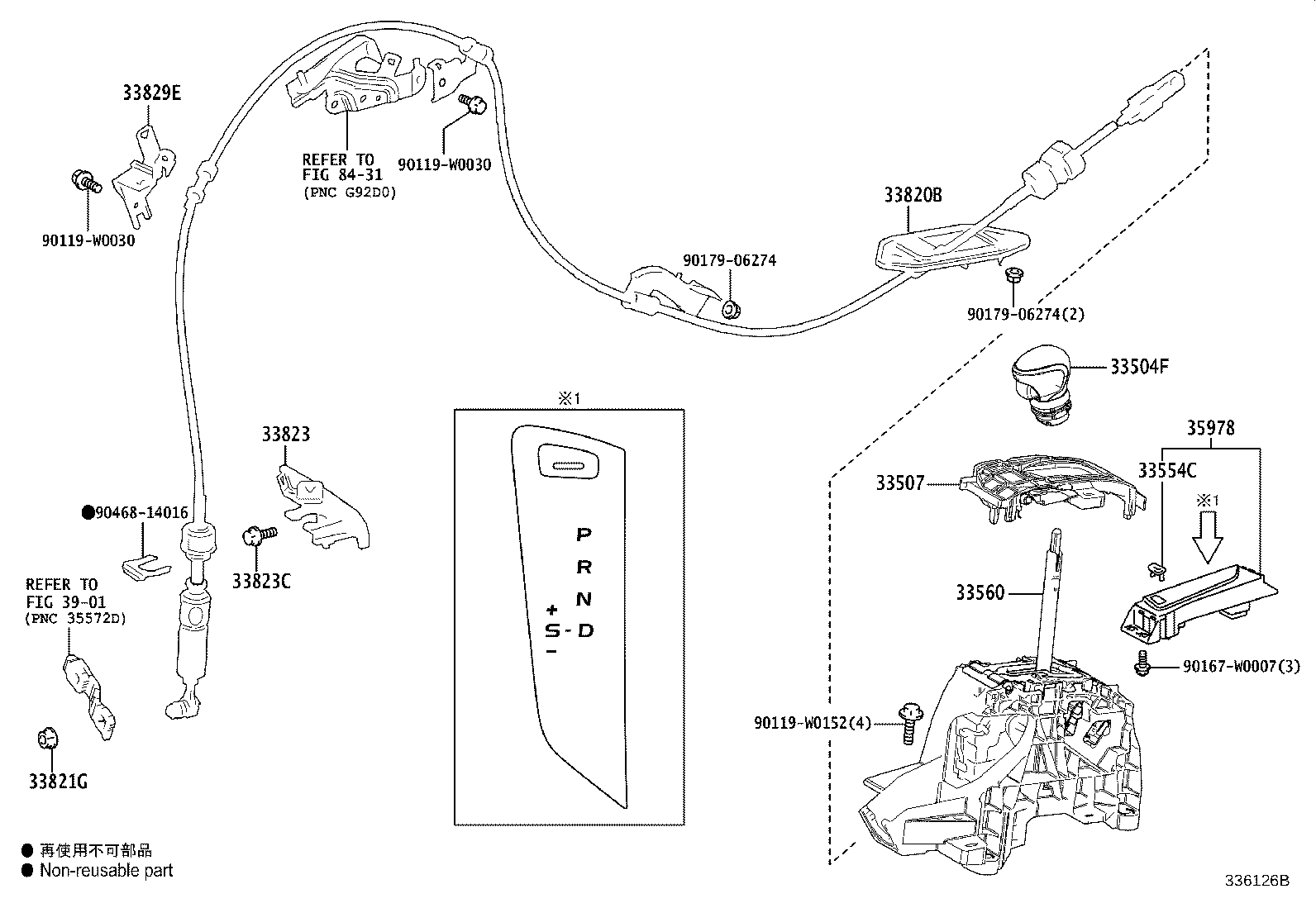

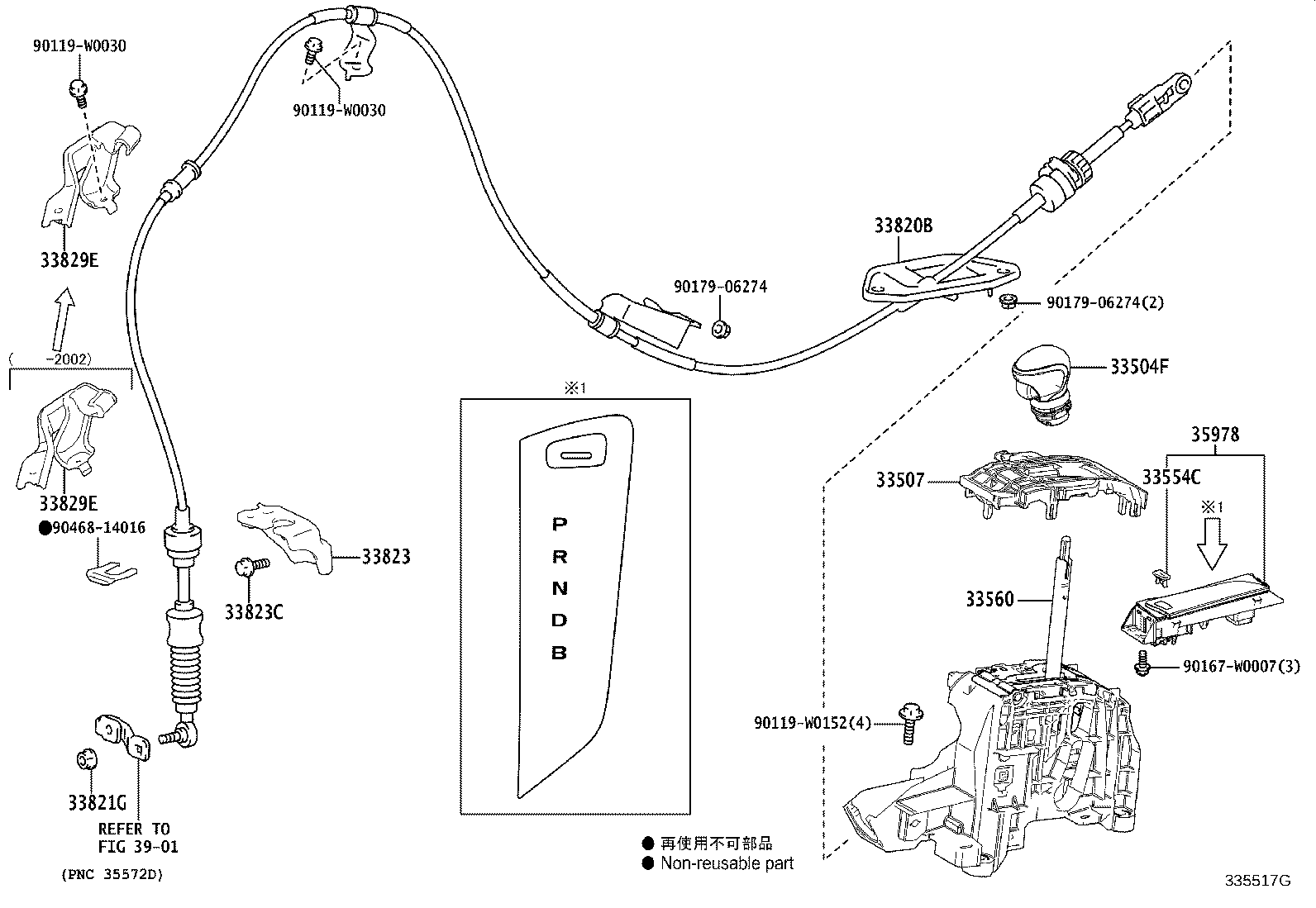

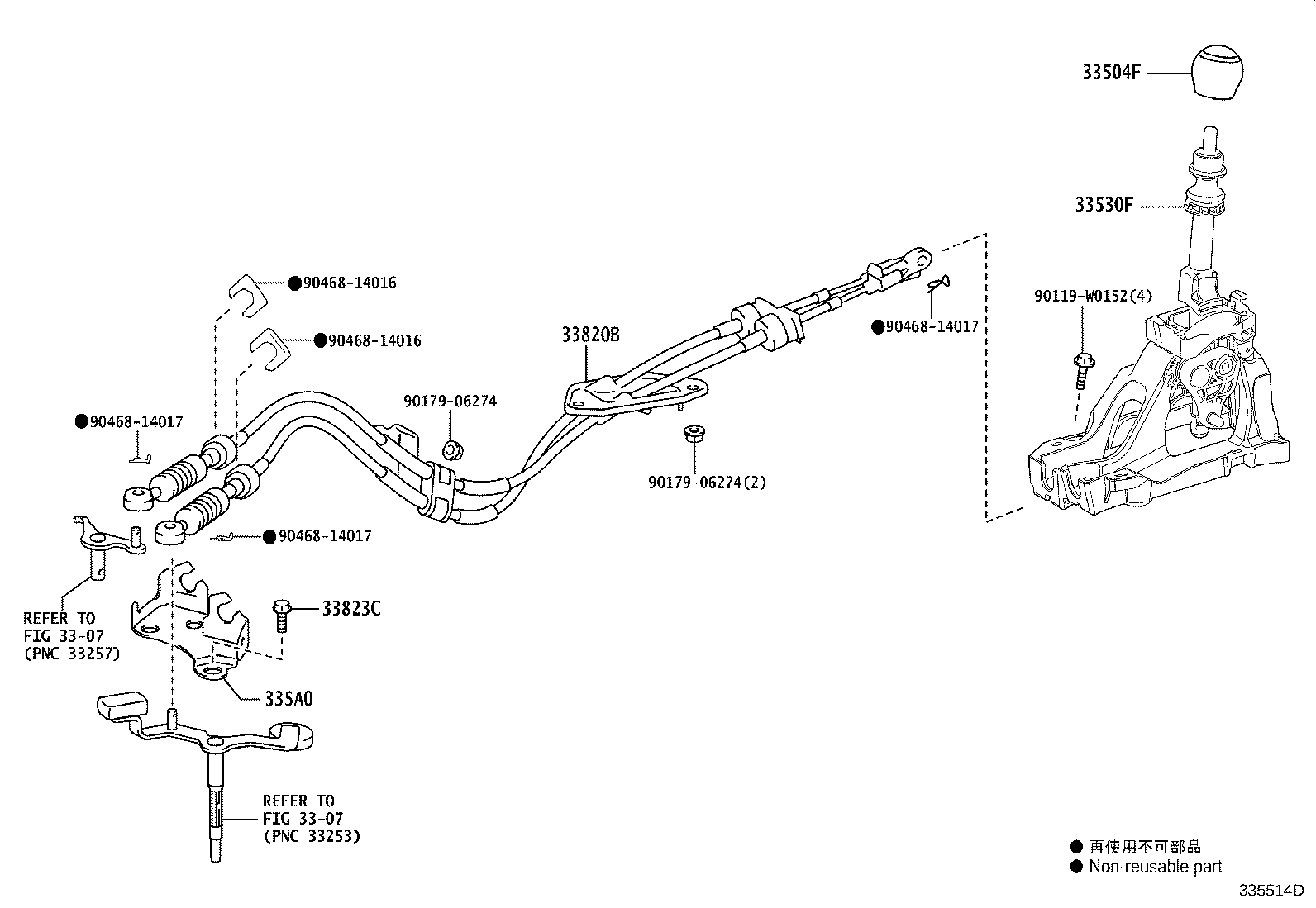

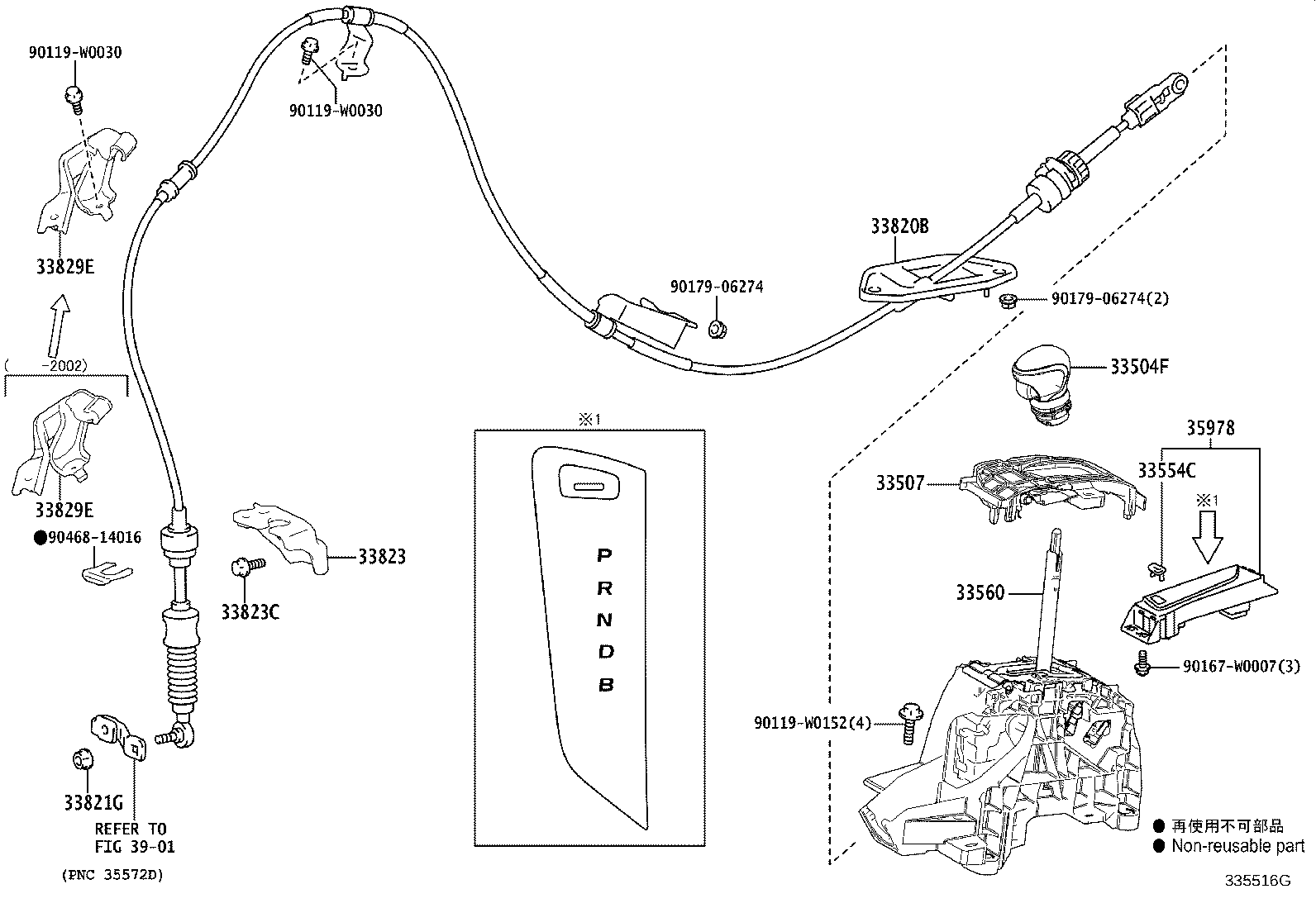

Figure 335512G 335512G 2016-10 → — Figure 335513G 335513G 2016-10 → — Figure 335514D 335514D 2016-10 → — Figure 335515G 335515G 2016-10 → — Figure 335516G 335516G 2016-10 → — Figure 335517G 335517G 2016-10 → — Figure 336126B 336126B 2019-09 → — Figure 336127B 336127B 2019-09 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33507 Bracket Sub-assy, Shift Lever Housing
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33554C Cover, Shift Lock Release Button
33560 Unit Assy, Shift Lock Control
335A0 Bracket Assy, Control Cable
33820B Cable Assy, Transmission Control
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
33829E Bracket, Transmission Control Cable
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
