Toyota C-hr
2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · United States
Supported model
Data version 2019-09
Front Axle Housing & Differential

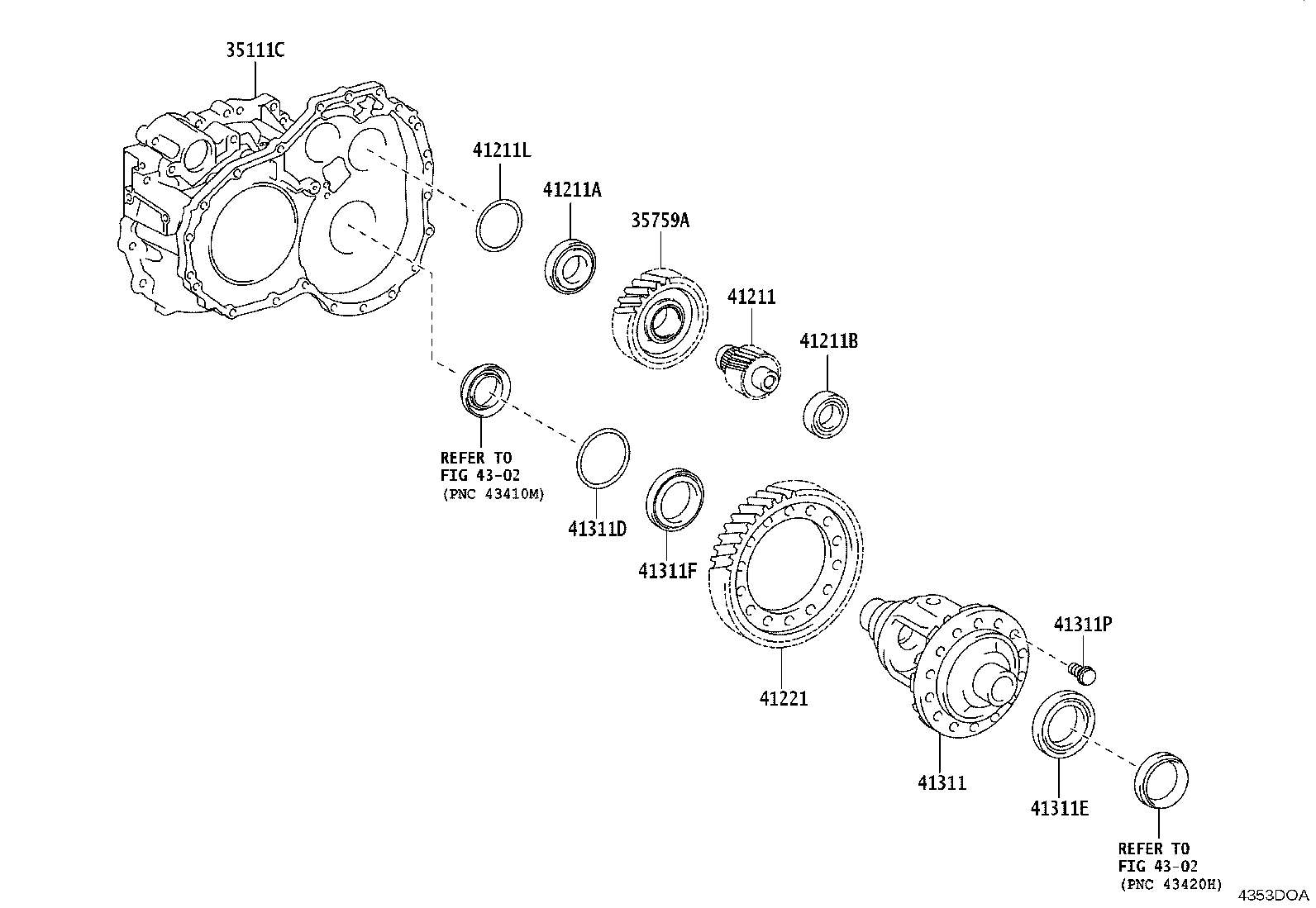

26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31105D | Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE) |
| 31115C | Case, Front Transaxle(MTM) |
| 35111C | Housing, Transaxle |
| 35759A | Gear, Reduction Driven |
| 41211 | Pinion, Differential Drive |
| 41211A | Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT) |
| 41211B | Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR) |
| 41211L | Shim (FOR DIFFERENTIAL DRIVE PINION) |
| 41221 | Gear, Front Differential Ring |
| 41300 | Case Assy, Front Differential, W/Ring Gear |
| 41311 | Case, Front Differential |
| 41311D | Shim (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311E | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311F | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41311G | Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311H | Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41311P | Bolt (FOR FRONT DIFFERENTIAL CASE) |
| 41311X | Outer Race, Tapered Roller Bearing (FOR DIFF. CASE FRONT) |
| 41311Y | Outer Race, Tapered Roller Bearing (FOR DIFF. CASE REAR) |
| 41331F | Gear, Front Differential Side |
| 41341F | Pinion, Front Differential |
| 41342A | Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT) |
| 41342F | Shaft, Front Differential Pinion, NO.1 |
| 41351F | Washer, Front Differential Pinion Thrust |
| 41361F | Washer, Front Differential Side Gear Thrust, NO.1 |
| 41361G | Washer, Conical Spring(FOR CENTER DIFFERENTIAL SIDE GEAR) |
