Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

11 part groups · 2 illustrations

Illustrations

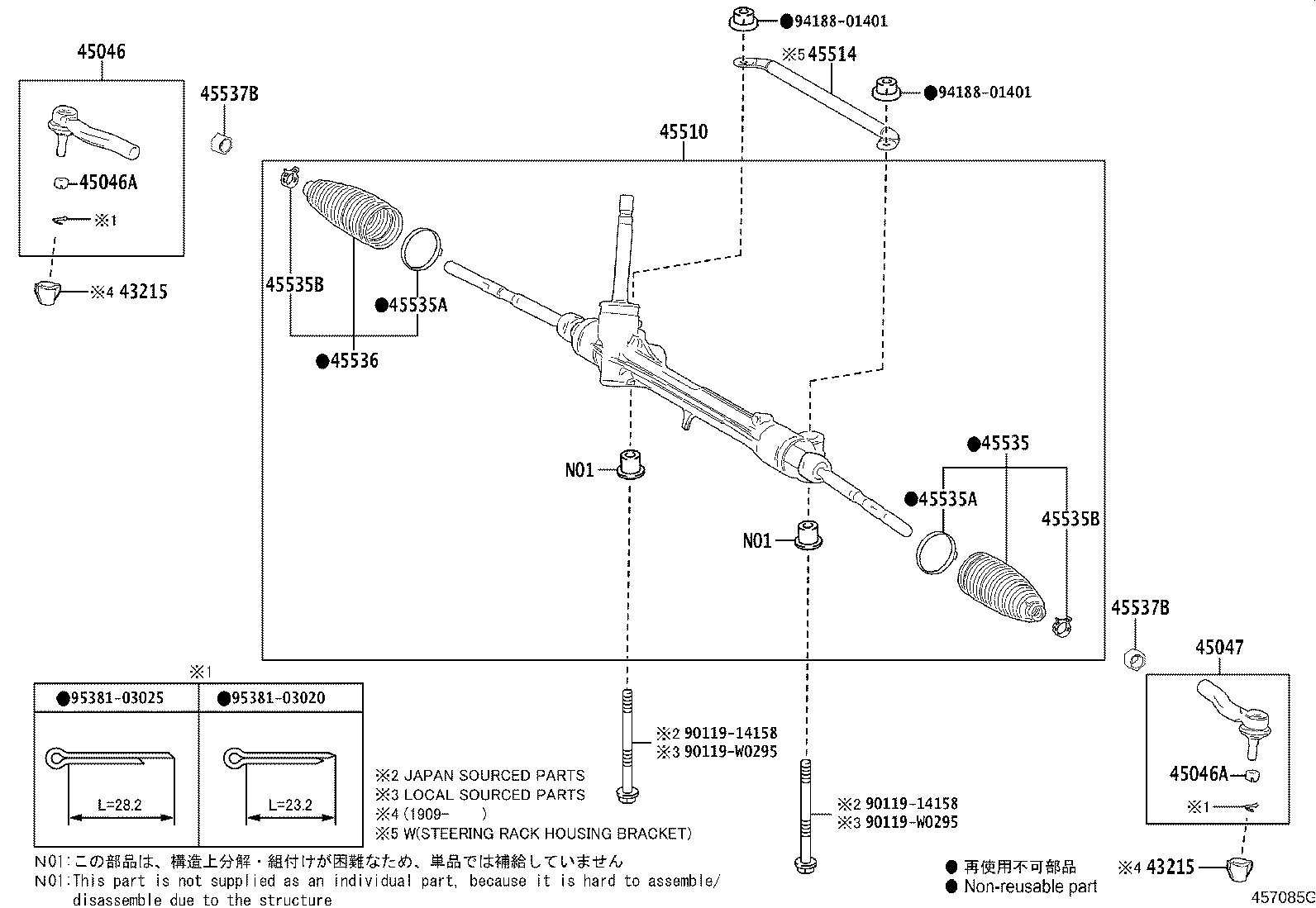

Figure 457651D 457651D 2016-10 → — Figure 457085G 457085G 2016-10 → —

Part groups

PNCDescription
43215 Seal, Steering Knuckle
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45510 Gear Assy, Steering
45514 Bracket, Steering Rack Housing, NO.1
45535 Boot, Steering Rack, NO.1
45535A Clamp(FOR STEERING RACK BOOT)
45535B Clip(FOR STEERING RACK BOOT)
45536 Boot, Steering Rack, NO.2
45537B Nut, Rack End Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
