Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

16 part groups · 7 illustrations

Illustrations

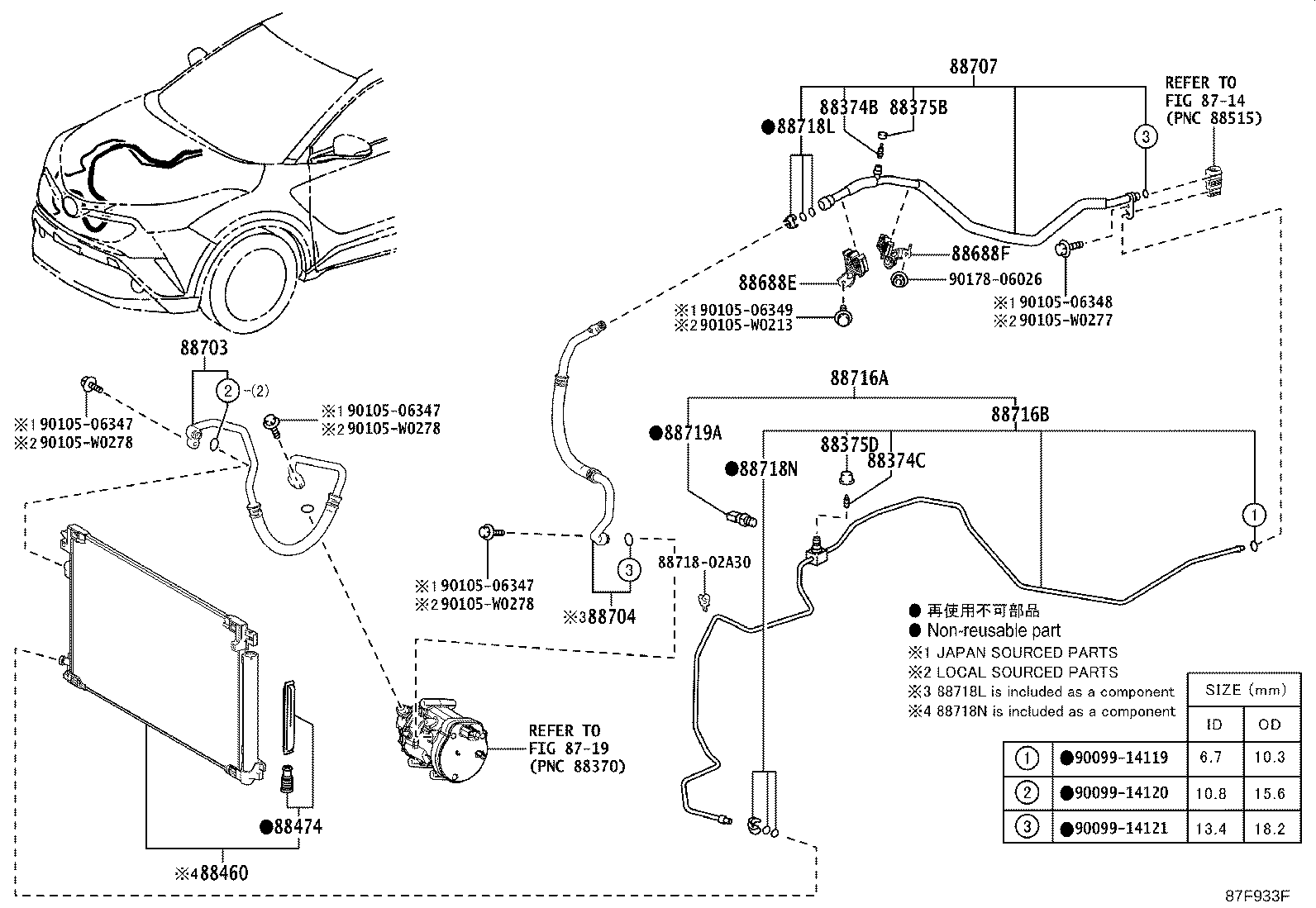

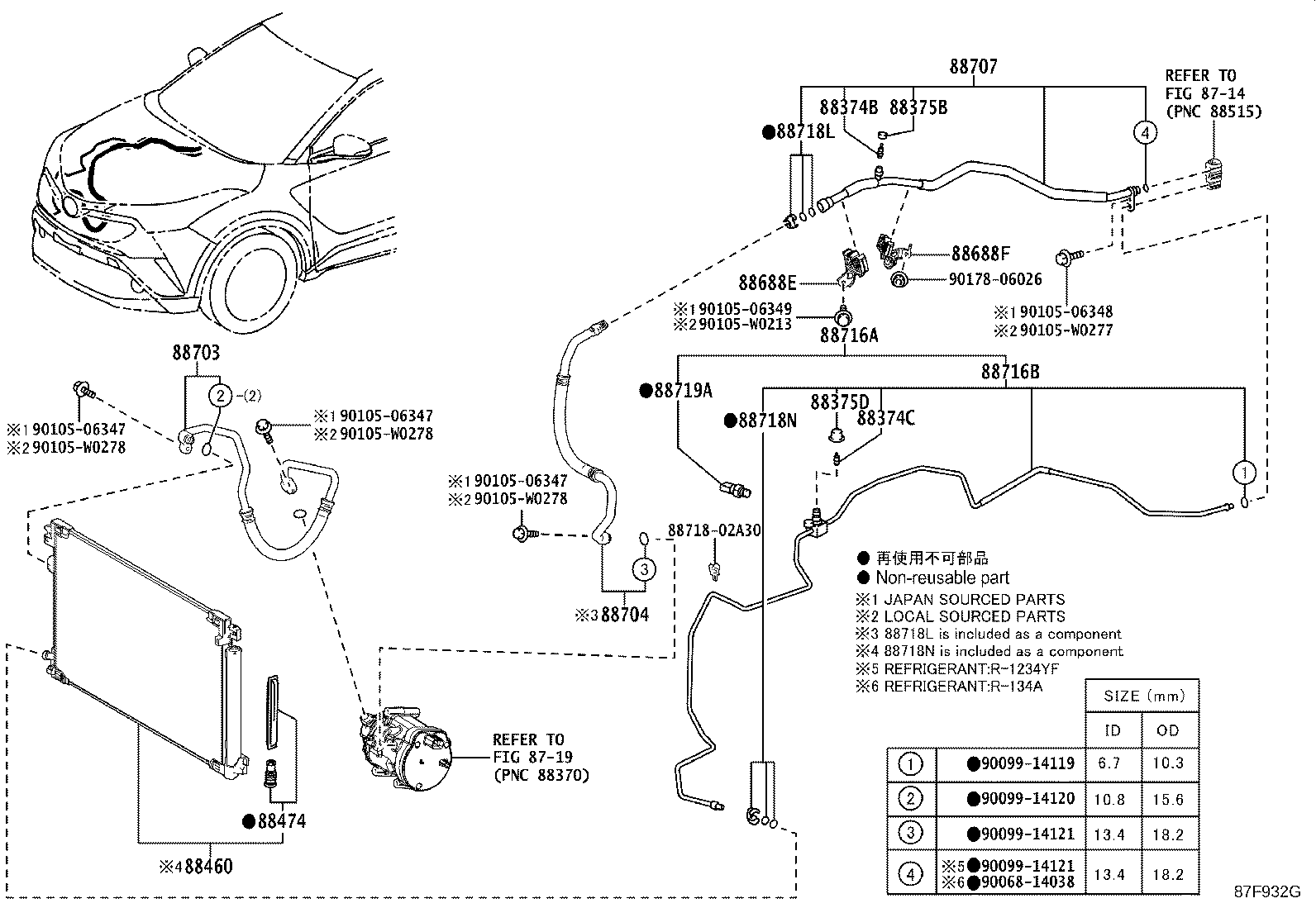

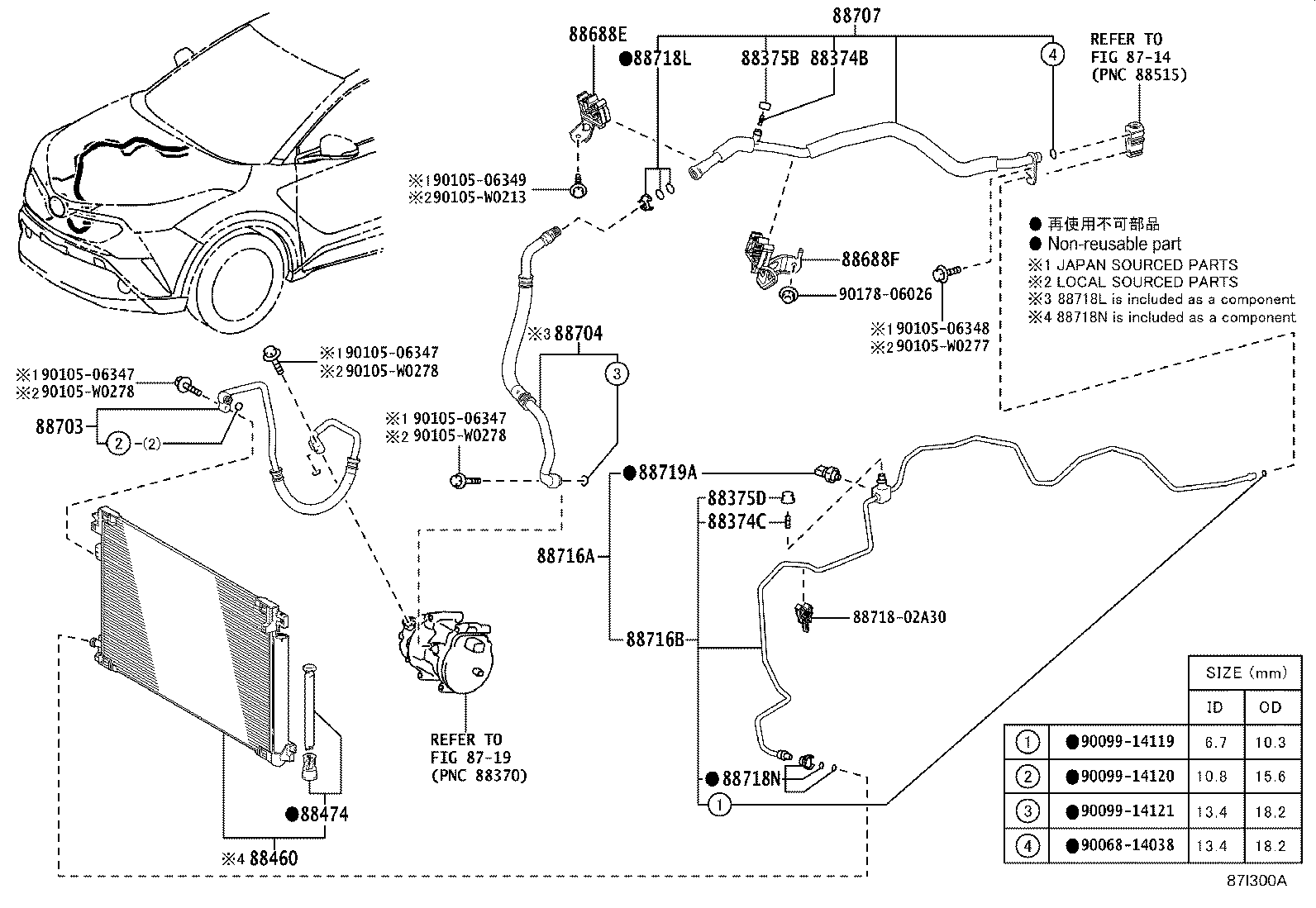

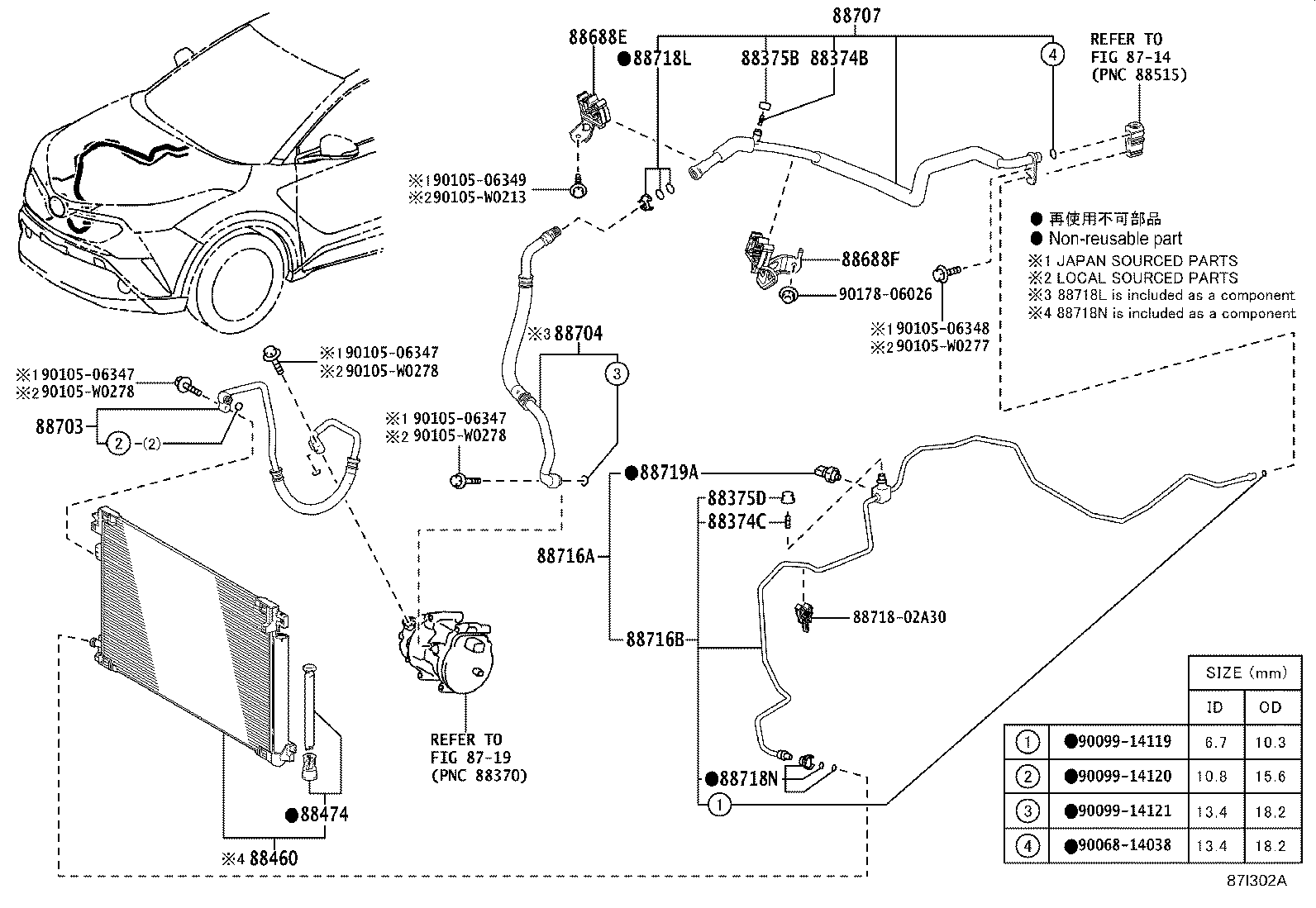

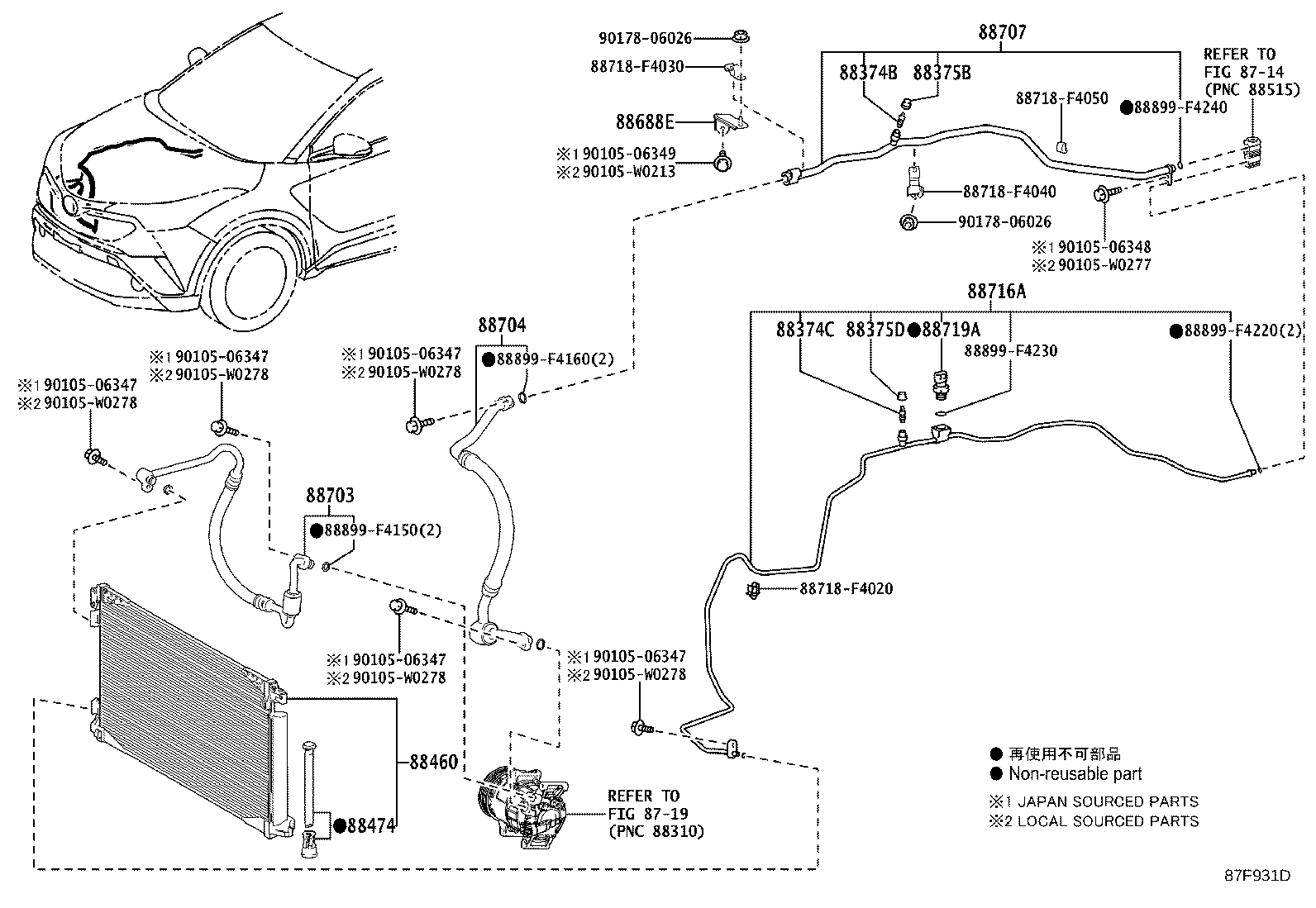

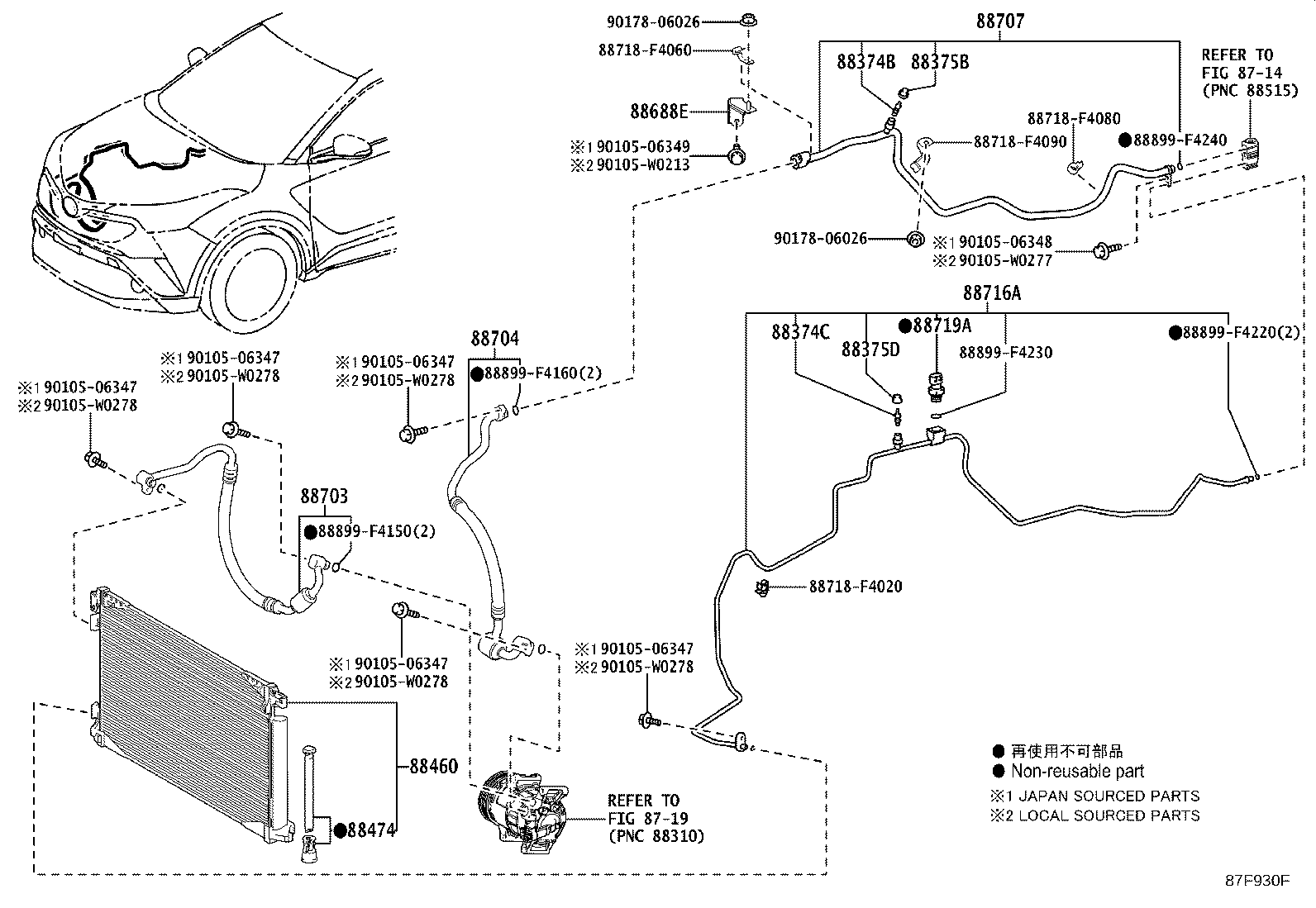

Figure 87F929E 87F929E 2016-10 → — Figure 87F930F 87F930F 2016-10 → — Figure 87F931D 87F931D 2016-10 → — Figure 87F932G 87F932G 2016-10 → — Figure 87F933F 87F933F 2016-10 → — Figure 87I300A 87I300A 2019-09 → — Figure 87I302A 87I302A 2019-09 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88707 Pipe Sub-assy, Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88718L Clamp, Piping
88718N Clamp, Piping
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
