Toyota C-hr (JPP)

2018-01 → present · chassis ZGX10 · catalogue 529410 · United States

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 524224A 52114A — BRACKET, FRONT BUMPER EXTENSION MOUNTING (2 parts) 52119A — COVER, FRONT BUMPER (2 parts) 52128C — COVER, FRONT BUMPER HOLE, LH (2 parts) 52129B — COVER, FRONT BUMPER, LOWER (1 parts) 52161C — PIECE, FRONT BUMPER (2 parts) 52161C — PIECE, FRONT BUMPER (2 parts) 53114C — GRILLE, RADIATOR, INNER (1 parts) 75392J — RETAINER, OUTSIDE MOULDING (2 parts) 52127D — COVER, FRONT BUMPER HOLE, RH (3 parts) 52128B — COVER, FRONT BUMPER HOLE, LH (3 parts) 81481E — COVER, FOG LAMP, RH (2 parts) 81482C — COVER, FOG LAMP, LH (2 parts) 9015960431 — not listed in this catalogue 9016750063 — not listed in this catalogue 9017906349 — not listed in this catalogue

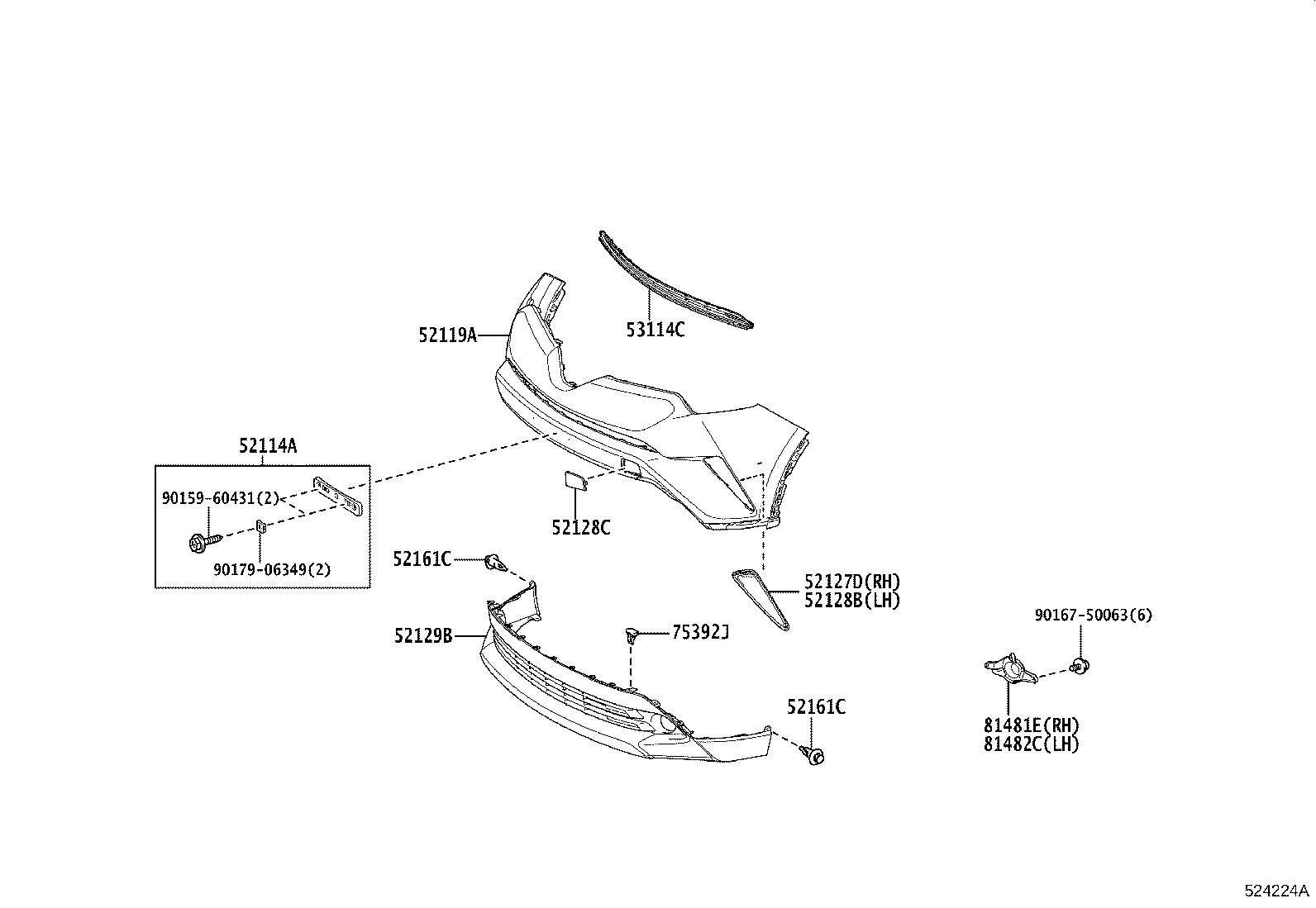

524224A · 12 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
22 parts on this figure
Part number Description Fitment Price
52114A — Bracket, Front Bumper Extension Mounting
52114-10050 Bracket, Front Bumper Extension Mounting
2018-01 → 2019-10 ended
ZGX10 —
52114-10080 Bracket, Front Bumper Extension Mounting
2019-10 → 2022-12 ended
ZGX10 —
52119A — Cover, Front Bumper
52119-10917 note Cover, Front Bumper
2018-01 → 2019-10 ended
ZGX10 —
52119-10919 note Cover, Front Bumper
2019-10 → 2022-12 ended
ZGX10 —
52127D — Cover, Front Bumper Hole, RH
52127-10060 Cover, Front Bumper Hole, RH
2018-01 → 2019-10 ended
ZGX10 —
52127-10070 Cover, Front Bumper Hole, RH
2019-10 → 2022-12 ended
ZGX10 D,G —
52127-F4210 Cover, Front Bumper Hole, RH
2019-10 → 2022-12 ended
ZGX10 E —
52128B — Cover, Front Bumper Hole, LH
52128-10040 Cover, Front Bumper Hole, LH
2018-01 → 2019-10 ended
ZGX10 —
52128-10060 Cover, Front Bumper Hole, LH
2019-10 → 2022-12 ended
ZGX10 D,G —
52128-F4280 Cover, Front Bumper Hole, LH
2019-10 → 2022-12 ended
ZGX10 E —
52128C — Cover, Front Bumper Hole, LH
52128-10905 Cover, Front Bumper Hole, LH
2018-01 → 2019-10 ended
ZGX10 —
52128-10100 Cover, Front Bumper Hole, LH
2019-10 → 2022-12 ended
ZGX10 —
52129B — Cover, Front Bumper, Lower
52129-10020 Cover, Front Bumper, Lower
2018-01 → 2019-10 ended
ZGX10 —
52161C — Piece, Front Bumper
52161-16010 Piece, Front Bumper
2018-01 → 2019-10 ended
ZGX10 —
52161-16010 Piece, Front Bumper
2019-10 → 2022-12 ended
ZGX10 —
53114C — Grille, Radiator, Inner
53114-10040 Grille, Radiator, Inner
2018-01 → 2019-10 ended
ZGX10 —
75392J — Retainer, Outside Moulding
75392-35200 Retainer, Outside Moulding
2018-01 → 2019-10 ended
ZGX10 —
75392-35200 Retainer, Outside Moulding
2019-10 → 2022-12 ended
ZGX10 —
81481E — Cover, Fog Lamp, RH
81481-10070 Cover, Fog Lamp, RH
2018-01 → 2019-10 ended
ZGX10 —
81481-F4190 Cover, Fog Lamp, RH
2019-10 → 2022-12 ended
ZGX10 E —
81482C — Cover, Fog Lamp, LH
81482-10040 Cover, Fog Lamp, LH
2018-01 → 2019-10 ended
ZGX10 —
81482-F4140 Cover, Fog Lamp, LH
2019-10 → 2022-12 ended
ZGX10 E —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
