Toyota C-hr (JPP)

2018-01 → present · chassis ZGX10 · catalogue 529410 · United States

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

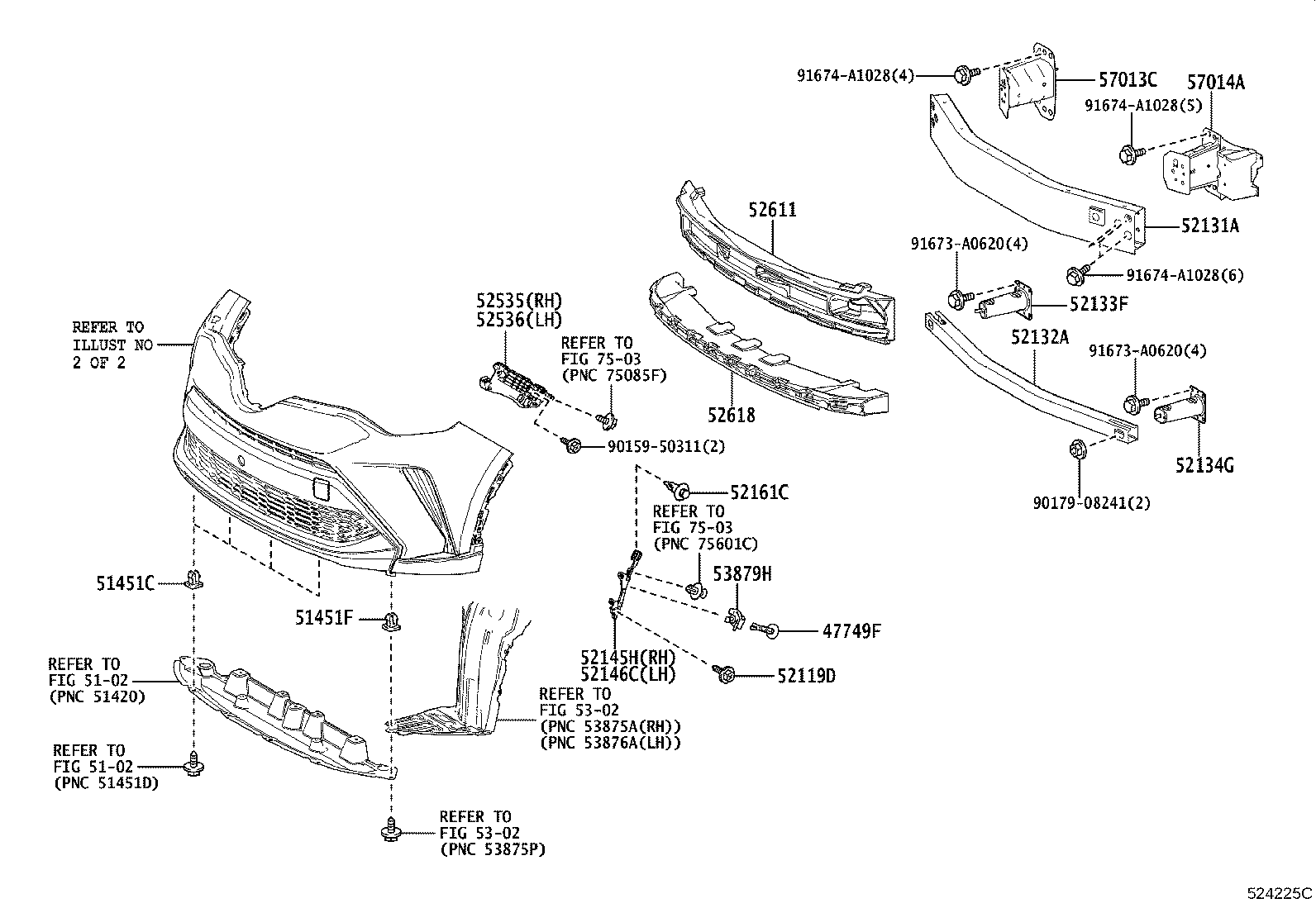

Exploded illustration 524225C 52611 — ABSORBER, FRONT BUMPER ENERGY (3 parts) 52618 — ABSORBER, FRONT BUMPER, LOWER (3 parts) 52131A — REINFORCEMENT, FRONT BUMPER (3 parts) 57013C — BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH (2 parts) 57014A — BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH (2 parts) 91674A1028 — not listed in this catalogue 52132A — REINFORCEMENT, FRONT BUMPER, NO.2 (2 parts) 52133F — BRACKET, FRONT BUMPER, RH (2 parts) 52134G — BRACKET, FRONT BUMPER, LH (2 parts) 9017908241 — not listed in this catalogue 91673A0620 — not listed in this catalogue 91673A0620 — not listed in this catalogue 91674A1028 — not listed in this catalogue 91674A1028 — not listed in this catalogue 5302 — not listed in this catalogue 9015950311 — not listed in this catalogue 52536 — RETAINER, FRONT BUMPER SIDE, LH (2 parts) 52535 — RETAINER, FRONT BUMPER SIDE, RH (2 parts) 7503 — not listed in this catalogue 52145H — STAY, FRONT BUMPER SIDE, RH (2 parts) 52146C — STAY, FRONT BUMPER SIDE, LH (2 parts) 52161C — PIECE, FRONT BUMPER (2 parts) 53879H — RETAINER, FRONT FENDER LINER (2 parts) 52119D — SCREW, NO.1 (2 parts) 7503 — not listed in this catalogue 5102 — not listed in this catalogue 5102 — not listed in this catalogue 5302 — not listed in this catalogue 51451F — GROMMET, NO.1 (2 parts) 51451C — GROMMET(FOR ENGINE UNDER COVER) (2 parts) 47749F — CLIP, PIN HOLD (2 parts)
524225C · 18 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
39 parts on this figure
Part number Description Fitment Price
47749F — Clip, Pin Hold
47749-50090 Clip, Pin Hold
2018-01 → 2019-10 ended
ZGX10 —
47749-50090 Clip, Pin Hold
2019-10 → 2022-12 ended
ZGX10 —
51451C — Grommet(FOR ENGINE UNDER COVER)
90189-06237 Grommet(FOR ENGINE UNDER COVER)
2018-01 → 2019-10 ended
ZGX10 —
90189-06237 Grommet(FOR ENGINE UNDER COVER)
2019-10 → 2022-12 ended
ZGX10 —
51451F — Grommet, NO.1
90189-06237 Grommet, NO.1
2018-01 → 2019-10 ended
ZGX10 —
90189-06237 Grommet, NO.1
2019-10 → 2022-12 ended
ZGX10 —
52119D — Screw, NO.1
90159-50388 Screw, NO.1
2018-01 → 2019-10 ended
ZGX10 —
90159-50388 Screw, NO.1
2019-10 → 2022-12 ended
ZGX10 —
52131A — Reinforcement, Front Bumper
52131-10101 Reinforcement, Front Bumper
2019-02 → 2019-10 ended
ZGX10 —
52131-F4030 Reinforcement, Front Bumper
2018-01 → 2019-01 ended
ZGX10 —
52131-10101 Reinforcement, Front Bumper
2019-10 → 2022-12 ended
ZGX10 —
52132A — Reinforcement, Front Bumper, NO.2
52132-10050 Reinforcement, Front Bumper, NO.2
2018-01 → 2019-10 ended
ZGX10 —
52132-10050 Reinforcement, Front Bumper, NO.2
2019-10 → 2022-12 ended
ZGX10 —
52133F — Bracket, Front Bumper, RH
52133-10020 Bracket, Front Bumper, RH
2018-01 → 2019-10 ended
ZGX10 —
52133-10020 Bracket, Front Bumper, RH
2019-10 → 2022-12 ended
ZGX10 —
52134G — Bracket, Front Bumper, LH
52133-10020 Bracket, Front Bumper, LH
2018-01 → 2019-10 ended
ZGX10 —
52133-10020 Bracket, Front Bumper, LH
2019-10 → 2022-12 ended
ZGX10 —
52145H — Stay, Front Bumper Side, RH
52145-10060 Stay, Front Bumper Side, RH
2018-01 → 2019-10 ended
ZGX10 —
52145-10060 Stay, Front Bumper Side, RH
2019-10 → 2022-12 ended
ZGX10 —
52146C — Stay, Front Bumper Side, LH
52146-10060 Stay, Front Bumper Side, LH
2018-01 → 2019-10 ended
ZGX10 —
52146-10060 Stay, Front Bumper Side, LH
2019-10 → 2022-12 ended
ZGX10 —
52161C — Piece, Front Bumper
52161-16010 Piece, Front Bumper
2018-01 → 2019-10 ended
ZGX10 —
52161-16010 Piece, Front Bumper
2019-10 → 2022-12 ended
ZGX10 —
52535 — Retainer, Front Bumper Side, RH
52535-10040 Retainer, Front Bumper Side, RH
2018-01 → 2019-10 ended
ZGX10 —
52535-10040 Retainer, Front Bumper Side, RH
2019-10 → 2022-12 ended
ZGX10 —
52536 — Retainer, Front Bumper Side, LH
52536-10040 Retainer, Front Bumper Side, LH
2018-01 → 2019-10 ended
ZGX10 —
52536-10040 Retainer, Front Bumper Side, LH
2019-10 → 2022-12 ended
ZGX10 —
52611 — Absorber, Front Bumper Energy
52611-10040 note Absorber, Front Bumper Energy
2018-09 → 2019-10 ended
ZGX10 —
52611-F4020 note Absorber, Front Bumper Energy
2018-01 → 2019-10 ended
ZGX10 —
52611-10070 Absorber, Front Bumper Energy
2019-10 → 2022-12 ended
ZGX10 —
52618 — Absorber, Front Bumper, Lower
52618-10020 note Absorber, Front Bumper, Lower
2018-09 → 2019-10 ended
ZGX10 —
52618-F4020 note Absorber, Front Bumper, Lower
2018-01 → 2019-10 ended
ZGX10 —
52618-10030 Absorber, Front Bumper, Lower
2019-10 → 2022-12 ended
ZGX10 —
53879H — Retainer, Front Fender Liner
53879-30050 Retainer, Front Fender Liner
2018-01 → 2019-10 ended
ZGX10 —
53879-30050 Retainer, Front Fender Liner
2019-10 → 2022-12 ended
ZGX10 —
57013C — Bracket Sub-assy, Front Side Member, RH
57013-0W030 Bracket Sub-assy, Front Side Member, RH
2018-01 → 2019-10 ended
ZGX10 —
57013-0W030 Bracket Sub-assy, Front Side Member, RH
2019-10 → 2022-12 ended
ZGX10 —
57014A — Bracket Sub-assy, Front Side Member, LH
57014-0W030 Bracket Sub-assy, Front Side Member, LH
2018-01 → 2019-10 ended
ZGX10 —
57014-0W030 Bracket Sub-assy, Front Side Member, LH
2019-10 → 2022-12 ended
ZGX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
