Toyota C-hr (JPP)

2018-01 → present · chassis ZGX10 · catalogue 529410 · United States

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

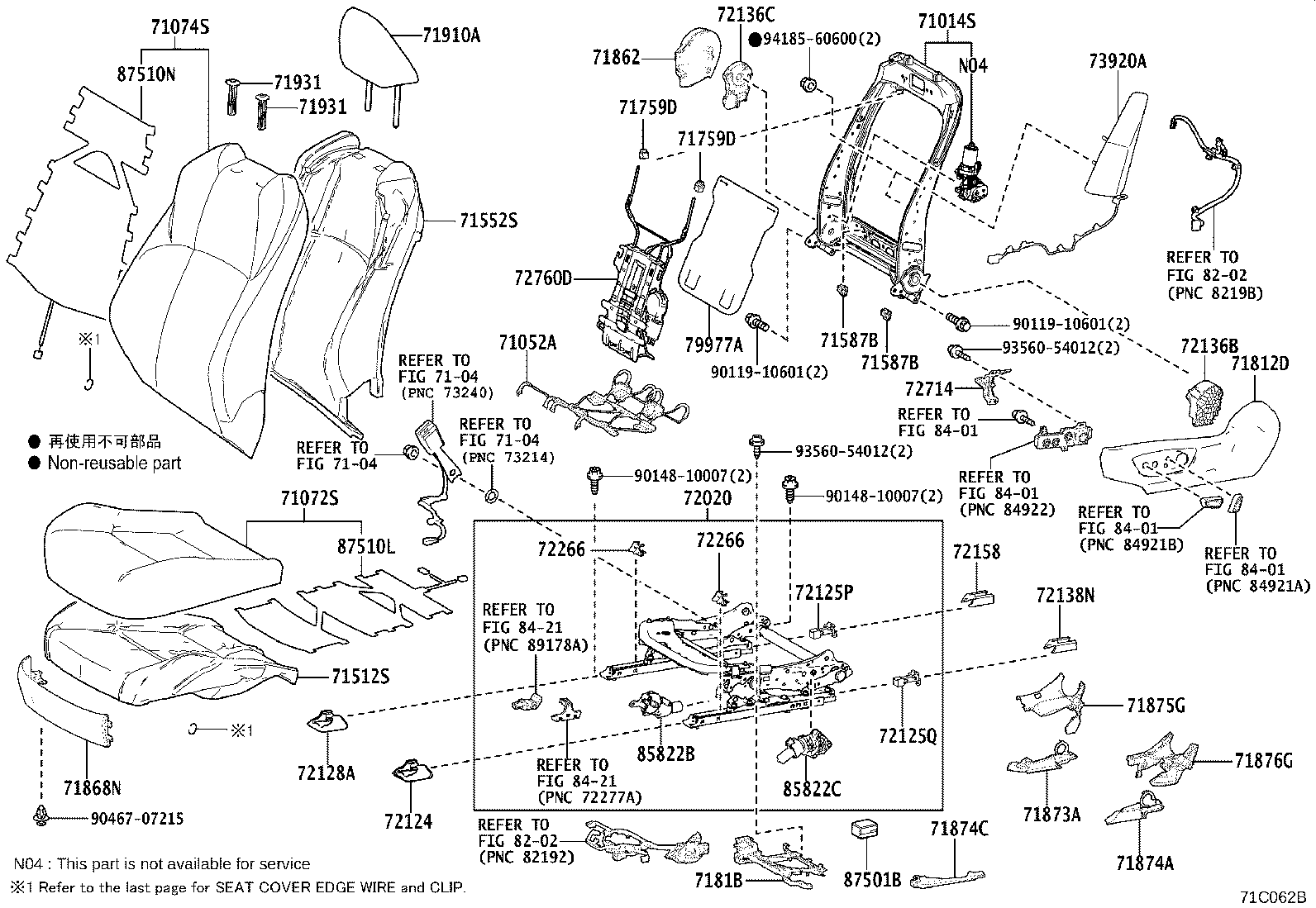

Exploded illustration 71C062B 8421 — not listed in this catalogue 7104 — not listed in this catalogue 8202 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 7104 — not listed in this catalogue 71014S — FRAME SUB-ASSY, FRONT SEATBACK, LH (4 parts) 71052A — SPRING SUB-ASSY, FRONT SEAT CUSHION, LH (11 parts) 71587B — PROTECTOR, FRONT SEATBACK EDGE (3 parts) 71587B — PROTECTOR, FRONT SEATBACK EDGE (3 parts) 71759D — HOOK, FRONT SEATBACK, NO.2 (4 parts) 71759D — HOOK, FRONT SEATBACK, NO.2 (4 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (12 parts) 7181B — HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH (3 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (4 parts) 71868N — SHIELD, FRONT SEAT CUSHION, FRONT LH (1 parts) 71873A — SHIELD, FRONT SEAT CUSHION, LOWER (2 parts) 71874A — SHIELD, FRONT SEAT CUSHION, LOWER LH (2 parts) 71874C — SHIELD, FRONT SEAT CUSHION, LOWER (1 parts) 71875G — COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) (4 parts) 71876G — COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) (4 parts) 72020 — ADJUSTER ASSY, FRONT SEAT, LH (5 parts) 72125P — COVER, SEAT TRACK, UPPER REAR NO.3 (3 parts) 72125Q — COVER, SEAT TRACK, UPPER REAR NO.4 (4 parts) 72136B — SPACER, SEAT TRACK, LOWER NO.3 (3 parts) 72136C — SPACER, SEAT TRACK, LOWER NO.4 (3 parts) 72138N — COVER, SEAT TRACK BRACKET, OUTER REAR LH (2 parts) 72158 — COVER, SEAT TRACK BRACKET, INNER LH (2 parts) 72266 — COVER, SEAT TRACK UPPER RAIL, LH (12 parts) 72266 — COVER, SEAT TRACK UPPER RAIL, LH (12 parts) 72714 — BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH (1 parts) 72760D — ADJUSTER ASSY, LUMBAR SUPPORT, LH (9 parts) 9011910601 — not listed in this catalogue 9011910601 — not listed in this catalogue 9014810007 — not listed in this catalogue 9014810007 — not listed in this catalogue 9356054012 — not listed in this catalogue 9356054012 — not listed in this catalogue 9046707215 — not listed in this catalogue 9418560600 — not listed in this catalogue 85822B — MOTOR ASSY, POWER SEAT TILT, LH (1 parts) 85822C — MOTOR ASSY, POWER SEAT LIFTER, LH (1 parts) 7104 — not listed in this catalogue 79977A — FELT, SEATBACK (9 parts) 8202 — not listed in this catalogue 73920A — AIRBAG ASSY, FRONT SEAT, LH (2 parts) 72124 — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (2 parts) 72128A — COVER, SEAT TRACK BRACKET, INNER FRONT LH (2 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (26 parts) 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (22 parts) 87510L — HEATER ASSY, FRONT SEAT CUSHION, LH (9 parts) 87510N — HEATER ASSY, FRONT SEATBACK, LH (9 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (2 parts) 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (4 parts) 71910A — HEADREST ASSY, FRONT SEAT (17 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (10 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (10 parts) 8401 — not listed in this catalogue 8421 — not listed in this catalogue 87501B — CONTROL SUB-ASSY, SEAT HEATER, LH (9 parts)
71C062B · 42 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
224 parts on this figure
Part number Description Fitment Price
71014S — Frame Sub-assy, Front Seatback, LH
71014-10200 Frame Sub-assy, Front Seatback, LH
2018-01 → 2019-10 ended
ZGX10 —
71014-10200 Frame Sub-assy, Front Seatback, LH
2019-10 → 2022-12 ended
ZGX10 G —
71014-10200 Frame Sub-assy, Front Seatback, LH
2021-11 → 2022-12 ended
ZGX10 D —
71014-10210 Frame Sub-assy, Front Seatback, LH
2019-10 → 2022-12 ended
ZGX10 E —
71052A — Spring Sub-assy, Front Seat Cushion, LH
71051-47090 Spring Sub-assy, Front Seat Cushion, LH
2018-01 → 2018-05 ended
ZGX10 —
71051-47090 note Spring Sub-assy, Front Seat Cushion, LH
2018-05 → 2018-06 ended
ZGX10 —
71051-47090 note Spring Sub-assy, Front Seat Cushion, LH
2018-06 → 2019-10 ended
ZGX10 —
71051-47090 note Spring Sub-assy, Front Seat Cushion, LH
2018-06 → 2019-10 ended
ZGX10 —
71051-47090 note Spring Sub-assy, Front Seat Cushion, LH
2018-06 → 2019-10 ended
ZGX10 —
71051-47090 note Spring Sub-assy, Front Seat Cushion, LH
2018-06 → 2019-10 ended
ZGX10 —
71051-47090 note Spring Sub-assy, Front Seat Cushion, LH
2018-06 → 2019-10 ended
ZGX10 —
71051-47090 note Spring Sub-assy, Front Seat Cushion, LH
2018-06 → 2019-10 ended
ZGX10 —
71051-47090 note Spring Sub-assy, Front Seat Cushion, LH
2018-06 → 2019-10 ended
ZGX10 —
71051-47090 note Spring Sub-assy, Front Seat Cushion, LH
2018-06 → 2019-10 ended
ZGX10 —
71051-47090 Spring Sub-assy, Front Seat Cushion, LH
2019-10 → 2022-12 ended
ZGX10 —
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71072-10A50-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-01 → 2018-05 ended
ZGX10 —
71072-10A51-B3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → 2019-10 ended
ZGX10 —
71072-10A51-B3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → 2019-10 ended
ZGX10 —
71072-10A51-B3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-05 → 2018-06 ended
ZGX10 —
71072-10A60-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-01 → 2018-05 ended
ZGX10 —
71072-10A61-B3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-05 → 2019-10 ended
ZGX10 —
71072-10A70-E2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → 2019-10 ended
ZGX10 —
71072-10A80-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → 2019-10 ended
ZGX10 —
71072-10A90-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → 2019-10 ended
ZGX10 —
71072-10A90-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → 2019-10 ended
ZGX10 —
71072-10B00-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → 2019-10 ended
ZGX10 —
71072-10B00-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-06 → 2019-10 ended
ZGX10 —
71072-10B60-C4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-10 → 2020-04 ended
ZGX10 D —
71072-10B60-C7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-04 → 2020-08 ended
ZGX10 D —
71072-10B60-C8 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-08 → 2022-12 ended
ZGX10 D —
71072-10B60-C8 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-08 → 2022-12 ended
ZGX10 G —
71072-10B80-C4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-10 → 2020-04 ended
ZGX10 G —
71072-10B80-C5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-04 → 2022-12 ended
ZGX10 G —
71072-10B90-C4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-10 → 2020-04 ended
ZGX10 G —
71072-10B90-C5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-04 → 2022-12 ended
ZGX10 G —
71072-10C10-C5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-10 → 2020-04 ended
ZGX10 E —
71072-10C10-C6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-04 → 2022-12 ended
ZGX10 E —
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71074-10A50-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-01 → 2018-05 ended
ZGX10 —
71074-10A50-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-05 → 2018-06 ended
ZGX10 —
71074-10A50-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → 2018-12 ended
ZGX10 —
71074-10A50-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → 2018-12 ended
ZGX10 —
71074-10A50-B3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2019-10 ended
ZGX10 —
71074-10A50-B3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2019-10 ended
ZGX10 —
71074-10A60-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-01 → 2018-05 ended
ZGX10 —
71074-10A60-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-05 → 2018-12 ended
ZGX10 —
71074-10A60-B3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2019-10 ended
ZGX10 —
71074-10A70-E2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → 2018-12 ended
ZGX10 —
71074-10A70-E3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2019-10 ended
ZGX10 —
71074-10A80-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → 2018-12 ended
ZGX10 —
71074-10A80-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2019-10 ended
ZGX10 —
71074-10A90-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → 2018-12 ended
ZGX10 —
71074-10A90-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → 2018-12 ended
ZGX10 —
71074-10A90-C4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2019-10 ended
ZGX10 —
71074-10A90-C4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2019-10 ended
ZGX10 —
71074-10B00-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → 2018-12 ended
ZGX10 —
71074-10B00-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-06 → 2018-12 ended
ZGX10 —
71074-10B00-C4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2019-10 ended
ZGX10 —
71074-10B00-C4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2019-10 ended
ZGX10 —
71074-10B60-C5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-10 → 2022-12 ended
ZGX10 D —
71074-10B60-C5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-08 → 2022-12 ended
ZGX10 G —
71074-10B90-C4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-10 → 2022-12 ended
ZGX10 G —
71074-10C00-C4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-10 → 2022-12 ended
ZGX10 G —
71074-10C20-C5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-10 → 2022-12 ended
ZGX10 E —
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71512-10050 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2018-01 → 2019-10 ended
ZGX10 —
71512-10050 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2019-10 → 2020-06 ended
ZGX10 D,G —
71512-10051 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2020-07 → 2022-12 ended
ZGX10 D,G —
71512-10060 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2019-10 → 2022-12 ended
ZGX10 E —
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71552-10090 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2018-01 → 2019-10 ended
ZGX10 —
71552-10090 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2019-10 → 2022-12 ended
ZGX10 —
71587B — Protector, Front Seatback Edge
71587-47010 Protector, Front Seatback Edge
2018-01 → 2019-10 ended
ZGX10 —
71587-47010 Protector, Front Seatback Edge
2019-10 → 2022-12 ended
ZGX10 E,G —
71587-47010 Protector, Front Seatback Edge
2021-11 → 2022-12 ended
ZGX10 D —
71759D — Hook, Front Seatback, NO.2
71759-52050 Hook, Front Seatback, NO.2
2018-01 → 2019-09 ended
ZGX10 —
71759-50040 Hook, Front Seatback, NO.2
2019-11 → 2022-12 ended
ZGX10 E,G —
71759-50040 Hook, Front Seatback, NO.2
2021-11 → 2022-12 ended
ZGX10 D —
71759-52050 Hook, Front Seatback, NO.2
2019-10 → 2019-11 ended
ZGX10 E,G —
71812D — Shield, Front Seat Cushion, LH
71812-47130-C1 note Shield, Front Seat Cushion, LH
2018-01 → 2019-10 ended
ZGX10 —
71812-47160-C1 note Shield, Front Seat Cushion, LH
2018-01 → 2018-06 ended
ZGX10 —
71812-47160-C1 note Shield, Front Seat Cushion, LH
2018-06 → 2019-10 ended
ZGX10 —
71812-47160-C1 note Shield, Front Seat Cushion, LH
2018-06 → 2019-10 ended
ZGX10 —
71812-47160-C1 note Shield, Front Seat Cushion, LH
2018-06 → 2019-10 ended
ZGX10 —
71812-47160-C1 note Shield, Front Seat Cushion, LH
2018-06 → 2019-10 ended
ZGX10 —
71812-47160-C1 note Shield, Front Seat Cushion, LH
2018-06 → 2019-10 ended
ZGX10 —
71812-47160-C1 note Shield, Front Seat Cushion, LH
2018-06 → 2019-10 ended
ZGX10 —
71812-33400-C0 note Shield, Front Seat Cushion, LH
2019-10 → 2022-12 ended
ZGX10 E —
71812-47130-C1 note Shield, Front Seat Cushion, LH
2019-10 → 2022-12 ended
ZGX10 D —
71812-47130-C1 note Shield, Front Seat Cushion, LH
2019-10 → 2022-12 ended
ZGX10 G —
71812-47160-C1 note Shield, Front Seat Cushion, LH
2019-10 → 2022-12 ended
ZGX10 G —
7181B — Holder, Front Seat Cushion Wire Harness, LH
7181B-47010 Holder, Front Seat Cushion Wire Harness, LH
2018-01 → 2019-10 ended
ZGX10 —
7181B-33010 Holder, Front Seat Cushion Wire Harness, LH
2019-10 → 2022-12 ended
ZGX10 E —
7181B-47010 Holder, Front Seat Cushion Wire Harness, LH
2019-10 → 2022-12 ended
ZGX10 D,G —
71862 — Shield, Front Seat Cushion, Inner LH
71862-47090-C1 note Shield, Front Seat Cushion, Inner LH
2018-01 → 2019-10 ended
ZGX10 —
71862-47090-C1 note Shield, Front Seat Cushion, Inner LH
2019-10 → 2022-12 ended
ZGX10 D —
71862-47090-C1 note Shield, Front Seat Cushion, Inner LH
2019-10 → 2022-12 ended
ZGX10 E —
71862-47090-C1 note Shield, Front Seat Cushion, Inner LH
2019-10 → 2022-12 ended
ZGX10 G —
71868N — Shield, Front Seat Cushion, Front LH
71868-47010-C1 note Shield, Front Seat Cushion, Front LH
2019-10 → 2022-12 ended
ZGX10 E —
71873A — Shield, Front Seat Cushion, Lower
71874-47080 Shield, Front Seat Cushion, Lower
2018-01 → 2019-10 ended
ZGX10 —
71874-47080 Shield, Front Seat Cushion, Lower
2019-10 → 2022-12 ended
ZGX10 —
71874A — Shield, Front Seat Cushion, Lower LH
71874-47070 Shield, Front Seat Cushion, Lower LH
2018-01 → 2019-10 ended
ZGX10 —
71874-47070 Shield, Front Seat Cushion, Lower LH
2019-10 → 2022-12 ended
ZGX10 —
71874C — Shield, Front Seat Cushion, Lower
71874-47090 Shield, Front Seat Cushion, Lower
2019-10 → 2022-12 ended
ZGX10 E —
71875G — Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876-47080-C1 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2018-01 → 2019-10 ended
ZGX10 —
71876-47080-C1 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2019-10 → 2022-12 ended
ZGX10 D —
71876-47080-C1 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2019-10 → 2022-12 ended
ZGX10 E —
71876-47080-C1 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2019-10 → 2022-12 ended
ZGX10 G —
71876G — Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71876-47040-C1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2018-01 → 2019-10 ended
ZGX10 —
71876-47040-C1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2019-10 → 2022-12 ended
ZGX10 D —
71876-47040-C1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2019-10 → 2022-12 ended
ZGX10 E —
71876-47040-C1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2019-10 → 2022-12 ended
ZGX10 G —
71910A — Headrest Assy, Front Seat
71910-10450-C0 note Headrest Assy, Front Seat
2018-01 → 2018-05 ended
ZGX10 —
71910-10450-C4 note Headrest Assy, Front Seat
2018-05 → 2019-06 ended
ZGX10 —
71910-10450-C6 note Headrest Assy, Front Seat
2019-06 → 2019-10 ended
ZGX10 —
71910-10461-C1 note Headrest Assy, Front Seat
2018-06 → 2019-10 ended
ZGX10 —
71910-10461-E1 note Headrest Assy, Front Seat
2018-06 → 2019-10 ended
ZGX10 —
71910-10470-B3 note Headrest Assy, Front Seat
2018-06 → 2019-10 ended
ZGX10 —
71910-10470-B3 note Headrest Assy, Front Seat
2018-06 → 2019-10 ended
ZGX10 —
71910-10470-B3 note Headrest Assy, Front Seat
2018-06 → 2019-10 ended
ZGX10 —
71910-10470-B3 note Headrest Assy, Front Seat
2018-06 → 2019-10 ended
ZGX10 —
71910-10500-B5 note Headrest Assy, Front Seat
2019-10 → 2022-12 ended
ZGX10 D —
71910-10500-B5 note Headrest Assy, Front Seat
2020-08 → 2022-12 ended
ZGX10 G —
71910-10510 Headrest Assy, Front Seat
2022-08 → 2022-12 ended
ZGX10 E —
71910-10510-C3 note Headrest Assy, Front Seat
2019-10 → 2020-04 ended
ZGX10 E —
71910-10510-C4 note Headrest Assy, Front Seat
2020-04 → 2022-08 ended
ZGX10 E —
71910-10520-C2 note Headrest Assy, Front Seat
2019-10 → 2020-01 ended
ZGX10 G —
71910-10521 Headrest Assy, Front Seat
2020-02 → 2020-08 ended
ZGX10 G —
71910-10521-C3 note Headrest Assy, Front Seat
2020-08 → 2022-12 ended
ZGX10 G —
71931 — Support, Front Seat Headrest
71930-47050-C5 note Support, Front Seat Headrest
2018-01 → 2019-10 ended
ZGX10 —
71931-47030-C4 note Support, Front Seat Headrest
2018-01 → 2019-10 ended
ZGX10 —
71930-47050-C5 note Support, Front Seat Headrest
2019-10 → 2022-08 ended
ZGX10 E —
71930-47050-C5 note Support, Front Seat Headrest
2019-10 → 2022-12 ended
ZGX10 D —
71930-47050-C5 note Support, Front Seat Headrest
2019-10 → 2022-12 ended
ZGX10 G —
71930-47050-C5 note Support, Front Seat Headrest
2022-08 → 2022-12 ended
ZGX10 E —
71931-47030-C4 note Support, Front Seat Headrest
2019-10 → 2022-08 ended
ZGX10 E —
71931-47030-C4 note Support, Front Seat Headrest
2022-08 → 2022-12 ended
ZGX10 E —
71931-47030-C4 note Support, Front Seat Headrest
2019-10 → 2022-12 ended
ZGX10 G —
71931-47030-C4 note Support, Front Seat Headrest
2019-10 → 2022-12 ended
ZGX10 D —
72020 — Adjuster Assy, Front Seat, LH
72020-10240 Adjuster Assy, Front Seat, LH
2018-06 → 2019-05 ended
ZGX10 —
72020-10241 Adjuster Assy, Front Seat, LH
2019-06 → 2019-10 ended
ZGX10 —
72020-47370 Adjuster Assy, Front Seat, LH
2018-01 → 2018-06 ended
ZGX10 —
72020-10241 Adjuster Assy, Front Seat, LH
2019-10 → 2022-12 ended
ZGX10 D,G —
72020-33450 Adjuster Assy, Front Seat, LH
2019-10 → 2022-12 ended
ZGX10 E —
72124 — Cover, Seat Track Bracket, Outer Front LH
72123-10100 Cover, Seat Track Bracket, Outer Front LH
2018-01 → 2019-10 ended
ZGX10 —
72123-10100 Cover, Seat Track Bracket, Outer Front LH
2019-10 → 2022-12 ended
ZGX10 —
72125P — Cover, Seat Track, Upper Rear NO.3
72125-47010 Cover, Seat Track, Upper Rear NO.3
2018-01 → 2019-10 ended
ZGX10 —
72125-47010 Cover, Seat Track, Upper Rear NO.3
2019-10 → 2022-12 ended
ZGX10 D,G —
72125-47020 Cover, Seat Track, Upper Rear NO.3
2019-10 → 2022-12 ended
ZGX10 E —
72125Q — Cover, Seat Track, Upper Rear NO.4
72125-47010 Cover, Seat Track, Upper Rear NO.4
2018-03 → 2019-10 ended
ZGX10 —
72125-47020 Cover, Seat Track, Upper Rear NO.4
2018-01 → 2018-03 ended
ZGX10 —
72125-47010 Cover, Seat Track, Upper Rear NO.4
2019-10 → 2022-12 ended
ZGX10 D,G —
72125-47020 Cover, Seat Track, Upper Rear NO.4
2019-10 → 2022-12 ended
ZGX10 E —
72128A — Cover, Seat Track Bracket, Inner Front LH
72123-10100 Cover, Seat Track Bracket, Inner Front LH
2018-01 → 2019-10 ended
ZGX10 —
72123-10100 Cover, Seat Track Bracket, Inner Front LH
2019-10 → 2022-12 ended
ZGX10 —
72136B — Spacer, Seat Track, Lower NO.3
72136-12110 Spacer, Seat Track, Lower NO.3
2018-01 → 2019-10 ended
ZGX10 —
72136-12110 Spacer, Seat Track, Lower NO.3
2019-10 → 2022-12 ended
ZGX10 D,G —
72136-33290 Spacer, Seat Track, Lower NO.3
2019-10 → 2022-12 ended
ZGX10 E —
72136C — Spacer, Seat Track, Lower NO.4
72136-33340 Spacer, Seat Track, Lower NO.4
2018-01 → 2019-10 ended
ZGX10 —
72136-33300 Spacer, Seat Track, Lower NO.4
2019-10 → 2022-12 ended
ZGX10 E —
72136-33340 Spacer, Seat Track, Lower NO.4
2019-10 → 2022-12 ended
ZGX10 D,G —
72138N — Cover, Seat Track Bracket, Outer Rear LH
72137-47060 Cover, Seat Track Bracket, Outer Rear LH
2018-01 → 2019-10 ended
ZGX10 —
72137-47060 Cover, Seat Track Bracket, Outer Rear LH
2019-10 → 2022-12 ended
ZGX10 —
72158 — Cover, Seat Track Bracket, Inner LH
72158-10040 Cover, Seat Track Bracket, Inner LH
2018-01 → 2019-10 ended
ZGX10 —
72158-10040 Cover, Seat Track Bracket, Inner LH
2019-10 → 2022-12 ended
ZGX10 —
72266 — Cover, Seat Track Upper Rail, LH
72265-47010 Cover, Seat Track Upper Rail, LH
2019-06 → 2019-10 ended
ZGX10 —
72265-47010 note Cover, Seat Track Upper Rail, LH
2018-06 → 2019-06 ended
ZGX10 —
72265-47010 note Cover, Seat Track Upper Rail, LH
2018-06 → 2019-06 ended
ZGX10 —
72265-47010 note Cover, Seat Track Upper Rail, LH
2018-06 → 2019-06 ended
ZGX10 —
72265-47010 note Cover, Seat Track Upper Rail, LH
2018-06 → 2019-06 ended
ZGX10 —
72265-47010 note Cover, Seat Track Upper Rail, LH
2018-06 → 2019-06 ended
ZGX10 —
72265-47010 note Cover, Seat Track Upper Rail, LH
2018-06 → 2019-06 ended
ZGX10 —
72265-47010 note Cover, Seat Track Upper Rail, LH
2018-01 → 2018-06 ended
ZGX10 —
72265-47010 note Cover, Seat Track Upper Rail, LH
2018-06 → 2019-06 ended
ZGX10 —
72265-47010 note Cover, Seat Track Upper Rail, LH
2018-06 → 2019-06 ended
ZGX10 —
72265-47010 Cover, Seat Track Upper Rail, LH
2019-10 → 2022-12 ended
ZGX10 D,G —
72265-47020 Cover, Seat Track Upper Rail, LH
2019-10 → 2022-12 ended
ZGX10 E —
72714 — Bracket, Seat Adjuster Shield Clamp, LH
72714-47010 Bracket, Seat Adjuster Shield Clamp, LH
2019-10 → 2022-12 ended
ZGX10 E —
72760D — Adjuster Assy, Lumbar Support, LH
72760-11020 note Adjuster Assy, Lumbar Support, LH
2018-01 → 2018-06 ended
ZGX10 —
72760-11020 note Adjuster Assy, Lumbar Support, LH
2018-06 → 2019-10 ended
ZGX10 —
72760-11020 note Adjuster Assy, Lumbar Support, LH
2018-06 → 2019-10 ended
ZGX10 —
72760-11020 note Adjuster Assy, Lumbar Support, LH
2018-06 → 2019-10 ended
ZGX10 —
72760-11020 note Adjuster Assy, Lumbar Support, LH
2018-06 → 2019-10 ended
ZGX10 —
72760-11020 note Adjuster Assy, Lumbar Support, LH
2018-06 → 2019-10 ended
ZGX10 —
72760-11020 note Adjuster Assy, Lumbar Support, LH
2018-06 → 2019-10 ended
ZGX10 —
72760-11020 note Adjuster Assy, Lumbar Support, LH
2019-10 → 2022-12 ended
ZGX10 G —
72760-11020 Adjuster Assy, Lumbar Support, LH
2019-10 → 2022-12 ended
ZGX10 E —
73920A — Airbag Assy, Front Seat, LH
73920-10030 Airbag Assy, Front Seat, LH
2018-01 → 2019-10 ended
ZGX10 —
73920-10030 Airbag Assy, Front Seat, LH
2019-10 → 2022-12 ended
ZGX10 —
79977A — Felt, Seatback
79977-33030 note Felt, Seatback
2018-01 → 2018-06 ended
ZGX10 —
79977-33030 note Felt, Seatback
2018-06 → 2019-10 ended
ZGX10 —
79977-33030 note Felt, Seatback
2018-06 → 2019-10 ended
ZGX10 —
79977-33030 note Felt, Seatback
2018-06 → 2019-10 ended
ZGX10 —
79977-33030 note Felt, Seatback
2018-06 → 2019-10 ended
ZGX10 —
79977-33030 note Felt, Seatback
2018-06 → 2019-10 ended
ZGX10 —
79977-33030 note Felt, Seatback
2018-06 → 2019-10 ended
ZGX10 —
79977-33030 Felt, Seatback
2019-10 → 2022-12 ended
ZGX10 E —
79977-33030 note Felt, Seatback
2019-10 → 2022-12 ended
ZGX10 G —
85822B — Motor Assy, Power Seat Tilt, LH
85801-47040 Motor Assy, Power Seat Tilt, LH
2019-10 → 2022-12 ended
ZGX10 E —
85822C — Motor Assy, Power Seat Lifter, LH
85801-47030 Motor Assy, Power Seat Lifter, LH
2019-10 → 2022-12 ended
ZGX10 E —
87501B — Control Sub-assy, Seat Heater, LH
87501-10020 note Control Sub-assy, Seat Heater, LH
2018-01 → 2018-06 ended
ZGX10 —
87501-10020 note Control Sub-assy, Seat Heater, LH
2018-06 → 2019-10 ended
ZGX10 —
87501-10020 note Control Sub-assy, Seat Heater, LH
2018-06 → 2019-10 ended
ZGX10 —
87501-10020 note Control Sub-assy, Seat Heater, LH
2018-06 → 2019-10 ended
ZGX10 —
87501-10020 note Control Sub-assy, Seat Heater, LH
2018-06 → 2019-10 ended
ZGX10 —
87501-10020 note Control Sub-assy, Seat Heater, LH
2018-06 → 2019-10 ended
ZGX10 —
87501-10020 note Control Sub-assy, Seat Heater, LH
2018-06 → 2019-10 ended
ZGX10 —
87501-10020 Control Sub-assy, Seat Heater, LH
2019-10 → 2022-12 ended
ZGX10 E —
87501-10020 note Control Sub-assy, Seat Heater, LH
2019-10 → 2022-12 ended
ZGX10 G —
87510L — Heater Assy, Front Seat Cushion, LH
87510-10010 note Heater Assy, Front Seat Cushion, LH
2018-06 → 2019-10 ended
ZGX10 —
87510-10010 note Heater Assy, Front Seat Cushion, LH
2018-06 → 2019-10 ended
ZGX10 —
87510-10010 note Heater Assy, Front Seat Cushion, LH
2018-06 → 2019-10 ended
ZGX10 —
87510-10010 note Heater Assy, Front Seat Cushion, LH
2018-06 → 2019-10 ended
ZGX10 —
87510-10010 note Heater Assy, Front Seat Cushion, LH
2018-06 → 2019-10 ended
ZGX10 —
87510-10010 note Heater Assy, Front Seat Cushion, LH
2018-06 → 2019-10 ended
ZGX10 —
87510-10010 note Heater Assy, Front Seat Cushion, LH
2018-01 → 2018-06 ended
ZGX10 —
87510-10010 Heater Assy, Front Seat Cushion, LH
2019-10 → 2022-12 ended
ZGX10 E —
87510-10010 note Heater Assy, Front Seat Cushion, LH
2019-10 → 2022-12 ended
ZGX10 G —
87510N — Heater Assy, Front Seatback, LH
87530-10020 note Heater Assy, Front Seatback, LH
2018-01 → 2018-06 ended
ZGX10 —
87530-10020 note Heater Assy, Front Seatback, LH
2018-06 → 2019-10 ended
ZGX10 —
87530-10020 note Heater Assy, Front Seatback, LH
2018-06 → 2019-10 ended
ZGX10 —
87530-10020 note Heater Assy, Front Seatback, LH
2018-06 → 2019-10 ended
ZGX10 —
87530-10020 note Heater Assy, Front Seatback, LH
2018-06 → 2019-10 ended
ZGX10 —
87530-10020 note Heater Assy, Front Seatback, LH
2018-06 → 2019-10 ended
ZGX10 —
87530-10020 note Heater Assy, Front Seatback, LH
2018-06 → 2019-10 ended
ZGX10 —
87530-10020 Heater Assy, Front Seatback, LH
2019-10 → 2022-12 ended
ZGX10 E —
87530-10020 note Heater Assy, Front Seatback, LH
2019-10 → 2022-12 ended
ZGX10 G —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
