Toyota C-hr (JPP)

2018-01 → present · chassis ZGX10 · catalogue 529410 · United States

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

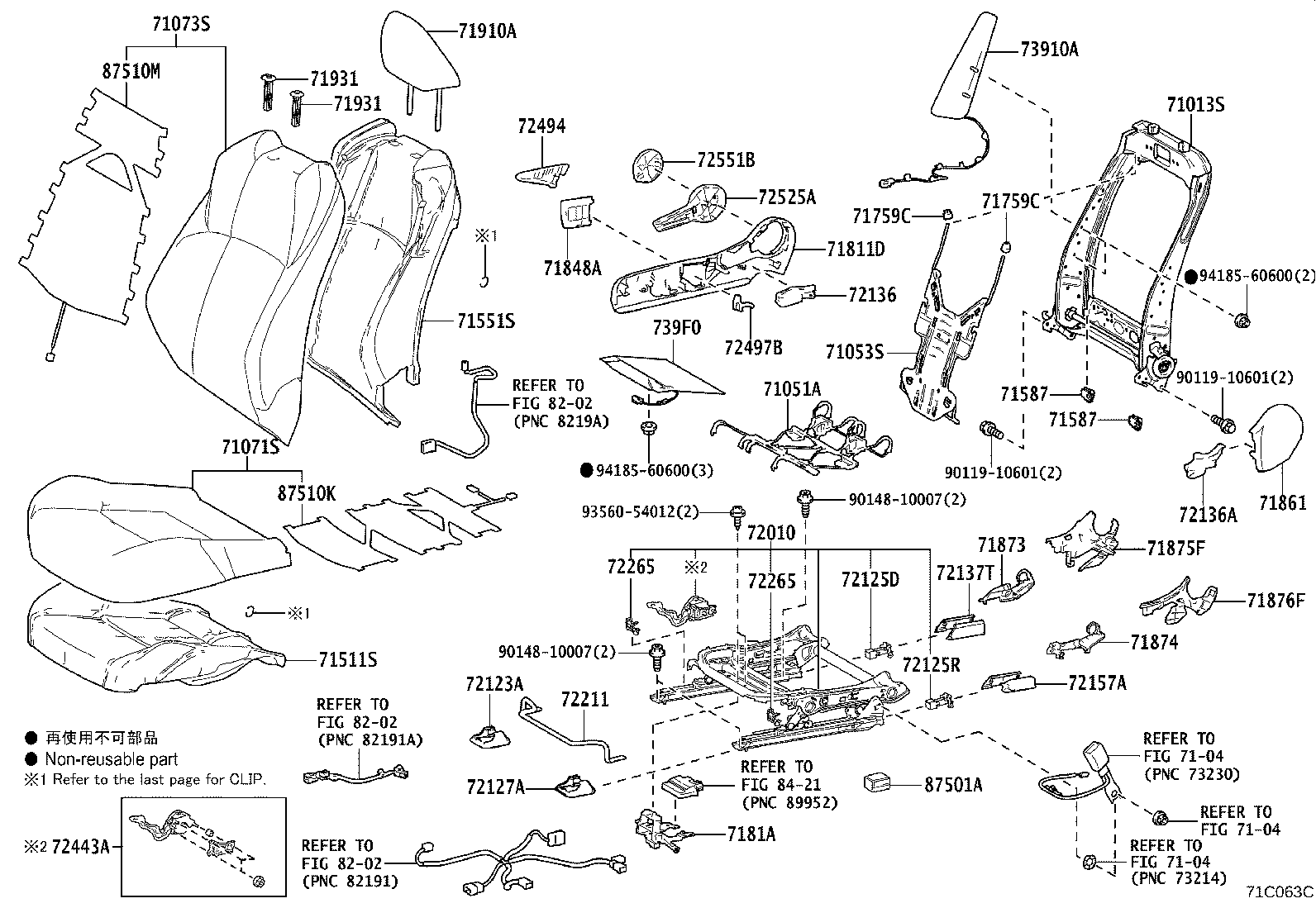

Exploded illustration 71C063C 7104 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 9011910601 — not listed in this catalogue 9011910601 — not listed in this catalogue 9418560600 — not listed in this catalogue 71013S — FRAME SUB-ASSY, FRONT SEATBACK, RH (3 parts) 71073S — COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (26 parts) 71071S — COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (25 parts) 87510K — HEATER ASSY, FRONT SEAT CUSHION, RH (9 parts) 87510M — HEATER ASSY, FRONT SEATBACK, RH (9 parts) 71551S — PAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (2 parts) 71848A — CAP, SEAT ADJUSTER COVER, RH (6 parts) 72494 — HANDLE, VERTICAL ADJUSTING, RH (5 parts) 71511S — PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (2 parts) 71587 — PROTECTOR, FRONT SEATBACK EDGE (3 parts) 71587 — PROTECTOR, FRONT SEATBACK EDGE (3 parts) 71759C — HOOK, FRONT SEATBACK, NO.1 (4 parts) 71759C — HOOK, FRONT SEATBACK, NO.1 (4 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (4 parts) 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (3 parts) 72551B — COVER, RECLINING HINGE, RH (4 parts) 9418560600 — not listed in this catalogue 739F0 — AIRBAG ASSY, FRONT SEAT CUSHION, RH (3 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (4 parts) 71875F — COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) (4 parts) 71876F — COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) (4 parts) 71910A — HEADREST ASSY, FRONT SEAT (17 parts) 72497B — COVER, VERTICAL ADJUSTER BRACKET, RH (2 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (10 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (10 parts) 72136 — SPACER, SEAT TRACK, LOWER NO.1 (2 parts) 72136A — SPACER, SEAT TRACK, LOWER NO.2 (2 parts) 71053S — SPRING SUB-ASSY, FRONT SEATBACK, RH (3 parts) 73910A — AIRBAG ASSY, FRONT SEAT, RH (2 parts) 9356054012 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 9014810007 — not listed in this catalogue 9014810007 — not listed in this catalogue 71873 — SHIELD, FRONT SEAT CUSHION, LOWER RH (2 parts) 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (2 parts) 71051A — SPRING SUB-ASSY, FRONT SEAT CUSHION, RH (12 parts) 7181A — HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH (2 parts) 87501A — CONTROL SUB-ASSY, SEAT HEATER, RH (9 parts) 72211 — HANDLE, SEAT TRACK ADJUSTING (11 parts) 72010 — ADJUSTER ASSY, FRONT SEAT, RH (4 parts) 72123A — COVER, SEAT TRACK BRACKET, OUTER FRONT RH (2 parts) 72127A — COVER, SEAT TRACK BRACKET, INNER FRONT RH (2 parts) 72137T — COVER, SEAT TRACK BRACKET, OUTER REAR RH (2 parts) 72157A — COVER, SEAT TRACK BRACKET, INNER RH (2 parts) 72443A — GEAR, VERTICAL ADJUSTER, RH (3 parts) 72265 — COVER, SEAT TRACK UPPER RAIL, RH (12 parts) 72265 — COVER, SEAT TRACK UPPER RAIL, RH (12 parts) 72125R — COVER, SEAT TRACK, UPPER REAR NO.1 (2 parts) 8421 — not listed in this catalogue 72125D — COVER, SEAT TRACK, UPPER REAR NO.2 (3 parts) 8202 — not listed in this catalogue
71C063C · 44 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
228 parts on this figure
Part number Description Fitment Price
71013S — Frame Sub-assy, Front Seatback, RH
71013-10240 Frame Sub-assy, Front Seatback, RH
2018-01 → 2019-10 ended
ZGX10 —
71013-10240 Frame Sub-assy, Front Seatback, RH
2019-10 → 2022-12 ended
ZGX10 E,G —
71013-10240 Frame Sub-assy, Front Seatback, RH
2022-08 → 2022-12 ended
ZGX10 D —
71051A — Spring Sub-assy, Front Seat Cushion, RH
71051-47090 Spring Sub-assy, Front Seat Cushion, RH
2018-01 → 2018-05 ended
ZGX10 —
71051-47090 note Spring Sub-assy, Front Seat Cushion, RH
2018-06 → 2019-10 ended
ZGX10 —
71051-47090 note Spring Sub-assy, Front Seat Cushion, RH
2018-06 → 2019-10 ended
ZGX10 —
71051-47090 note Spring Sub-assy, Front Seat Cushion, RH
2018-06 → 2019-10 ended
ZGX10 —
71051-47090 note Spring Sub-assy, Front Seat Cushion, RH
2018-06 → 2019-10 ended
ZGX10 —
71051-47090 note Spring Sub-assy, Front Seat Cushion, RH
2018-06 → 2019-10 ended
ZGX10 —
71051-47090 note Spring Sub-assy, Front Seat Cushion, RH
2018-06 → 2019-10 ended
ZGX10 —
71051-47090 note Spring Sub-assy, Front Seat Cushion, RH
2018-06 → 2019-10 ended
ZGX10 —
71051-47090 Spring Sub-assy, Front Seat Cushion, RH
2018-05 → 2019-10 ended
ZGX10 —
71051-47090 note Spring Sub-assy, Front Seat Cushion, RH
2018-05 → 2018-06 ended
ZGX10 —
71051-47090 note Spring Sub-assy, Front Seat Cushion, RH
2018-06 → 2019-10 ended
ZGX10 —
71051-47090 Spring Sub-assy, Front Seat Cushion, RH
2019-10 → 2022-12 ended
ZGX10 —
71053S — Spring Sub-assy, Front Seatback, RH
71053-47050 Spring Sub-assy, Front Seatback, RH
2018-01 → 2019-10 ended
ZGX10 —
71053-47050 Spring Sub-assy, Front Seatback, RH
2019-10 → 2022-12 ended
ZGX10 E,G —
71053-47050 Spring Sub-assy, Front Seatback, RH
2022-08 → 2022-12 ended
ZGX10 D —
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071-10A00-B2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-01 → 2018-05 ended
ZGX10 —
71071-10A50-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-01 → 2018-05 ended
ZGX10 —
71071-10A51-B3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-05 → 2018-06 ended
ZGX10 —
71071-10A51-B3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-06 → 2019-10 ended
ZGX10 —
71071-10A51-B3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-06 → 2019-10 ended
ZGX10 —
71071-10A60-C3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-06 → 2019-10 ended
ZGX10 —
71071-10A60-C3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-06 → 2019-10 ended
ZGX10 —
71071-10A70-C3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-06 → 2019-10 ended
ZGX10 —
71071-10A70-C3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-06 → 2019-10 ended
ZGX10 —
71071-10B50-B3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-05 → 2019-10 ended
ZGX10 —
71071-10B60-E2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-06 → 2019-10 ended
ZGX10 —
71071-10B70-C2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-06 → 2019-10 ended
ZGX10 —
71071-10A80 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-08 → 2022-12 ended
ZGX10 G —
71071-10A80 Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-08 → 2022-12 ended
ZGX10 D —
71071-10A80-C5 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2019-10 → 2020-04 ended
ZGX10 D —
71071-10A80-C8 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2020-04 → 2020-08 ended
ZGX10 D —
71071-10A80-C9 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2020-08 → 2022-08 ended
ZGX10 D —
71071-10A80-C9 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2020-08 → 2022-08 ended
ZGX10 G —
71071-10B20 Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-08 → 2022-12 ended
ZGX10 E —
71071-10B20-C5 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2019-10 → 2020-04 ended
ZGX10 E —
71071-10B20-C6 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2020-04 → 2022-08 ended
ZGX10 E —
71071-10B30-C4 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2019-10 → 2020-04 ended
ZGX10 G —
71071-10B30-C5 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2020-04 → 2022-12 ended
ZGX10 G —
71071-10B40-C4 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2019-10 → 2020-04 ended
ZGX10 G —
71071-10B40-C5 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2020-04 → 2022-12 ended
ZGX10 G —
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073-10A60-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-01 → 2018-05 ended
ZGX10 —
71073-10A60-B2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-05 → 2018-06 ended
ZGX10 —
71073-10A60-B2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-06 → 2018-12 ended
ZGX10 —
71073-10A60-B2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-06 → 2018-12 ended
ZGX10 —
71073-10A60-B3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2019-10 ended
ZGX10 —
71073-10A60-B3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2019-10 ended
ZGX10 —
71073-10A70-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-01 → 2018-05 ended
ZGX10 —
71073-10A70-B2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-05 → 2018-12 ended
ZGX10 —
71073-10A70-B3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2019-10 ended
ZGX10 —
71073-10A80-E2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-06 → 2018-12 ended
ZGX10 —
71073-10A80-E3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2019-10 ended
ZGX10 —
71073-10A90-C2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-06 → 2018-12 ended
ZGX10 —
71073-10A90-C3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2019-10 ended
ZGX10 —
71073-10B00-C3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-06 → 2018-12 ended
ZGX10 —
71073-10B00-C3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-06 → 2018-12 ended
ZGX10 —
71073-10B00-C4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2019-10 ended
ZGX10 —
71073-10B00-C4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2019-10 ended
ZGX10 —
71073-10B10-C3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-06 → 2018-12 ended
ZGX10 —
71073-10B10-C3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-06 → 2018-12 ended
ZGX10 —
71073-10B10-C4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2019-10 ended
ZGX10 —
71073-10B10-C4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2019-10 ended
ZGX10 —
71073-10B70-C5 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-10 → 2022-12 ended
ZGX10 D —
71073-10B70-C5 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2020-08 → 2022-12 ended
ZGX10 G —
71073-10C00-C4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-10 → 2022-12 ended
ZGX10 G —
71073-10C10-C4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-10 → 2022-12 ended
ZGX10 G —
71073-10C30-C5 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-10 → 2022-12 ended
ZGX10 E —
71511S — Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71511-10320 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-01 → 2019-10 ended
ZGX10 —
71511-10320 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2019-10 → 2022-12 ended
ZGX10 —
71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71551-10250 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2018-01 → 2019-10 ended
ZGX10 —
71551-10250 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2019-10 → 2022-12 ended
ZGX10 —
71587 — Protector, Front Seatback Edge
71587-47010 Protector, Front Seatback Edge
2018-01 → 2019-10 ended
ZGX10 —
71587-47010 Protector, Front Seatback Edge
2019-10 → 2022-12 ended
ZGX10 E,G —
71587-47010 Protector, Front Seatback Edge
2022-08 → 2022-12 ended
ZGX10 D —
71759C — Hook, Front Seatback, NO.1
71759-52050 Hook, Front Seatback, NO.1
2018-01 → 2019-09 ended
ZGX10 —
71759-50040 Hook, Front Seatback, NO.1
2019-11 → 2022-12 ended
ZGX10 E,G —
71759-50040 Hook, Front Seatback, NO.1
2022-08 → 2022-12 ended
ZGX10 D —
71759-52050 Hook, Front Seatback, NO.1
2019-10 → 2019-11 ended
ZGX10 E,G —
71811D — Shield, Front Seat Cushion, RH
71811-47140-C1 note Shield, Front Seat Cushion, RH
2018-01 → 2019-10 ended
ZGX10 —
71811-47140-C1 note Shield, Front Seat Cushion, RH
2019-10 → 2022-12 ended
ZGX10 D —
71811-47140-C1 note Shield, Front Seat Cushion, RH
2019-10 → 2022-12 ended
ZGX10 E —
71811-47140-C1 note Shield, Front Seat Cushion, RH
2019-10 → 2022-12 ended
ZGX10 G —
7181A — Holder, Front Seat Cushion Wire Harness, RH
7181A-47010 Holder, Front Seat Cushion Wire Harness, RH
2018-01 → 2019-10 ended
ZGX10 —
7181A-47010 Holder, Front Seat Cushion Wire Harness, RH
2019-10 → 2022-12 ended
ZGX10 —
71848A — Cap, Seat Adjuster Cover, RH
71848-47040-C1 note Cap, Seat Adjuster Cover, RH
2018-01 → 2019-10 ended
ZGX10 —
71848-10020-C0 note Cap, Seat Adjuster Cover, RH
2021-01 → 2022-12 ended
ZGX10 G —
71848-10020-C0 note Cap, Seat Adjuster Cover, RH
2021-01 → 2022-12 ended
ZGX10 D,E —
71848-47040-C1 note Cap, Seat Adjuster Cover, RH
2019-10 → 2021-01 ended
ZGX10 D —
71848-47040-C1 note Cap, Seat Adjuster Cover, RH
2019-10 → 2021-01 ended
ZGX10 E —
71848-47040-C1 note Cap, Seat Adjuster Cover, RH
2019-10 → 2021-01 ended
ZGX10 G —
71861 — Shield, Front Seat Cushion, Inner RH
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2018-01 → 2019-10 ended
ZGX10 —
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2019-10 → 2022-12 ended
ZGX10 D —
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2019-10 → 2022-12 ended
ZGX10 E —
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2019-10 → 2022-12 ended
ZGX10 G —
71873 — Shield, Front Seat Cushion, Lower RH
71873-47070 Shield, Front Seat Cushion, Lower RH
2018-01 → 2019-10 ended
ZGX10 —
71873-47070 Shield, Front Seat Cushion, Lower RH
2019-10 → 2022-12 ended
ZGX10 —
71874 — Shield, Front Seat Cushion, Lower LH
71873-33140 Shield, Front Seat Cushion, Lower LH
2018-01 → 2019-10 ended
ZGX10 —
71873-33140 Shield, Front Seat Cushion, Lower LH
2019-10 → 2022-12 ended
ZGX10 —
71875F — Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2018-01 → 2019-10 ended
ZGX10 —
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2019-10 → 2022-12 ended
ZGX10 D —
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2019-10 → 2022-12 ended
ZGX10 E —
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2019-10 → 2022-12 ended
ZGX10 G —
71876F — Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71875-47070-C1 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2018-01 → 2019-10 ended
ZGX10 —
71875-47070-C1 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2019-10 → 2022-12 ended
ZGX10 D —
71875-47070-C1 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2019-10 → 2022-12 ended
ZGX10 E —
71875-47070-C1 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2019-10 → 2022-12 ended
ZGX10 G —
71910A — Headrest Assy, Front Seat
71910-10450-C0 note Headrest Assy, Front Seat
2018-01 → 2018-05 ended
ZGX10 —
71910-10450-C4 note Headrest Assy, Front Seat
2018-05 → 2019-06 ended
ZGX10 —
71910-10450-C6 note Headrest Assy, Front Seat
2019-06 → 2019-10 ended
ZGX10 —
71910-10461-C1 note Headrest Assy, Front Seat
2018-06 → 2019-10 ended
ZGX10 —
71910-10461-E1 note Headrest Assy, Front Seat
2018-06 → 2019-10 ended
ZGX10 —
71910-10470-B3 note Headrest Assy, Front Seat
2018-06 → 2019-10 ended
ZGX10 —
71910-10470-B3 note Headrest Assy, Front Seat
2018-06 → 2019-10 ended
ZGX10 —
71910-10470-B3 note Headrest Assy, Front Seat
2018-06 → 2019-10 ended
ZGX10 —
71910-10470-B3 note Headrest Assy, Front Seat
2018-06 → 2019-10 ended
ZGX10 —
71910-10500-B5 note Headrest Assy, Front Seat
2019-10 → 2022-12 ended
ZGX10 D —
71910-10500-B5 note Headrest Assy, Front Seat
2020-08 → 2022-12 ended
ZGX10 G —
71910-10510 Headrest Assy, Front Seat
2022-08 → 2022-12 ended
ZGX10 E —
71910-10510-C3 note Headrest Assy, Front Seat
2019-10 → 2020-04 ended
ZGX10 E —
71910-10510-C4 note Headrest Assy, Front Seat
2020-04 → 2022-08 ended
ZGX10 E —
71910-10520-C2 note Headrest Assy, Front Seat
2019-10 → 2020-01 ended
ZGX10 G —
71910-10521 Headrest Assy, Front Seat
2020-02 → 2020-08 ended
ZGX10 G —
71910-10521-C3 note Headrest Assy, Front Seat
2020-08 → 2022-12 ended
ZGX10 G —
71931 — Support, Front Seat Headrest
71930-47050-C5 note Support, Front Seat Headrest
2018-01 → 2019-10 ended
ZGX10 —
71931-47030-C4 note Support, Front Seat Headrest
2018-01 → 2019-10 ended
ZGX10 —
71930-47050-C5 note Support, Front Seat Headrest
2019-10 → 2022-08 ended
ZGX10 E —
71930-47050-C5 note Support, Front Seat Headrest
2019-10 → 2022-12 ended
ZGX10 D —
71930-47050-C5 note Support, Front Seat Headrest
2019-10 → 2022-12 ended
ZGX10 G —
71930-47050-C5 note Support, Front Seat Headrest
2022-08 → 2022-12 ended
ZGX10 E —
71931-47030-C4 note Support, Front Seat Headrest
2019-10 → 2022-12 ended
ZGX10 D —
71931-47030-C4 note Support, Front Seat Headrest
2022-08 → 2022-12 ended
ZGX10 E —
71931-47030-C4 note Support, Front Seat Headrest
2019-10 → 2022-12 ended
ZGX10 G —
71931-47030-C4 note Support, Front Seat Headrest
2019-10 → 2022-08 ended
ZGX10 E —
72010 — Adjuster Assy, Front Seat, RH
72010-10330 Adjuster Assy, Front Seat, RH
2018-06 → 2019-05 ended
ZGX10 —
72010-10331 Adjuster Assy, Front Seat, RH
2019-06 → 2019-10 ended
ZGX10 —
72010-33540 Adjuster Assy, Front Seat, RH
2018-01 → 2018-06 ended
ZGX10 —
72010-10331 Adjuster Assy, Front Seat, RH
2019-10 → 2022-12 ended
ZGX10 —
72123A — Cover, Seat Track Bracket, Outer Front RH
72123-10100 Cover, Seat Track Bracket, Outer Front RH
2018-01 → 2019-10 ended
ZGX10 —
72123-10100 Cover, Seat Track Bracket, Outer Front RH
2019-10 → 2022-12 ended
ZGX10 —
72125D — Cover, Seat Track, Upper Rear NO.2
72125-47010 Cover, Seat Track, Upper Rear NO.2
2018-03 → 2019-10 ended
ZGX10 —
72125-47020 Cover, Seat Track, Upper Rear NO.2
2018-01 → 2018-03 ended
ZGX10 —
72125-47010 Cover, Seat Track, Upper Rear NO.2
2019-10 → 2022-12 ended
ZGX10 —
72125R — Cover, Seat Track, Upper Rear NO.1
72125-47010 Cover, Seat Track, Upper Rear NO.1
2018-01 → 2019-10 ended
ZGX10 —
72125-47010 Cover, Seat Track, Upper Rear NO.1
2019-10 → 2022-12 ended
ZGX10 —
72127A — Cover, Seat Track Bracket, Inner Front RH
72123-10100 Cover, Seat Track Bracket, Inner Front RH
2018-01 → 2019-10 ended
ZGX10 —
72123-10100 Cover, Seat Track Bracket, Inner Front RH
2019-10 → 2022-12 ended
ZGX10 —
72136 — Spacer, Seat Track, Lower NO.1
72136-33250 Spacer, Seat Track, Lower NO.1
2018-01 → 2019-10 ended
ZGX10 —
72136-33250 Spacer, Seat Track, Lower NO.1
2019-10 → 2022-12 ended
ZGX10 —
72136A — Spacer, Seat Track, Lower NO.2
72136-33260 Spacer, Seat Track, Lower NO.2
2018-01 → 2019-10 ended
ZGX10 —
72136-33260 Spacer, Seat Track, Lower NO.2
2019-10 → 2022-12 ended
ZGX10 —
72137T — Cover, Seat Track Bracket, Outer Rear RH
72137-47060 Cover, Seat Track Bracket, Outer Rear RH
2018-01 → 2019-10 ended
ZGX10 —
72137-47060 Cover, Seat Track Bracket, Outer Rear RH
2019-10 → 2022-12 ended
ZGX10 —
72157A — Cover, Seat Track Bracket, Inner RH
72157-10090 Cover, Seat Track Bracket, Inner RH
2018-01 → 2019-10 ended
ZGX10 —
72157-10090 Cover, Seat Track Bracket, Inner RH
2019-10 → 2022-12 ended
ZGX10 —
72211 — Handle, Seat Track Adjusting
72211-47050 note Handle, Seat Track Adjusting
2018-06 → 2019-10 ended
ZGX10 —
72211-47050 note Handle, Seat Track Adjusting
2018-06 → 2019-10 ended
ZGX10 —
72211-47050 note Handle, Seat Track Adjusting
2018-06 → 2019-10 ended
ZGX10 —
72211-47050 note Handle, Seat Track Adjusting
2018-06 → 2019-10 ended
ZGX10 —
72211-47050 note Handle, Seat Track Adjusting
2018-06 → 2019-10 ended
ZGX10 —
72211-47050 note Handle, Seat Track Adjusting
2018-06 → 2019-10 ended
ZGX10 —
72211-47050 note Handle, Seat Track Adjusting
2018-06 → 2019-10 ended
ZGX10 —
72211-47050 note Handle, Seat Track Adjusting
2018-06 → 2019-10 ended
ZGX10 —
72211-47050 Handle, Seat Track Adjusting
2018-01 → 2019-10 ended
ZGX10 —
72211-47050 note Handle, Seat Track Adjusting
2018-01 → 2018-06 ended
ZGX10 —
72211-47050 Handle, Seat Track Adjusting
2019-10 → 2022-12 ended
ZGX10 —
72265 — Cover, Seat Track Upper Rail, RH
72265-47010 Cover, Seat Track Upper Rail, RH
2019-06 → 2019-10 ended
ZGX10 —
72265-47010 note Cover, Seat Track Upper Rail, RH
2018-06 → 2019-06 ended
ZGX10 —
72265-47010 note Cover, Seat Track Upper Rail, RH
2018-06 → 2019-06 ended
ZGX10 —
72265-47010 note Cover, Seat Track Upper Rail, RH
2018-06 → 2019-06 ended
ZGX10 —
72265-47010 note Cover, Seat Track Upper Rail, RH
2018-06 → 2019-06 ended
ZGX10 —
72265-47010 note Cover, Seat Track Upper Rail, RH
2018-06 → 2019-06 ended
ZGX10 —
72265-47010 note Cover, Seat Track Upper Rail, RH
2018-06 → 2019-06 ended
ZGX10 —
72265-47010 note Cover, Seat Track Upper Rail, RH
2018-06 → 2019-06 ended
ZGX10 —
72265-47010 note Cover, Seat Track Upper Rail, RH
2018-01 → 2018-06 ended
ZGX10 —
72265-47010 note Cover, Seat Track Upper Rail, RH
2018-06 → 2019-06 ended
ZGX10 —
72265-47010 Cover, Seat Track Upper Rail, RH
2018-01 → 2019-06 ended
ZGX10 —
72265-47010 Cover, Seat Track Upper Rail, RH
2019-10 → 2022-12 ended
ZGX10 —
72443A — Gear, Vertical Adjuster, RH
72443-10010 Gear, Vertical Adjuster, RH
2018-01 → 2019-03 ended
ZGX10 —
72443-10011 Gear, Vertical Adjuster, RH
2019-04 → 2019-10 ended
ZGX10 —
72443-10011 Gear, Vertical Adjuster, RH
2019-10 → 2022-12 ended
ZGX10 —
72494 — Handle, Vertical Adjusting, RH
72494-47030-C1 note Handle, Vertical Adjusting, RH
2018-01 → 2019-10 ended
ZGX10 —
72494-10020-C0 note Handle, Vertical Adjusting, RH
2019-10 → 2021-01 ended
ZGX10 G —
72494-10020-C0 note Handle, Vertical Adjusting, RH
2019-10 → 2021-01 ended
ZGX10 D,E —
72494-10021-C0 note Handle, Vertical Adjusting, RH
2021-01 → 2022-12 ended
ZGX10 G —
72494-10021-C0 note Handle, Vertical Adjusting, RH
2021-01 → 2022-12 ended
ZGX10 D,E —
72497B — Cover, Vertical Adjuster Bracket, RH
72498-47010 Cover, Vertical Adjuster Bracket, RH
2018-01 → 2019-10 ended
ZGX10 —
72498-47010 Cover, Vertical Adjuster Bracket, RH
2019-10 → 2022-12 ended
ZGX10 —
72525A — Handle, Reclining Adjuster Release, RH
72525-33050-C0 note Handle, Reclining Adjuster Release, RH
2018-01 → 2019-10 ended
ZGX10 —
72525-10060-C0 note Handle, Reclining Adjuster Release, RH
2019-10 → 2022-12 ended
ZGX10 G —
72525-10060-C0 note Handle, Reclining Adjuster Release, RH
2019-10 → 2022-12 ended
ZGX10 D,E —
72551B — Cover, Reclining Hinge, RH
72551-33010-C0 note Cover, Reclining Hinge, RH
2018-01 → 2019-10 ended
ZGX10 —
72551-33010-C0 note Cover, Reclining Hinge, RH
2019-10 → 2022-12 ended
ZGX10 D —
72551-33010-C0 note Cover, Reclining Hinge, RH
2019-10 → 2022-12 ended
ZGX10 E —
72551-33010-C0 note Cover, Reclining Hinge, RH
2019-10 → 2022-12 ended
ZGX10 G —
73910A — Airbag Assy, Front Seat, RH
73910-10030 Airbag Assy, Front Seat, RH
2018-01 → 2019-10 ended
ZGX10 —
73910-10030 Airbag Assy, Front Seat, RH
2019-10 → 2022-12 ended
ZGX10 —
739F0 — Airbag Assy, Front Seat Cushion, RH
739F0-47010 Airbag Assy, Front Seat Cushion, RH
2018-01 → 2019-10 ended
ZGX10 —
739F0-10010 Airbag Assy, Front Seat Cushion, RH
2020-03 → 2022-12 ended
ZGX10 —
739F0-47010 Airbag Assy, Front Seat Cushion, RH
2019-10 → 2020-02 ended
ZGX10 —
87501A — Control Sub-assy, Seat Heater, RH
87501-10020 note Control Sub-assy, Seat Heater, RH
2018-01 → 2018-06 ended
ZGX10 —
87501-10020 note Control Sub-assy, Seat Heater, RH
2018-06 → 2019-10 ended
ZGX10 —
87501-10020 note Control Sub-assy, Seat Heater, RH
2018-06 → 2019-10 ended
ZGX10 —
87501-10020 note Control Sub-assy, Seat Heater, RH
2018-06 → 2019-10 ended
ZGX10 —
87501-10020 note Control Sub-assy, Seat Heater, RH
2018-06 → 2019-10 ended
ZGX10 —
87501-10020 note Control Sub-assy, Seat Heater, RH
2018-06 → 2019-10 ended
ZGX10 —
87501-10020 note Control Sub-assy, Seat Heater, RH
2018-06 → 2019-10 ended
ZGX10 —
87501-10020 Control Sub-assy, Seat Heater, RH
2019-10 → 2022-12 ended
ZGX10 E —
87501-10020 note Control Sub-assy, Seat Heater, RH
2019-10 → 2022-12 ended
ZGX10 G —
87510K — Heater Assy, Front Seat Cushion, RH
87510-10010 note Heater Assy, Front Seat Cushion, RH
2018-06 → 2019-10 ended
ZGX10 —
87510-10010 note Heater Assy, Front Seat Cushion, RH
2018-06 → 2019-10 ended
ZGX10 —
87510-10010 note Heater Assy, Front Seat Cushion, RH
2018-06 → 2019-10 ended
ZGX10 —
87510-10010 note Heater Assy, Front Seat Cushion, RH
2018-06 → 2019-10 ended
ZGX10 —
87510-10010 note Heater Assy, Front Seat Cushion, RH
2018-06 → 2019-10 ended
ZGX10 —
87510-10010 note Heater Assy, Front Seat Cushion, RH
2018-06 → 2019-10 ended
ZGX10 —
87510-10010 note Heater Assy, Front Seat Cushion, RH
2018-01 → 2018-06 ended
ZGX10 —
87510-10010 Heater Assy, Front Seat Cushion, RH
2019-10 → 2022-12 ended
ZGX10 E —
87510-10010 note Heater Assy, Front Seat Cushion, RH
2019-10 → 2022-12 ended
ZGX10 G —
87510M — Heater Assy, Front Seatback, RH
87530-10020 note Heater Assy, Front Seatback, RH
2018-01 → 2018-06 ended
ZGX10 —
87530-10020 note Heater Assy, Front Seatback, RH
2018-06 → 2019-10 ended
ZGX10 —
87530-10020 note Heater Assy, Front Seatback, RH
2018-06 → 2019-10 ended
ZGX10 —
87530-10020 note Heater Assy, Front Seatback, RH
2018-06 → 2019-10 ended
ZGX10 —
87530-10020 note Heater Assy, Front Seatback, RH
2018-06 → 2019-10 ended
ZGX10 —
87530-10020 note Heater Assy, Front Seatback, RH
2018-06 → 2019-10 ended
ZGX10 —
87530-10020 note Heater Assy, Front Seatback, RH
2018-06 → 2019-10 ended
ZGX10 —
87530-10020 Heater Assy, Front Seatback, RH
2019-10 → 2022-12 ended
ZGX10 E —
87530-10020 note Heater Assy, Front Seatback, RH
2019-10 → 2022-12 ended
ZGX10 G —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
