Toyota C-hr (JPP)
2018-01 → present · chassis ZGX10 · catalogue 529410 · United States
Supported model
Data version 2019-10

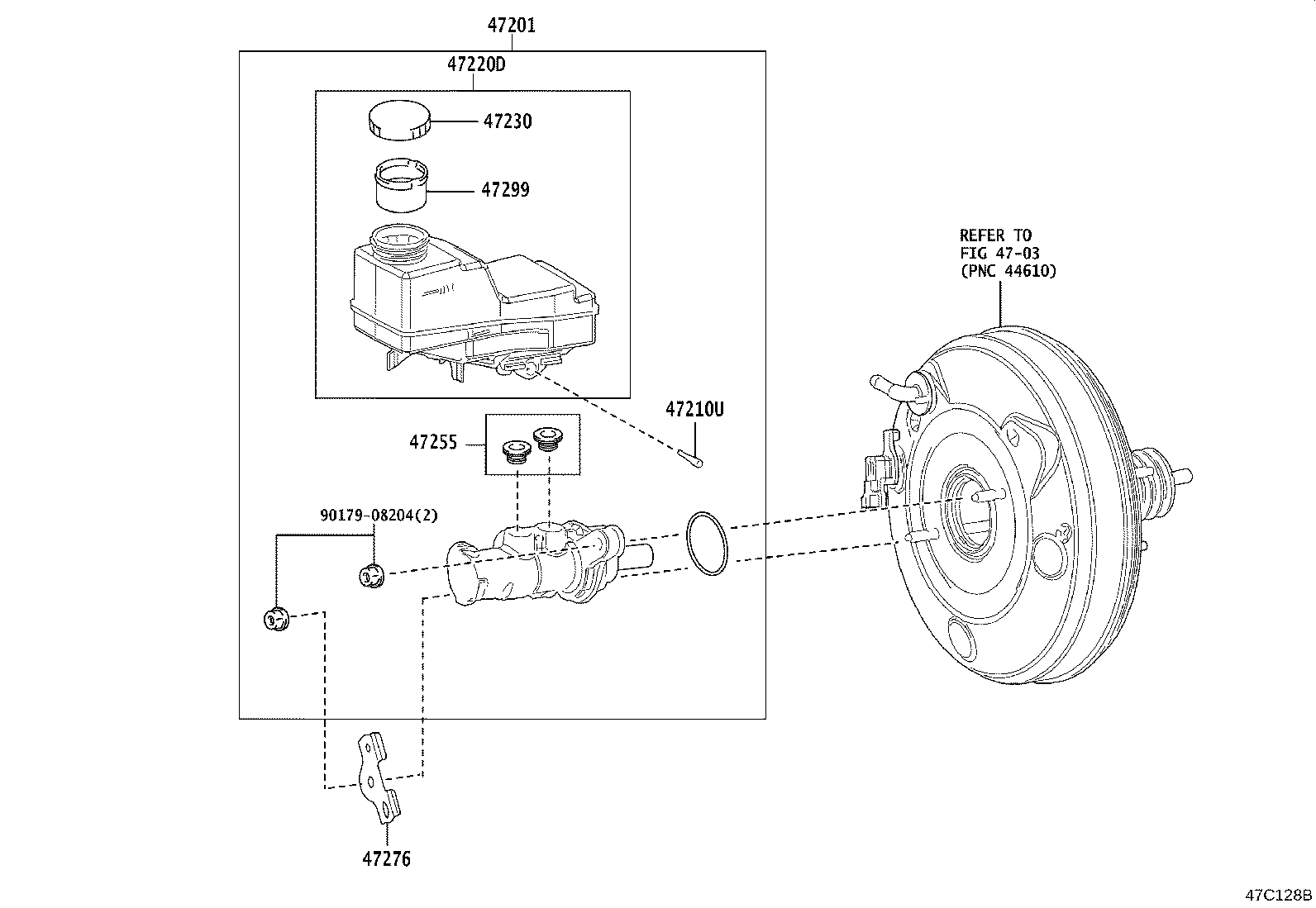

Brake Master Cylinder
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47201 | Cylinder Sub-assy, Brake Master |
| 47210U | Pin, Straight(FOR BRAKE MASTER CYLINDER) |
| 47220D | Reservoir Assy, Brake Master Cylinder |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47275 | Gasket, Brake Master Cylinder |
| 47276 | Bracket, Brake Master Cylinder |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
