Toyota C-hr (JPP)
2018-01 → present · chassis ZGX10 · catalogue 529410 · United States
Supported model
Data version 2019-10

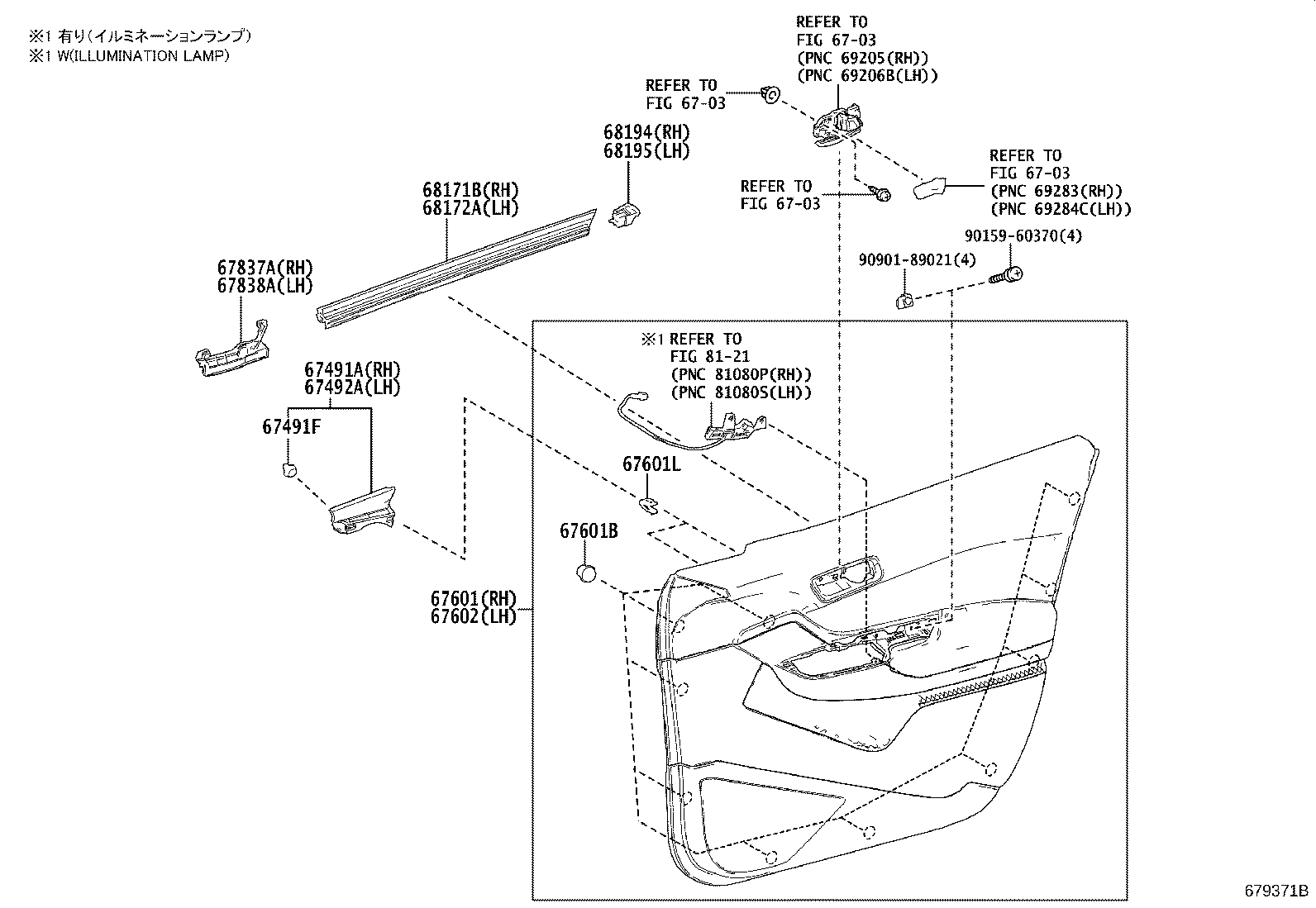

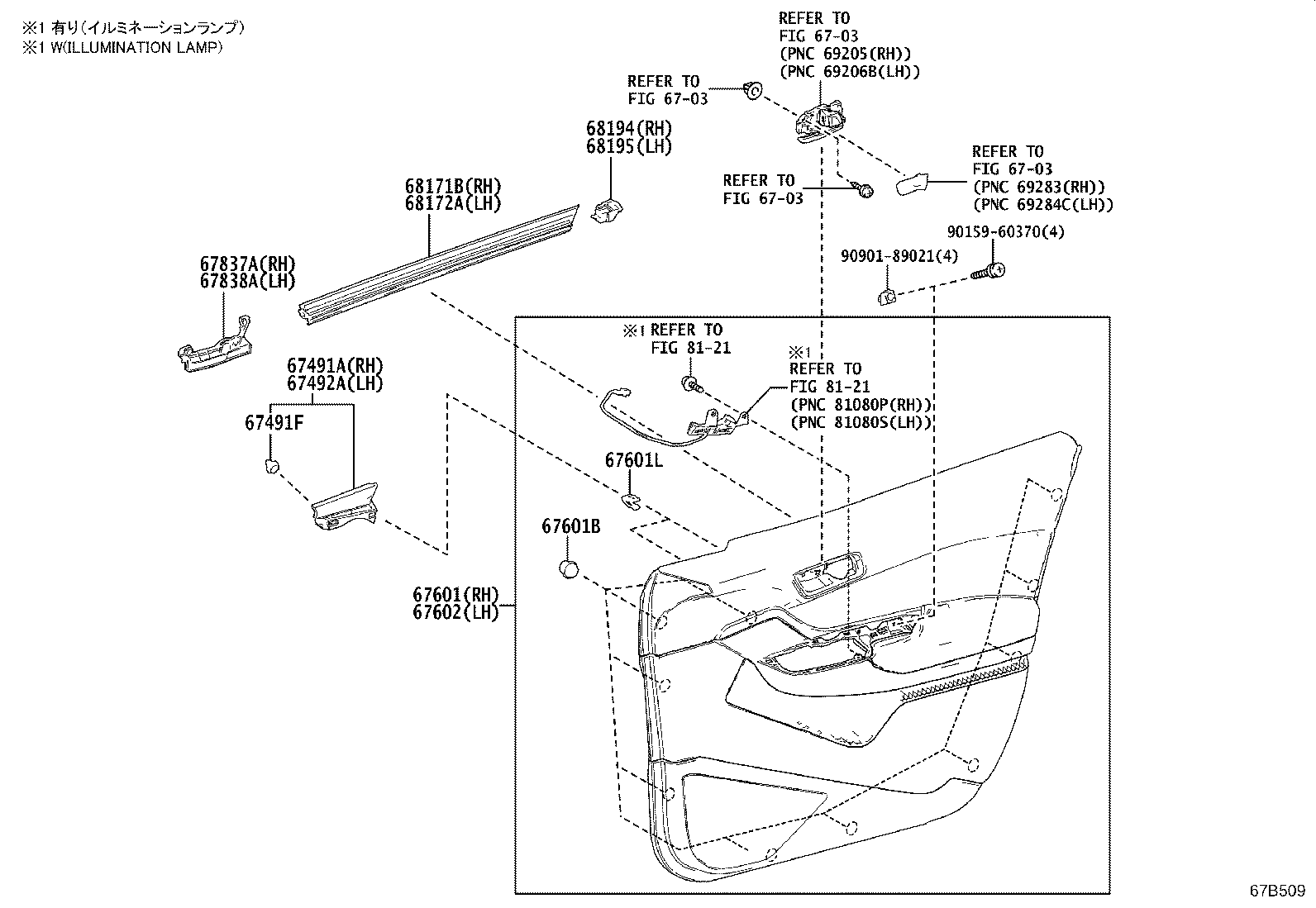

Front Door Panel & Glass
53 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67491F | Clip(FOR DOOR TRIM) |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67601L | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67663 | Garnish, Door Frame, Upper RH |
| 67664 | Garnish, Door Frame, Upper LH |
| 67831 | Cover, Front Door Service Hole, RH |
| 67831C | Cover, Front Door Service Hole |
| 67831D | Clip(FOR FRONT DOOR SERVICE HOLE COVER) |
| 67832 | Cover, Front Door Service Hole, LH |
| 67837A | Seal, Front Door Vent, RH |
| 67837B | Seal, Front Door Dust Proof |
| 67838A | Seal, Front Door Vent, LH |
| 67851D | Seal, Front Door Rear Outside, RH |
| 67852D | Seal, Front Door Rear Outside, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867 | Clip, Door Weatherstrip |
| 67867A | Clip, Door Weatherstrip(FOR FRONT DOOR) |
| 67867G | Retainer, Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68125 | Glass, Front Door Fix Window, RH |
| 68126 | Glass, Front Door Fix Window, LH |
| 68141C | Run, Front Door Glass, RH |
| 68151C | Run, Front Door Glass, LH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68194 | Seal, Front Door Belt, RH |
| 68195 | Seal, Front Door Belt, LH |
| 68215 | Weatherstrip, Front Door Fix Window, RH |
| 68216 | Weatherstrip, Front Door Fix Window, LH |
| 68610 | Check Assy, Front Door |
| 75965B | Stripe, Front Door NO.4 RH |
| 75966B | Stripe, Front Door NO.4 LH |
| 75975G | Stripe, Front Door, NO.2 RH |
| 75976G | Stripe, Front Door, NO.2 LH |
| 75985G | Stripe, Front Door Outside, RH |
| 75986G | Stripe, Front Door Outside, LH |
| 87912A | Protector, Outer Mirror |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
