Toyota C-hr (JPP)
2018-01 → present · chassis ZGX10 · catalogue 529410 · United States
Supported model
Data version 2019-10
Interior Lamp
13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

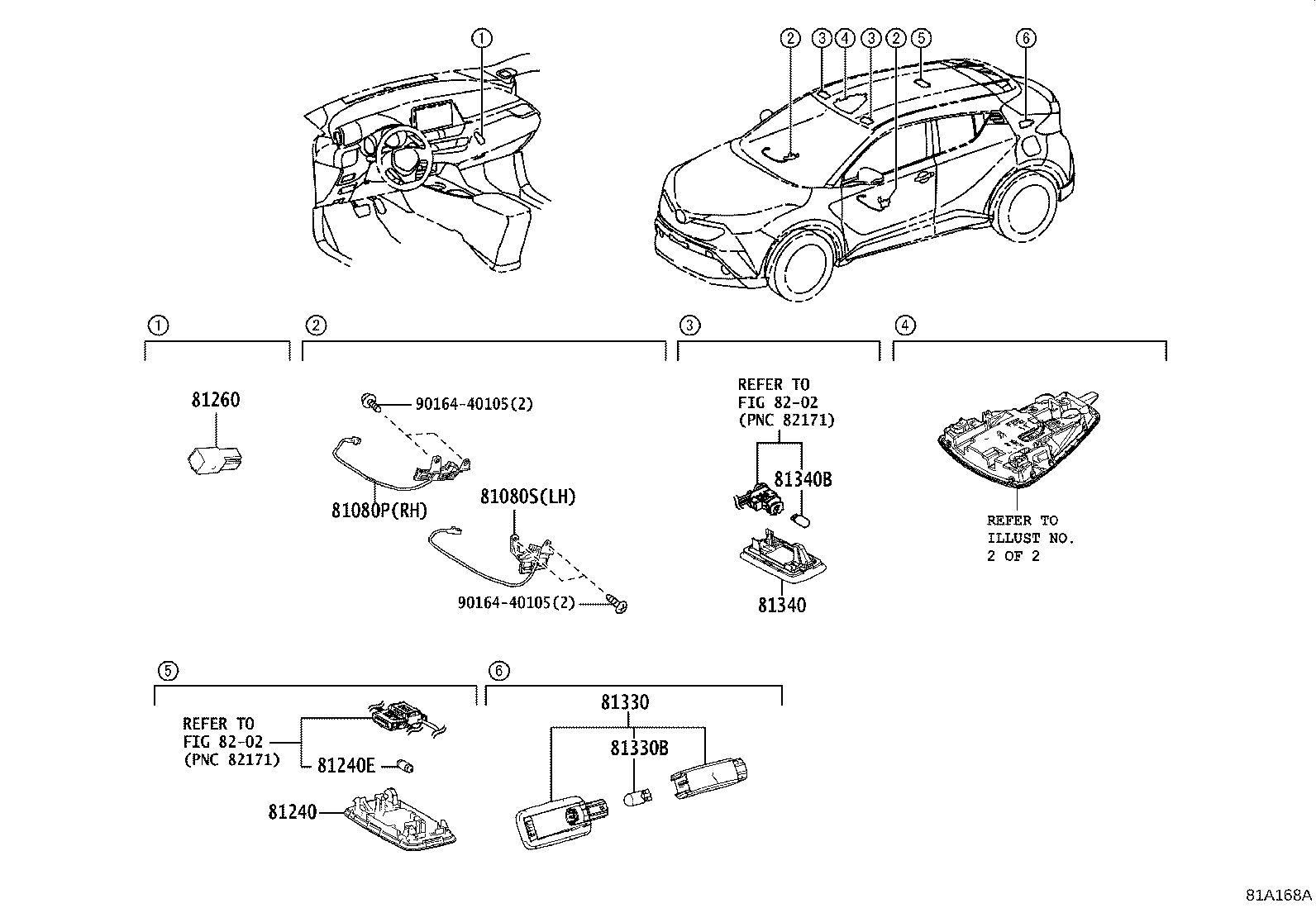

| 81080P | Lamp Assy, Interior Illumination, NO.1 RH |
| 81080S | Lamp Assy, Interior Illumination, NO.1 LH |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240E | Bulb, Room Lamp, NO.2 |
| 81260 | Lamp Assy, Glove Box |

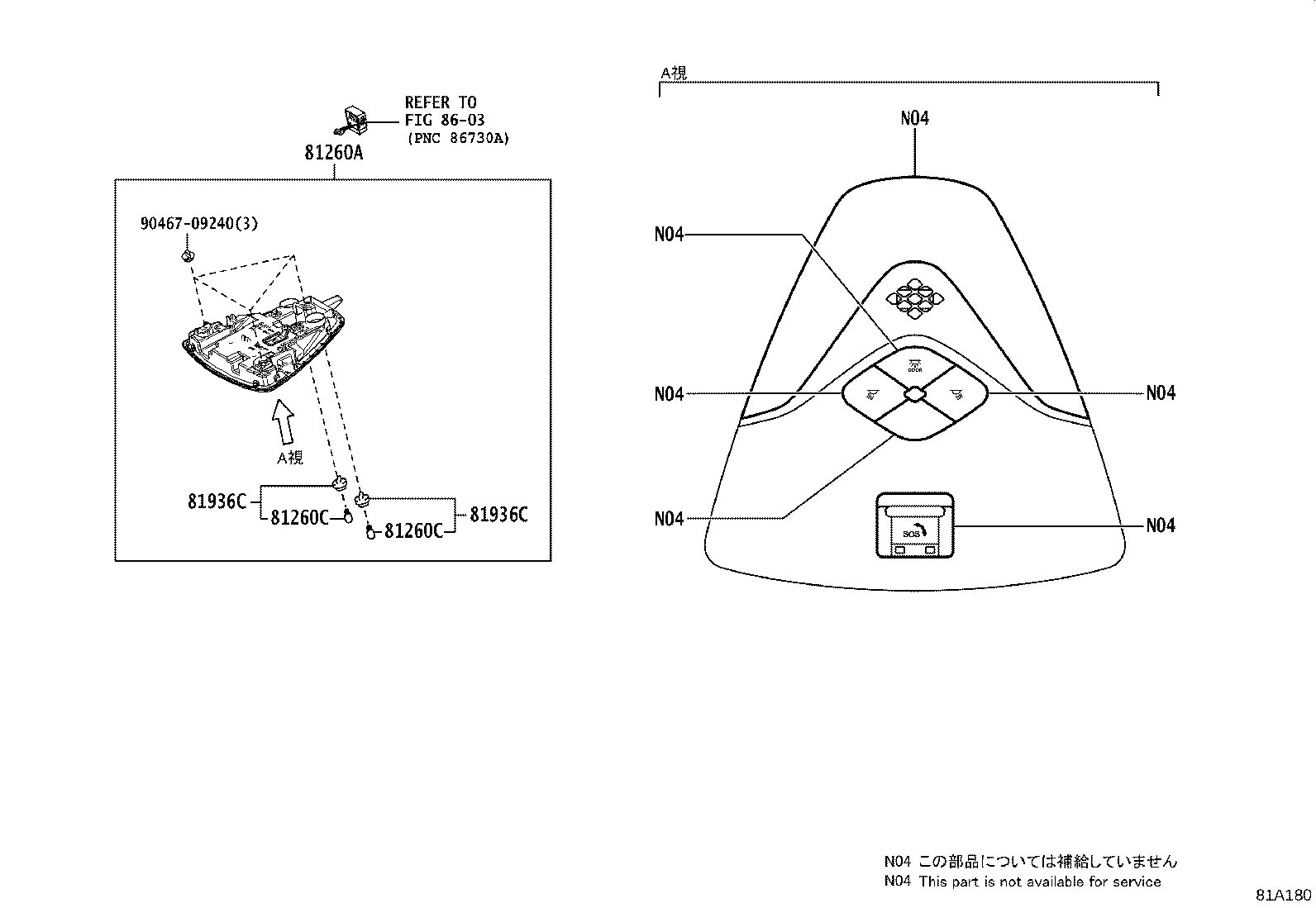

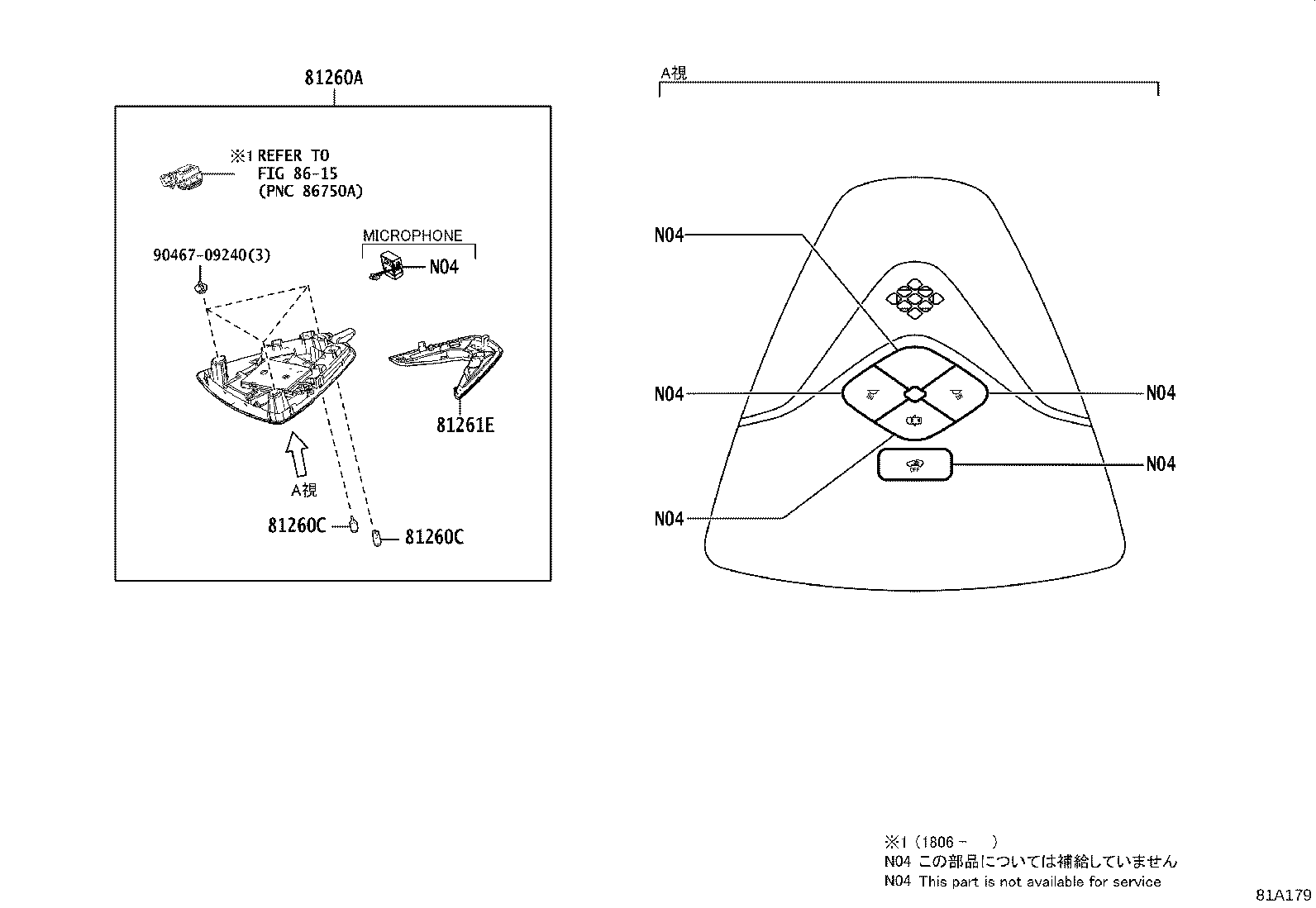

| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81261E | Lens, Map Lamp |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81936C | Bulb Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
