Toyota C-hr (JPP)

2018-01 → present · chassis ZGX10 · catalogue 529410 · United States

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

58 part groups · 11 illustrations

Illustrations

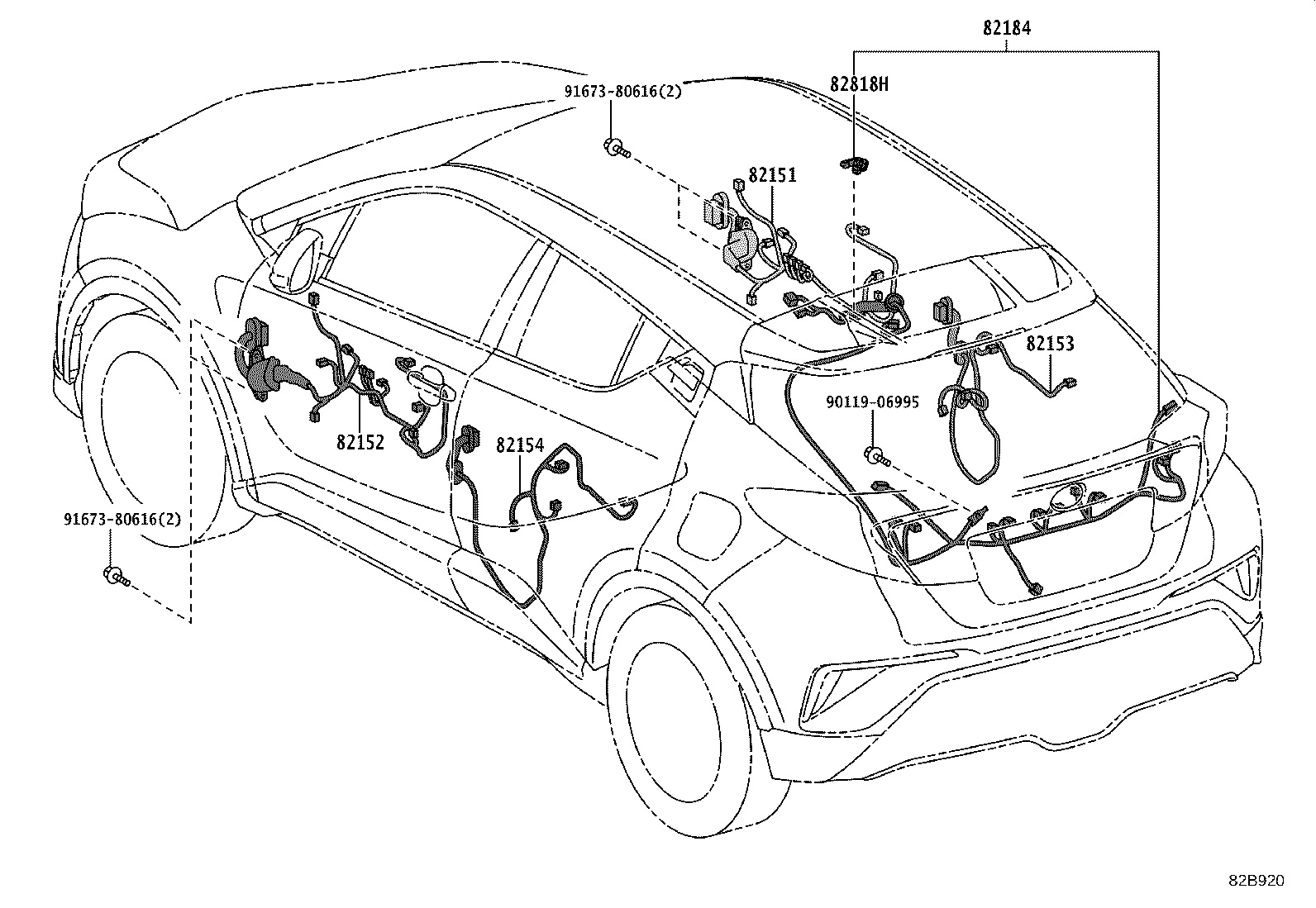

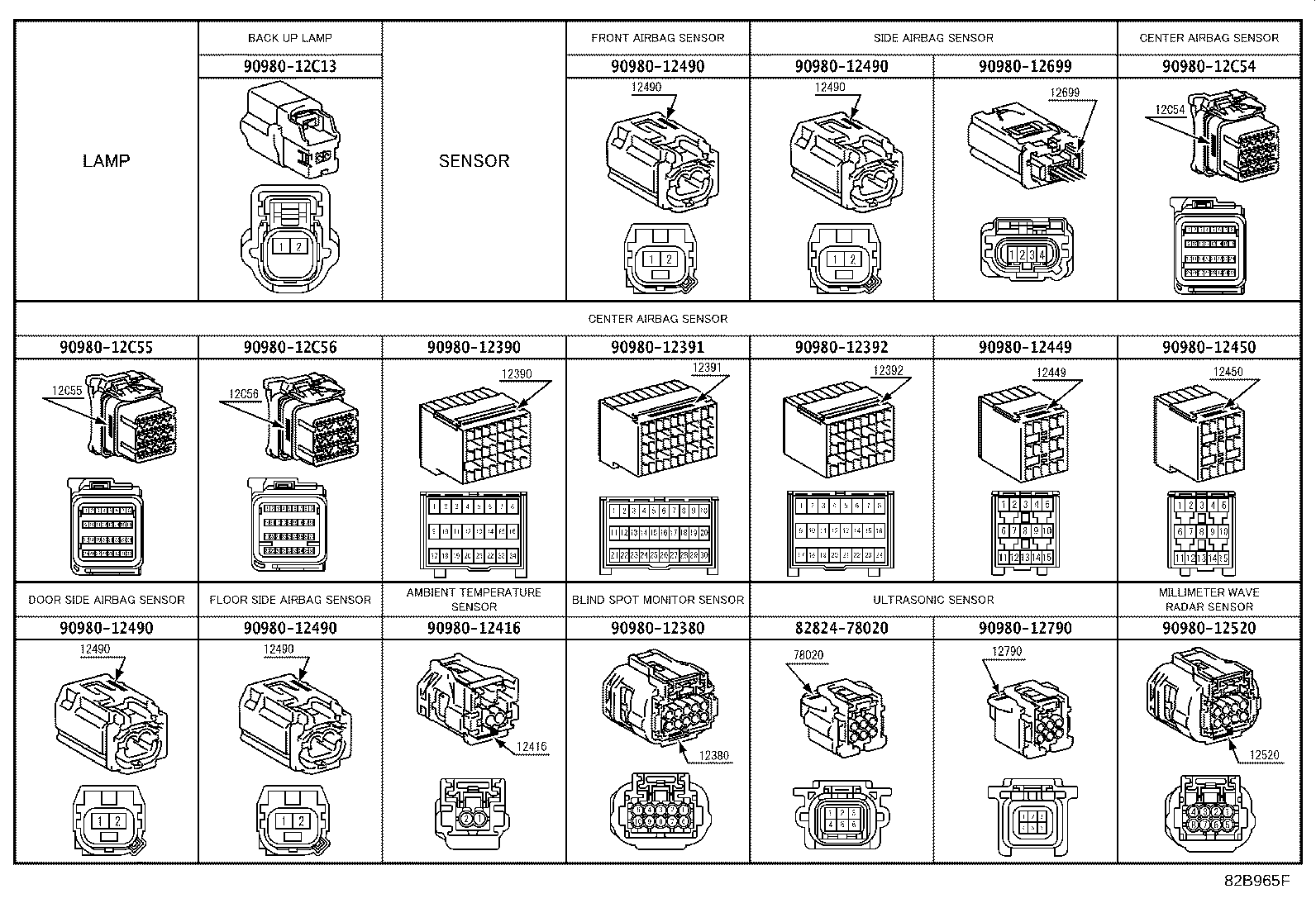

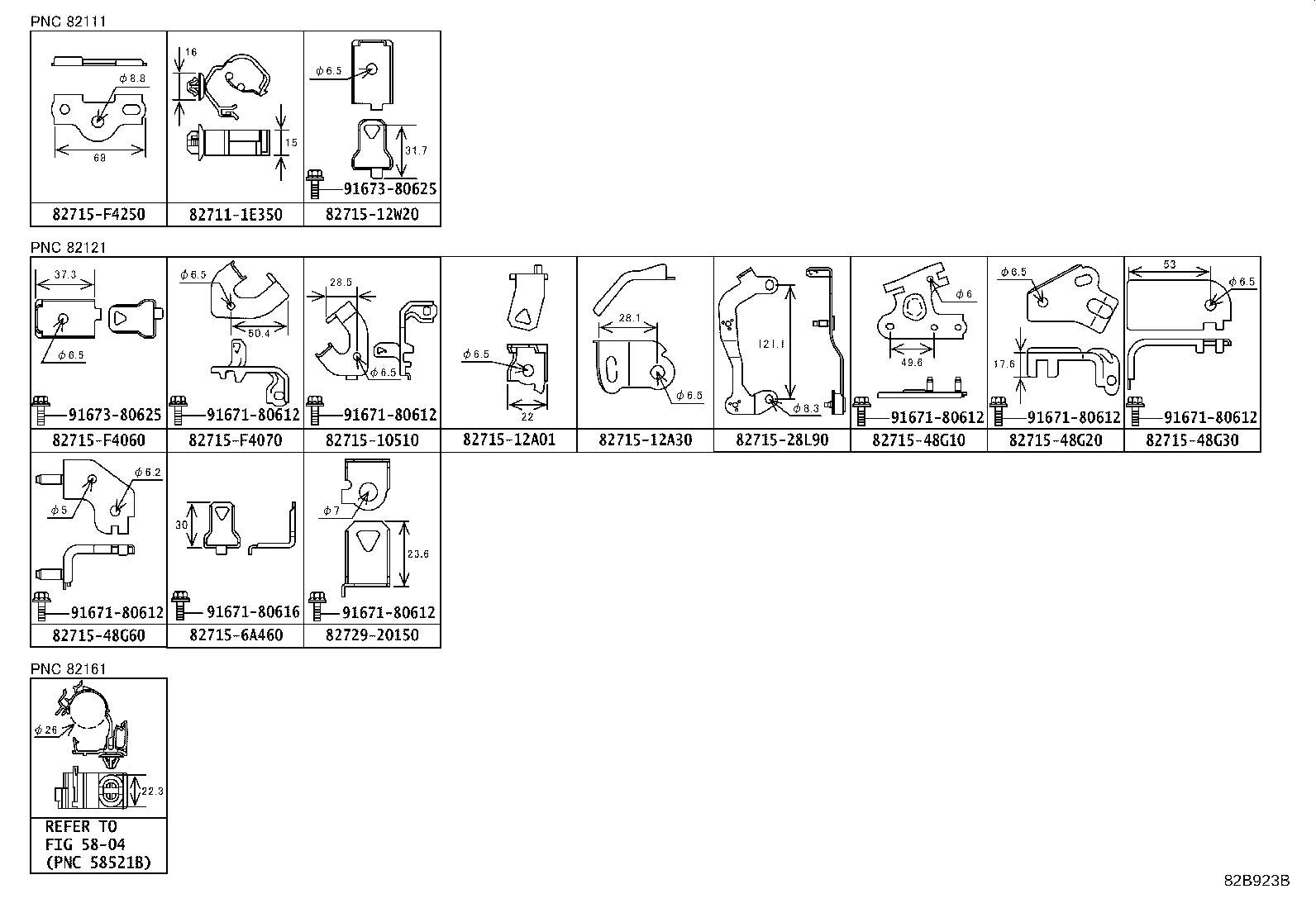

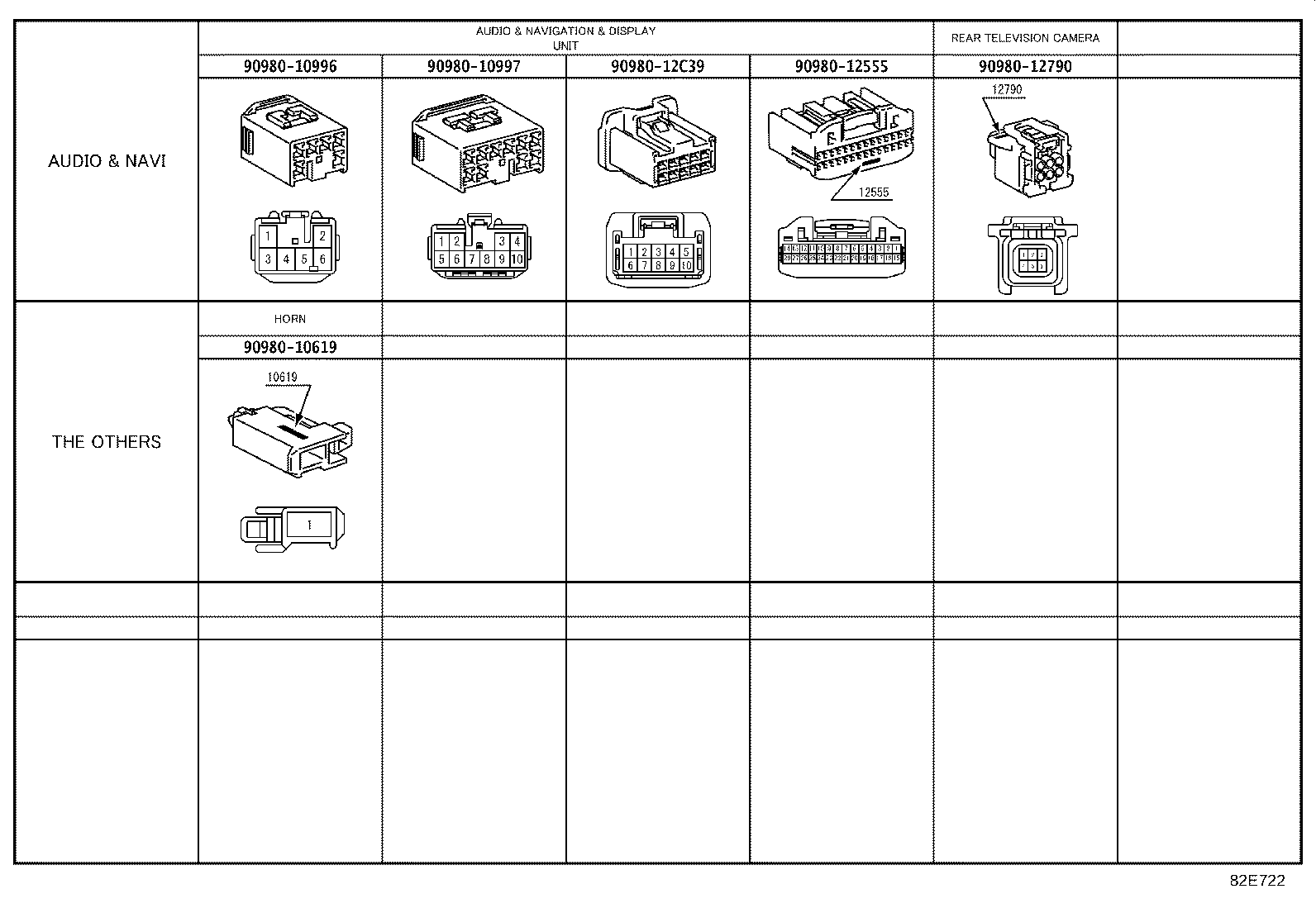

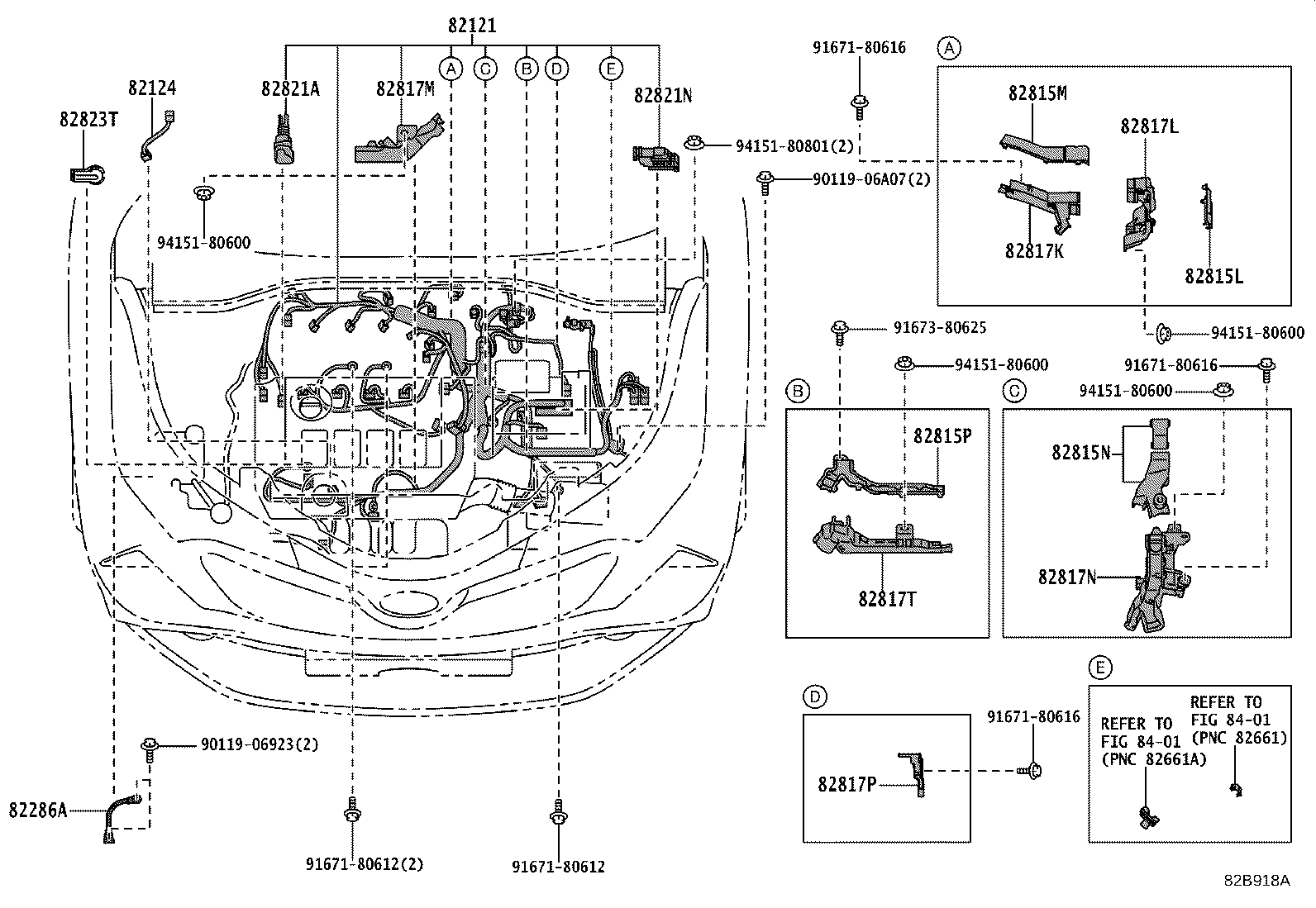

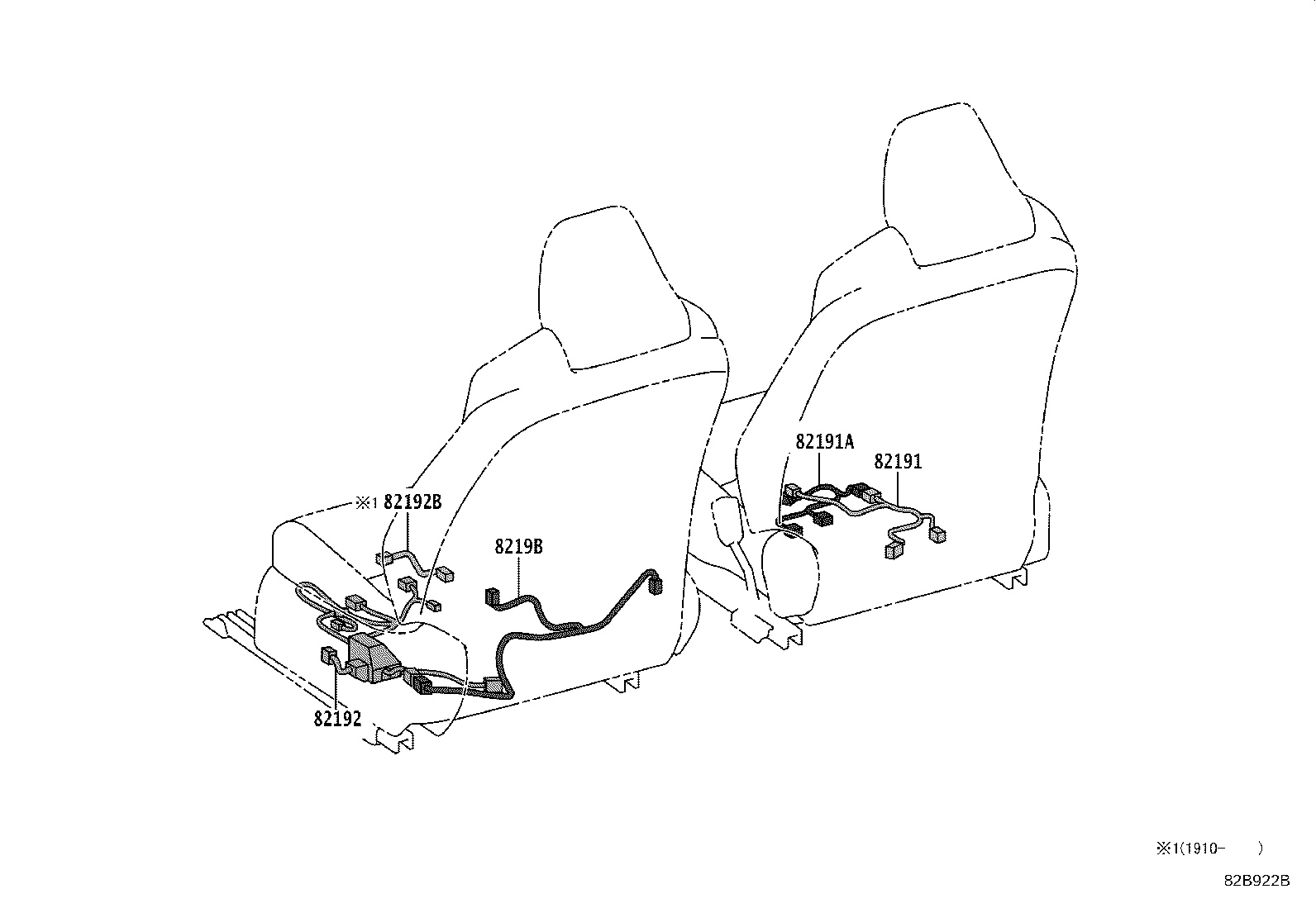

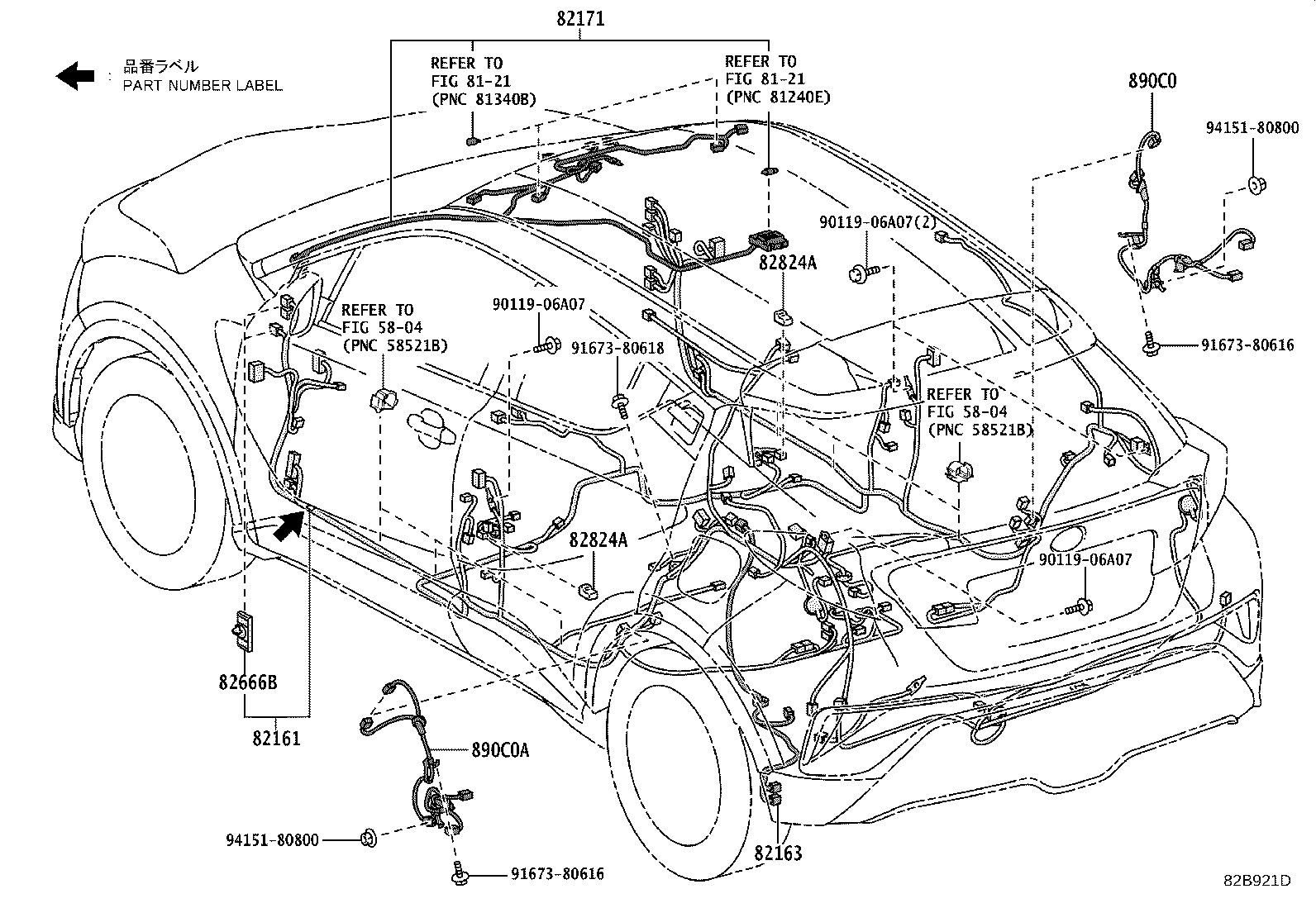

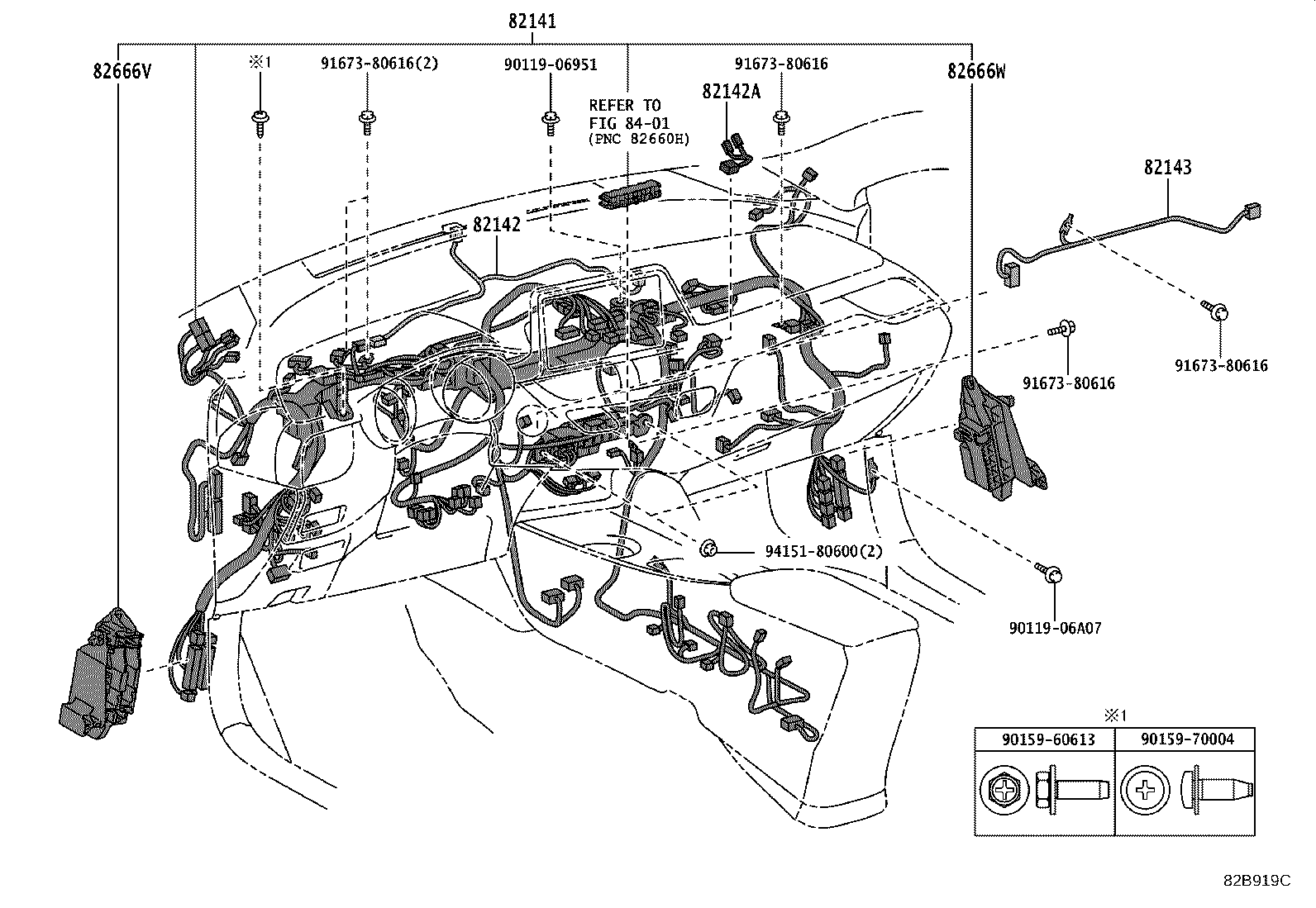

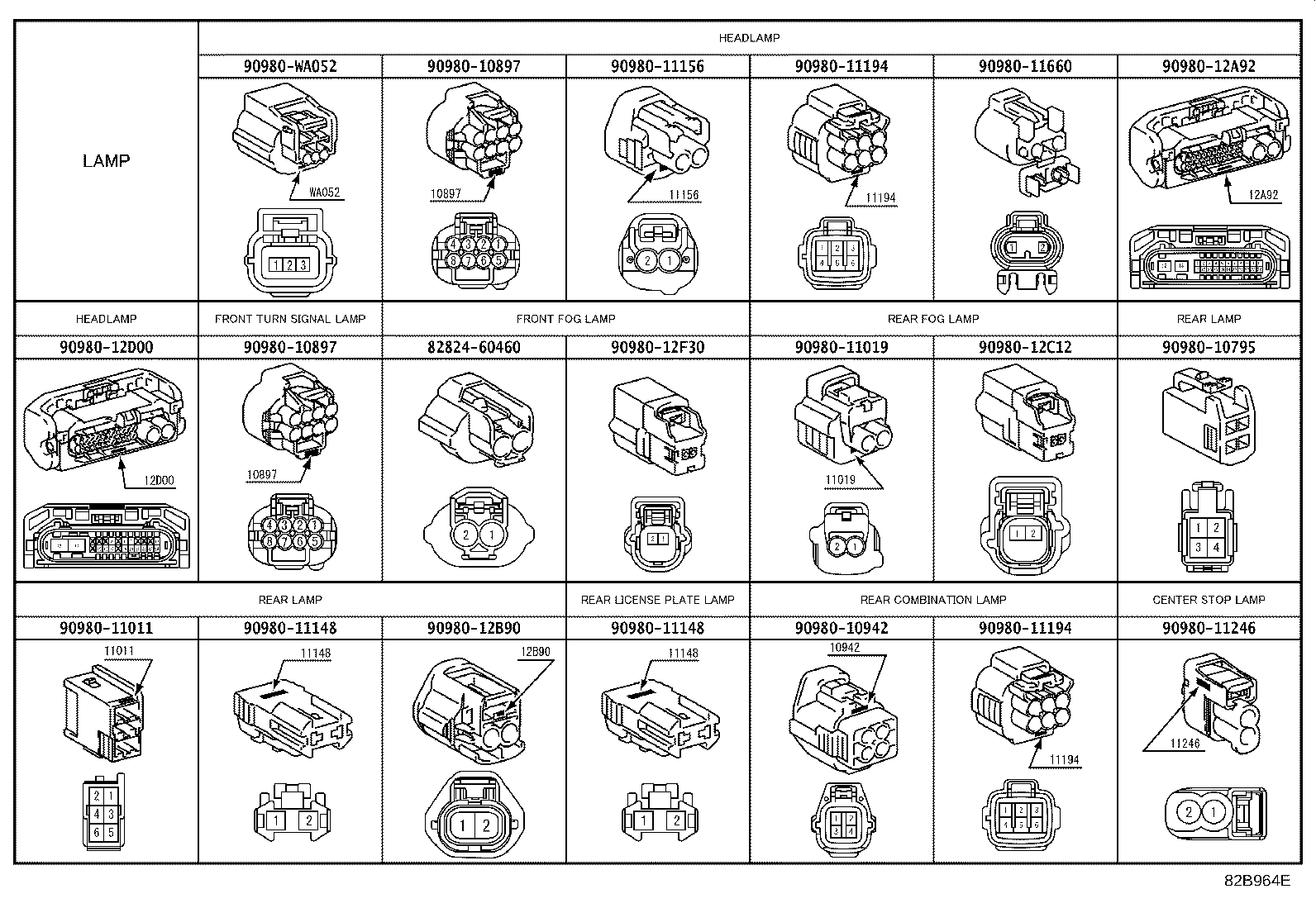

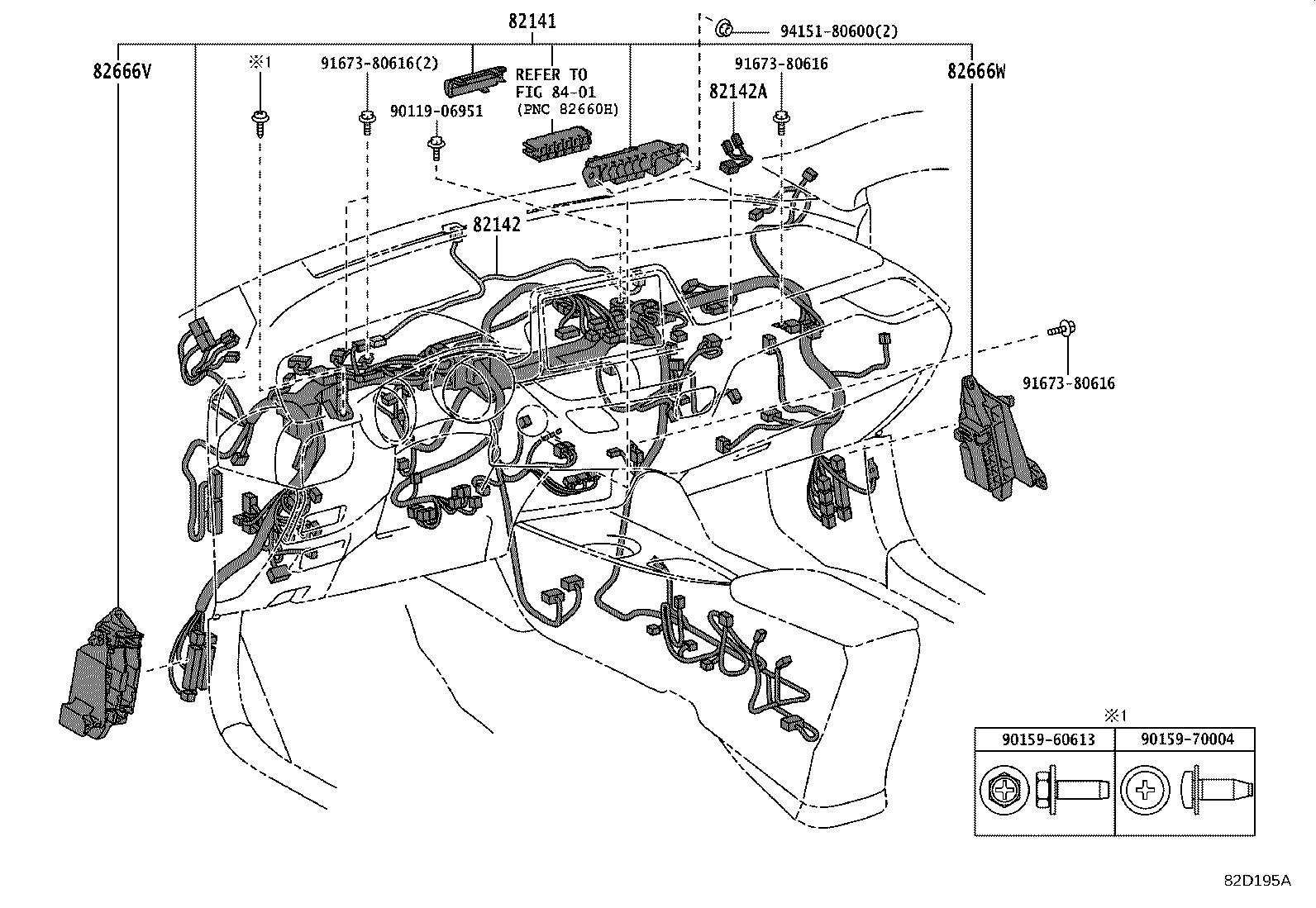

Figure 82B917E 82B917E 2018-01 → — Figure 82B918A 82B918A 2018-01 → — Figure 82B919C 82B919C 2018-01 → 2019-10 Figure 82D195A 82D195A 2019-10 → — Figure 82B920 82B920 2018-01 → — Figure 82B921D 82B921D 2018-01 → — Figure 82B922B 82B922B 2018-01 → — Figure 82B923B 82B923B 2018-01 → — Figure 82B964E 82B964E 2018-01 → — Figure 82B965F 82B965F 2018-01 → — Figure 82E772 82E772 2018-01 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82119C Wire, Engine Room, NO.5
82121 Wire, Engine
82124 Wire, Engine, NO.4
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82191A Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82192B Wire, Front Seat, LH NO.2
8219B Wire, Front Seat, LH NO.2
82286A Wire, Earth, NO.2
82666B Holder, Connector NO.3
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82818H Protector, Wiring Harness, NO.9
82821A Cover, Connector
82821N Cover, Connector
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
89348X Clip, Ultrasonic Sensor, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
