Toyota C-hr (JPP)

2018-01 → present · chassis ZGX10 · catalogue 529410 · United States

Supported model Data version 2019-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

5 part groups · 2 illustrations

Illustrations

Figure 867155A

867155A 2018-01 → —

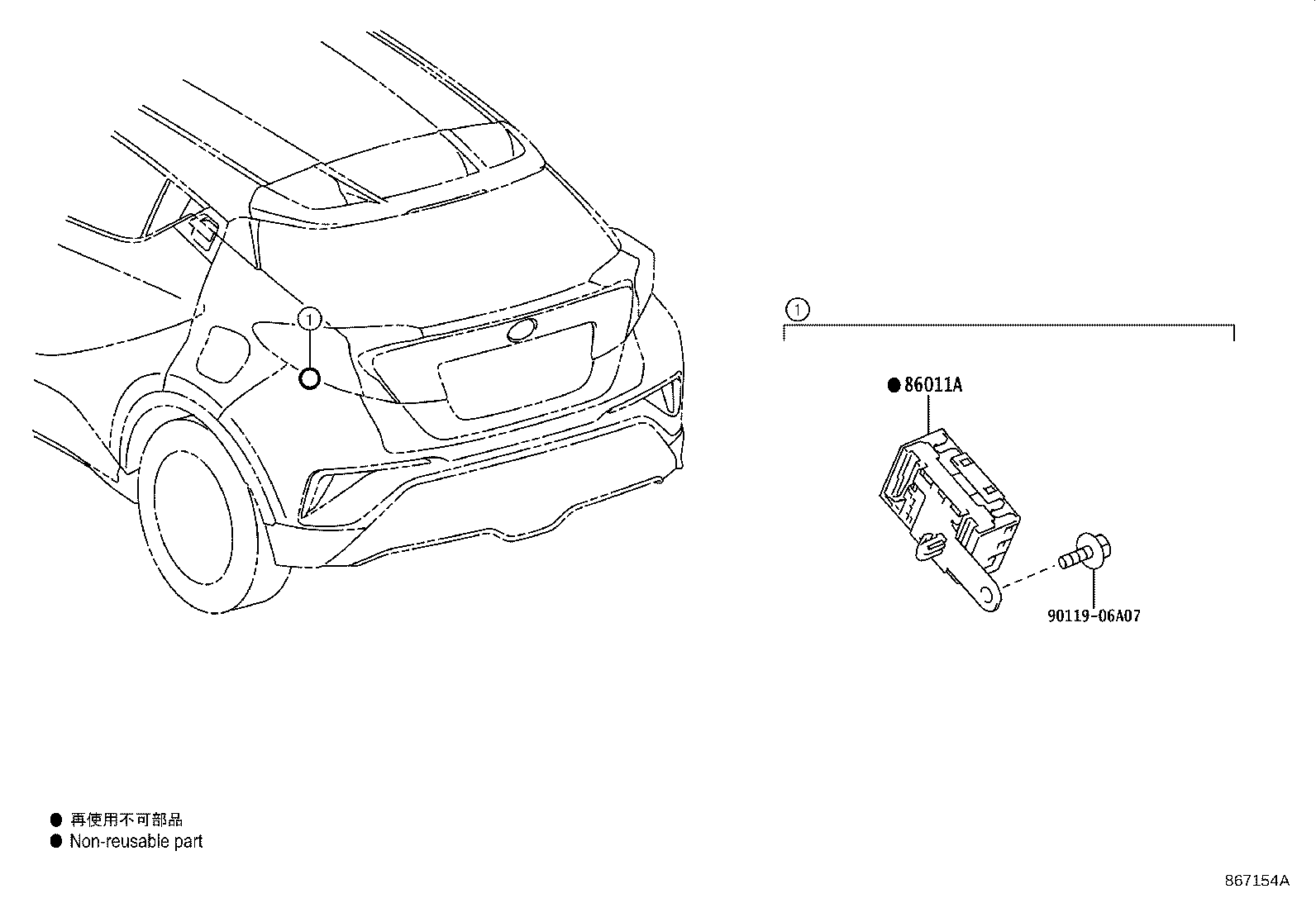

Figure 867154A

867154A 2018-01 → —

Part groups

PNC	Description
86011A	Condenser, Radio Setting
86145	Connector, Antenna Male
86190C	Adapter Assy, Stereo Jack, NO.1
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
