Toyota C-hr (JPP)

2018-01 → present · chassis ZGX10 · catalogue 529410 · United States

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

10 part groups · 2 illustrations

Illustrations

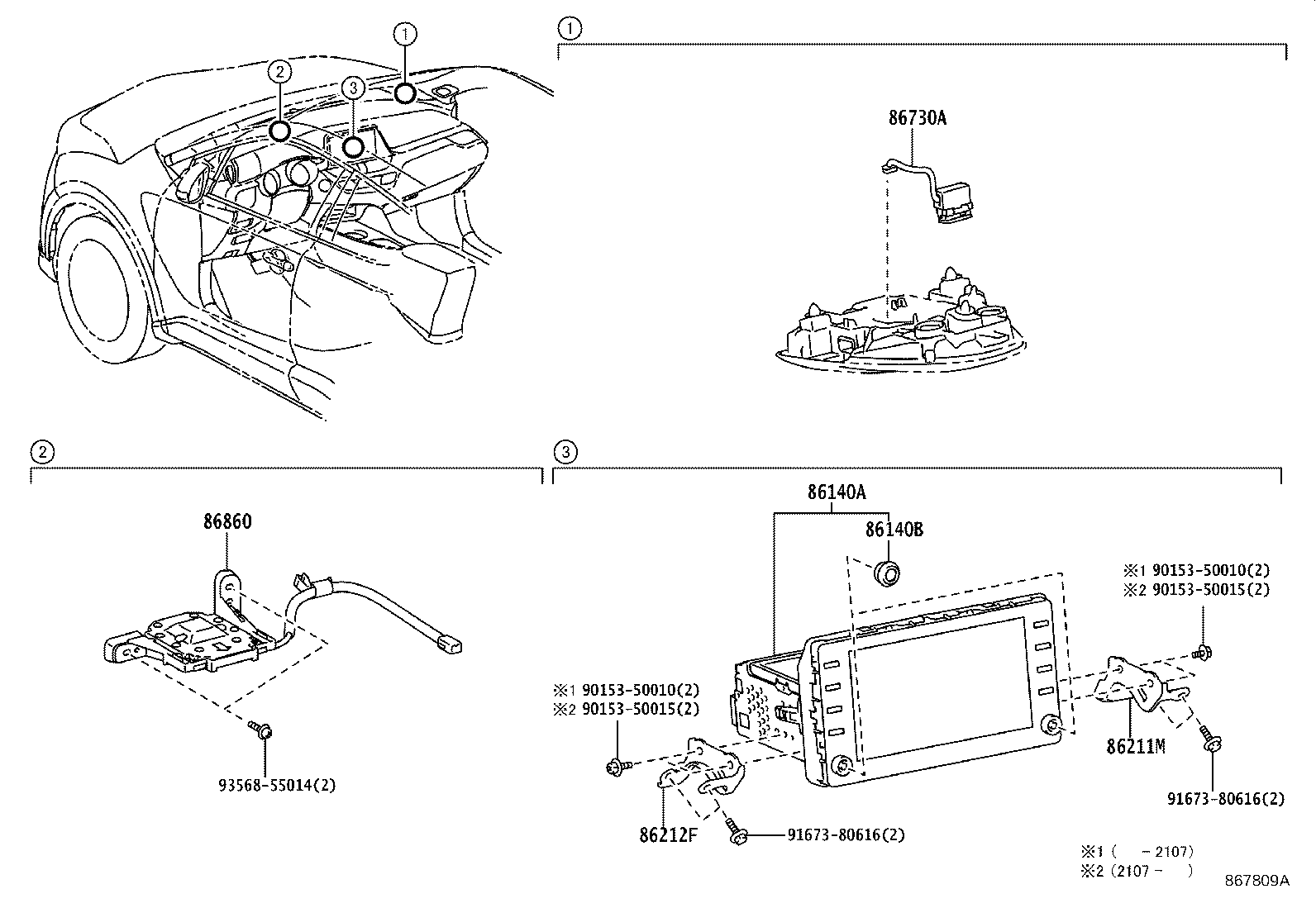

Figure 867207A 867207A 2018-06 → 2019-10 Figure 867809A 867809A 2019-10 → —

Part groups

PNCDescription
86101M Cord Sub-assy, Antenna
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86211J Bracket, Radio Receiver, NO.1
86211M Bracket, Radio Receiver, NO.3
86212C Bracket, Radio Receiver, NO.2
86212F Bracket, Radio Receiver, NO.4
86730A Microphone Assy, Telephone
86841 Computer, Navigation
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
