Toyota C-hr (JPP)
2018-01 → present · chassis ZGX10 · catalogue 529410 · United States
Supported model
Data version 2019-10
Telephone & Mayday
7 part groups · 2 illustrations
Part groups

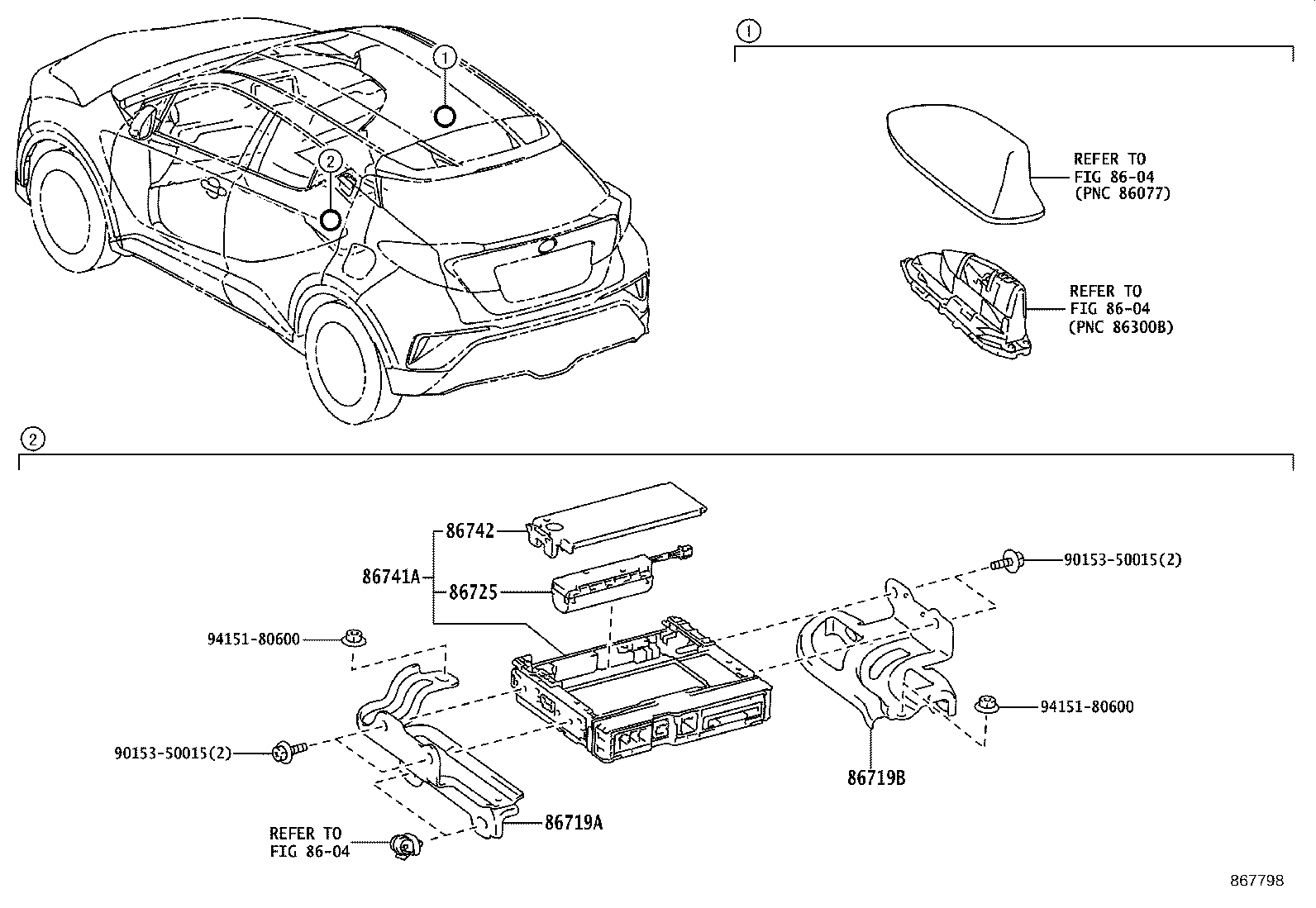

| PNC | Description |
|---|---|
| 86719A | Bracket, Telephone NO.1 |
| 86719B | Bracket, Telephone NO.2 |
| 86725 | Battery, Mobilephone |
| 86740 | Transceiver Assy, Telephone |
| 86741A | Transceiver, Telematics |
| 86742 | Cover, Transceiver |
| 86750A | Switch Assy, Mayday |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
