Toyota C-hr (JPP)

2018-01 → present · chassis ZGX10 · catalogue 529410 · United States

Supported model Data version 2019-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

4 part groups · 2 illustrations

Illustrations

Figure 87H048B

87H048B 2018-01 → 2018-06

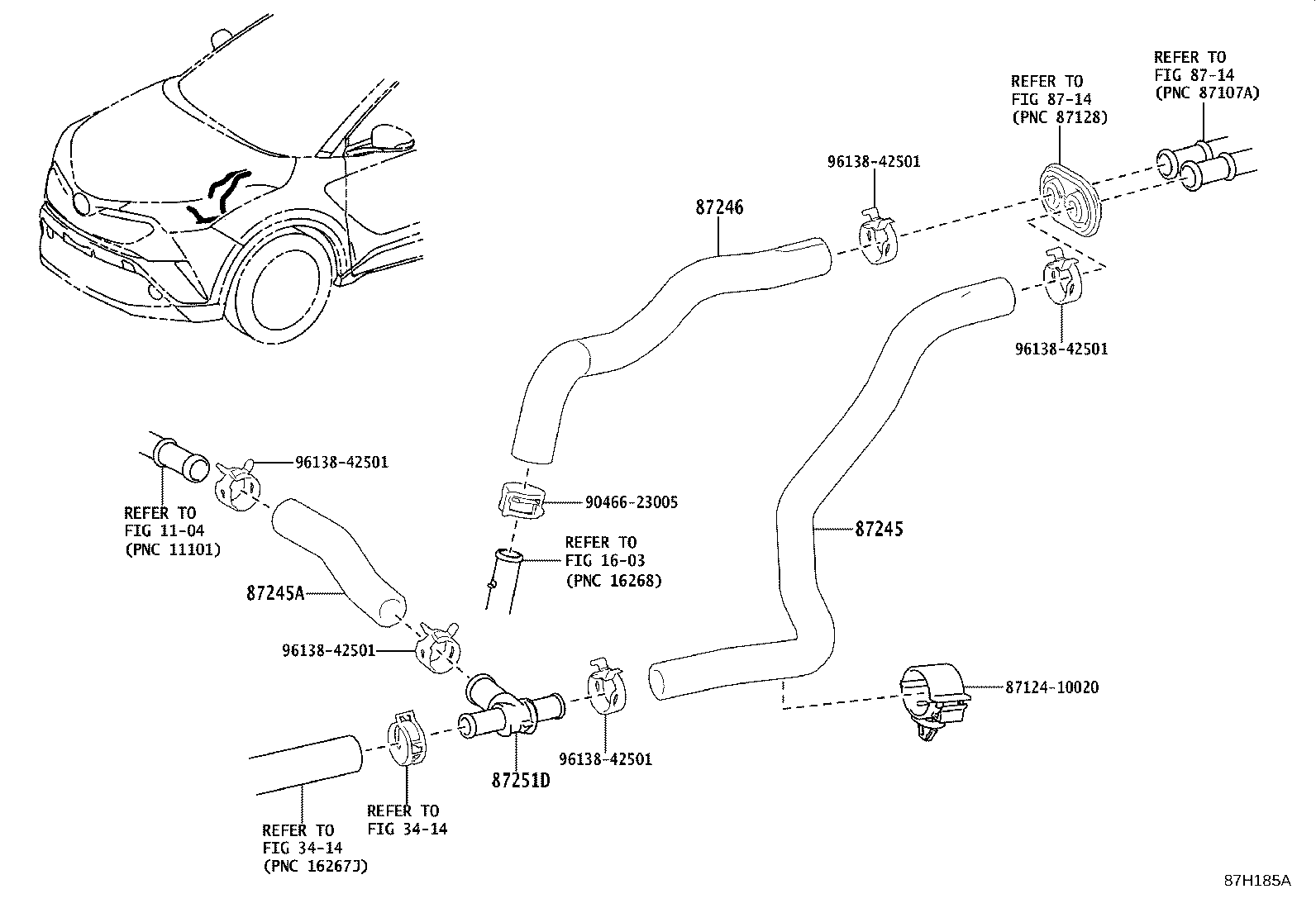

Figure 87H185A

87H185A 2018-06 → —

Part groups

PNC	Description
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87246	Hose, Heater Water, Outlet
87251D	Joint, Water, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
