Toyota Lexus NX Series(Tmmc
2022-03 → present · chassis AAZA2#,AAZH25,TAZA25 · catalogue 52E420 · United States
Supported model
Data version 2022-02

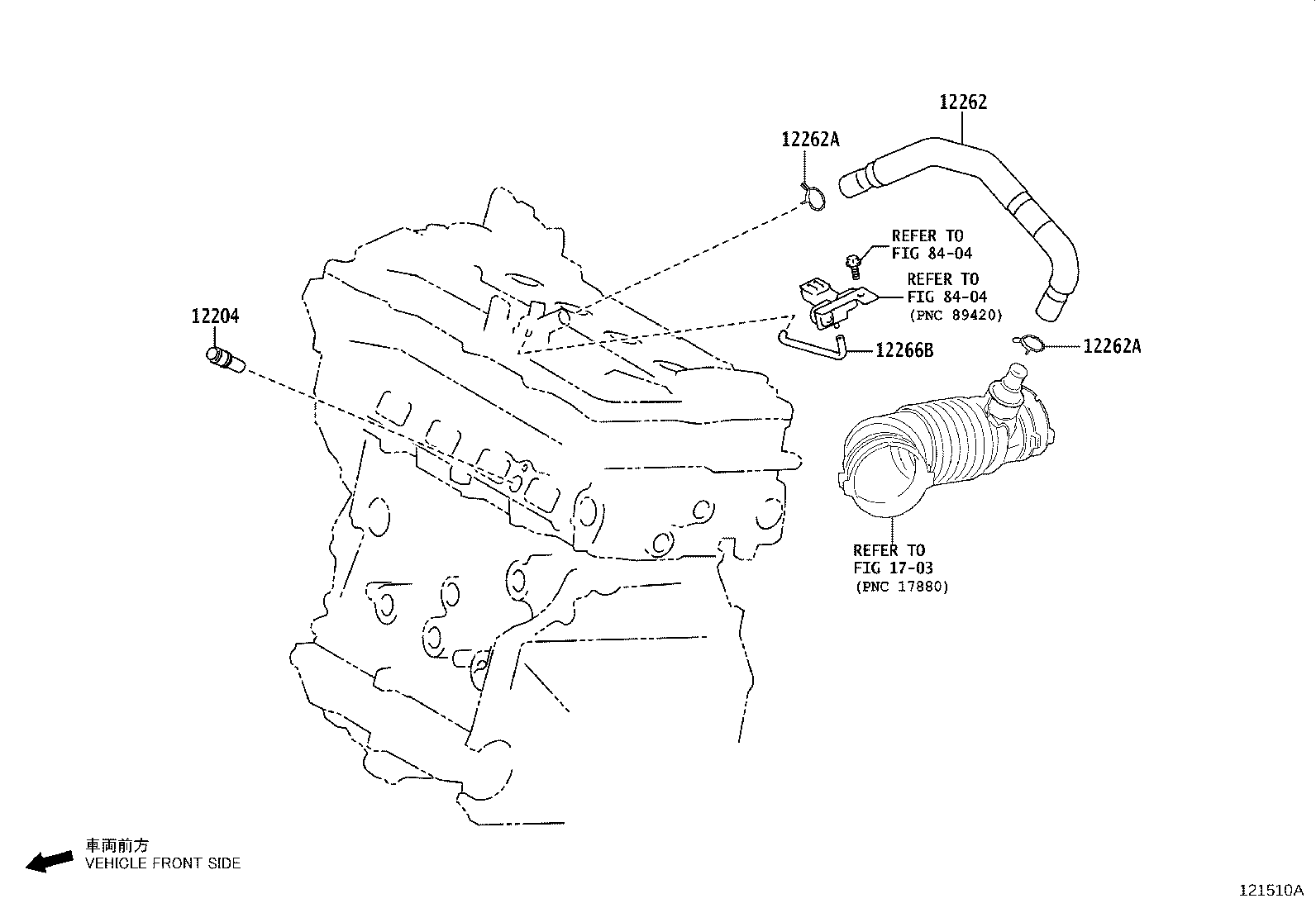

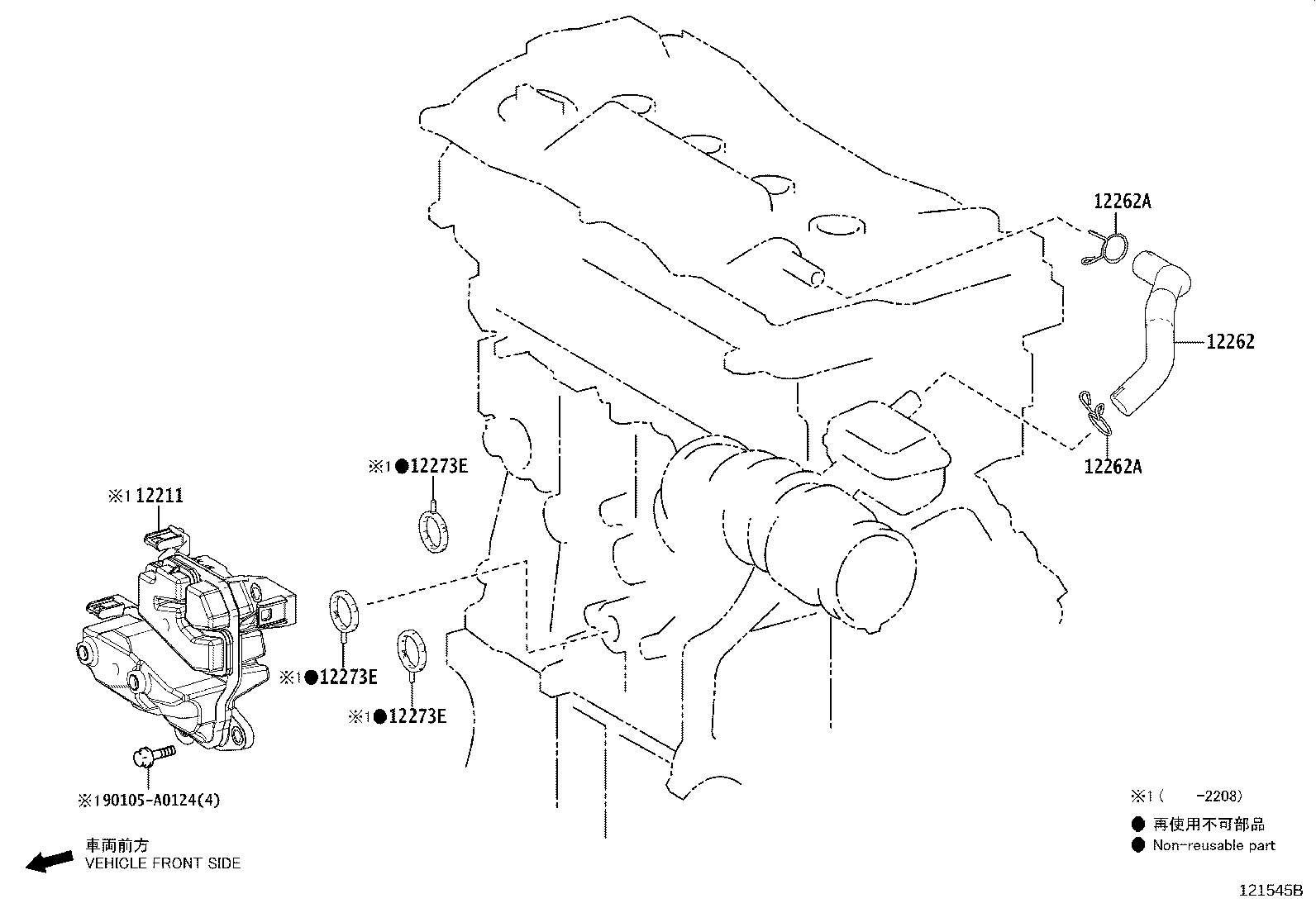

Ventilation Hose
6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 12204 | Valve Sub-assy, Ventilation |
| 12211 | Case, Ventilation, NO.1 |
| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
| 12266B | Hose, Ventilation Pressure Sensor, NO.1 |
| 12273E | Gasket(FOR VENTILATION CASE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
