Toyota Lexus NX Series(Tmmc

2022-03 → present · chassis AAZA2#,AAZH25,TAZA25 · catalogue 52E420 · United States

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

13 part groups · 3 illustrations

Illustrations

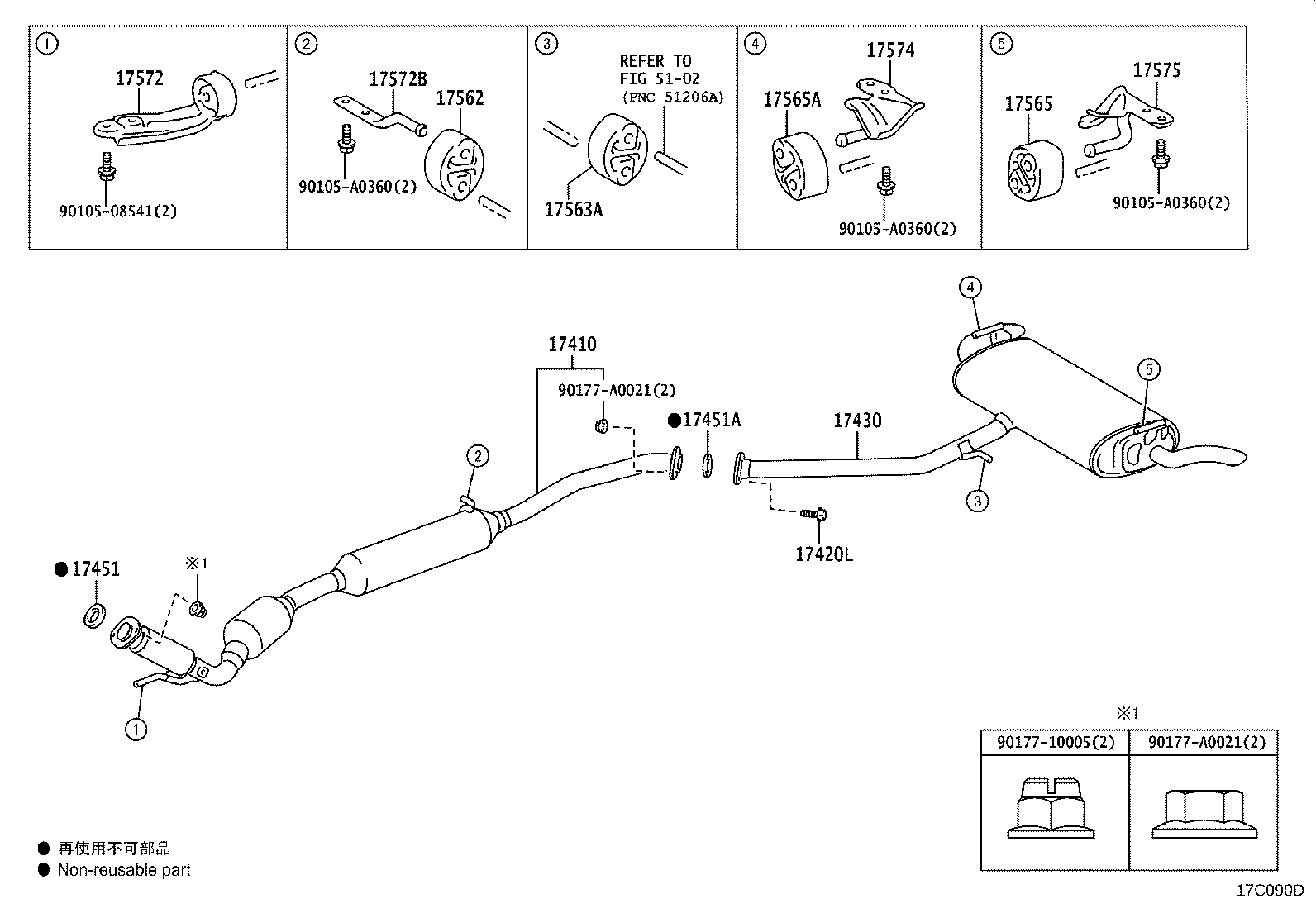

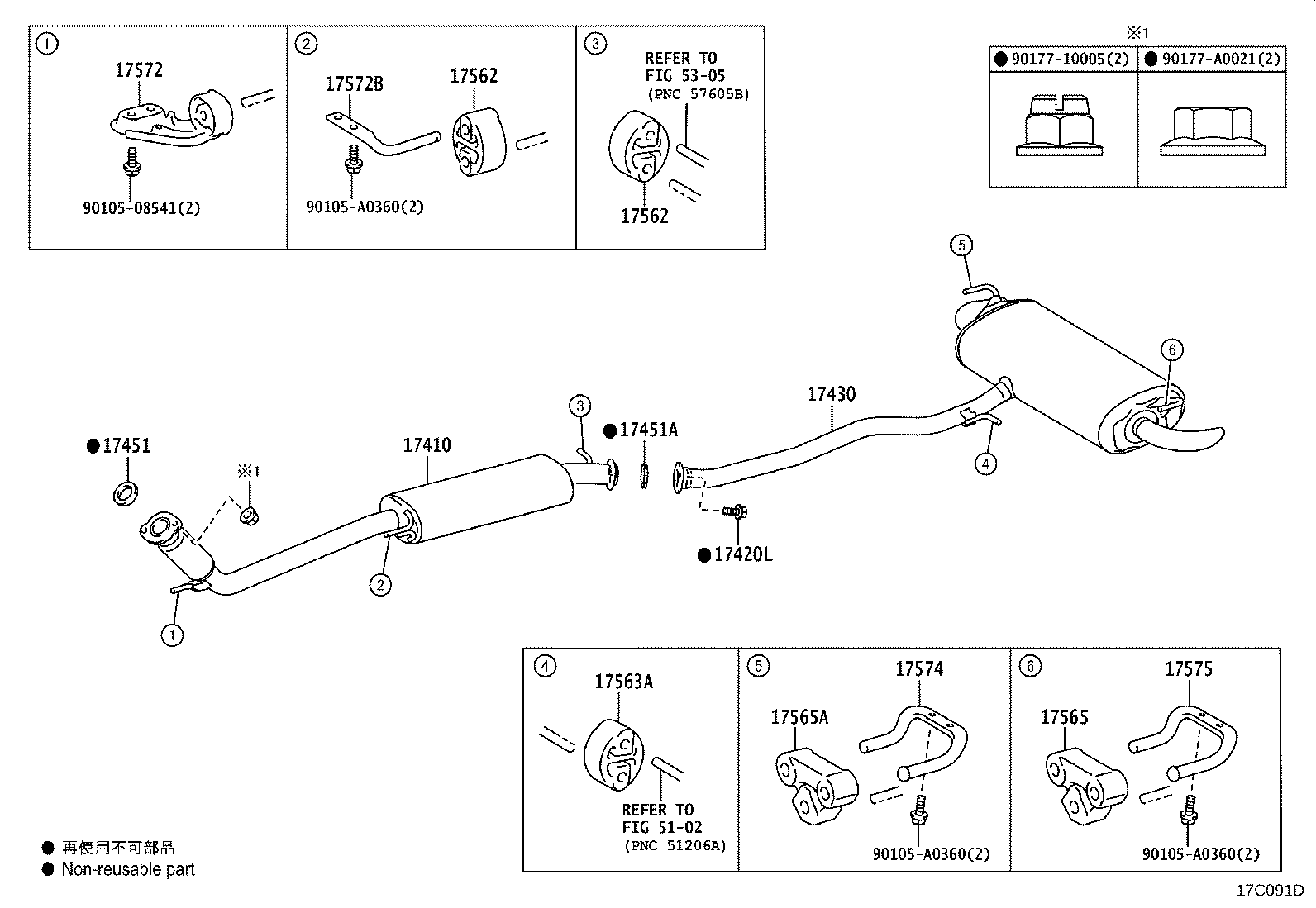

Figure 17C089D 17C089D 2022-03 → — Figure 17C090D 17C090D 2022-03 → — Figure 17C091D 17C091D 2022-03 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17420L Bolt, Flange(FOR EXHAUST PIPE)
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
17574 Bracket, Exhaust Pipe Support, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
