Toyota Lexus NX Series(Tmmc

2022-03 → present · chassis AAZA2#,AAZH25,TAZA25 · catalogue 52E420 · United States

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

1 part groups · 2 illustrations

Illustrations

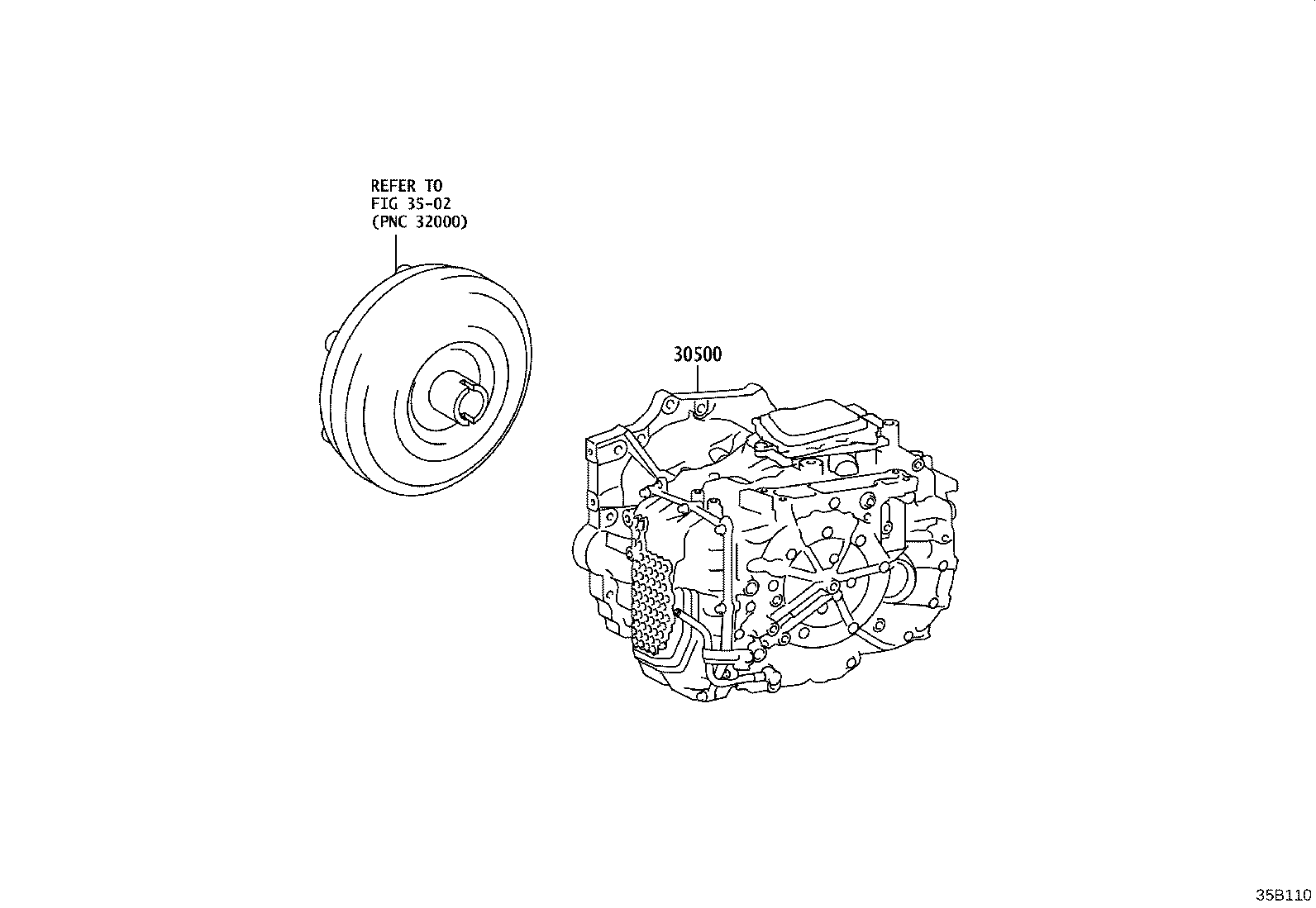

Figure 35B109 35B109 2022-03 → — Figure 35B110 35B110 2022-03 → —

Part groups

PNCDescription
30500 Transaxle Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
