Toyota Lexus NX Series(Tmmc
2022-03 → present · chassis AAZA2#,AAZH25,TAZA25 · catalogue 52E420 · United States
Supported model
Data version 2022-02
Oil Cooler & Tube (HEV OR BEV OR FCEV)

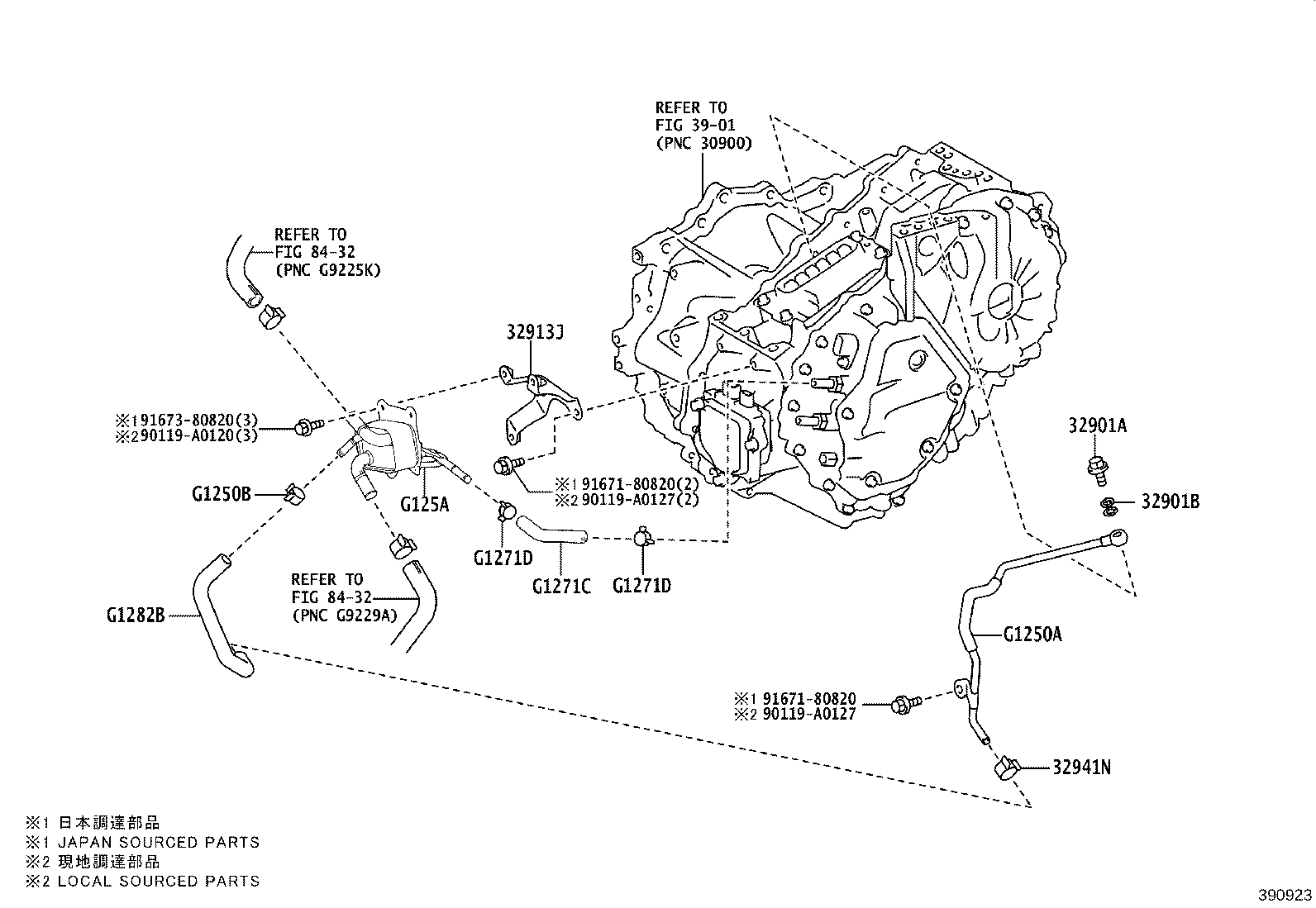

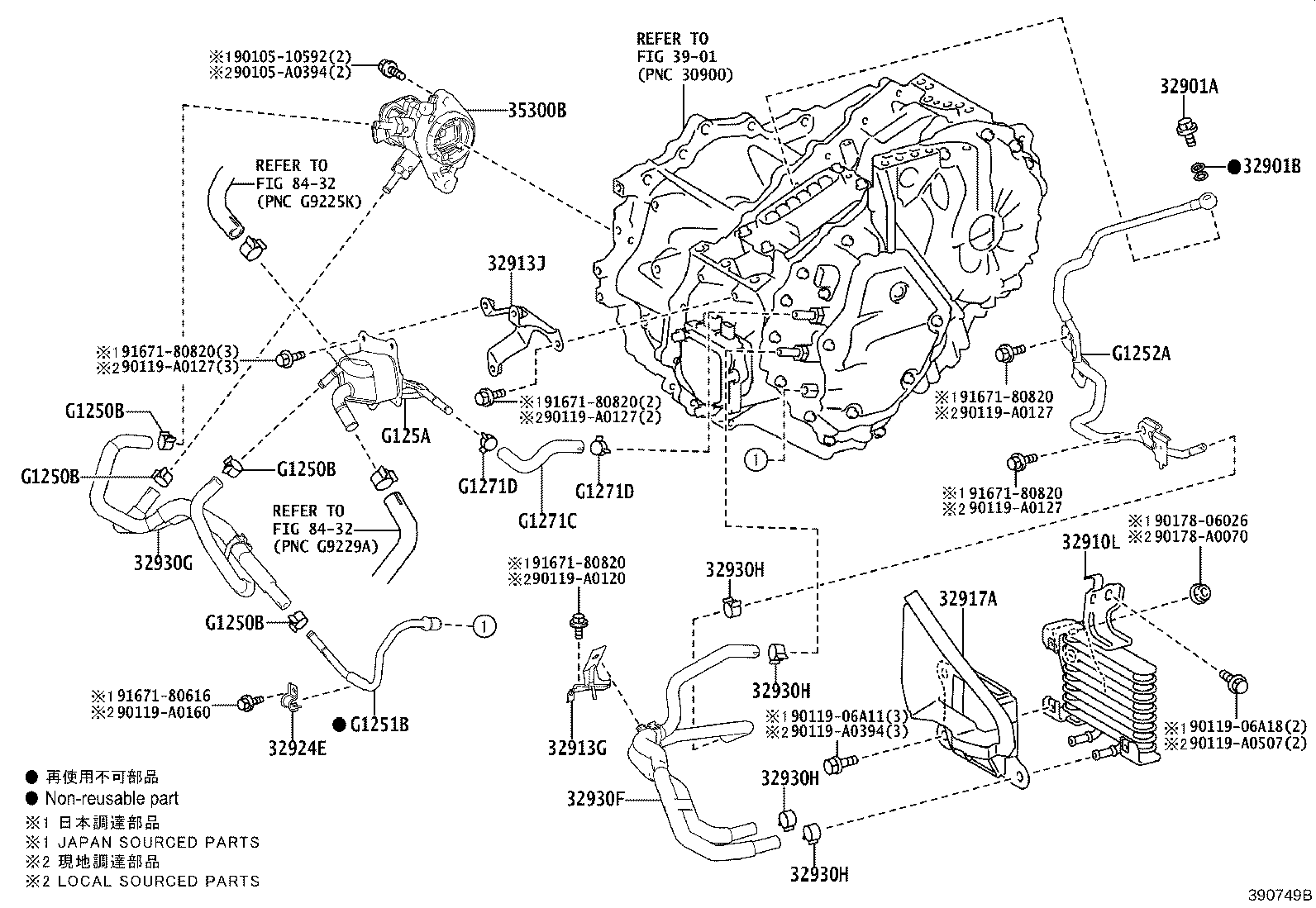

21 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 32901A | Bolt, Union(FOR OIL COOLER) |
| 32901B | Gasket(FOR OIL COOLER UNION) |
| 32910L | Cooler Assy, Oil |
| 32913G | Bracket, Transmission Oil Cooler |
| 32913J | Bracket, Transmission Oil Cooler, NO.2 |
| 32917A | Duct, Transmission Oil Cooler Air |
| 32924E | Clamp, Oil Cooler Tube, NO.2 |
| 32930F | Hose Assy, Transmission Oil Cooler, NO.1 |
| 32930G | Hose Assy, Transmission Oil Cooler, NO.2 |
| 32930H | Clip, NO.1(FOR OIL COOLER HOSE) |
| 32941N | Clip, NO.1(FOR OIL COOLER HOSE) |
| 35300B | Pump Assy, Oil W/Motor |
| G1250A | Pipe Assy, Motor Cooling |
| G1250B | Clip, NO.1(FOR MOTOR COOLING PIPE) |
| G1251B | Pipe, Motor Cooling, NO.1 |
| G1252A | Pipe, Motor Cooling, NO.2 |
| G1253 | Pipe, Motor Cooling, NO.3 |
| G125A | Cooler, Motor Cooling |
| G1271C | Hose, Motor Cooling, NO.1 |
| G1271D | Clip, NO.1(FOR MOTOR COOLING HOSE) |
| G1282B | Hose, Motor Outlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
