Toyota Lexus NX Series(Tmmc

2022-03 → present · chassis AAZA2#,AAZH25,TAZA25 · catalogue 52E420 · United States

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Housing & Differential

7 part groups · 3 illustrations

Illustrations

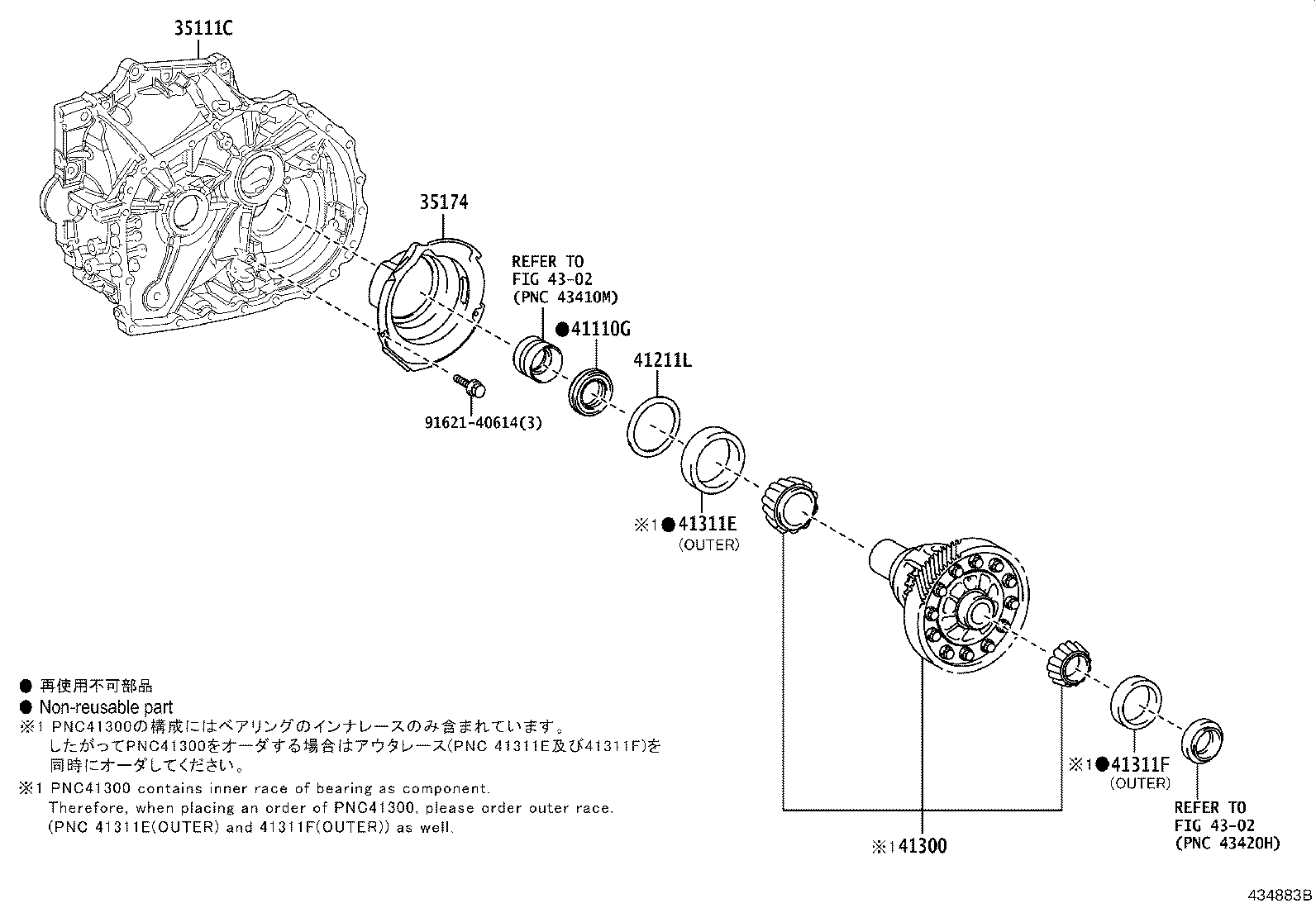

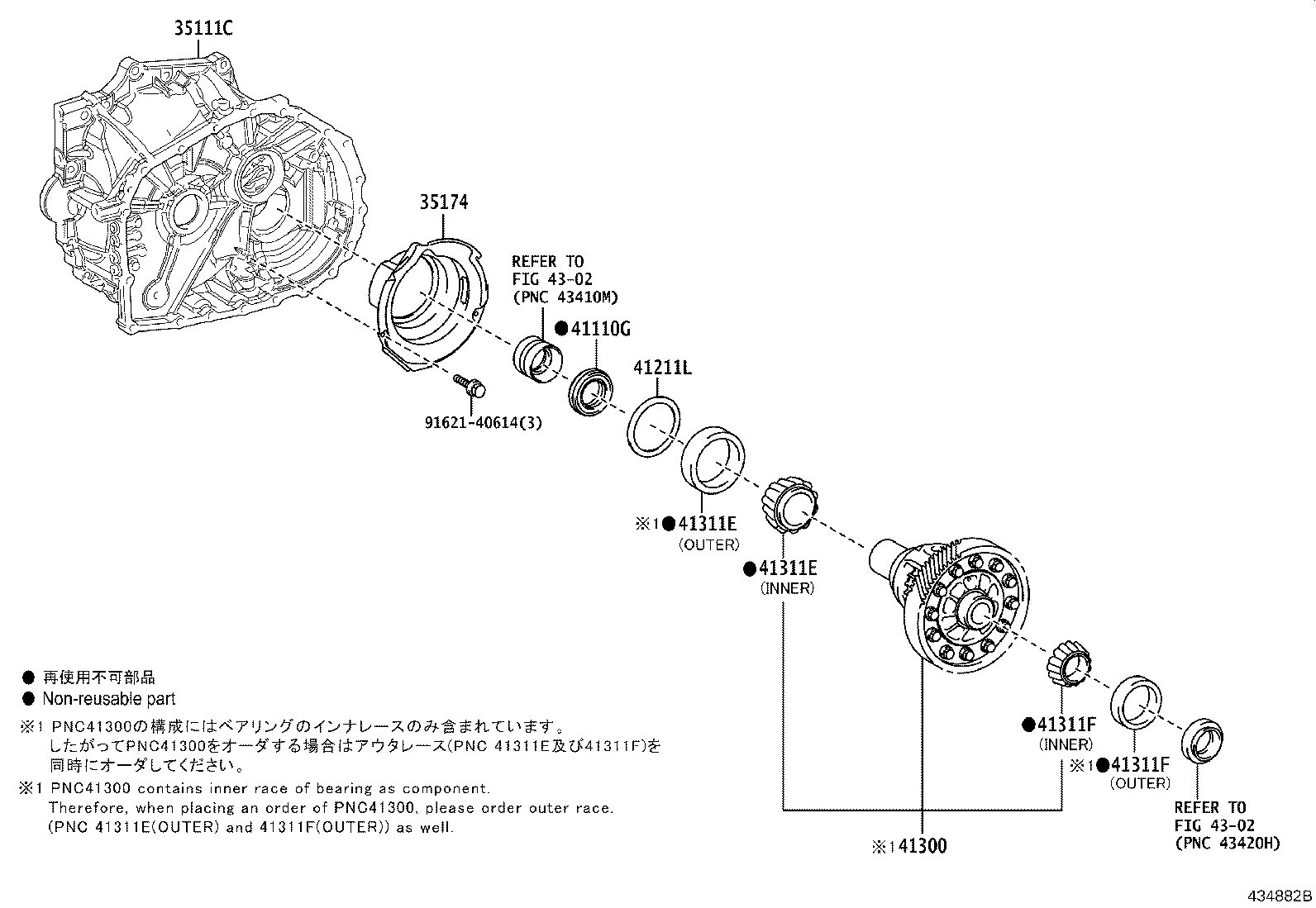

Figure 434881B 434881B 2022-03 → — Figure 434882B 434882B 2022-03 → — Figure 434883B 434883B 2022-03 → —

Part groups

PNCDescription
35111C Housing, Transaxle
35174 Separator, Transaxle Housing Oil
41110G Seal, Oil (FOR DIFFERENTIAL SIDE)
41211L Shim (FOR DIFFERENTIAL DRIVE PINION)
41300 Case Assy, Front Differential, W/Ring Gear
41311E Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
41311F Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
