Toyota Lexus NX Series(Tmmc
2022-03 → present · chassis AAZA2#,AAZH25,TAZA25 · catalogue 52E420 · United States
Supported model
Data version 2022-02

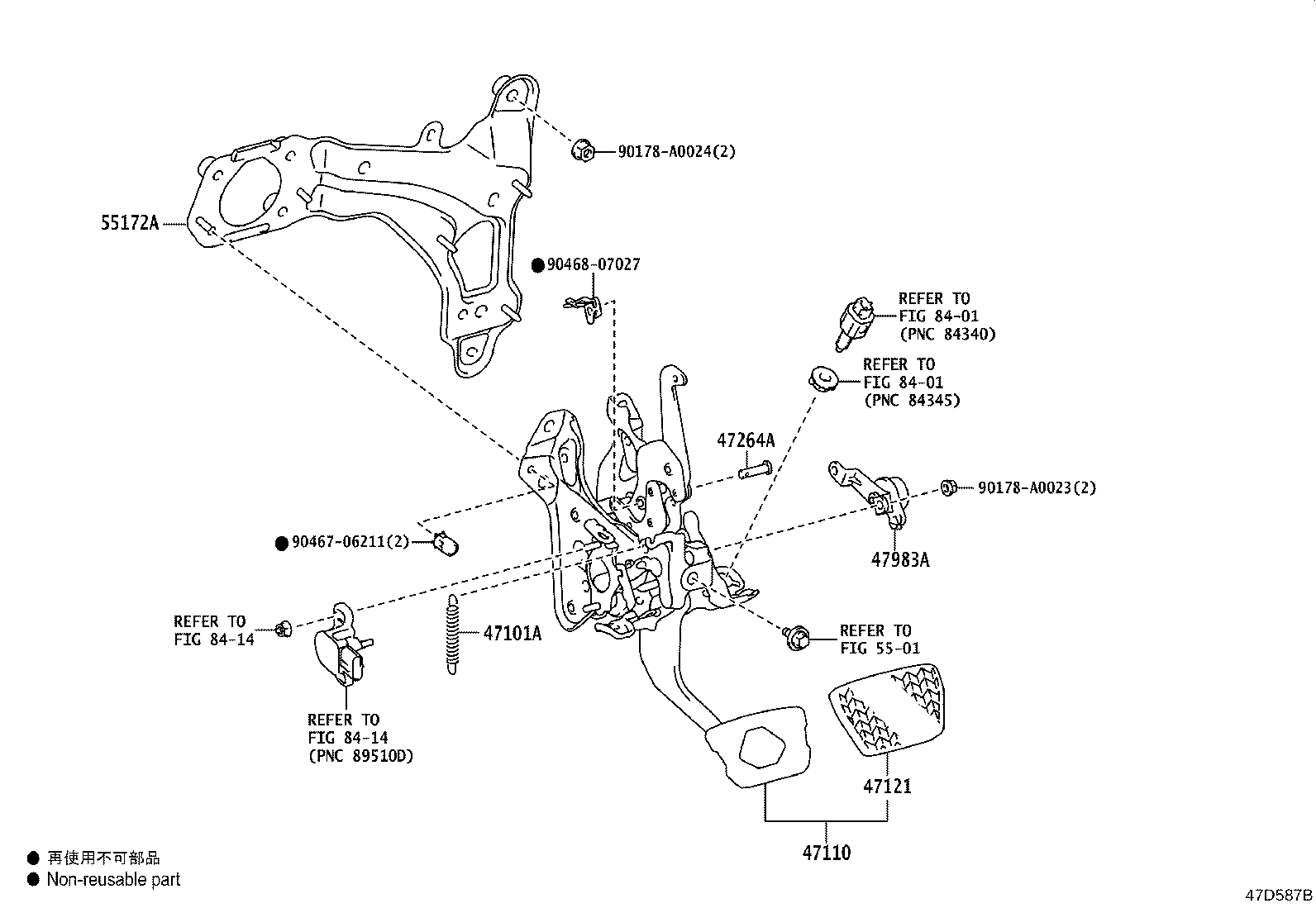

Brake Pedal & Bracket
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47101A | Spring(FOR BRAKE PEDAL RETURN) |
| 47110 | Support Assy, Brake Pedal |
| 47121 | Pad, Brake Pedal |
| 47264A | Pin(FOR PUSH ROD) |
| 47983A | Damper, Brake Traction |
| 55172A | Base, Brake Pedal Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
