Toyota Lexus NX Series(Tmmc
2022-03 → present · chassis AAZA2#,AAZH25,TAZA25 · catalogue 52E420 · United States
Supported model
Data version 2022-02

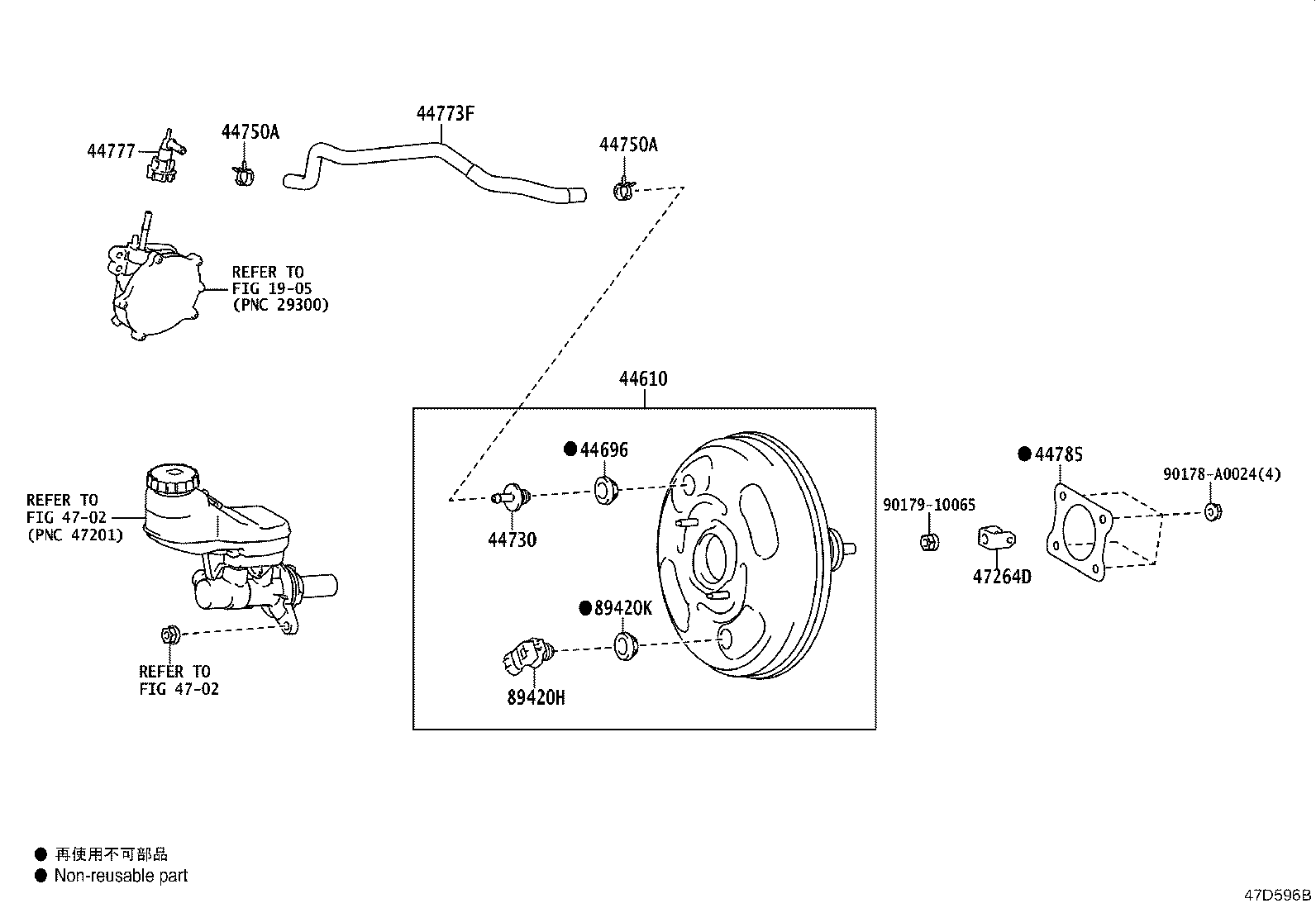

Brake Booster & Vacuum Tube
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44696 | Grommet, Check Valve |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44750A | Clip(FOR VACUUM HOSE ASSY) |
| 44773F | Hose, Union TO Check Valve |
| 44777 | Connector, Vacuum Hose, NO.1 |
| 44778A | Clip(FOR CONNECTOR TO CHECK VALVE HOSE) |
| 44785 | Gasket, Brake Booster |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
| 89420H | Sensor Assy, Vacuum |
| 89420K | Grommet, Vacuum Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
