Toyota Lexus NX Series(Tmmc

2022-03 → present · chassis AAZA2#,AAZH25,TAZA25 · catalogue 52E420 · United States

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

16 part groups · 2 illustrations

Illustrations

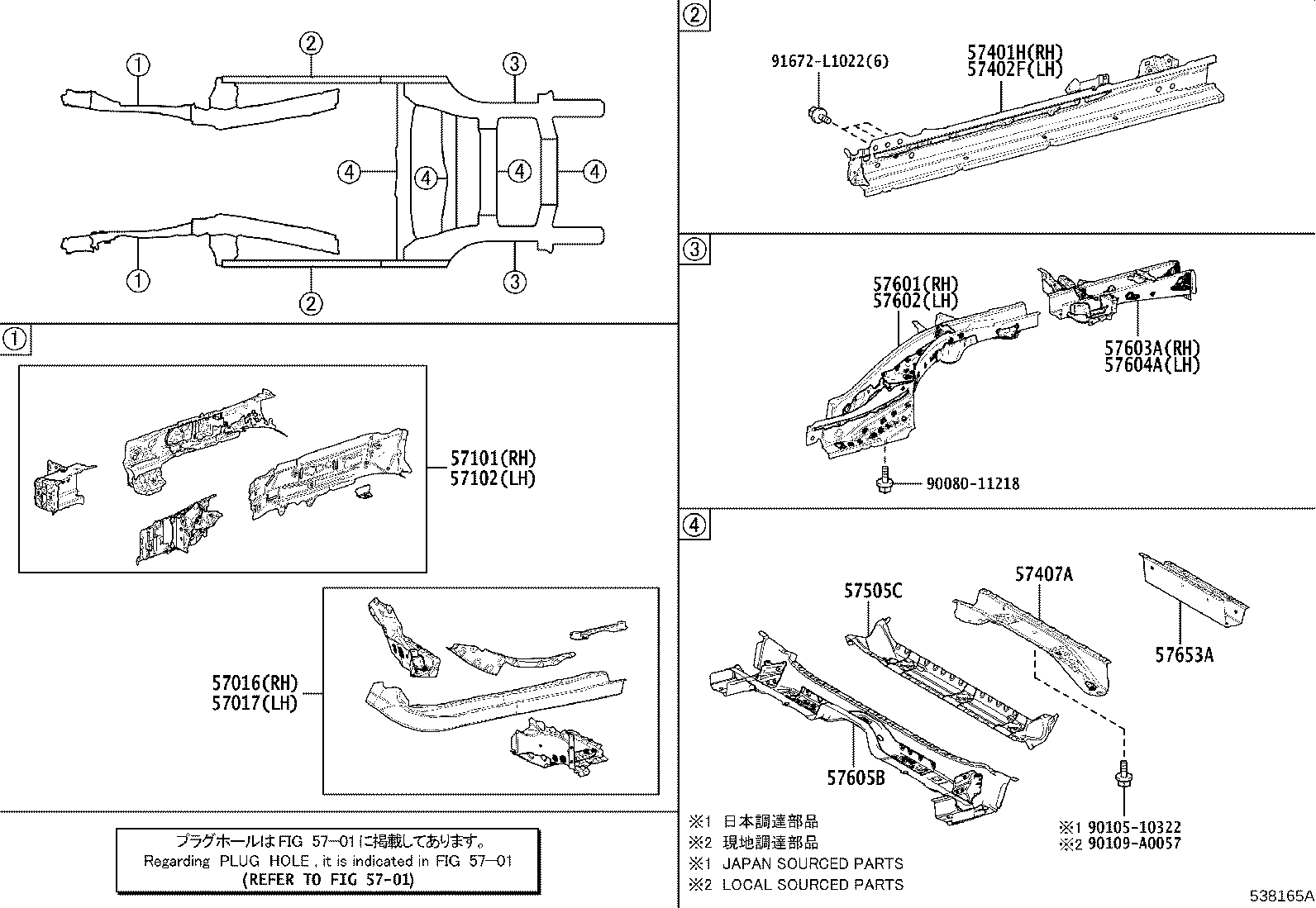

Figure 538164A 538164A 2022-03 → — Figure 538165A 538165A 2022-03 → —

Part groups

PNCDescription
57016 Reinforcement Sub-assy, Front Side Member, RH
57017 Reinforcement Sub-assy, Front Side Member, LH
57101 Member Sub-assy, Front Side, RH
57102 Member Sub-assy, Front Side, LH
57401H Member Sub-assy, Floor Side, Inner RH
57402F Member Sub-assy, Floor Side, Inner LH
57407A Member Sub-assy, Center Floor Cross
57491B Brace, Front Floor Cross, NO.1 RH
57492 Brace, Front Floor Cross, NO.1 LH
57505C Reinforcement Sub-assy, Front Floor Under
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57603A Member Sub-assy, Rear Floor Side, Rear RH
57604A Member Sub-assy, Rear Floor Side, Rear LH
57605B Member Sub-assy, Rear Floor Cross, NO.1
57653A Member, Rear Floor Cross, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
