Toyota Lexus NX Series(Tmmc
2022-03 → present · chassis AAZA2#,AAZH25,TAZA25 · catalogue 52E420 · United States
Supported model
Data version 2022-02

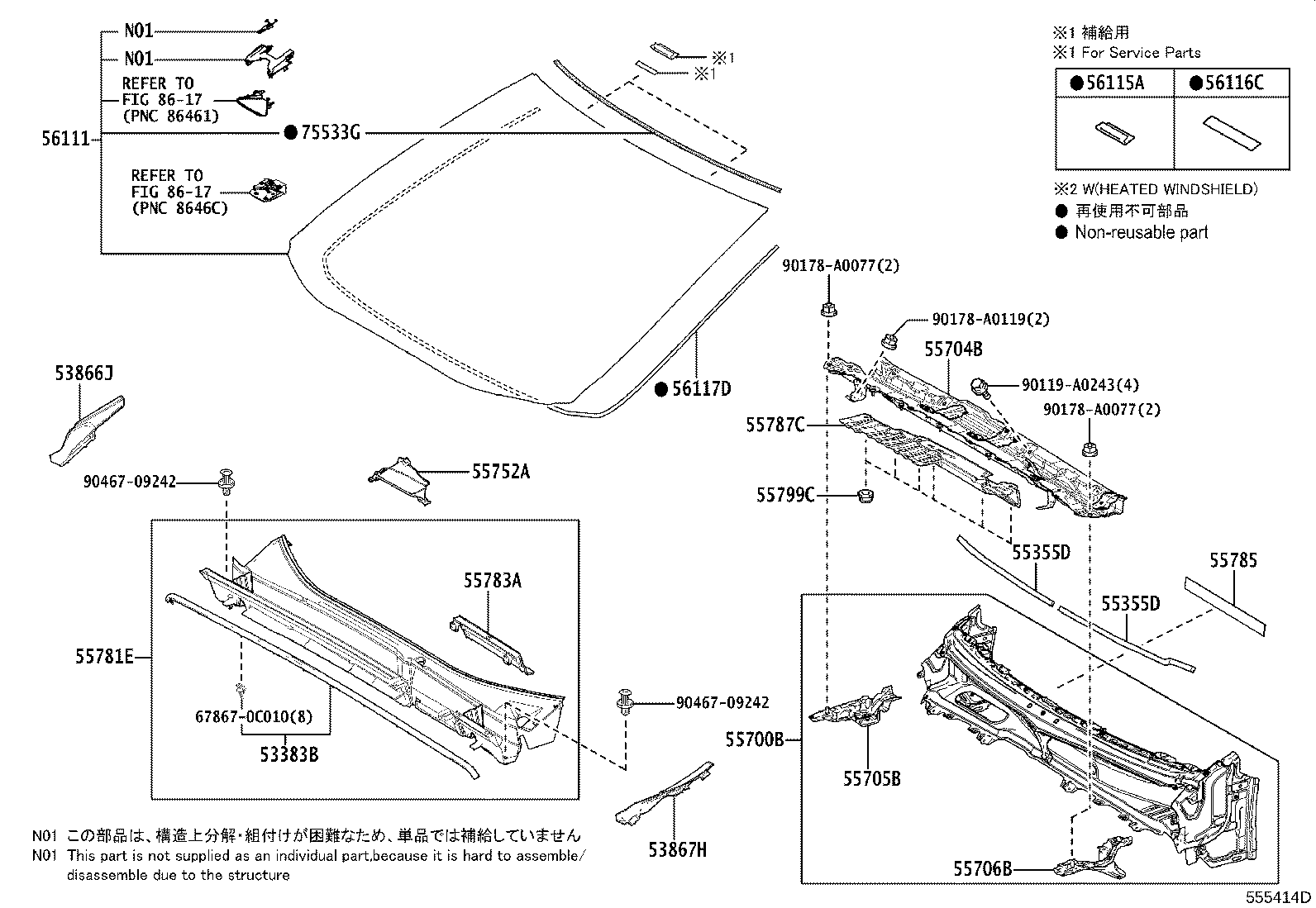

Cowl Panel & Windshield Glass
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53383B | Seal, Hood TO Cowl Top |
| 53866J | Seal, Front Fender TO Cowl Side, RH |
| 53867H | Seal, Front Fender TO Cowl Side, LH |
| 55355D | Cushion, Instrument Panel, NO.1 |
| 55700B | Cowl Assy |
| 55704B | Panel Sub-assy, Cowl Ventilator |
| 55705B | Panel Sub-assy, Cowl Top Side, RH |
| 55706B | Panel Sub-assy, Cowl Top Side, LH |
| 55752A | Shield, Cowl Ventilator Splash, LH |
| 55781E | Louver Sub-assy, Cowl Top Ventilator |
| 55783A | Pad, Cowl Top Silencer |
| 55785 | Pad, Cowl Outer Panel, NO.2 |
| 55787C | Insulator, Cowl Top Panel, NO.1 |
| 55799C | Clip, Cowl Top Ventilator Louver |
| 56111 | Glass, Windshield |
| 56115A | Stopper, Windshield Glass, NO.1 |
| 56116C | Stopper, Windshield Glass, NO.2 |
| 56117D | Dam, Windshield Glass Adhesive |
| 75533G | Moulding, Windshield, Outside |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
