Toyota Lexus NX Series(Tmmc

2022-03 → present · chassis AAZA2#,AAZH25,TAZA25 · catalogue 52E420 · United States

Supported model Data version 2022-02

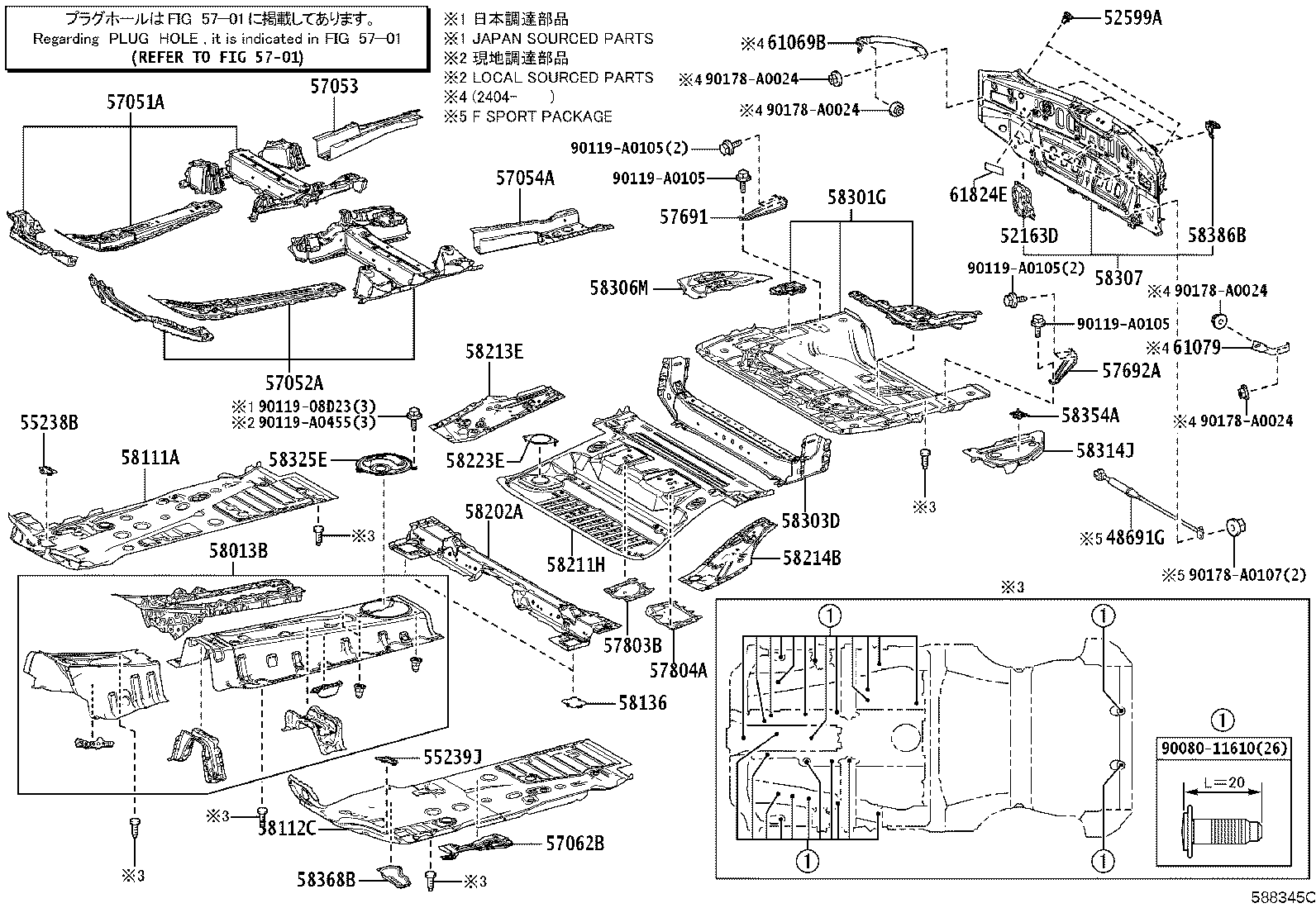

Floor Pan & Lower Back Panel

36 part groups · 2 illustrations

PNC	Description
48691G	Damper, Suspension Tower
52163D	Plate, Rear Bumper Reinforcement, RH
52599A	Stopper, Rear Bumper, Upper
55238B	Plate, Dash Panel Insulator, Lower RH
55239J	Plate, Dash Panel Insulator, Lower LH
57051A	Member Sub-assy, Front Floor Cross, RH
57052A	Member Sub-assy, Front Floor Cross, LH
57053	Reinforcement Sub-assy, Front Floor Crossmember, RH
57054A	Reinforcement Sub-assy, Front Floor Crossmember, LH
57062B	Bracket Sub-assy, Fuel Tank Support, LH
57691	Brace, Rear Floor NO.2 Crossmember, Inner RH
57692A	Brace, Rear Floor NO.2 Crossmember, Inner LH
57803B	Reinforce Sub-assy, Belt Anchor, NO.2 RH
57804A	Reinforce Sub-assy, Belt Anchor, NO.2 LH
58013B	Panel Sub-assy, Front Floor, Center
58111A	Pan, Front Floor, RH
58112C	Pan, Front Floor, LH
58136	Cover, Front Floor Hole
58202A	Pan Sub-assy, Center Floor, Front
58211H	Pan, Center Floor
58213E	Panel, Seat Floor Side, RH
58214B	Panel, Seat Floor Side, LH
58223E	Reinforcement, Floor Panel Side, RH
58301G	Pan Sub-assy, Rear Floor
58303D	Panel Sub-assy, Rear Floor Partition
58306M	Panel Sub-assy, Rear Floor Side
58307	Panel Sub-assy, Body Lower Back
58314J	Panel, Rear Floor Side, LH
58325E	Cover, Rear Floor Service Hole
58354A	Stay, Rear Floor, LH
58368B	Bracket, Fuel Tube, NO.2
58386B	Bracket, Rear Bumper Cover, NO.2
61069B	Brace Sub-assy, Quarter Wheel House, NO.1 RH
61079	Brace Sub-assy, Quarter Wheel House, NO.1 LH
61824E	Plate, Noise Control, NO.1
82879B	Adapter, Computer Integration Box

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
