Toyota Lexus NX Series(Tmmc

2022-03 → present · chassis AAZA2#,AAZH25,TAZA25 · catalogue 52E420 · United States

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

11 part groups · 3 illustrations

Illustrations

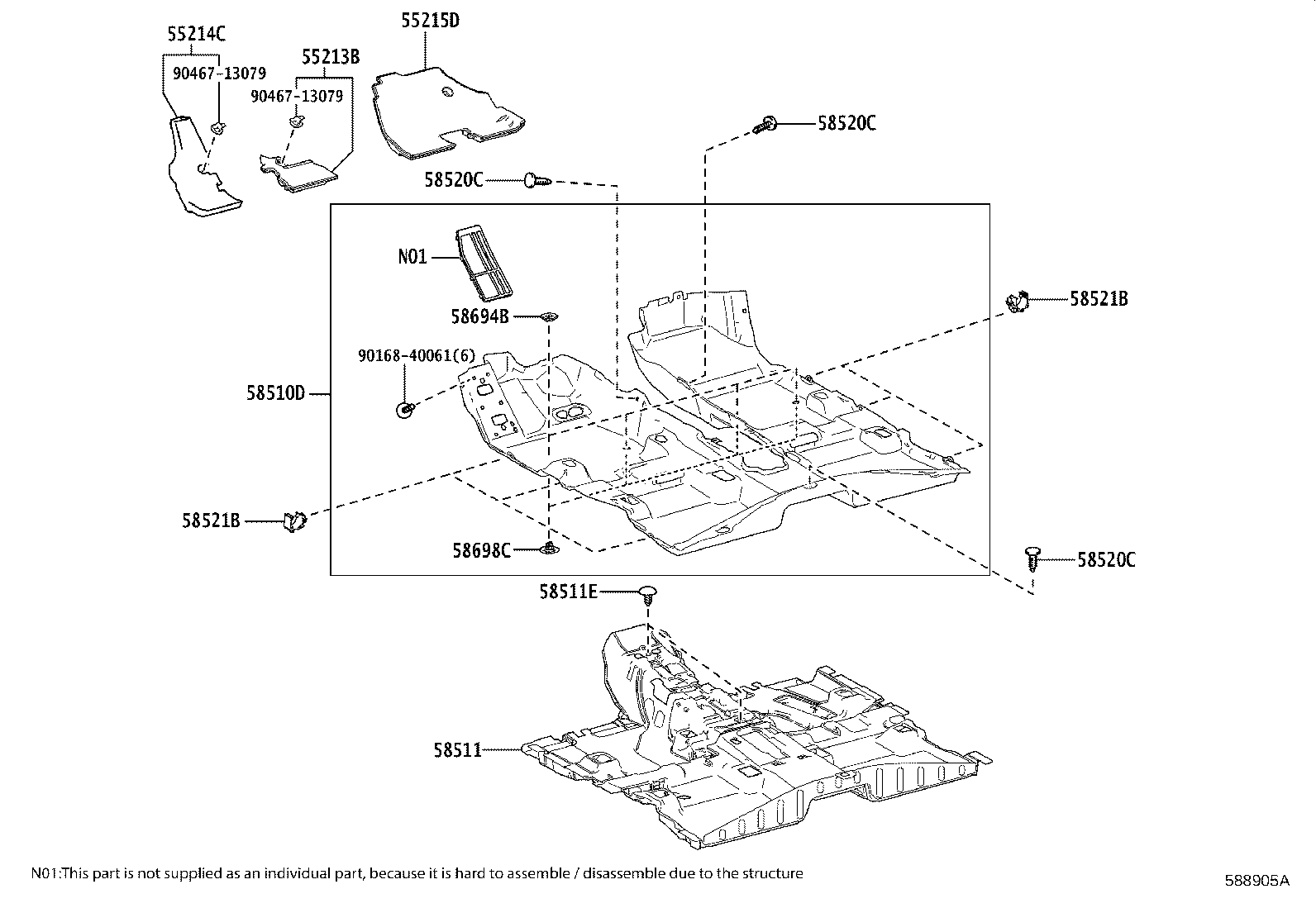

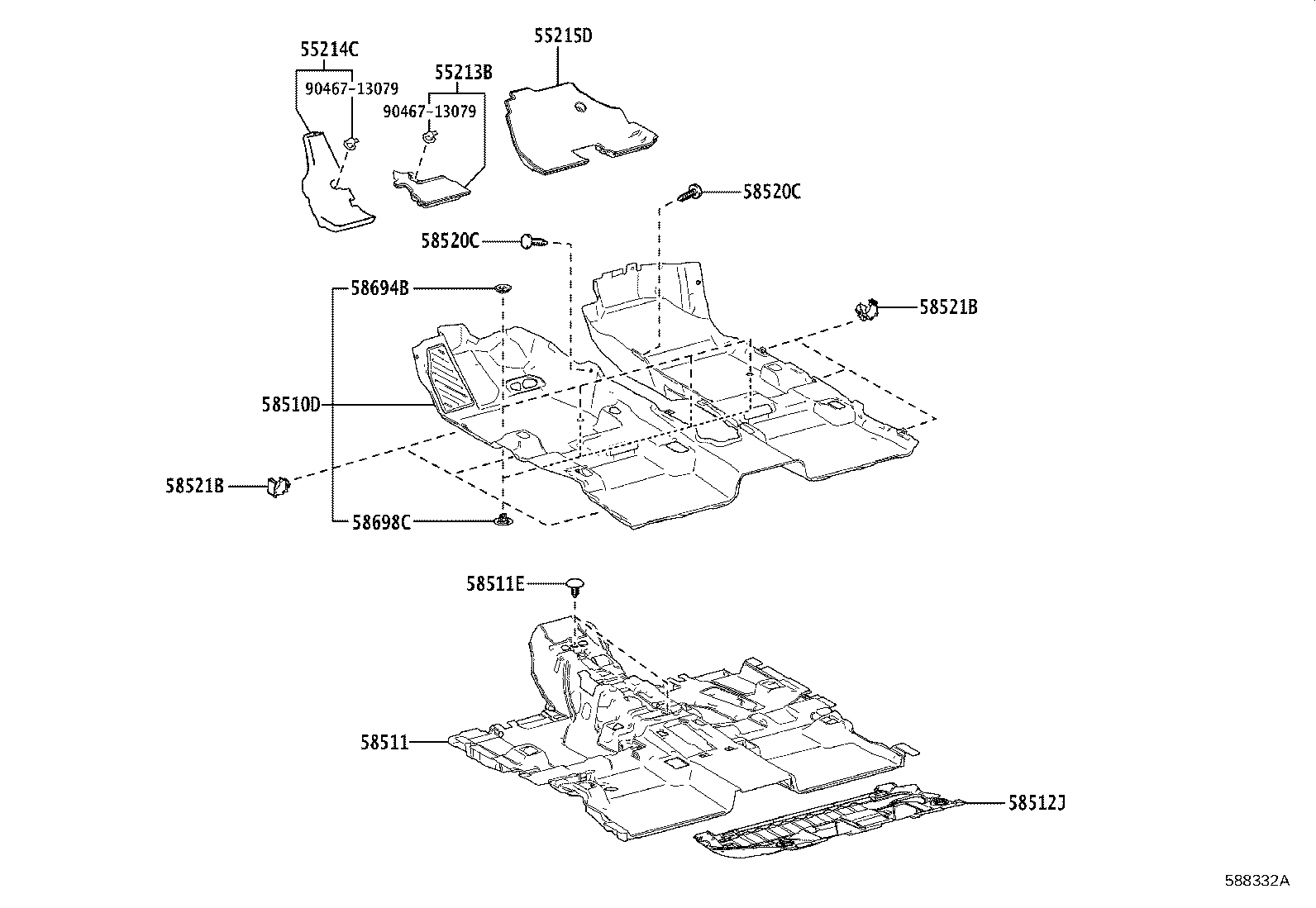

Figure 588331A 588331A 2022-03 → — Figure 588332A 588332A 2022-03 → — Figure 588905A 588905A 2022-03 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58510D Carpet Assy, Floor, Front
58511 Mat, Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58512J Mat, Floor, NO.2
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
