Toyota Lexus NX Series(Tmmc
2022-03 → present · chassis AAZA2#,AAZH25,TAZA25 · catalogue 52E420 · United States
Supported model
Data version 2022-02

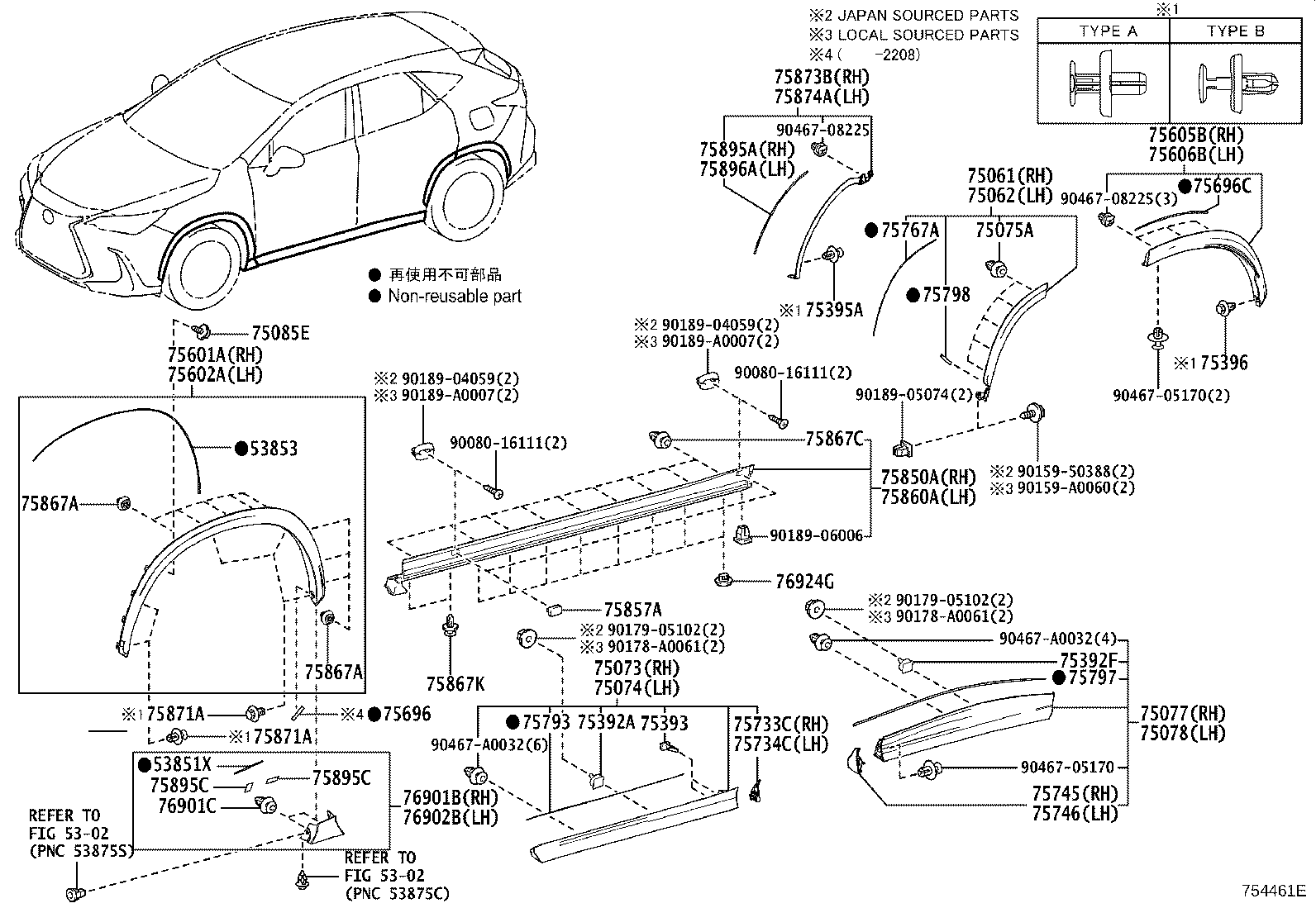

Side Moulding
60 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53851X | Pad, Front Wheel Opening Extension, NO.1 |
| 53853 | Pad, Front Wheel Opening Extension, NO.3 |
| 75061 | Moulding Set, Outside |
| 75062 | Moulding Set, Outside, LH |
| 75073 | Moulding Sub-assy, Front Door, Outside Lower RH |
| 75074 | Moulding Sub-assy, Front Door, Outside Lower LH |
| 75075 | Moulding Sub-assy, Rear Door, Outside RH |
| 75075A | Clip(FOR REAR DOOR OUTSIDE MOULDING) |
| 75076 | Moulding Sub-assy, Rear Door, Outside LH |
| 75077 | Moulding Sub-assy, Rear Door Outside Lower RH |
| 75078 | Moulding Sub-assy, Rear Door Outside Lower LH |
| 75085E | Screw, NO.1 |
| 75392A | Retainer, Outside Moulding, NO.1 |
| 75392F | Retainer, Outside Moulding |
| 75393 | Retainer, Outside Moulding, NO.2 |
| 75395A | Clip, Outside Moulding, NO.1 |
| 75396 | Clip, Outside Moulding, NO.2 |
| 75601A | Moulding Sub-assy, Front Fender, RH |
| 75602A | Moulding Sub-assy, Front Fender, LH |
| 75605B | Moulding Sub-assy, Quarter Outside, RH |
| 75606B | Moulding Sub-assy, Quarter Outside, LH |
| 75696 | Pad, Body Outside Moulding, NO.1 |
| 75696C | Pad, Body Outside Moulding, NO.1 |
| 75710 | Moulding Assy, Front Door Belt, RH |
| 75720 | Moulding Assy, Front Door Belt, LH |
| 75730 | Moulding Assy, Rear Door Belt, RH |
| 75733C | Moulding, Front Door, Outside Rear RH |
| 75734C | Moulding, Front Door, Outside Rear LH |
| 75740 | Moulding Assy, Rear Door Belt, LH |
| 75745 | Moulding, Rear Door Outside, Lower RH |
| 75746 | Moulding, Rear Door Outside, Lower LH |
| 75753 | Moulding, Front Door Window Frame, Upper RH |
| 75754A | Moulding, Front Door Window Frame, Upper LH |
| 75755C | Moulding, Front Door Window Frame, Rear RH |
| 75756C | Moulding, Front Door Window Frame, Rear LH |
| 75763A | Moulding, Rear Door Window Frame, Upper RH |
| 75764A | Moulding, Rear Door Window Frame, Upper LH |
| 75765A | Moulding, Rear Door Window Frame, Rear RH |
| 75766A | Moulding, Rear Door Window Frame, Rear LH |
| 75767A | Pad, Rear Door Moulding, NO.1 |
| 75792 | Clip, Door Window Frame Moulding |
| 75793 | Pad, Front Door Outside Moulding, Upper |
| 75797 | Pad, Rear Door Outside Moulding, Upper |
| 75798 | Pad, Rear Door Outside Moulding, Rear |
| 75850A | Moulding Assy, Body Rocker Panel, RH |
| 75857A | Cover, Rocker Panel Moulding, RH |
| 75860A | Moulding Assy, Body Rocker Panel, LH |
| 75867A | Clip, Rocker Panel Moulding |
| 75867C | Clip, Rocker Panel Moulding |
| 75867K | Clip, Rocker Panel Moulding |
| 75871A | Clip (FOR FRONT FENDER MOULDING NO.1) |
| 75873B | Moulding, Quarter Wheel Opening, RH |
| 75874A | Moulding, Quarter Wheel Opening, LH |
| 75895A | Tape, Moulding, NO.1 |
| 75895C | Tape, Moulding, NO.3 |
| 75896A | Tape, Moulding, NO.2 |
| 76901B | Mudguard Sub-assy, Fender Panel, RH |
| 76901C | Clip, Fender Panel Mudguard |
| 76902B | Mudguard Sub-assy, Fender Panel, LH |
| 76924G | Retainer, Rocker Panel Moulding |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
