Toyota Lexus NX Series(Tmmc
2022-03 → present · chassis AAZA2#,AAZH25,TAZA25 · catalogue 52E420 · United States
Supported model
Data version 2022-02
Headlamp
15 part groups · 3 illustrations

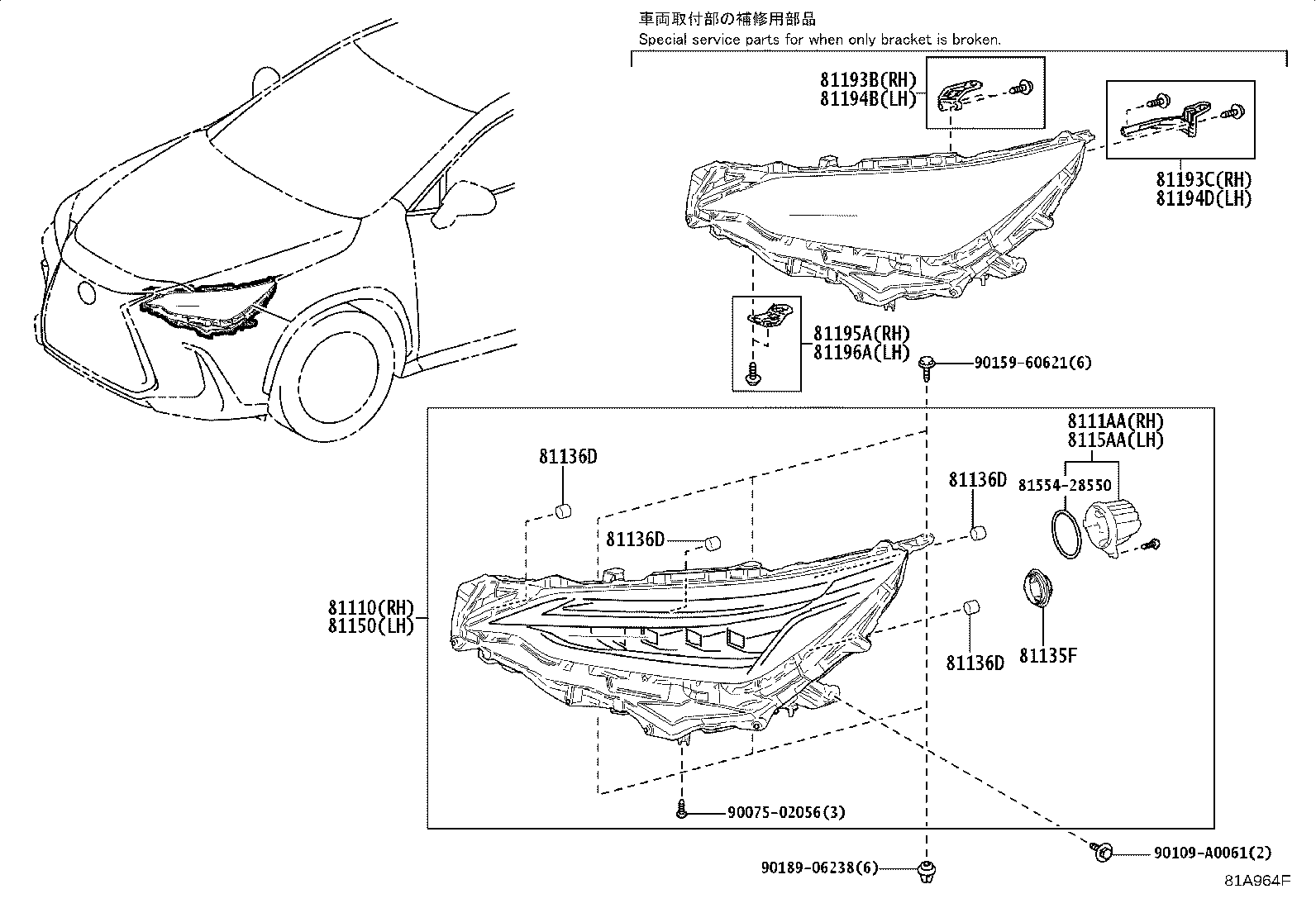

Part groups
| PNC | Description |
|---|---|
| 81110 | Headlamp Assy, RH |
| 8111AA | Unit, Headlamp Turn Signal Led, RH |
| 81135F | Cover, Headlamp Back |
| 81136D | Cover, Headlamp |
| 81150 | Headlamp Assy, LH |
| 8115AA | Unit, Headlamp Turn Signal Led, LH |
| 81193B | Retainer, Headlamp Protector, Upper RH NO.2 |
| 81193C | Retainer, RH Headlamp Protector, Upper RH |
| 81194B | Retainer, Headlamp Protector, Upper LH NO.2 |
| 81194D | Retainer, LH Headlamp Protector, Upper LH |
| 81195A | Retainer, Headlamp Protector, Lower RH |
| 81196A | Retainer, Headlamp Protector, Lower LH |
| 81510D | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81515G | Socket & Wire, Front Turn Signal Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
