Toyota Lexus UX250H/200

2018-10 → 2022-07 · chassis MZAA10,MZAH1# · catalogue 537410 · United States

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

10 part groups · 3 illustrations

Illustrations

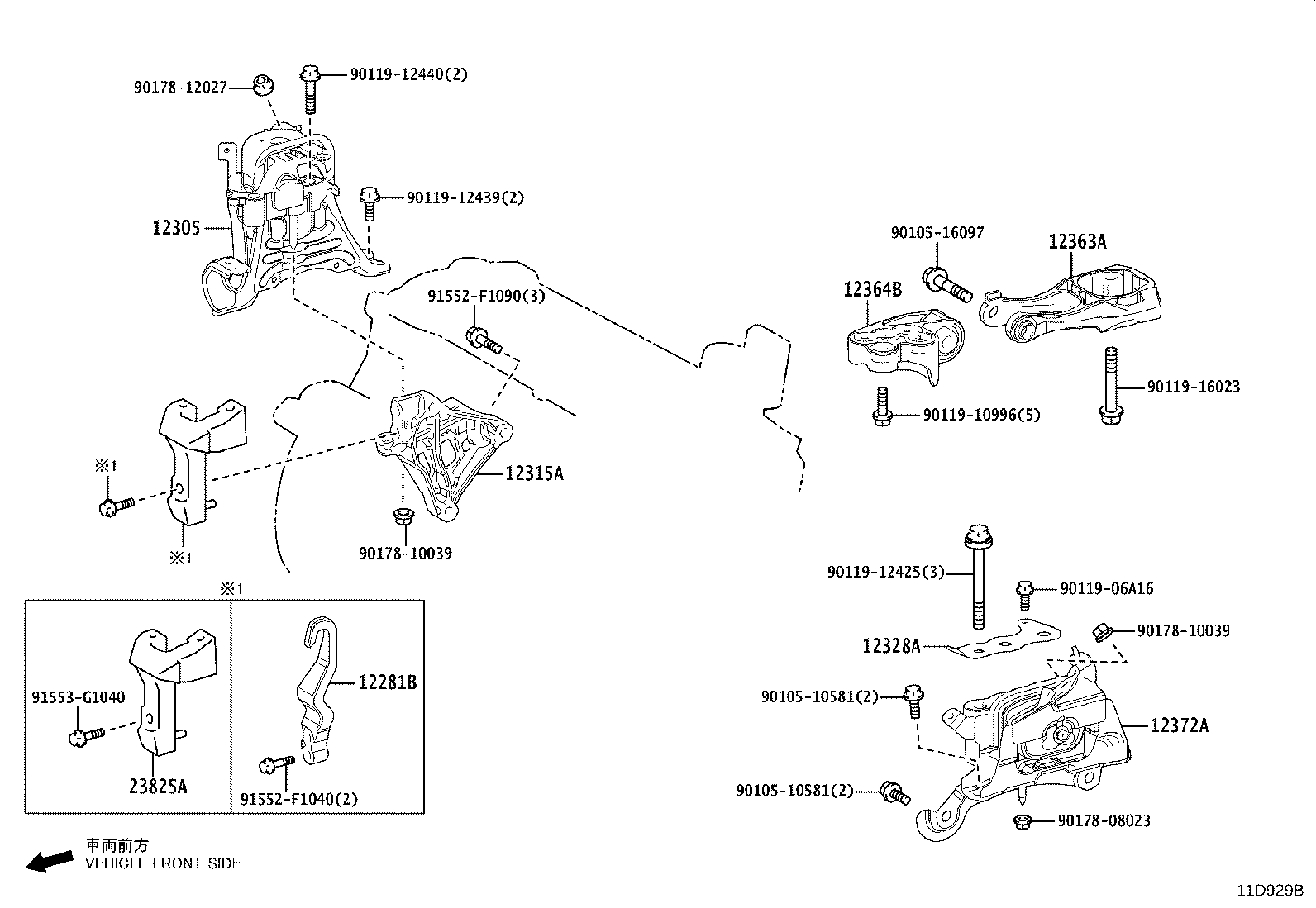

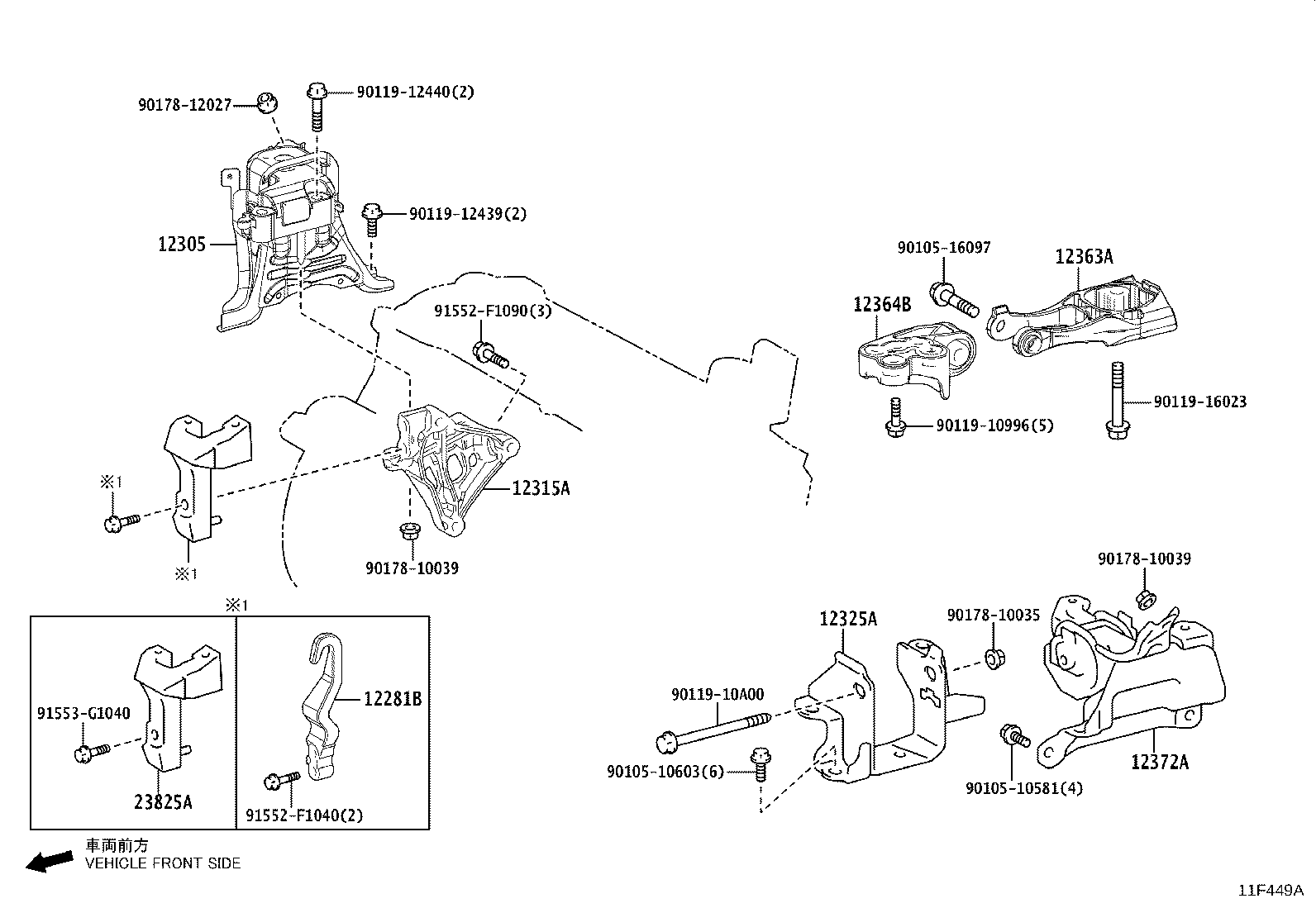

Figure 11D928B 11D928B 2018-10 → 2021-08 Figure 11F449A 11F449A 2021-08 → — Figure 11D929B 11D929B 2018-11 → —

Part groups

PNCDescription
12281B Hanger, Engine, NO.1
12305 Insulator Sub-assy, Engine Mounting, RH
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12318 Stay, Engine Mounting, LH
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12328A Stay, Engine Mounting, NO.2 LH
12363A Rod, Engine Moving Control
12364B Rod, Engine Moving Control, NO.2
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
23825A Guard, Fuel Delivery
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
