Toyota Lexus UX250H/200
2018-10 → 2022-07 · chassis MZAA10,MZAH1# · catalogue 537410 · United States
Supported model
Data version 2023-09
Transaxle Assy(HEV OR BEV OR FCEV)

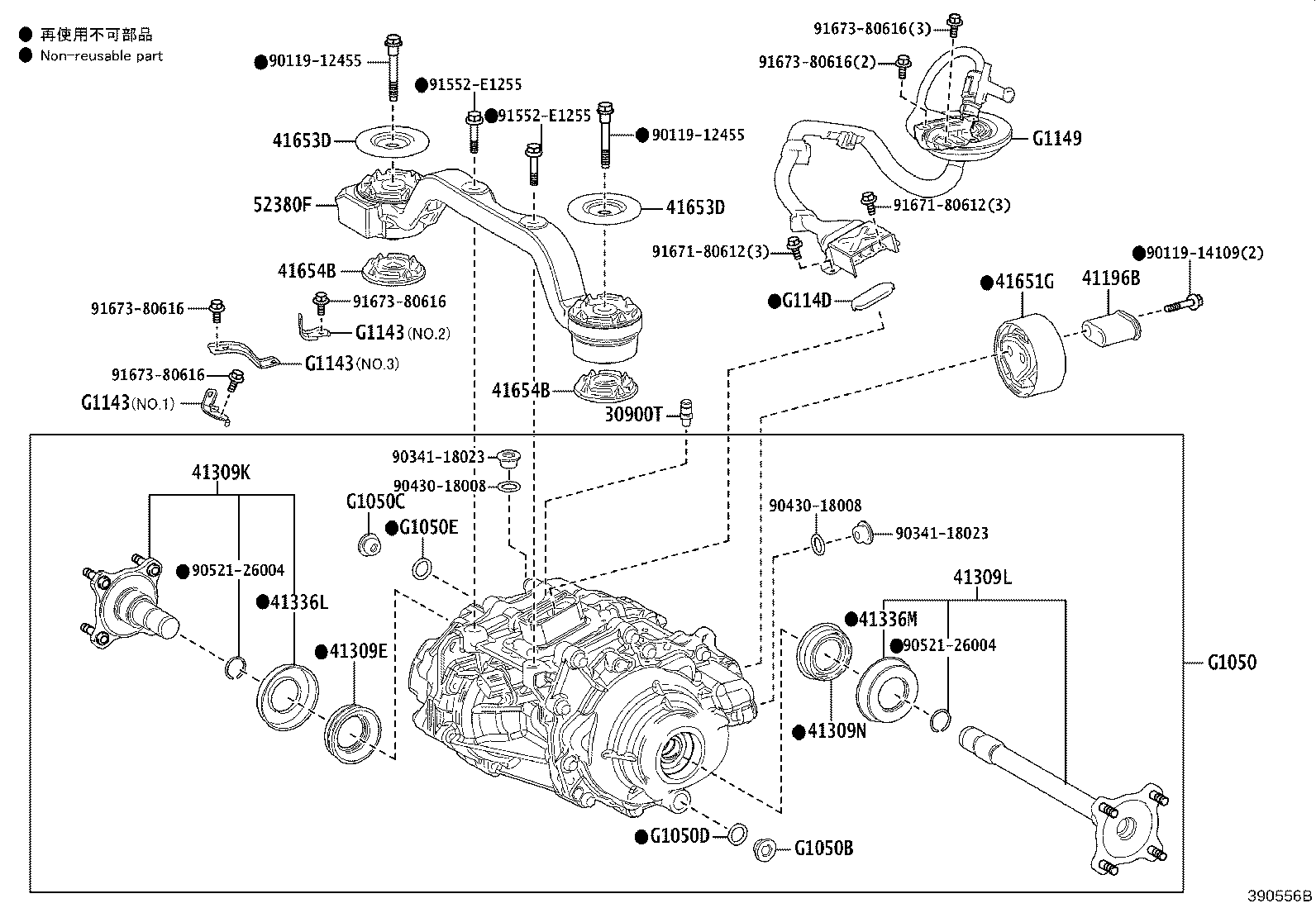

37 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 30900 | Transaxle Assy, Hybrid Vehicle |
| 30900D | Plug, W/Head Straight Screw(FOR TRANSAXLE HOUSING & CASE) |
| 30900E | Gasket(FOR TRANSAXLE HOUSING & CASE) |
| 30900K | Connector, Tube(FOR TRANSAXLE HOUSING) |
| 30900N | Plug, Breather(FOR TRANSAXLE) |
| 30900P | Plug, Drain(HEV) |
| 30900Q | Plug, Filler(HEV) |
| 30900R | Gasket, Drain Plug(HEV) |
| 30900S | Gasket, Filler Plug(HEV) |
| 30900T | Plug, Breather(FOR REAR TRACTION MOTOR) |
| 31270 | Damper Assy, Transmission Input |
| 35308G | Ring, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER) |
| 35308H | Plug (FOR TRANSMISSION OIL PUMP COVER) |
| 35572B | Lever, Transmission, Outer |
| 35710A | Seal, Type T Oil(FOR INPUT SHAFT) |
| 41196B | Damper, Differential Dynamic |
| 41309E | Seal, Type T Oil(FOR DIFFERENTIAL SIDE GEAR SHAFT RH) |
| 41309K | Shaft Sub-assy, Differential Side Gear, RH |
| 41309L | Shaft Sub-assy, Differential Side Gear, LH |
| 41309N | Seal, Type T Oil(FOR DIFFERENTIAL SIDE GEAR SHAFT LH) |
| 41336L | Dust Cover, Differential Side Gear Shaft, RH |
| 41336M | Dust Cover, Differential Side Gear Shaft, LH |
| 41651G | Cushion, Differential Mount |
| 41653D | Stopper, Differential Mount,Upper |
| 41654B | Stopper, Differential Mount,Lower |
| 52380F | Support Assy, Differential, Front |
| 82821T | Cover, Connector |
| 82823M | Cap, Terminal |
| G1050 | Motor Assy, RR Traction W/Transaxle |
| G1050B | Plug, Drain(FOR REAR TRACTION MOTOR) |
| G1050C | Plug, Filler(FOR REAR TRACTION MOTOR) |
| G1050D | Gasket, Drain Plug(FOR REAR TRACTION MOTOR) |
| G1050E | Gasket, Filler Plug(FOR REAR TRACTION MOTOR) |
| G1143 | Bracket, Motor Cable |
| G1148 | Cable, Motor |
| G1149 | Cable(FOR REAR TRACTION MOTOR) |
| G114D | Cap, Motor Cable Terminal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
