Toyota Lexus UX250H/200

2018-10 → 2022-07 · chassis MZAA10,MZAH1# · catalogue 537410 · United States

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

6 part groups · 2 illustrations

Illustrations

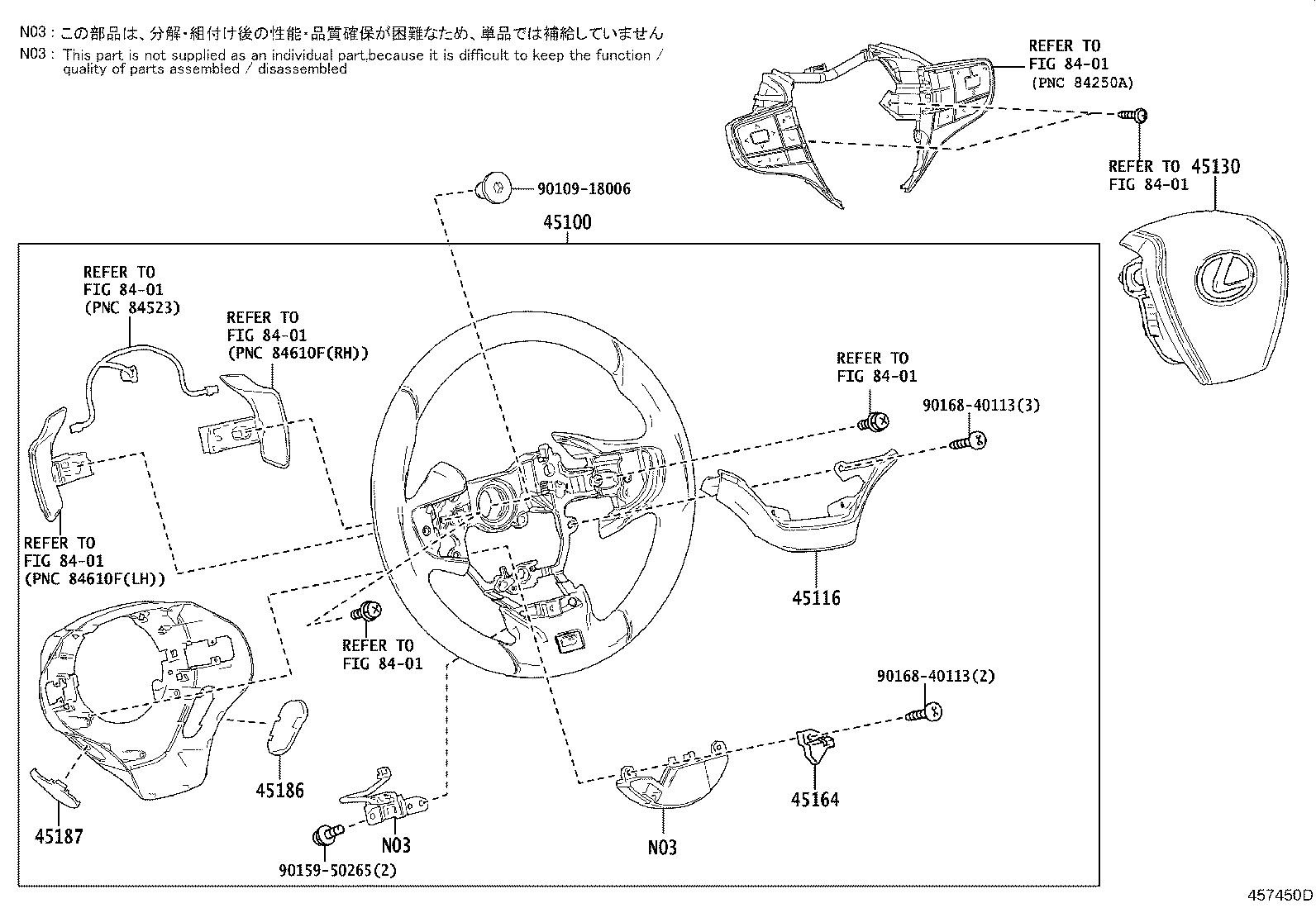

Figure 457449C 457449C 2018-10 → — Figure 457450D 457450D 2018-10 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45116 Ornament, Steering Wheel, NO.1
45130 Button Assy, Horn
45164 Bracket, Steering Wheel Pad, LH
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
