Toyota Lexus UX250H/200
2018-10 → 2022-07 · chassis MZAA10,MZAH1# · catalogue 537410 · United States
Supported model
Data version 2023-09
Hood & Front Fender
32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53153B | Guide, Front Side Air |
| 53154E | Guide, Front Side Air, NO.2 |
| 53301 | Hood Sub-assy |
| 53336A | Bracket, Hood Stay |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53384B | Cushion, Hood, Center |
| 53388D | Seal, Hood TO Front Fender, RH |
| 53389B | Seal, Hood TO Front Fender, LH |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |

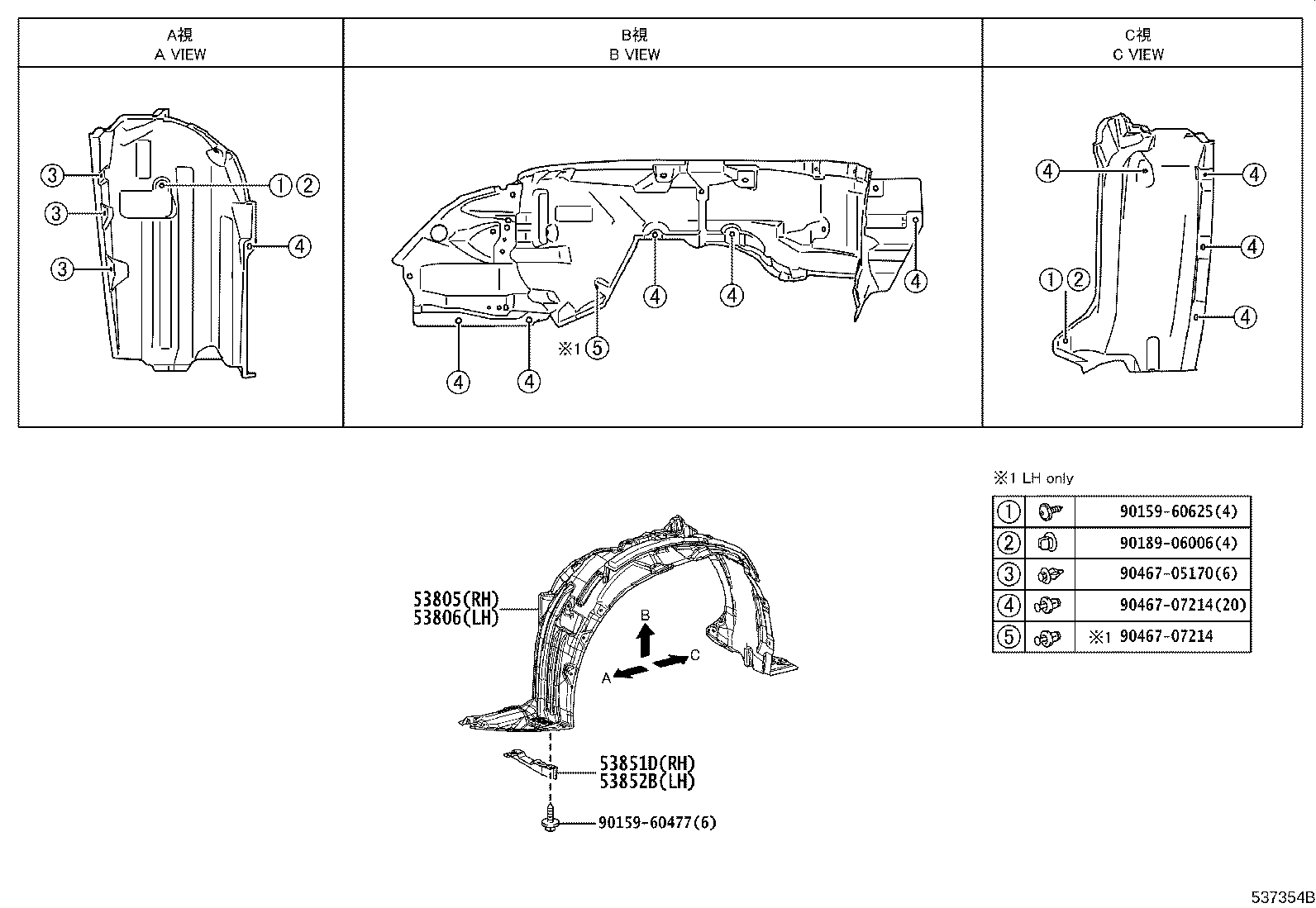

| 53805 | Shield Sub-assy, Front Fender Splash, RH |
| 53806 | Shield Sub-assy, Front Fender Splash, LH |
| 53808E | Seal Sub-assy, Fender Apron Mudguard, LH |
| 53827L | Protector, Front Fender Side Panel, RH |
| 53828K | Protector, Front Fender Side Panel, LH |
| 53832F | Panel, Front Fender Side, LH |
| 53833A | Panel, Front Fender Side, Lower RH |
| 53833B | Panel, Front Fender Side, RH |
| 53834 | Panel, Front Fender Side, Lower LH |
| 53851D | Pad, Front Wheel Opening Extension, RH |
| 53852B | Pad, Front Wheel Opening Extension, LH |
| 53857 | Retainer, Front Wheel Opening Extension, RH |
| 53857B | Retainer, Front Wheel Opening Extension, RH |
| 53858B | Retainer, Front Wheel Opening Extension, LH |
| 53858H | Retainer, Front Wheel Opening Extension, LH |
| 53861D | Seal, Front Fender TO Door Hinge, Upper RH |
| 53862C | Seal, Front Fender TO Door Hinge, Upper LH |
| 53882P | Seal, Front Fender, RH |
| 53883B | Seal, Front Fender, LH |
| 53885G | Seal Sub-assy, Fender Apron Mudguard, RH |
| 65487A | Clip, Corner Protector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
