Toyota Lexus UX250H/200

2018-10 → 2022-07 · chassis MZAA10,MZAH1# · catalogue 537410 · United States

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

14 part groups · 2 illustrations

Illustrations

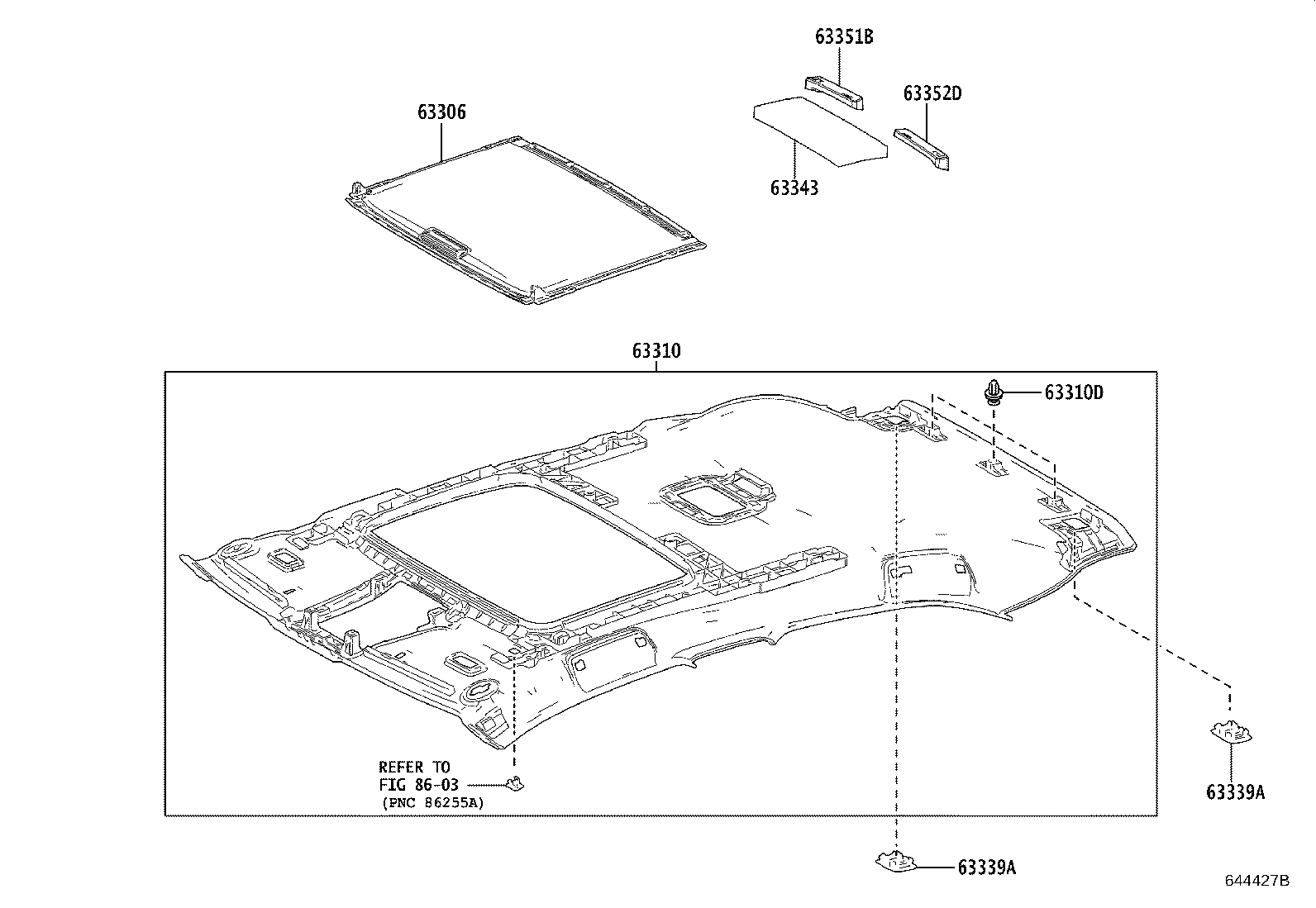

Figure 644426C 644426C 2018-10 → — Figure 644427B 644427B 2018-10 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63339A Cover, Roof Headlining Service Hole
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63351B Pad, Roof Headlining
63352D Pad, Roof Headlining, NO.2
63355C Pad, Roof Headlining, RH
63355D Pad, Roof Headlining, LH
63355E Pad, Roof Headlining, NO.2 RH
63355F Pad, Roof Headlining, NO.2 LH
63357B Silencer, Roof
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
