Toyota Lexus UX250H/200
2018-10 → 2022-07 · chassis MZAA10,MZAH1# · catalogue 537410 · United States
Supported model
Data version 2023-09

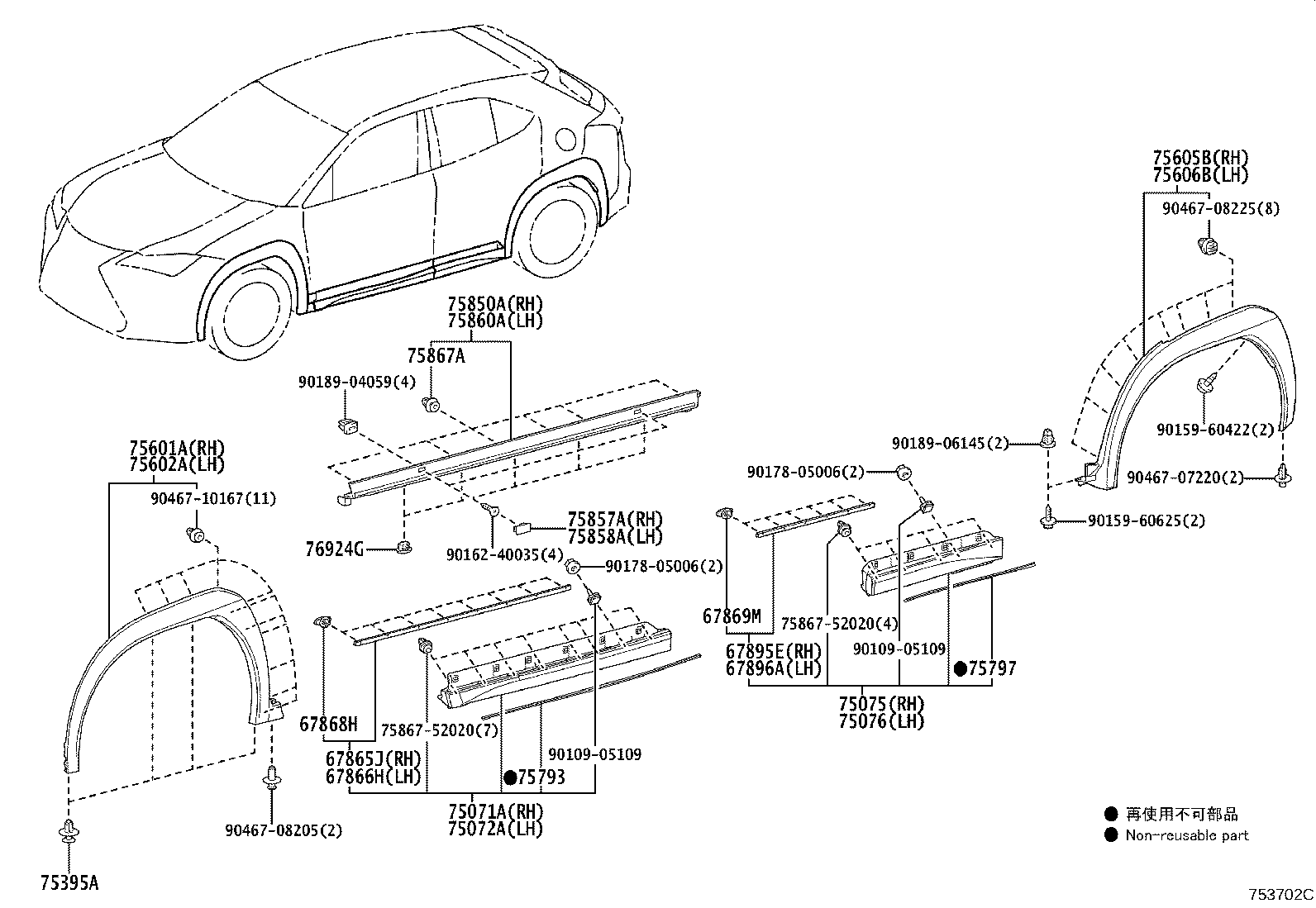

Side Moulding
40 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67865J | Weatherstrip, Front Door, NO.3 RH |
| 67866H | Weatherstrip, Front Door, NO.3 LH |
| 67868H | Clip, Door Weatherstrip |
| 67869M | Clip, Door Weatherstrip |
| 67895E | Weatherstrip, Rear Door, NO.3 RH |
| 67896A | Weatherstrip, Rear Door, NO.3 LH |
| 75071A | Moulding Sub-assy, Front Door, Outside RH |
| 75072A | Moulding Sub-assy, Front Door, Outside LH |
| 75075 | Moulding Sub-assy, Rear Door, Outside RH |
| 75076 | Moulding Sub-assy, Rear Door, Outside LH |
| 75395A | Clip, Outside Moulding, NO.1 |
| 75551 | Moulding, Roof Drip Side Finish, RH |
| 75552 | Moulding, Roof Drip Side Finish, LH |
| 75553A | Moulding, Roof Drip Side Finish, Rear RH |
| 75554A | Moulding, Roof Drip Side Finish, Rear LH |
| 75561A | Clip, Roof Drip Side Finish Moulding |
| 75601A | Moulding Sub-assy, Front Fender, RH |
| 75602A | Moulding Sub-assy, Front Fender, LH |
| 75605B | Moulding Sub-assy, Quarter Outside, RH |
| 75606B | Moulding Sub-assy, Quarter Outside, LH |
| 75707 | Moulding Sub-assy, Rear Door Window Frame, RH |
| 75708 | Moulding Sub-assy, Rear Door Window Frame, LH |
| 75710 | Moulding Assy, Front Door Belt, RH |
| 75720 | Moulding Assy, Front Door Belt, LH |
| 75730 | Moulding Assy, Rear Door Belt, RH |
| 75740 | Moulding Assy, Rear Door Belt, LH |
| 75753 | Moulding, Front Door Window Frame, Upper RH |
| 75754A | Moulding, Front Door Window Frame, Upper LH |
| 75755C | Moulding, Front Door Window Frame, Rear RH |
| 75756C | Moulding, Front Door Window Frame, Rear LH |
| 75761A | Moulding, Rear Door Window Frame, Front RH |
| 75762A | Moulding, Rear Door Window Frame, Front LH |
| 75793 | Pad, Front Door Outside Moulding, Upper |
| 75797 | Pad, Rear Door Outside Moulding, Upper |
| 75850A | Moulding Assy, Body Rocker Panel, RH |
| 75857A | Cover, Rocker Panel Moulding, RH |
| 75858A | Cover, Rocker Panel Moulding, LH |
| 75860A | Moulding Assy, Body Rocker Panel, LH |
| 75867A | Clip, Rocker Panel Moulding |
| 76924G | Retainer, Rocker Panel Moulding |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
