Toyota Lexus UX250H/200

2018-10 → 2022-07 · chassis MZAA10,MZAH1# · catalogue 537410 · United States

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

31 part groups · 4 illustrations

Illustrations

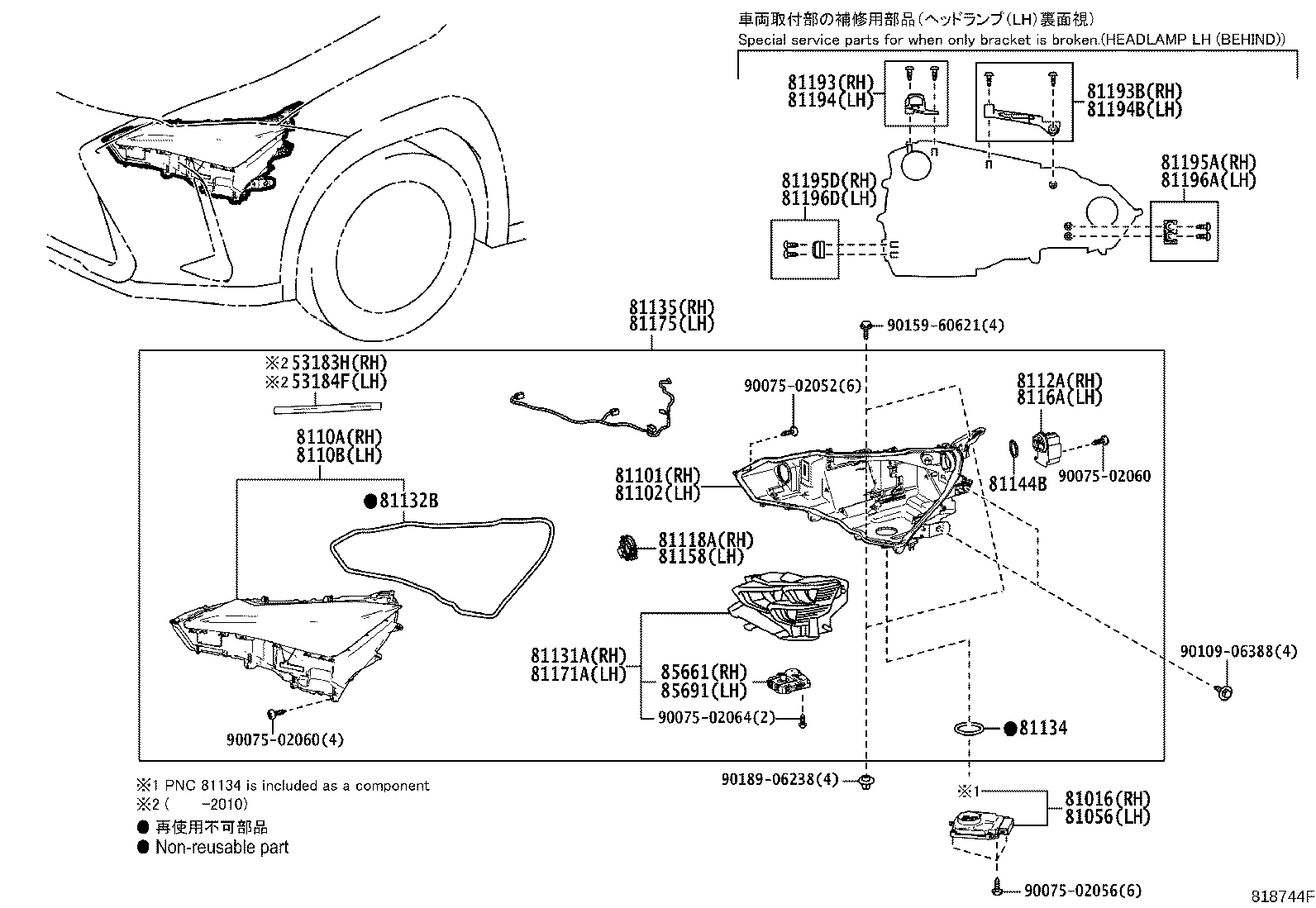

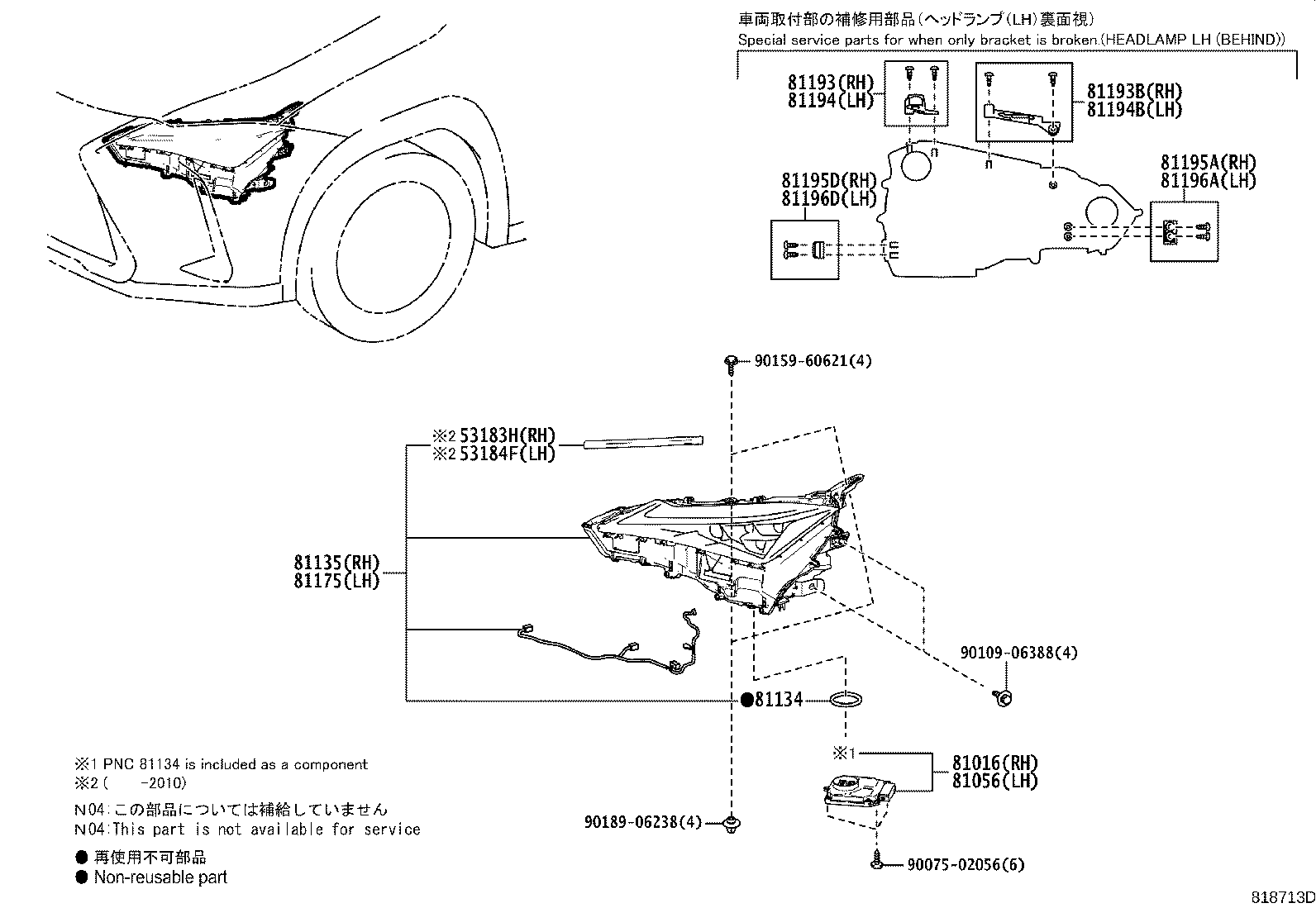

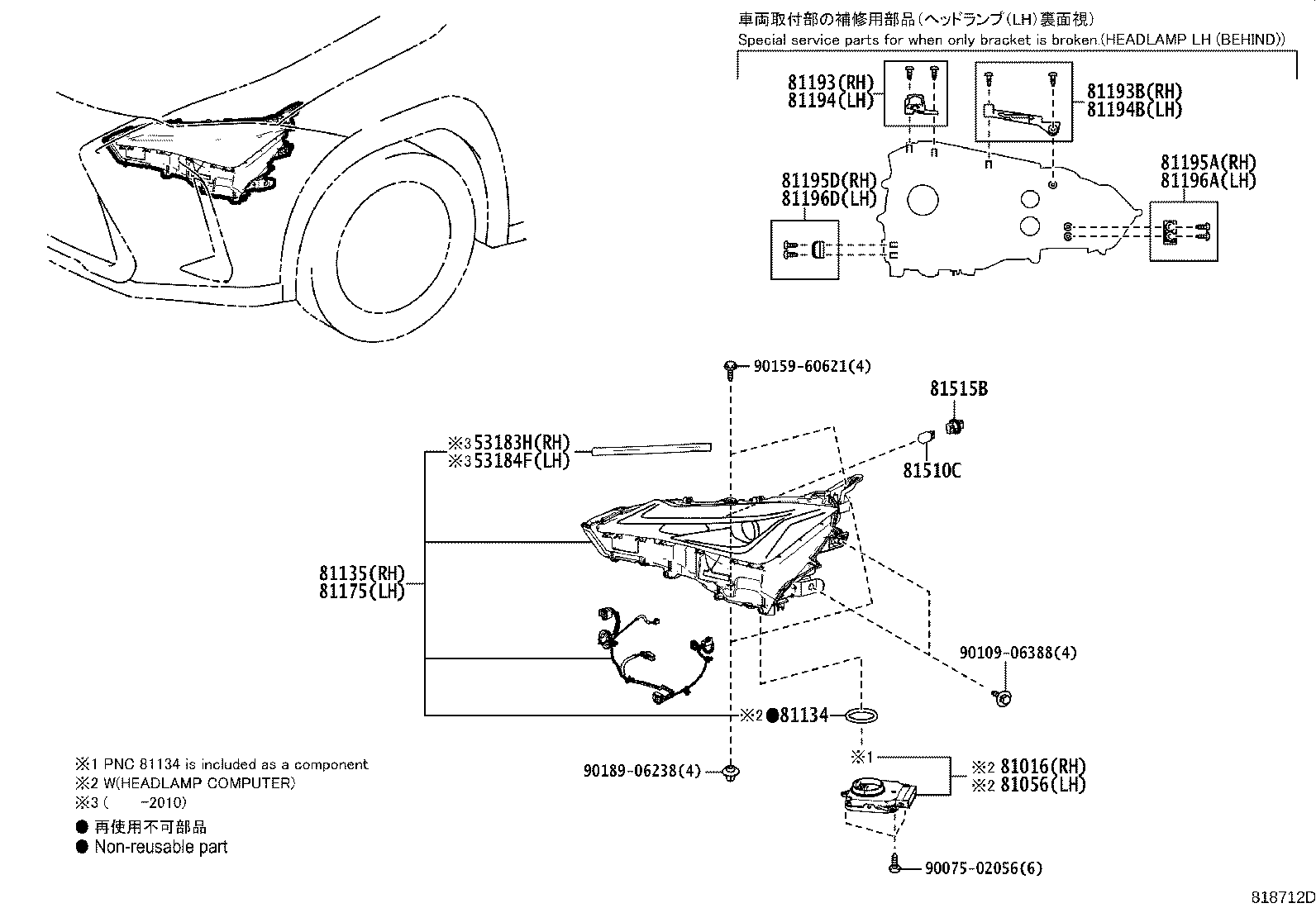

Figure 819580B 819580B 2018-10 → — Figure 818712D 818712D 2018-10 → — Figure 818744F 818744F 2018-10 → — Figure 818713D 818713D 2018-10 → —

Part groups

PNCDescription
53183H Seal, Headlamp Cover, RH
53184F Seal, Headlamp Cover, LH
81016 Computer Sub-assy, Headlamp, RH NO.1
81056 Computer Sub-assy, Headlamp, LH NO.1
81101 Housing Sub-assy, Headlamp, RH
81102 Housing Sub-assy, Headlamp, LH
8110A Lens Sub-assy, Headlamp, RH
8110B Lens Sub-assy, Headlamp, LH
81118A Bracket, Headlamp, RH
8112A Unit, Headlamp Clearance Led, NO.1 RH
81131A Unit, Headlamp, RH
81132B Gasket, Headlamp Lens
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81144B Gasket, Headlamp
81158 Bracket, Headlamp, LH
8116A Unit, Headlamp Clearance Led, NO.1 LH
81171A Unit, Headlamp, LH
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81193B Retainer, Headlamp Protector, Upper RH NO.2
81194 Retainer, Headlamp Protector, Upper LH
81194B Retainer, Headlamp Protector, Upper LH NO.2
81195A Retainer, Headlamp Protector, Lower RH
81195D Retainer, Headlamp Protector, Lower RH NO.2
81196A Retainer, Headlamp Protector, Lower LH
81196D Retainer, Headlamp Protector, Lower LH NO.2
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
85661 Motor, Headlamp Leveling, RH
85691 Motor, Headlamp Leveling, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
