Toyota Lexus UX250H/200
2018-10 → 2022-07 · chassis MZAA10,MZAH1# · catalogue 537410 · United States
Supported model
Data version 2023-09
Wiring & Clamp
114 part groups · 13 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 16364A | Wire, Cooling Fan |

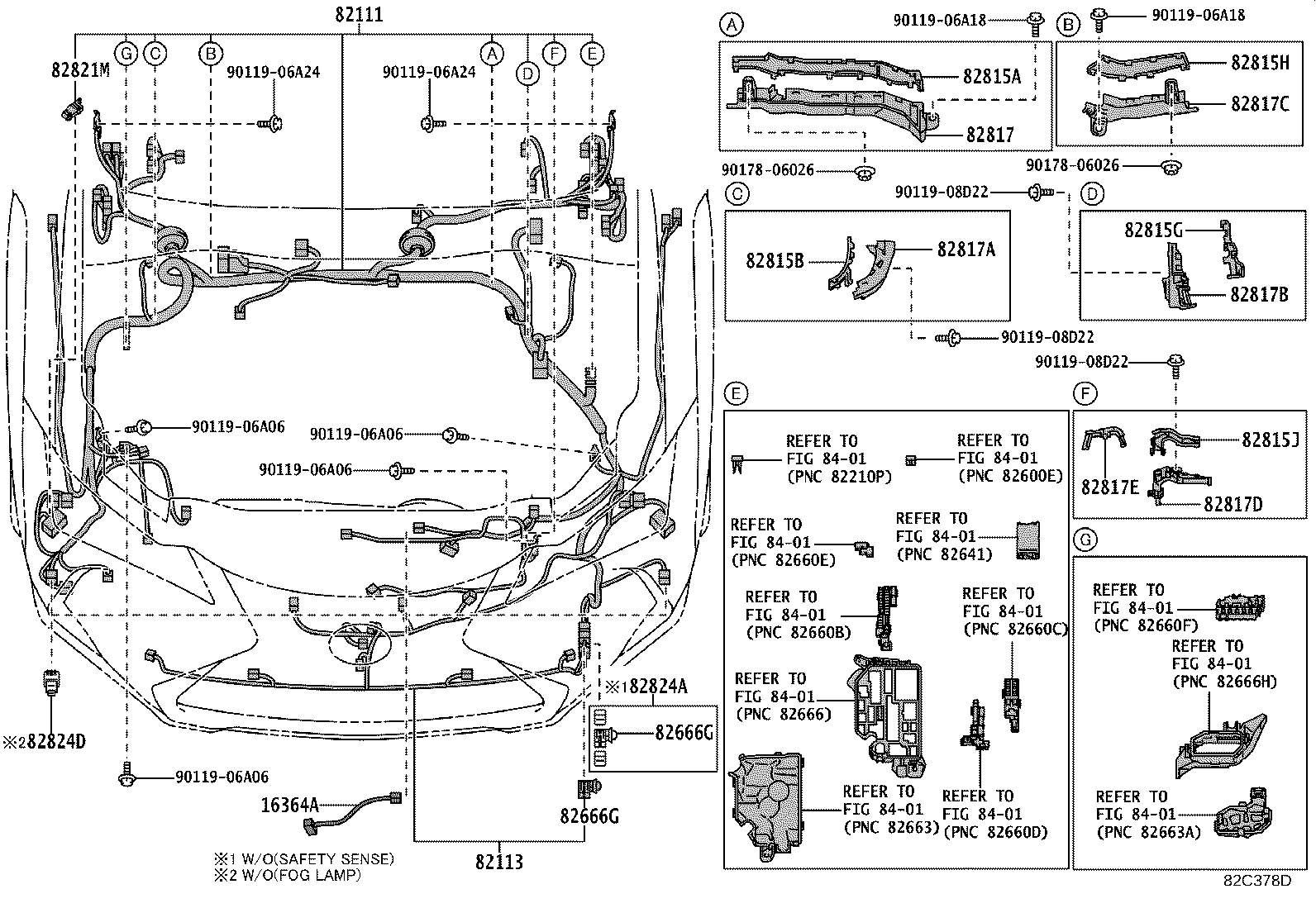

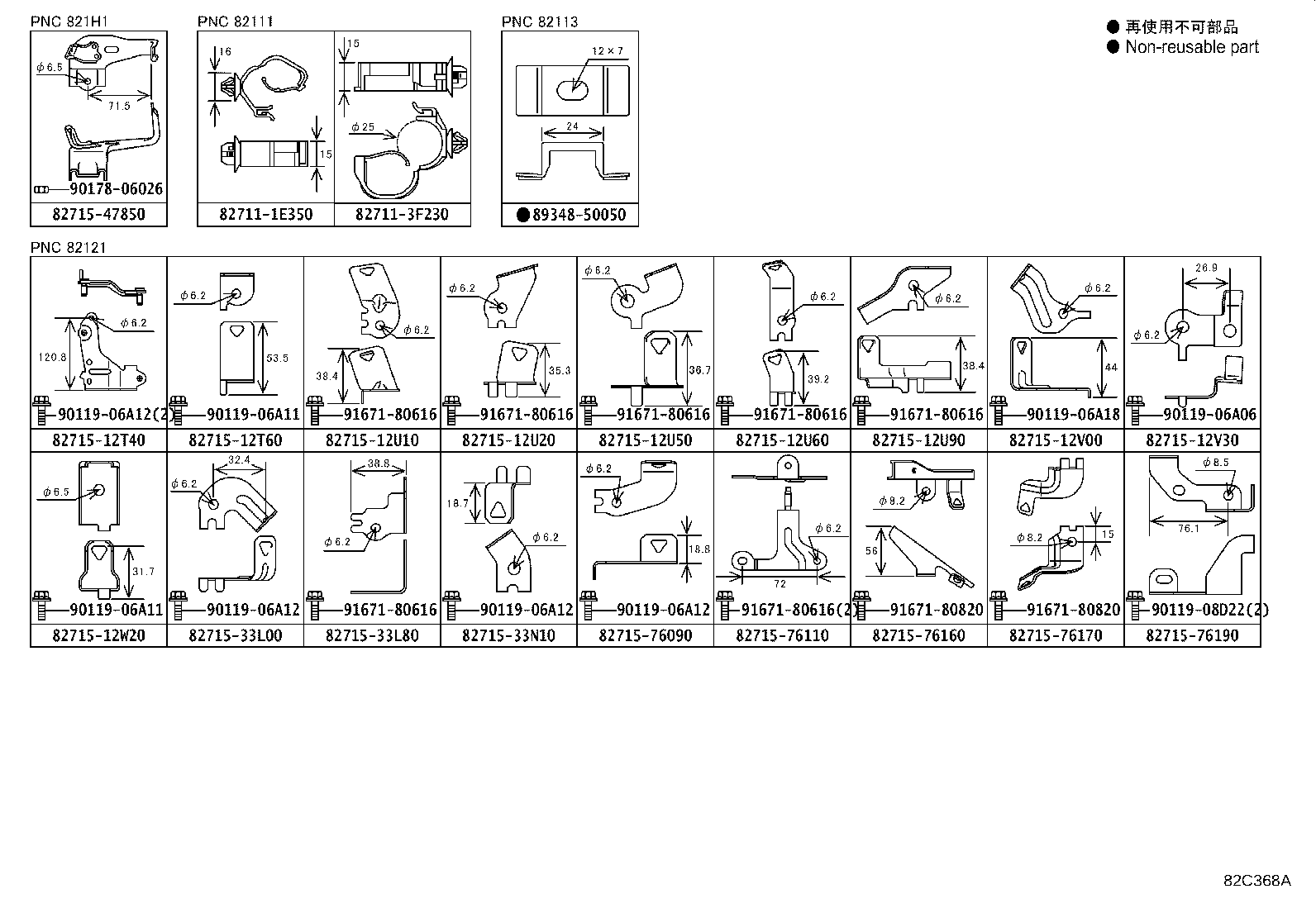

| 82111 | Wire, Engine Room Main |
| 82113 | Wire, Engine Room, NO.3 |

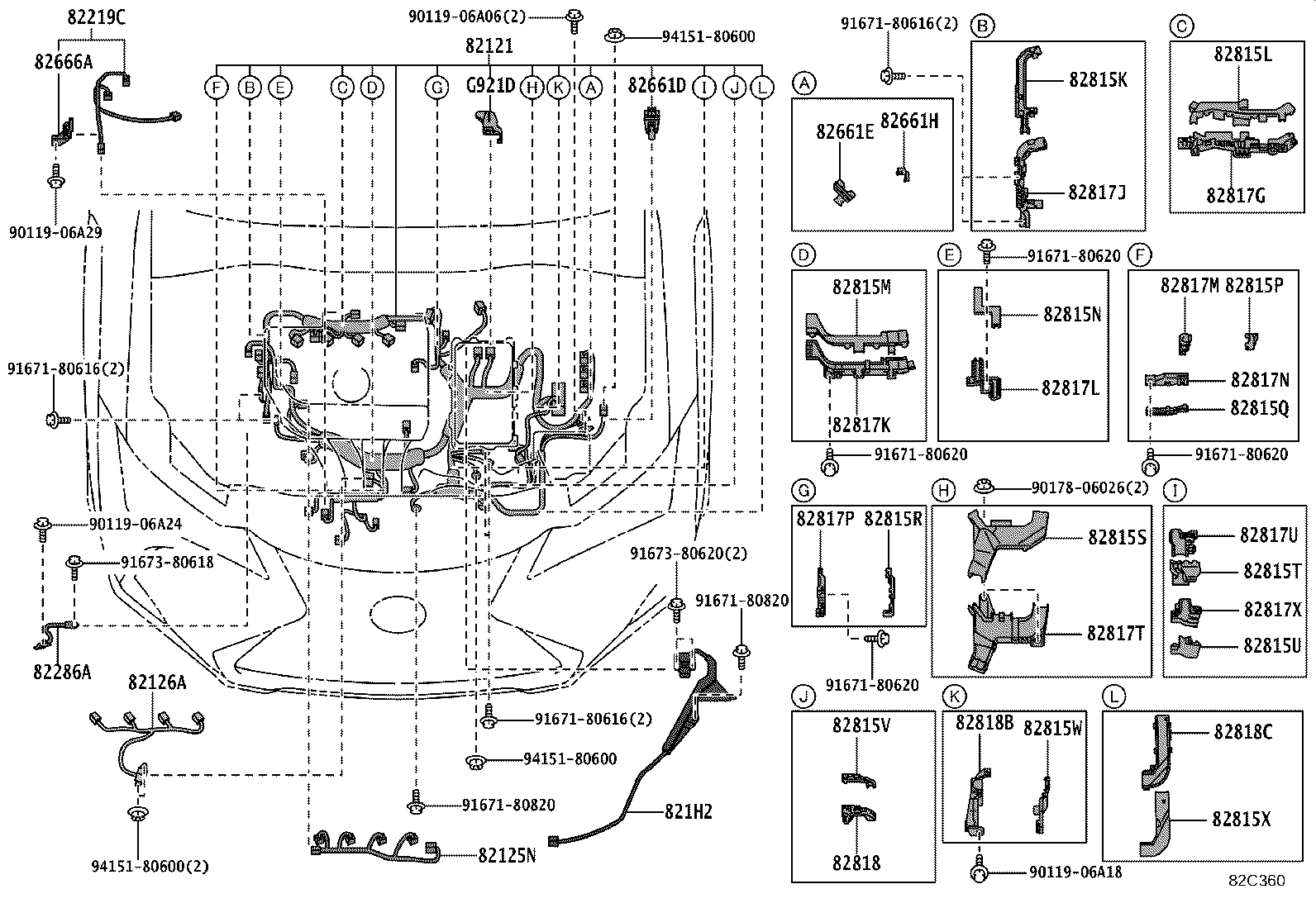

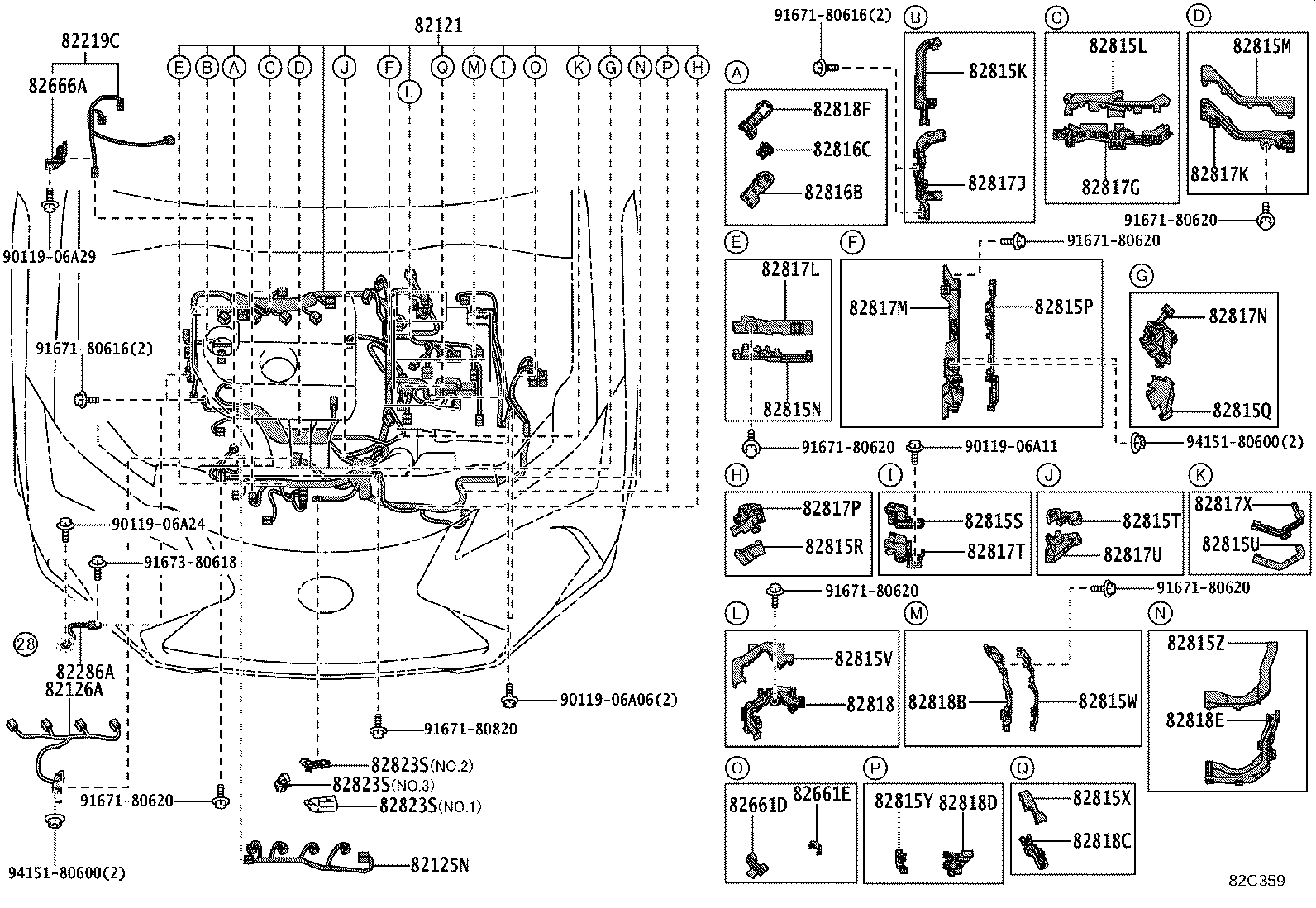

| 82121 | Wire, Engine |
| 82125N | Wire, Engine, NO.5 |
| 82126A | Wire, Engine, NO.6 |

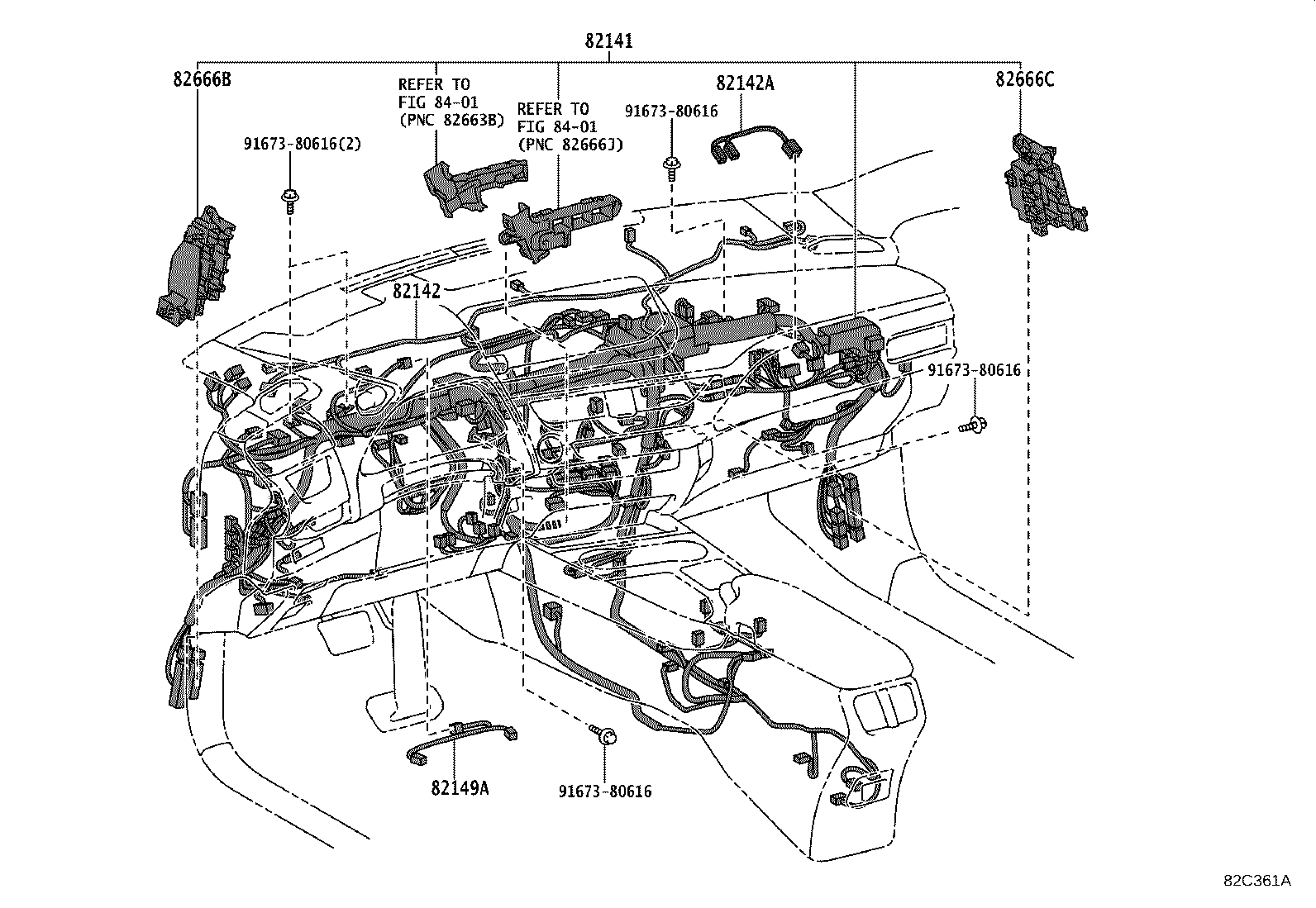

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |
| 82142A | Wire, Instrument Panel, NO.2 |
| 82149A | Wire, Instrument Panel, NO.5 |

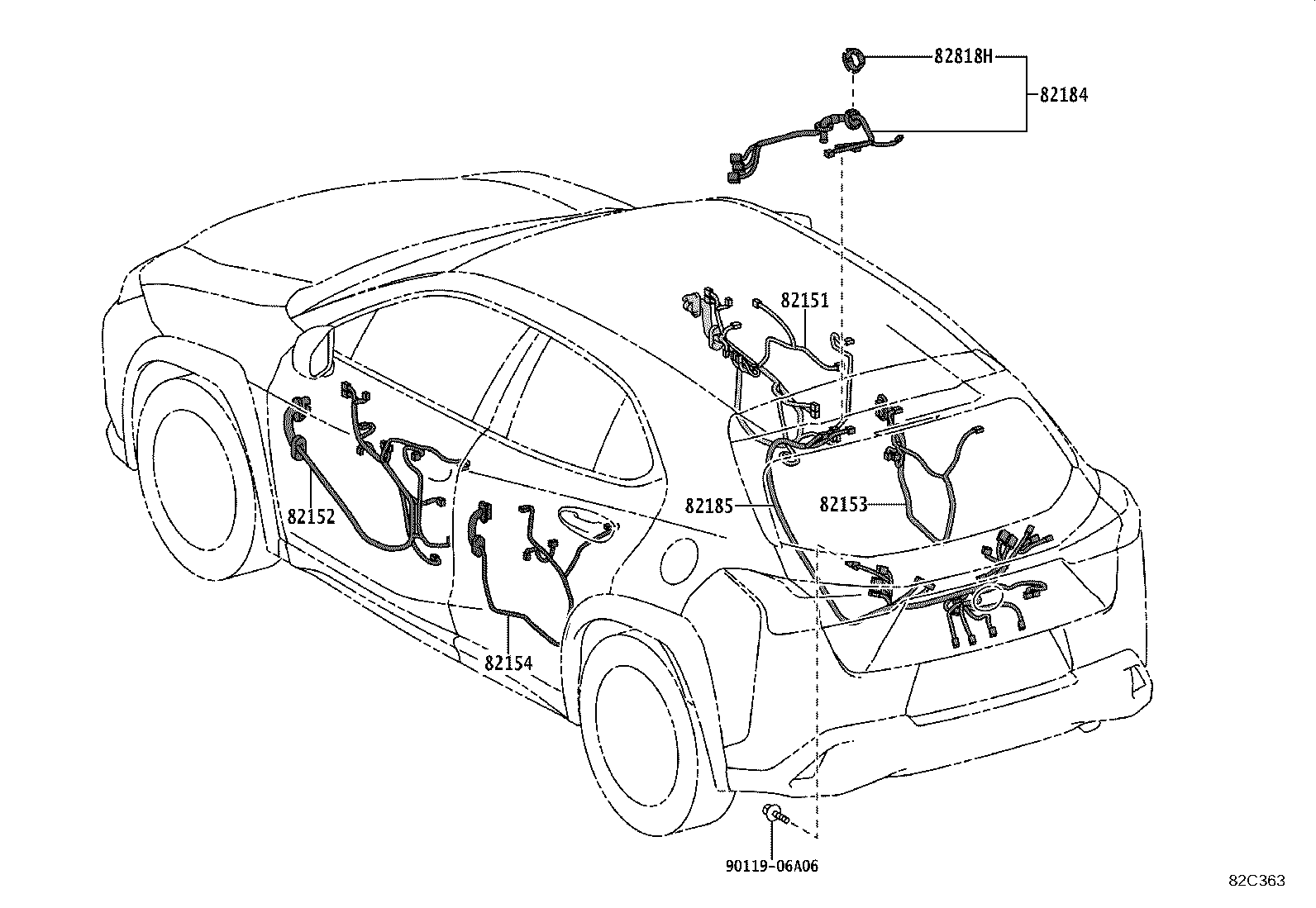

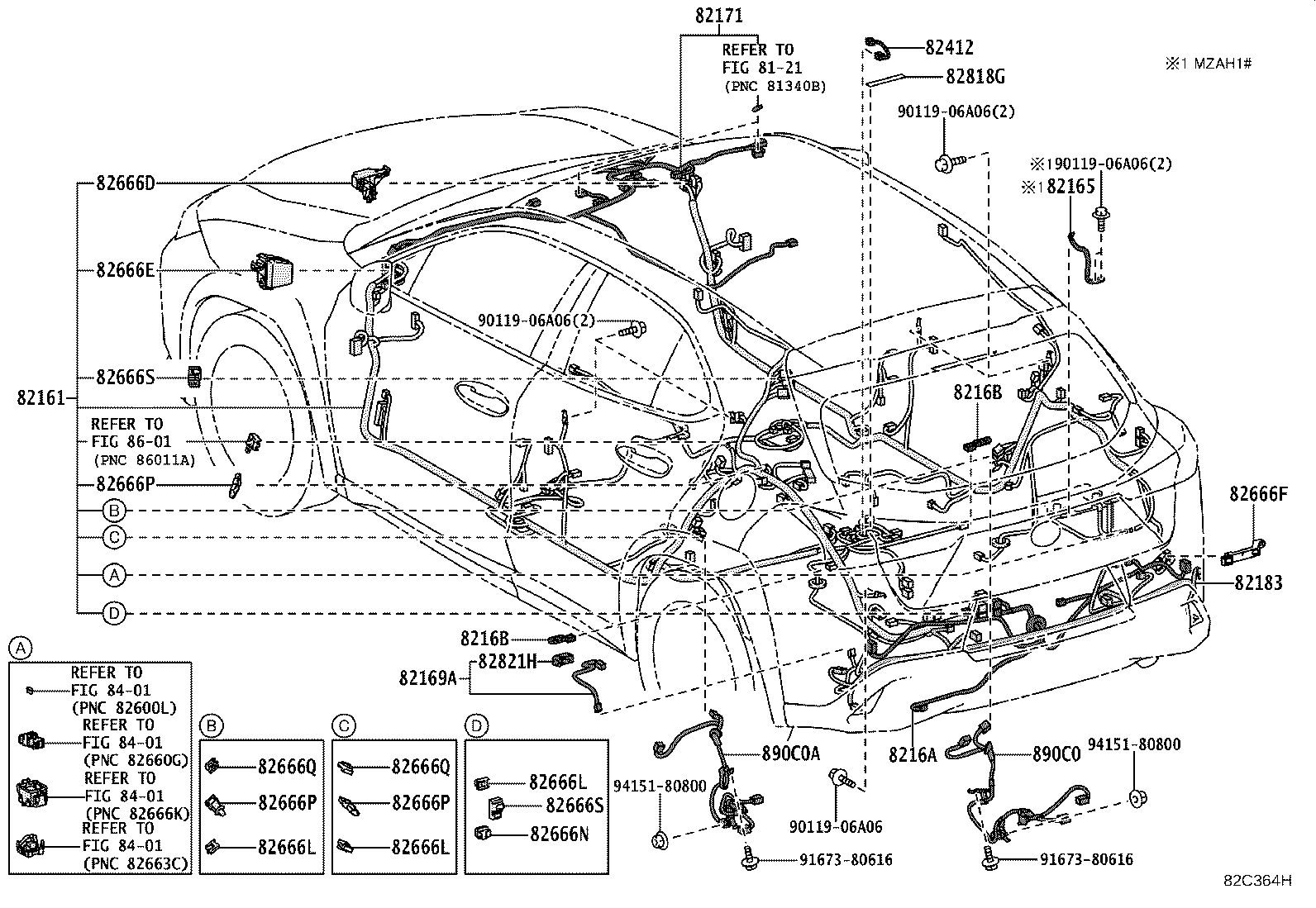

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |
| 82161 | Wire, Floor |
| 82165 | Wire, Frame, NO.2 |
| 82169A | Wire, Floor, NO.6 |
| 8216A | Wire, Floor NO.7 |
| 8216B | Wire, Floor NO.8 |
| 82171 | Wire, Roof, NO.1 |
| 82183 | Wire, Luggage Room, NO.3 |
| 82184 | Wire, Back Door, NO.1 |
| 82185 | Wire, Back Door, NO.2 |

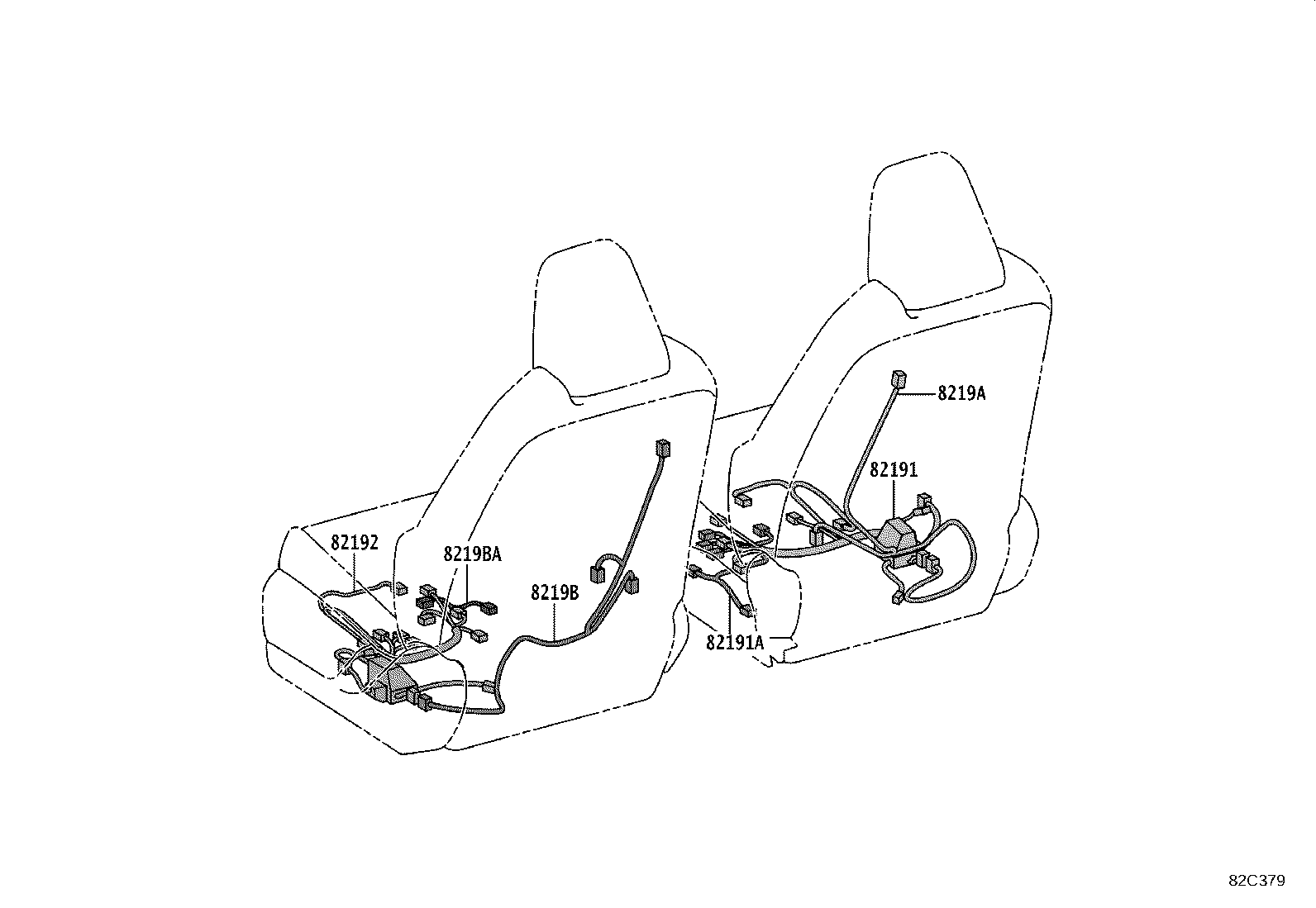

| 82191 | Wire, Front Seat, RH |
| 82191A | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 8219A | Wire, Front Seat, RH NO.2 |
| 8219B | Wire, Front Seat, LH NO.2 |
| 8219BA | Wire, Front Seat, LH NO.3 |

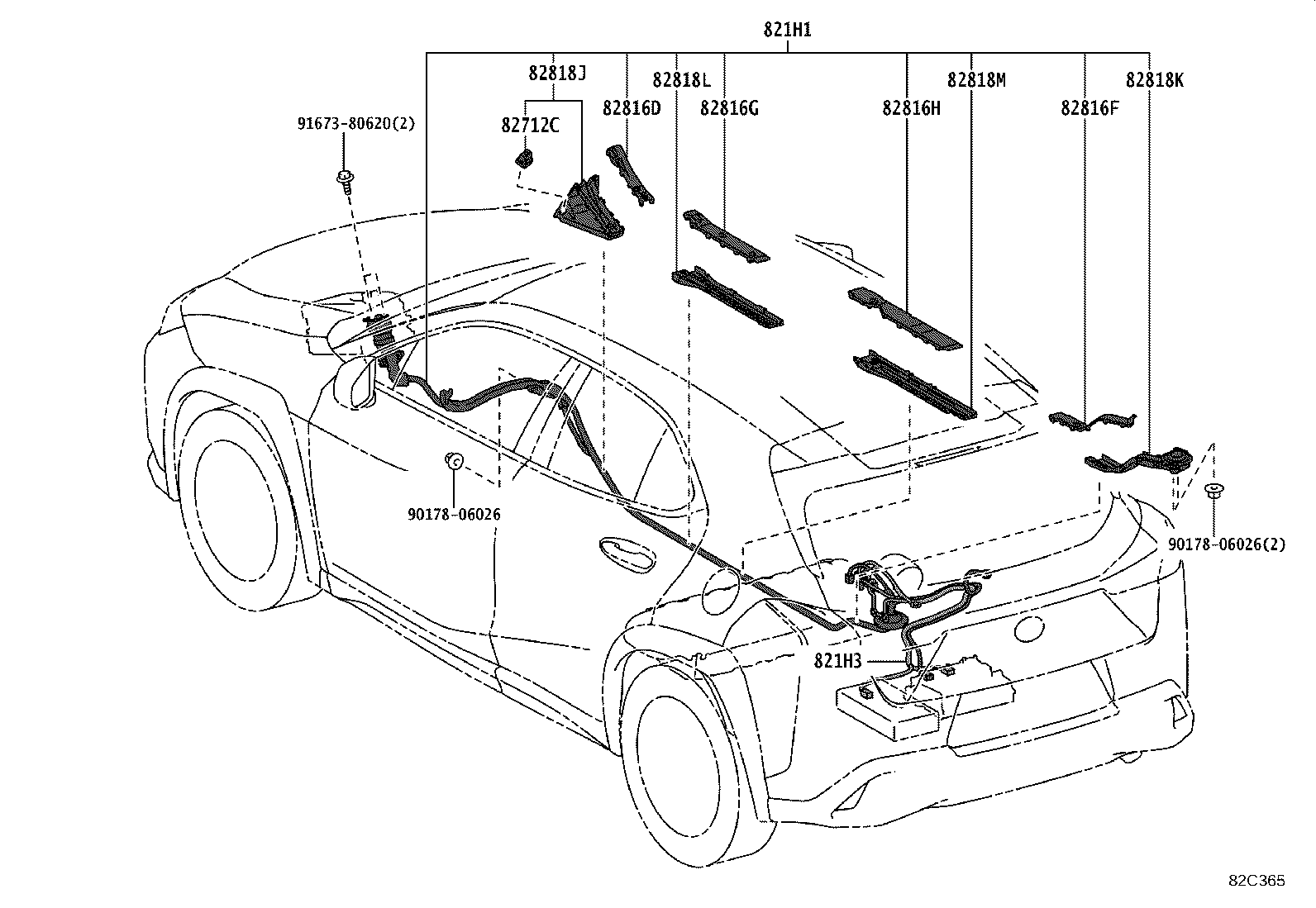

| 821H1 | Wire, Floor Under |
| 821H2 | Wire, HV Air Conditioner |
| 821H3 | Wire, HV Battery Pack |
| 82219C | Wire, Sensor |
| 82286A | Wire, Earth, NO.2 |
| 82412 | Wire, Fuel Gage |
| 82661D | Cover, Relay Block, Side NO.1 |
| 82661E | Cover, Relay Block, Side NO.2 |
| 82661H | Cover, Relay Block |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666G | Holder, Connector NO.8 |
| 82666L | Holder, Connector NO.9 |
| 82666N | Holder, Connector NO.10 |
| 82666P | Holder, Connector NO.11 |
| 82666Q | Holder, Connector NO.12 |
| 82666S | Holder, Connector NO.13 |
| 82712C | Support, Wiring Harness, NO.1 |
| 82815A | Cover, Wiring Harness Protector |
| 82815B | Cover, Wiring Harness Protector |
| 82815G | Cover, Wiring Harness Protector NO.5 |
| 82815H | Cover, Wiring Harness Protector NO.6 |
| 82815J | Cover, Wiring Harness Protector, NO.7 |
| 82815K | Cover, Wiring Harness Protector, NO.8 |
| 82815L | Cover, Wiring Harness Protector, NO.9 |
| 82815M | Cover, Wiring Harness Protector, NO.10 |
| 82815N | Cover, Wiring Harness Protector, NO.11 |
| 82815P | Cover, Wiring Harness Protector, NO.12 |
| 82815Q | Cover, Wiring Harness Protector, NO.13 |
| 82815R | Cover, Wiring Harness Protector, NO.14 |
| 82815S | Cover, Wiring Harness Protector, NO.15 |
| 82815T | Cover, Wiring Harness Protector, NO.16 |
| 82815U | Cover, Wiring Harness Protector, NO.17 |
| 82815V | Cover, Wiring Harness Protector, NO.1 |
| 82815W | Cover, Wiring Harness Protector, NO.2 |
| 82815X | Cover, Wiring Harness Protector, NO.3 |
| 82815Y | Cover, Wiring Harness Protector, NO.4 |
| 82815Z | Cover, Wiring Harness Protector, NO.18 |
| 82816B | Cover, Wiring Harness Protector, NO.1 |
| 82816C | Cover, Wiring Harness Protector, NO.2 |
| 82816D | Cover, Wiring Harness Protector, NO.3 |
| 82816F | Cover, Wiring Harness Protector, NO.4 |
| 82816G | Cover, Wiring Harness Protector, NO.5 |
| 82816H | Cover, Wiring Harness Protector, NO.6 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82817L | Protector, Wiring Harness, NO.11 |
| 82817M | Protector, Wiring Harness, NO.12 |
| 82817N | Protector, Wiring Harness, NO.13 |
| 82817P | Protector, Wiring Harness, NO.14 |
| 82817T | Protector, Wiring Harness, NO.15 |
| 82817U | Protector, Wiring Harness, NO.16 |
| 82817X | Protector, Wiring Harness, NO.17 |
| 82818 | Protector, Wiring Harness, NO.2 |
| 82818B | Protector, Wiring Harness, NO.3 |
| 82818C | Protector, Wiring Harness, NO.4 |
| 82818D | Protector, Wiring Harness, NO.5 |
| 82818E | Protector, Wiring Harness, NO.6 |
| 82818F | Protector, Wiring Harness, NO.7 |
| 82818G | Protector, Wiring Harness, NO.8 |
| 82818H | Protector, Wiring Harness, NO.9 |
| 82818J | Protector, Wiring Harness, NO.10 |
| 82818K | Protector, Wiring Harness, NO.11 |
| 82818L | Protector, Wiring Harness, NO.12 |
| 82818M | Protector, Wiring Harness, NO.13 |
| 82821H | Cover, Connector |
| 82821M | Cover, Connector |
| 82823S | Cap, Starter Terminal |

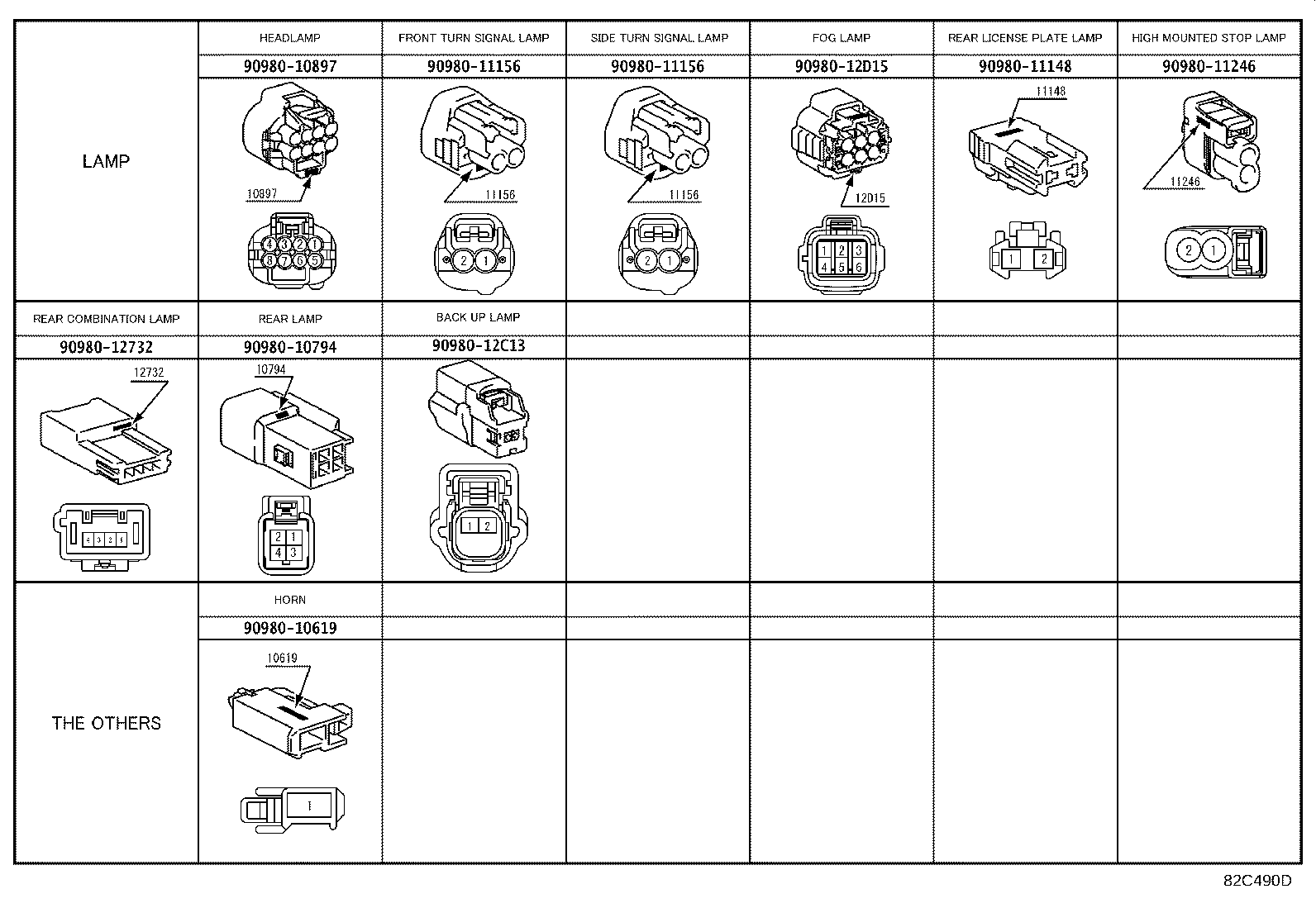

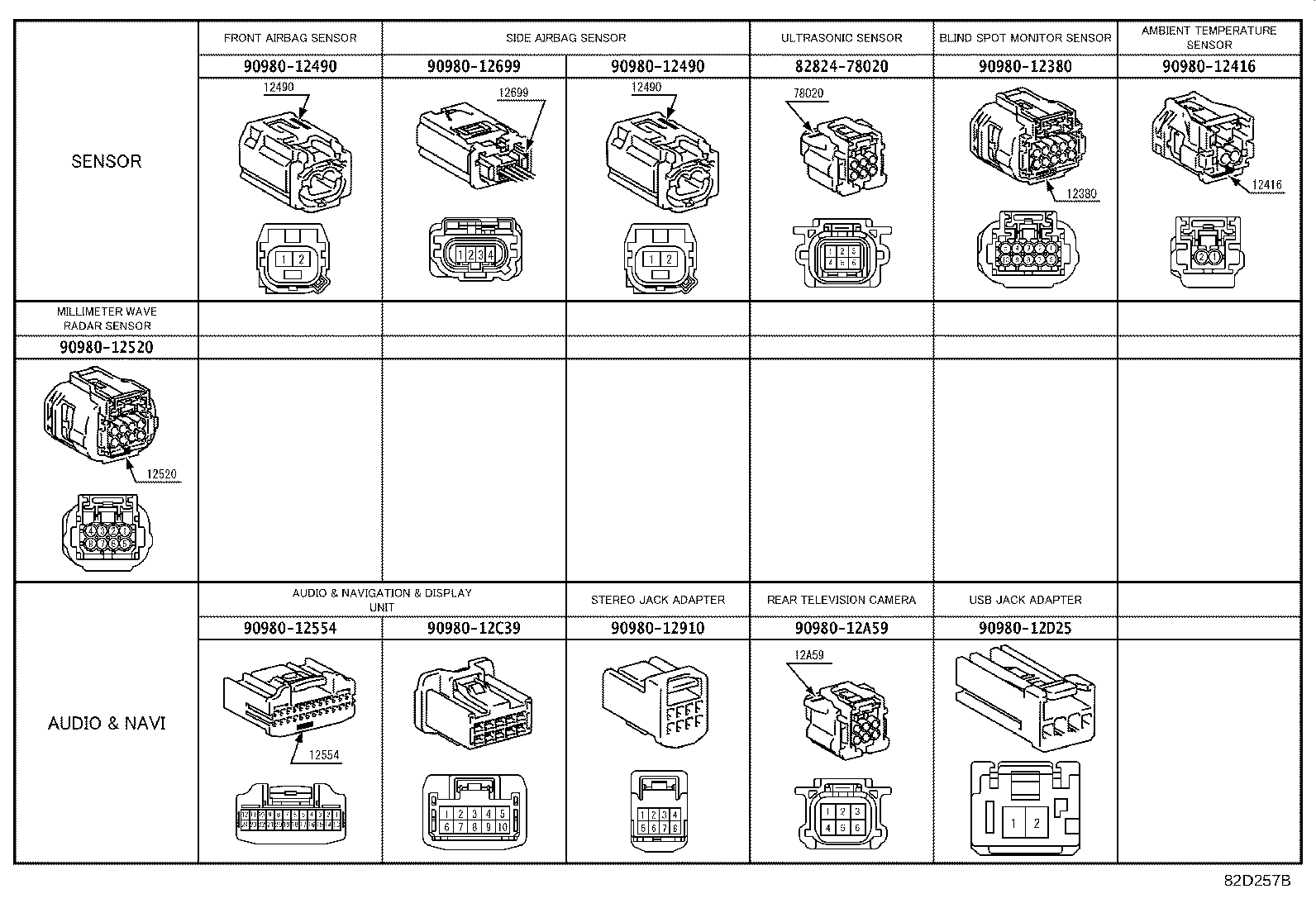

| 82824A | Connector, Wiring Harness |
| 82824D | Connector, Wiring Harness |
| 890C0 | Wire Assy, Parking Brake, NO.1 |
| 890C0A | Wire Assy, Parking Brake, NO.2 |
| G921D | Protector, Inverter Connector Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
