Hev Inverter

14 part groups · 3 illustrations

Illustrations

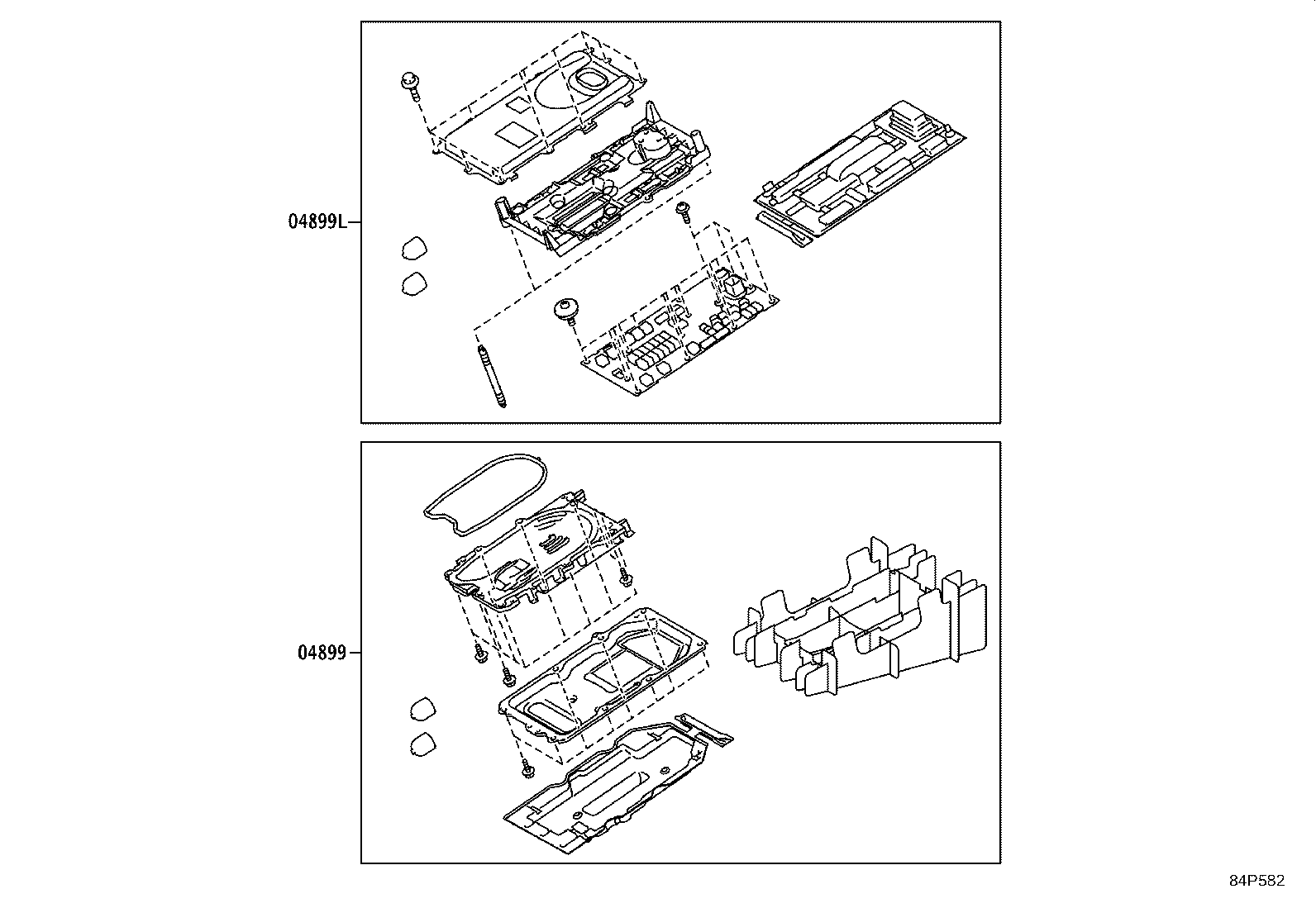

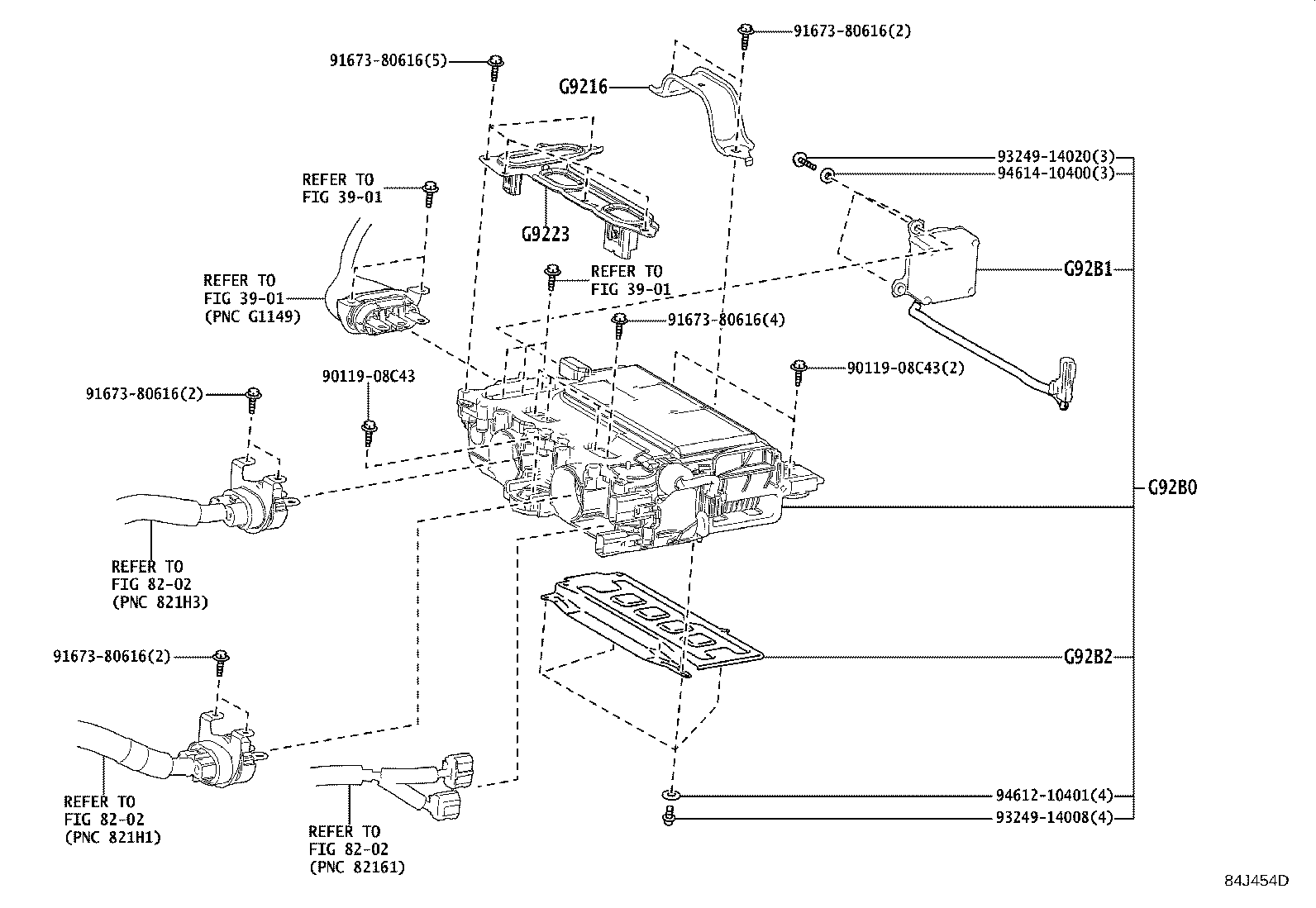

Figure 84J453B 84J453B 2018-11 → — Figure 84J454D 84J454D 2018-11 → — Figure 84P582 84P582 2018-11 → —

Part groups

PNCDescription
04899 Converter Kit, HV
04899L Computer Kit, Motor Generator Control
G9200 Inverter Assy, W/Converter
G9214 Bracket, Inverter, NO.1
G9215 Bracket, Inverter, NO.2
G9216 Bracket, Inverter, NO.3
G921E Protector, Inverter
G921F Protector, Inverter, NO.2
G9221 Cover, Inverter
G9223 Cover, Inverter Terminal
G92B0 Inverter Assy, Hybrid Motor Control, Rear
G92B1 Fan, HV Inverter Cooling
G92B2 Cover, HV Inverter Cooling
G92D0 Protector Assy, Hybrid Inverter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
