Toyota Lexus UX250H/200

2018-10 → 2022-07 · chassis MZAA10,MZAH1# · catalogue 537410 · United States

Supported model Data version 2023-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

3 part groups · 2 illustrations

Illustrations

Figure 87H405A

87H405A 2018-10 → —

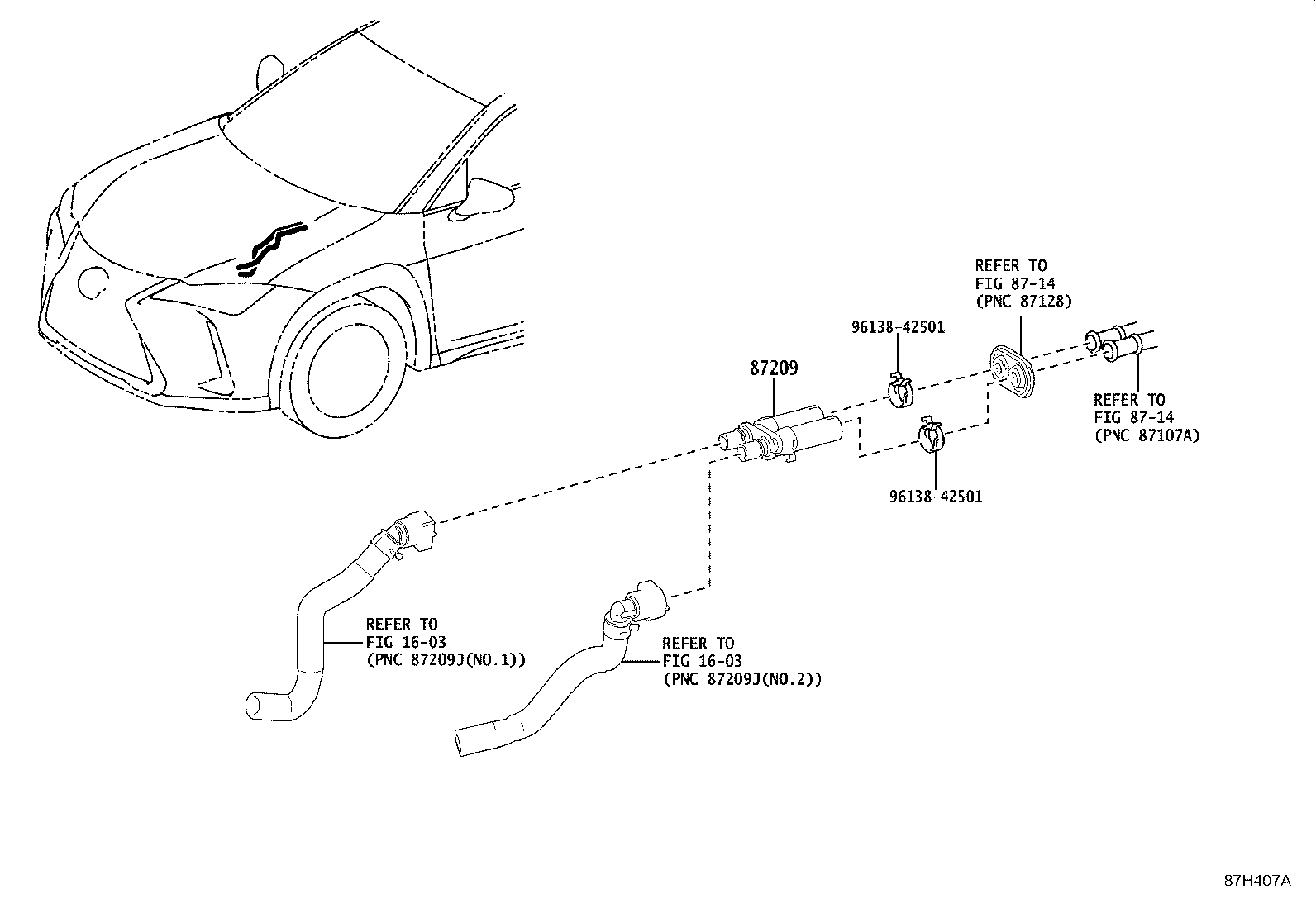

Figure 87H407A

87H407A 2018-11 → —

Part groups

PNC	Description
87209	Hose Sub-assy, Water
87245	Hose, Heater Water, Inlet
87246	Hose, Heater Water, Outlet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
