Toyota Lexus UX250H/200

2018-10 → 2022-07 · chassis MZAA10,MZAH1# · catalogue 537410 · United States

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

16 part groups · 2 illustrations

Illustrations

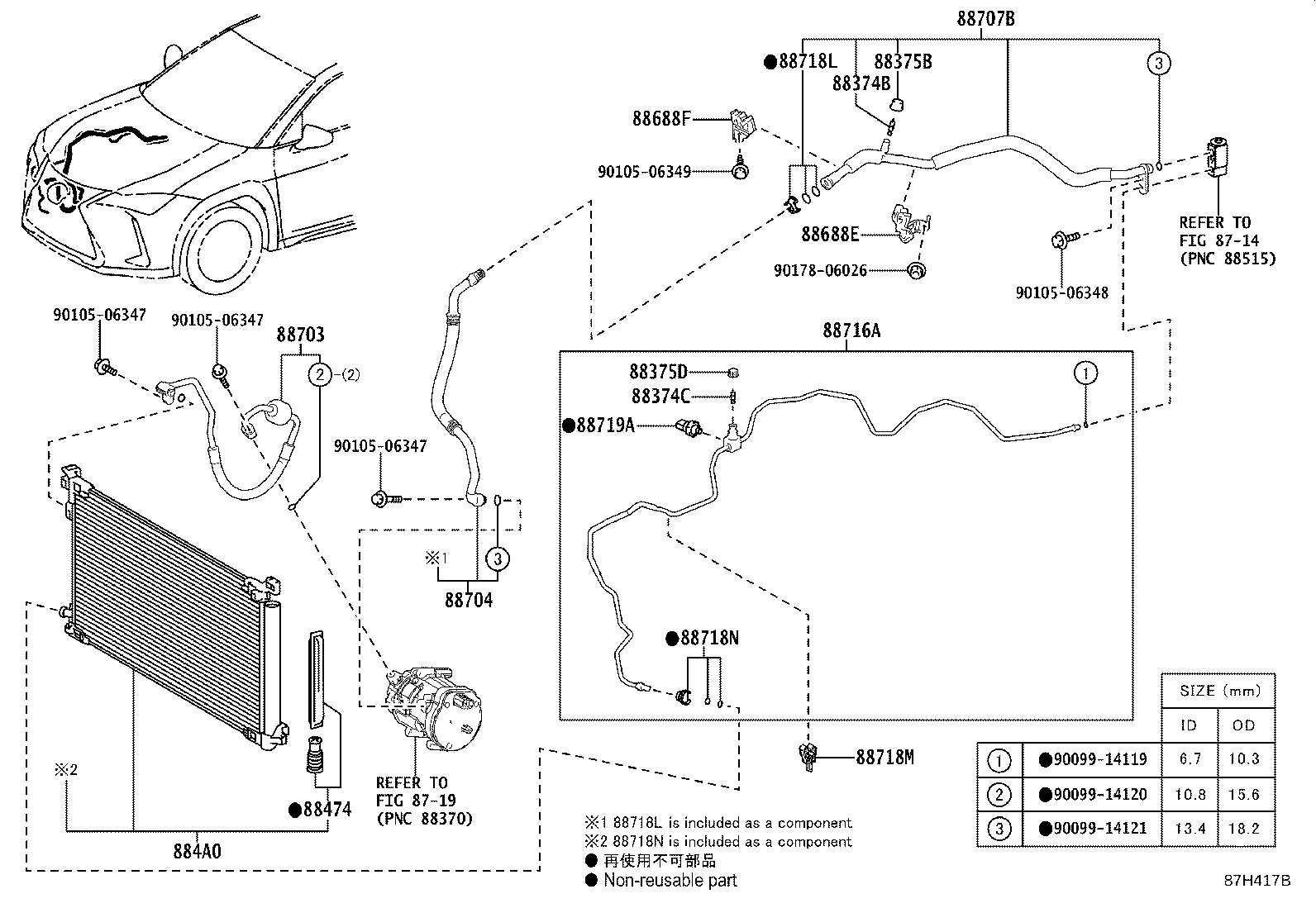

Figure 87H414F 87H414F 2018-10 → — Figure 87H417B 87H417B 2018-11 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88474 Dryer, Cooler
884A0 Condenser Assy, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88707B Tube Sub-assy, Suction, B
88716A Pipe, Cooler Refrigerant Liquid, A
88718L Clamp, Piping
88718M Clamp, Piping
88718N Clamp, Piping
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
