Toyota Lexus UX300#/250H

2022-07 → present · chassis KMA10,MZAH1# · catalogue 537420 · United States

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

15 part groups · 2 illustrations

Illustrations

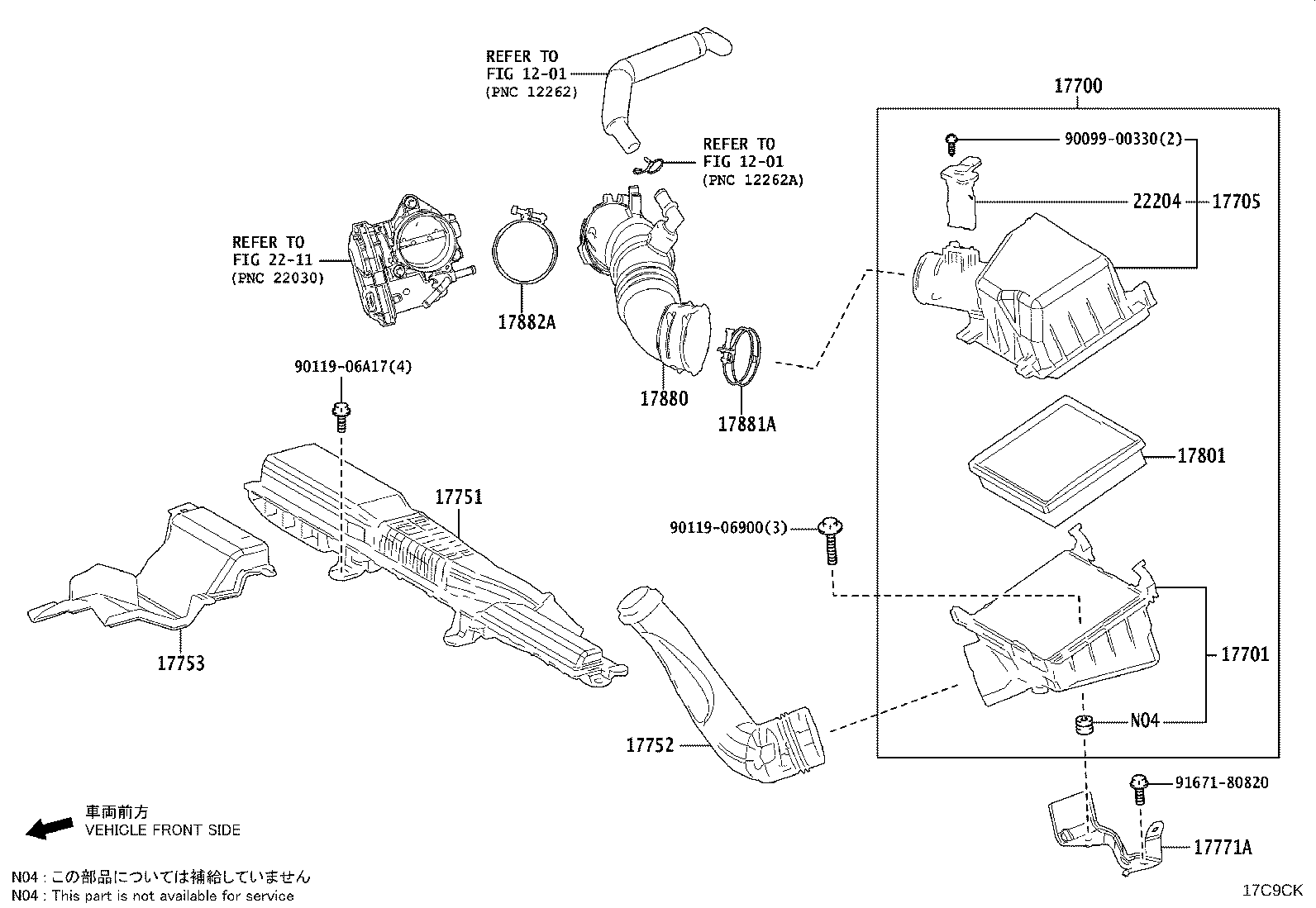

Figure 17C282 17C282 2022-07 → — Figure 17C9CK 17C9CK 2024-01 → —

Part groups

PNCDescription
12229A Pipe, Ventilation
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17753 Inlet, Air Cleaner, NO.3
17771A Bracket, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17812 Filter, Air Cleaner, NO.2
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
