Toyota Lexus UX300#/250H

2022-07 → present · chassis KMA10,MZAH1# · catalogue 537420 · United States

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

10 part groups · 2 illustrations

Illustrations

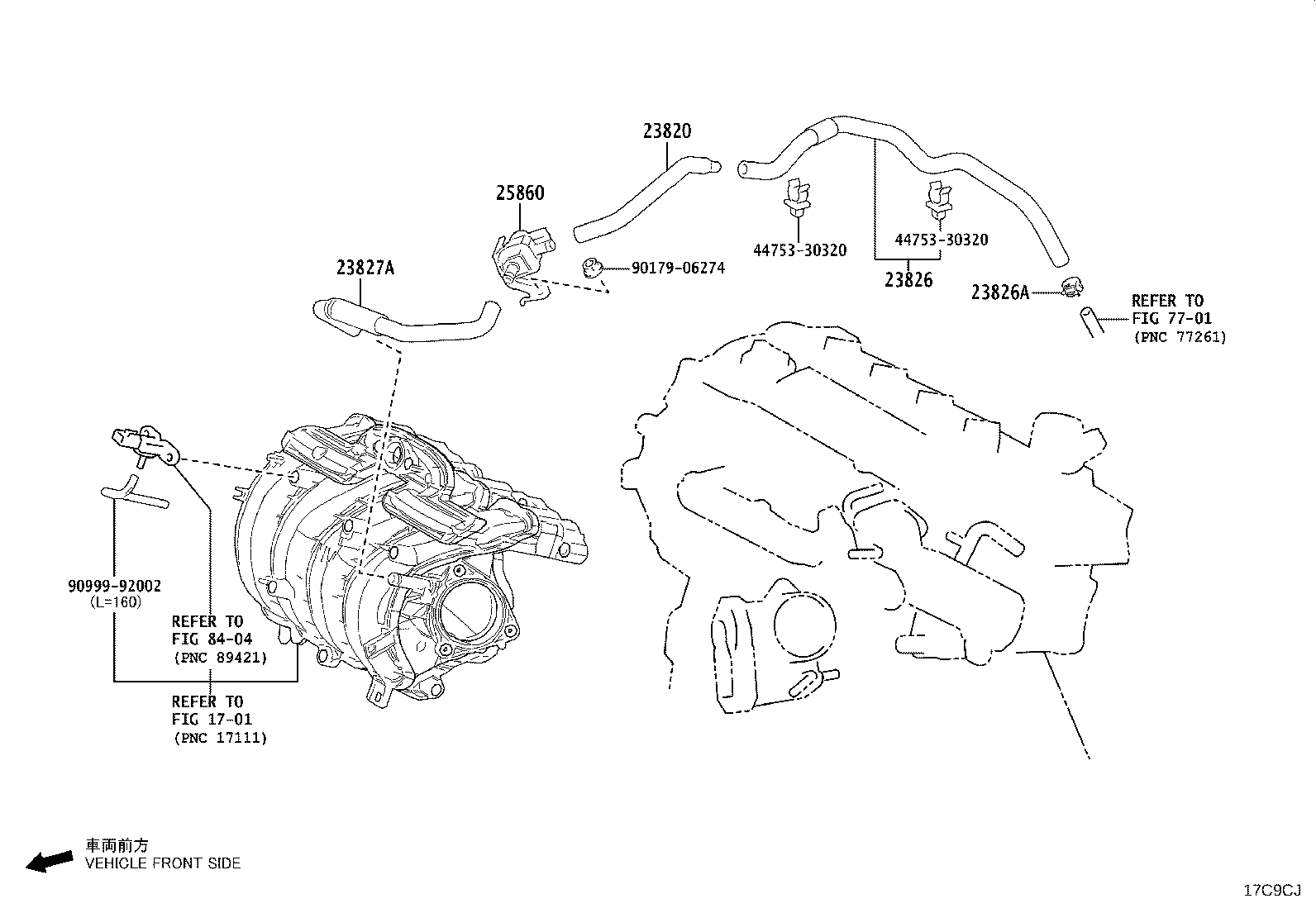

Figure 17C285 17C285 2022-07 → — Figure 17C9CJ 17C9CJ 2024-01 → —

Part groups

PNCDescription
23818 Pipe, Fuel Vapor Feed
23819 Pipe, Fuel Vapor Feed, NO.2
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827D Hose, Fuel Vapor Feed, NO.2
23827F Hose, Fuel Vapor Feed, NO.3
23831 Connector, Fuel Vapor Feed, NO.1
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
