Toyota Lexus UX300#/250H

2022-07 → present · chassis KMA10,MZAH1# · catalogue 537420 · United States

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

21 part groups · 3 illustrations

Illustrations

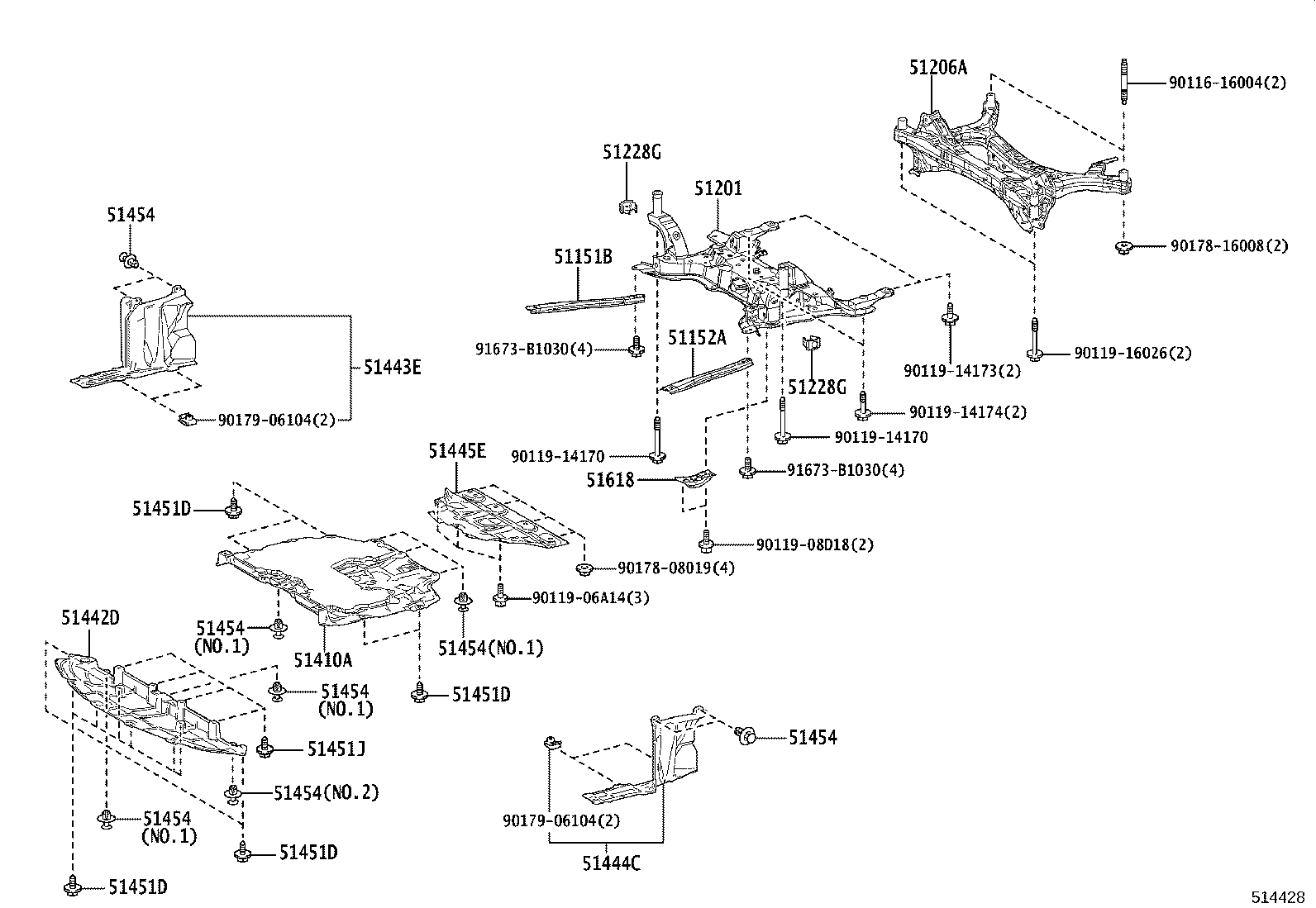

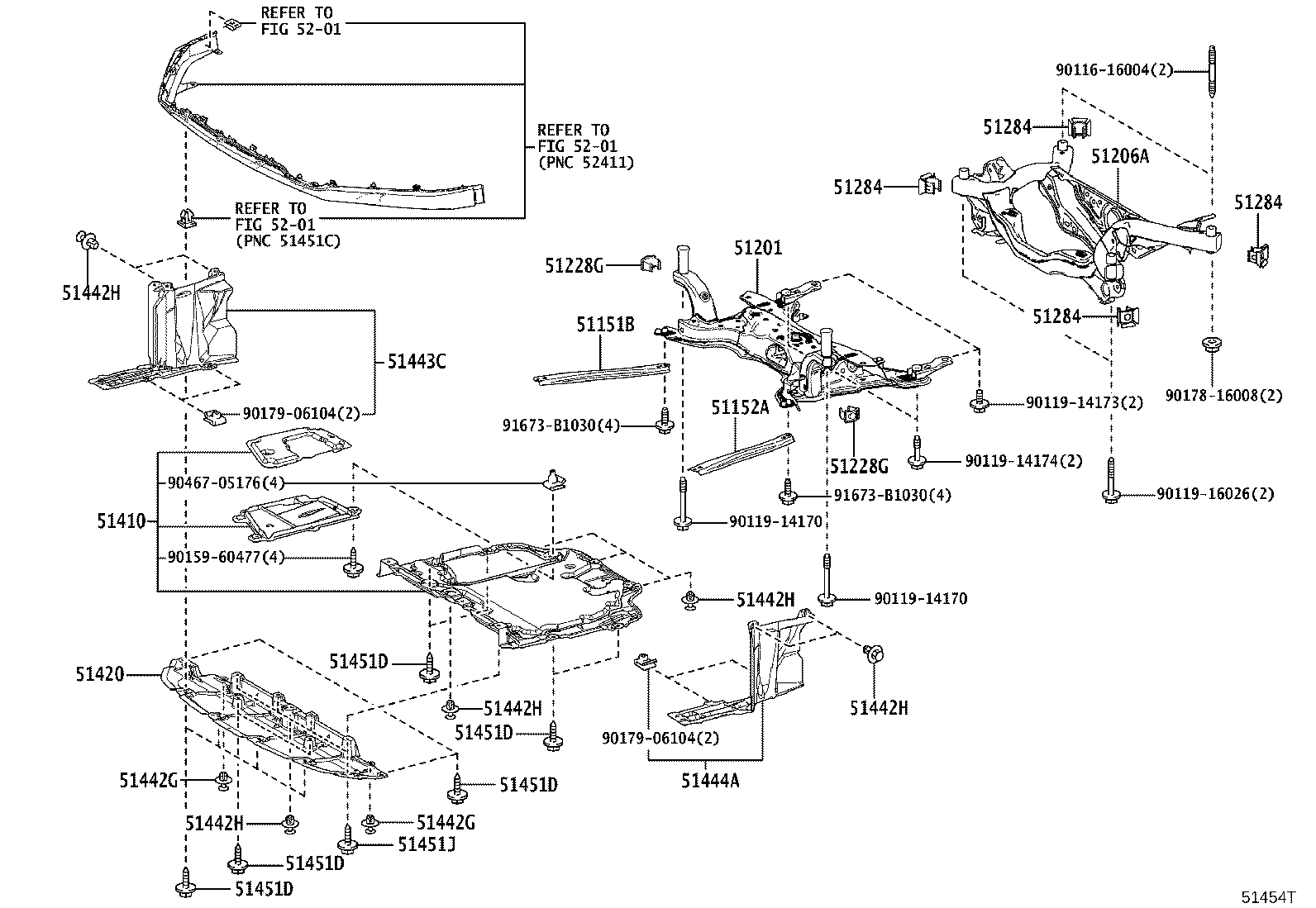

Figure 514264B 514264B 2022-07 → — Figure 514428 514428 2023-03 → — Figure 51454T 51454T 2024-01 → —

Part groups

PNCDescription
51151B Reinforcement, Side Rail, NO.1 RH
51152A Reinforcement, Side Rail, NO.1 LH
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51228G Plate, Front Suspension Member
51284 Cover, Rear Suspension Member Hole
51410 Cover Assy, Engine Under, NO.1
51410A Cover Assy, Motor Under, NO.1
51420 Cover Assy, Engine Under, NO.2
51442D Cover, Motor Under, NO.2
51442G Clip, Engine Under Cover, NO.1
51442H Clip, Engine Under Cover, NO.2
51443C Cover, Engine Under, Rear RH
51443E Cover, Motor Under, Rear RH
51444A Cover, Engine Under, Rear LH
51444C Cover, Motor Under, Rear LH
51445E Bracket, Motor Under Cover
51451D Screw, NO.1
51451J Bolt, NO.1
51454 Clip
51618 Guard, Front Differential Support, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
