Toyota Lexus UX300#/250H
2022-07 → present · chassis KMA10,MZAH1# · catalogue 537420 · United States
Supported model
Data version 2024-01

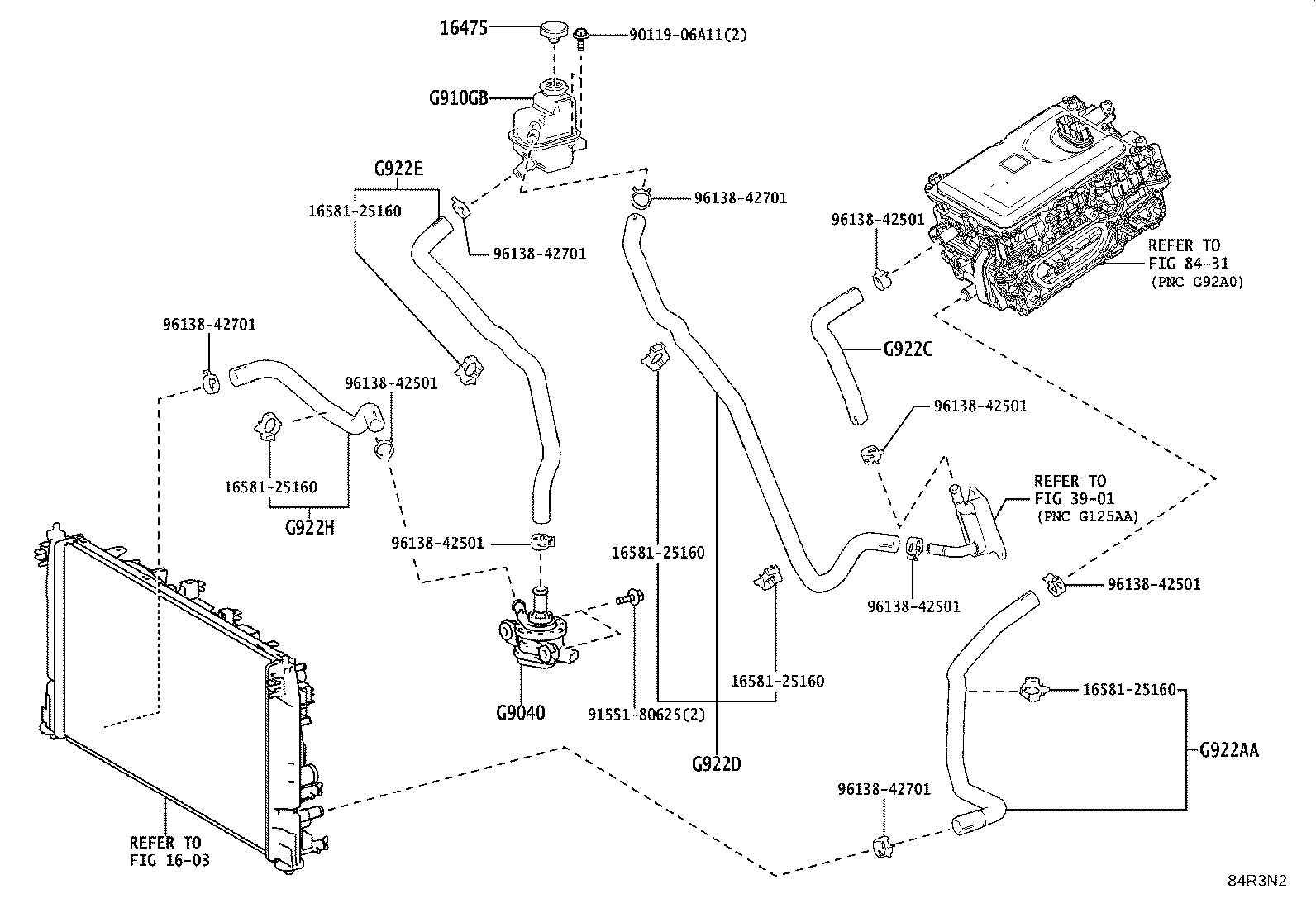

Inverter Cooling
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16475 | Cap, Reserve Tank |
| G9040 | Inverter Water Pump Assy(W/MOTOR) |
| G90A0A | Hose Assy, Inverter Cooling, NO.1 |
| G910GB | Tank Sub-assy, Inverter Reserve W/O Cap |
| G922AA | Hose, Inverter Cooling Inlet, NO.1 |
| G922C | Hose, Inverter Cooling Outlet, NO.1 |
| G922D | Hose, Inverter Cooling Outlet, NO.2 |
| G922E | Hose, Hybrid Water Pump Inlet |
| G922F | Hose, Hybrid Water Pump Outlet, NO.1 |
| G922H | Hose, Hybrid Radiator Inlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
